Corcom Product Guide
Catalog: 1654001
Issue Date: 06.2011

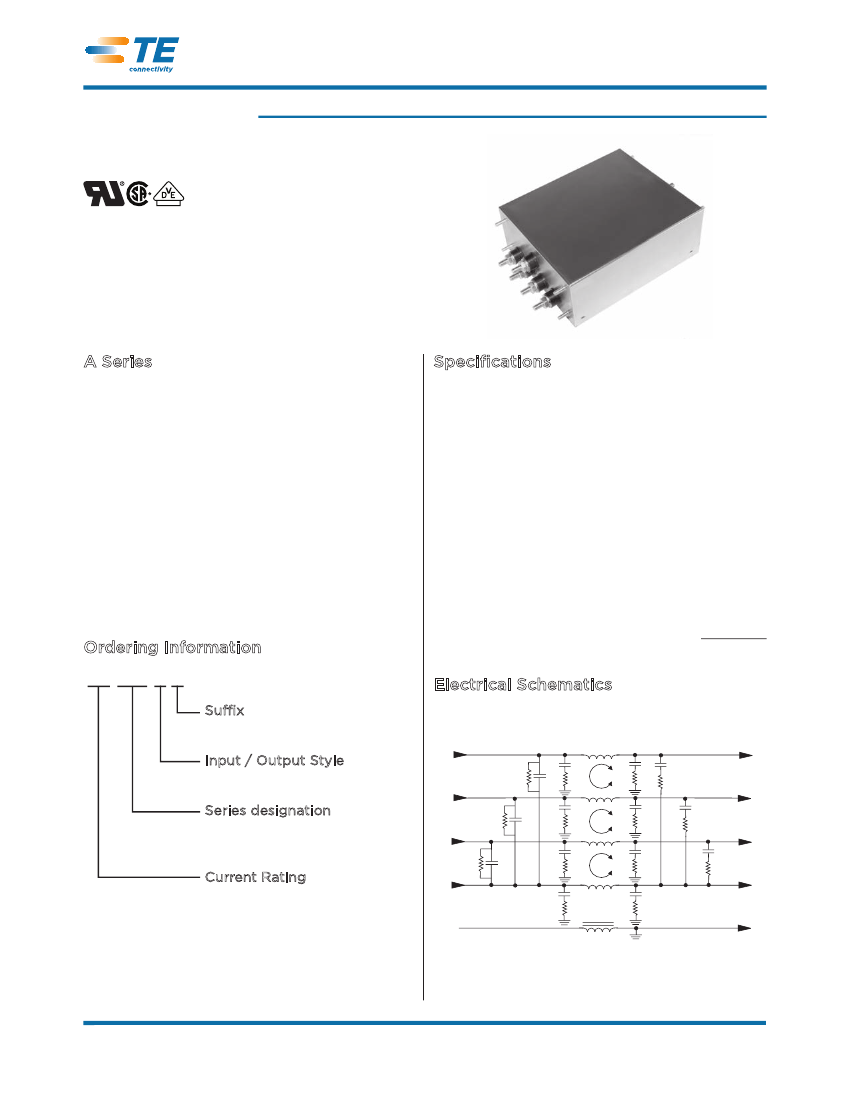

High Performance 3-phase RFI Filters for WYE Applications
A Series
UL Recognized
CSA Certified
VDE Approved
A Series
• For 3-phase, four wire, WYE Applications
• Filters each of the three lines plus the neutral and
ground line
• Both common mode and differential mode
suppression from 50kHz to 30MHz
• Effective for both balanced and unbalanced loads
• Ground choke included
• Optional end bell kits available to shield input and
output terminals
• AYP single stage for lower noise environments
• AYT dual stage provides highest performance
Specifications
Maximum leakage current, each Line to Ground:
@ 120 VAC 60 Hz:
1.4 mA
@ 250 VAC 50 Hz:
3.4 mA
Hipot rating (one minute):
Line to Ground:
Neutral to Ground:
Line to Neutral:
Rated Voltage (max):
Phase to Phase:
Phase to Neutral / Ground:
Operating Frequency:
Rated Current:
1500 VAC
1500 VAC
1450 VDC
440 VAC
250 VAC
50/60 Hz
20 to 60A
Ordering Information
45 AYT 6 C
Suffix
C – Ground Choke
Input / Output Style
6 – Threaded 1/4 – 20 bolt
Series designation
AYP – Single Stage
AYT – Dual Stage
Current Rating
20, 30, 45 or 60A
Operating Ambient Temperature Range
(at rated current Ir):
-10°C to +40°C
In an ambient temperature (Ta) higher than +40°C
the maximum operating current (Io) is calculated as
follows: Io = Ir
(85-Ta)/45
Electrical Schematics
AYP6C Models
LINE
A
B
C
N
LOAD
A
B
C
N
LINE
GND
LOAD
GND
98
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
Corcom Product Guide
Catalog: 1654001
Issue Date: 06.2011
(continued)
High Performance 3-phase RFI Filters for WYE Applications
A Series

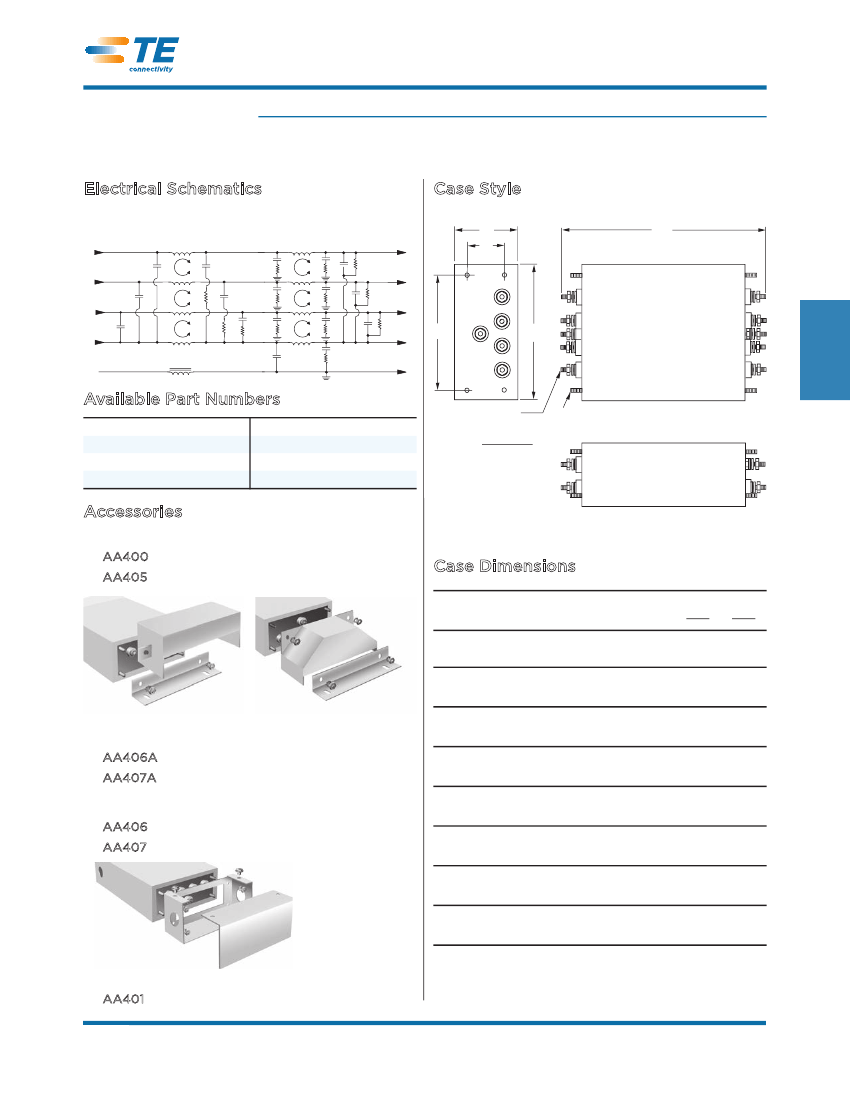

Electrical Schematics
(continued)
AYT6C Models
LINE
A
B
C
N
LINE
GND
LOAD
GND
LOAD
A
B
C
N
D
B
C
E
A
Case Style
2
Three Phase Filters
Mounting studs:
No. 8-32 (8)
Available Part Numbers
20AYP6C
30AYP6C
45AYP6C
60AYP6C
20AYT6C
30AYT6C
45AYT6C
60AYT6C
Terminals:
1/4 x 20 (10)
Torque:
56 lbf-in ± 2
6.33
N-m ±.23
Accessories
Mounting bracket kit with captive nuts:
AA400: 20A & 30A versions
AA405: 45A & 60A versions
AA406A
AA407A
Case Dimensions
Part No.
20AYP6C
A*
B
C
AA400
AA405
30AYP6C
45AYP6C
60AYP6C
20AYT6C
30AYT6C
Protective cover for use with mounting bracket:
(
For Europe only. Limited availability in other regions)
AA406A: 20A & 30A versions
AA407A: 45A & 60A versions
End bell kit (bracket and cover) with captive nuts:
AA406: 20A & 30A versions
AA407: 45A & 60A versions
AA406 / AA407
Kits includes both
bracket and cover
45AYT6C
60AYT6C
D
E
Additional captive nuts:
AA401: 10 nuts
99
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
Corcom Product Guide
Catalog: 1654001
Issue Date: 06.2011
(continued)
High Performance 3-phase RFI Filters for WYE Applications
A Series

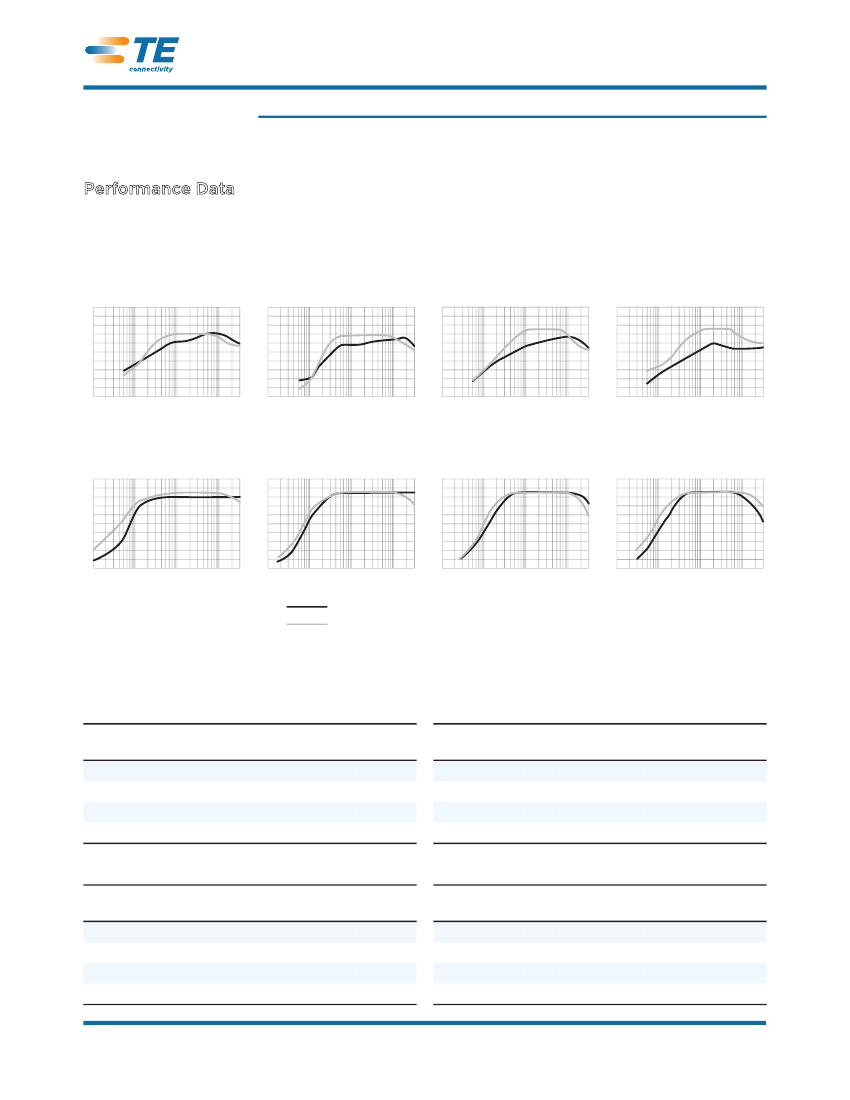

Performance Data
Typical Insertion Loss
Measured in closed 50 Ohm system
20AYP6C
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
0.15
1
10
30
Frequency in MHz
30AYP6C
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
0.15
1
10
30
Frequency in MHz
45AYP6C
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
0.15
1
10
30
Frequency in MHz
60AYP6C
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
0.15
1
10
30
Frequency in MHz
20AYT6C
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
0.15
1
10
30
Frequency in MHz
30AYT6C
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
0.15
1
10
30
Frequency in MHz
45AYT6C
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
0.15
1
10
30
Frequency in MHz
60AYT6C
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
0.15
1
10
30
Frequency in MHz
Common Mode / Asymmetrical (L-G)
Differential Mode / Symmetrical (L-L)
Minimum Insertion Loss
Measured in closed 50 Ohm system
AYP6C
Common Mode / Asymmetrical (Line to Ground)
Differential Mode / Symmetrical (Line to Line)
AYT6C
Common Mode / Asymmetrical (Line to Ground)
100
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
Differential Mode / Symmetrical (Line to Line)
