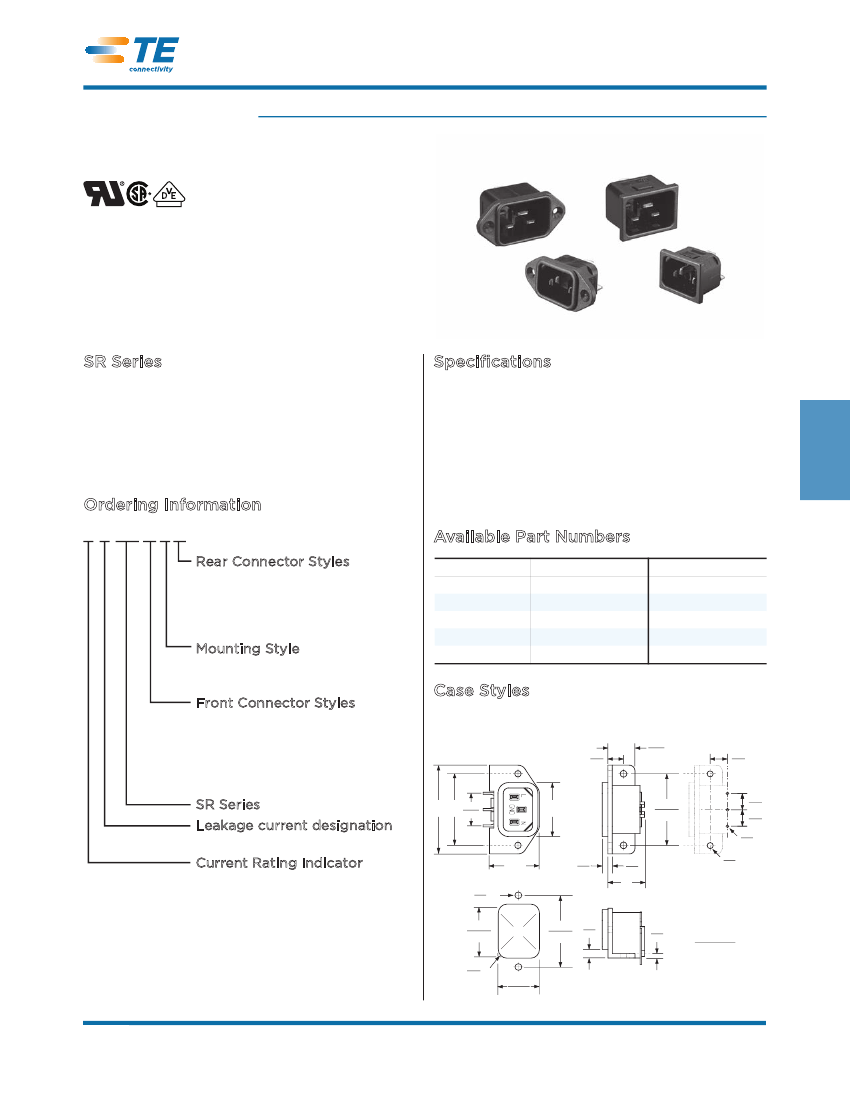

Corcom Product Guide

Power Inlet Connectors

Catalog: 1654001

Issue Date: 06.2011

SR Series

UL Recognized

CSA Certiﬁed

VDE Approved*

20ESRMC2

20ESRM-3

6ESRM-3

6ESRMC2

SR Series

• Full Line of popular AC receptacles

• Male and female power line connectors

• Snap-in and ﬂange mount versions

• IEC60320-1 C-13 & C14 inlets rated up to 15A

• IEC60320-1 C-19 & C-20 inlets rated up to 20A

Speciﬁcations

Rated Voltage (max.):

Materials:

Insulator:

Prongs:

Terminals:

Temperature Rating:

Thermoplastic UL 94V-0 ﬂame rating

Solid brass, nickel plated

Brass, tin plated

For “cold” connections, 65°C

250 VAC

Power Inlet Filters & Power Entry Modules

Ordering Information

6 E SR M - P

Rear Connector Styles

2 – .187 [4.8] spade terminals

3 – .250 [6.3] spade terminals

P – PC board pins

Fits .063 [1.6] hole

Available Part Numbers

Type

PC Pins

Snap-In

Flange Mount

Snap-In

Flange Mount

Male Connector

Female Connector

Mounting Style

C – Snap-In

– Flange

Front Connector Styles

M – Male

15A = IEC 60320-1 C-14

20A = IEC 60320-1 C-20

6ESRM-P

6ESRMC2

6ESRM-3

20ESRMC2

20ESRM-3

6ESRFC3

6ESRF-3

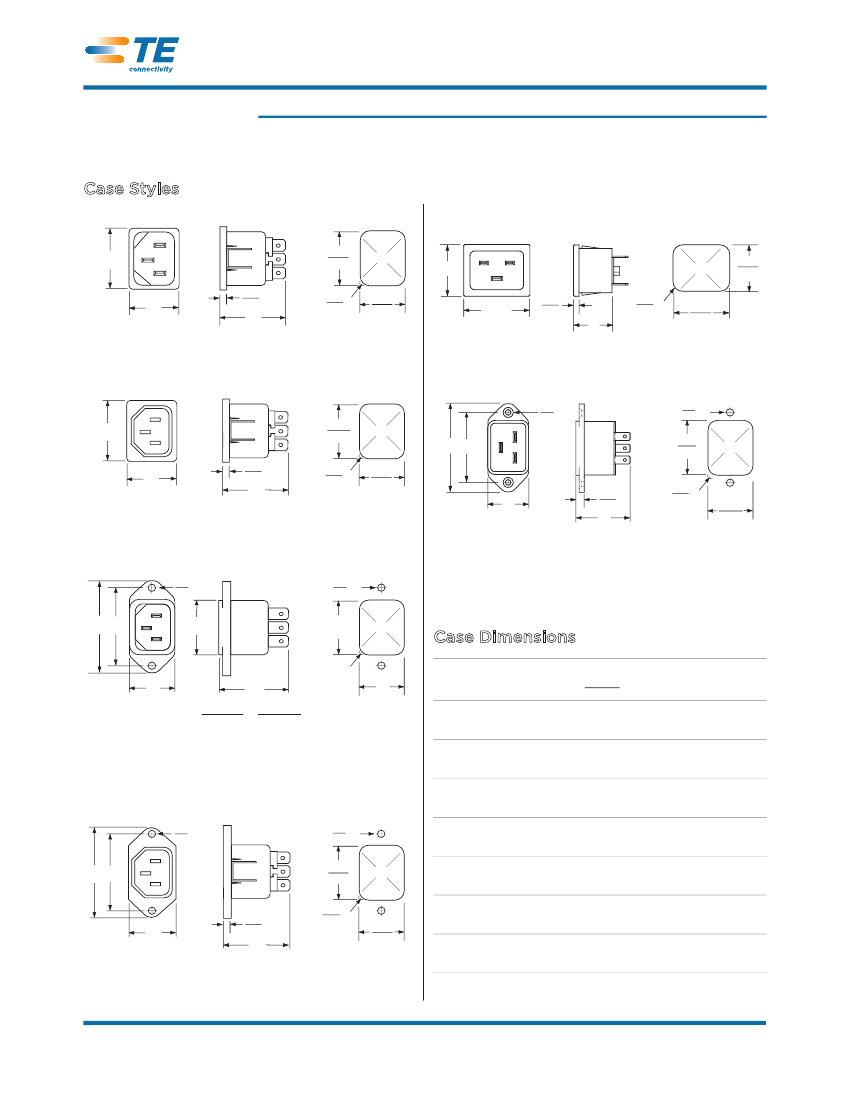

Case Styles

6ESRM-P

.343

8.71

.593

15.06

.380

9.65

F – Female

15A = IEC 60320-1 C-13

SR Series

Leakage current designation

E – Low Leakage

(<0.5 mA)

Current Rating Indicator

6 = 15A max.*

20 = 20A max.*

A B

.719

18.26

1.575

40.00

.360

9.14

.360

9.14

.064

Dia.

1.63

.125

3.17

.094

2.39

.134

Dia.

3.40

.136

Dia.

3.45

Pin Layout

1.190

30.25

Cutout

1.575

40.00

.188

4.78

.094

2.39

+.005 -.000

+.127 -.000

*15A versions are VDE approved at 10A, 250VAC max.

20A versions are VDE approved at 16A, 250VAC max.

.232

5.9

.885

22.48

201

Dimensions are in inches and millimeters unless otherwise speciﬁed. Values in italics

are metric equivalents. Dimensions are shown for reference purposes only.

Speciﬁcations subject to change.

For email, phone or live chat, please go to

te.com/help

corcom.com
