Corcom Product Guide
Catalog: 1654001
Issue Date: 06.2011

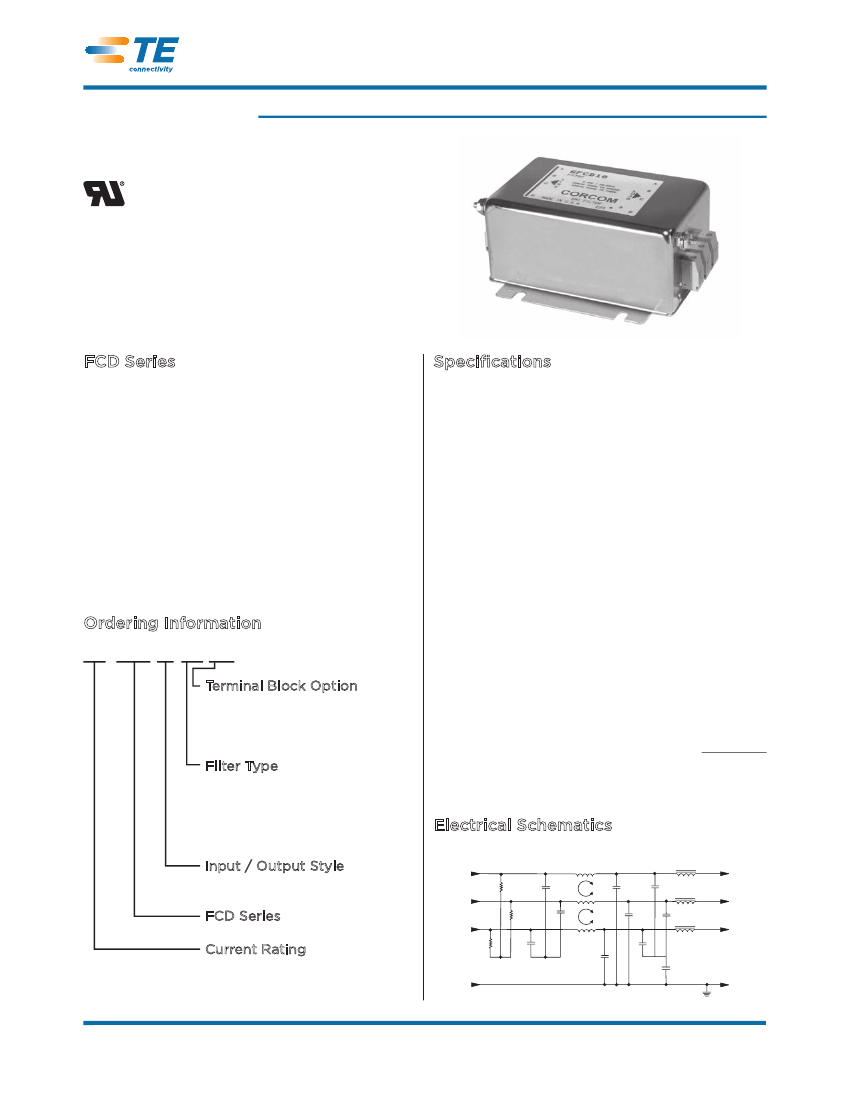

3-phase Delta External Power Line Filter for Frequency Converters
FCD Series
UL Recognized
6FCD10
FCD Series
• Suitable to meet the latest EMC standards
• Insulated safety terminals
• Suitable for EMC troubleshooting in the field
• Very high attenuation
• High insertion loss
• BS models optimized for very high insertion loss
• BS models suitable for infeed/regenerative (ER)
applications
• Touch safe terminals provide easy connections
and prevent inadvertent contact for safety in the
most demanding applications
Specifications
Maximum leakage current
voltage drop to virtual N to PE/V:
6FCD10:
12 & 16FCD10:
25, 36 & 50FCD10:
12 & 16FCD10B:
25& 36FCD10B:
50FCD10B:
80 & 110FCD10B:
150FCD10B:
180 & 230FCD10B:
FCD10BS:
Hipot rating (one minute):
Line to Ground:
Line to Line:
Rated Voltage (max):
Phase to Phase:
Phase to Neutral / Ground:
Operating Frequency:
Rated Current:
.26 mA/V
.45 mA/V
.52 mA/V
.46 mA/V
.52 mA/V
.57 mA/V
.62 mA/V
.63 mA/V
.92 mA/V
3.25 mA/V
2250 VDC
1450 VDC
480 VAC
277 VAC
50/60 Hz
6 to 230A
Ordering Information
150 FCD 10 BS -95
Terminal Block Option
-95 – 95mm terminal block
available on 150A only
omit for standard terminals
Filter Type
B – Single stage
BS – High performance
Single stage.
Omit for dual stage
Input / Output Style
10 – Terminal Block
FCD Series
Current Rating
6, 12, 16, 25, 36, 50, 80, 110,
150, 180 or 230A
Operating Ambient Temperature Range
(at rated current Ir):
-10°C to +40°C
In an ambient temperature (Ta) higher than +40°C
the maximum operating current (Io) is calculated as
follows: Io = Ir
(85-Ta)/45
Electrical Schematics
6FCD10
Power line
Device
PE
PE
118
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
Corcom Product Guide
3-phase Delta External Filter for Frequency Converters
Catalog: 1654001
Issue Date: 06.2011
(continued)
FCD Series

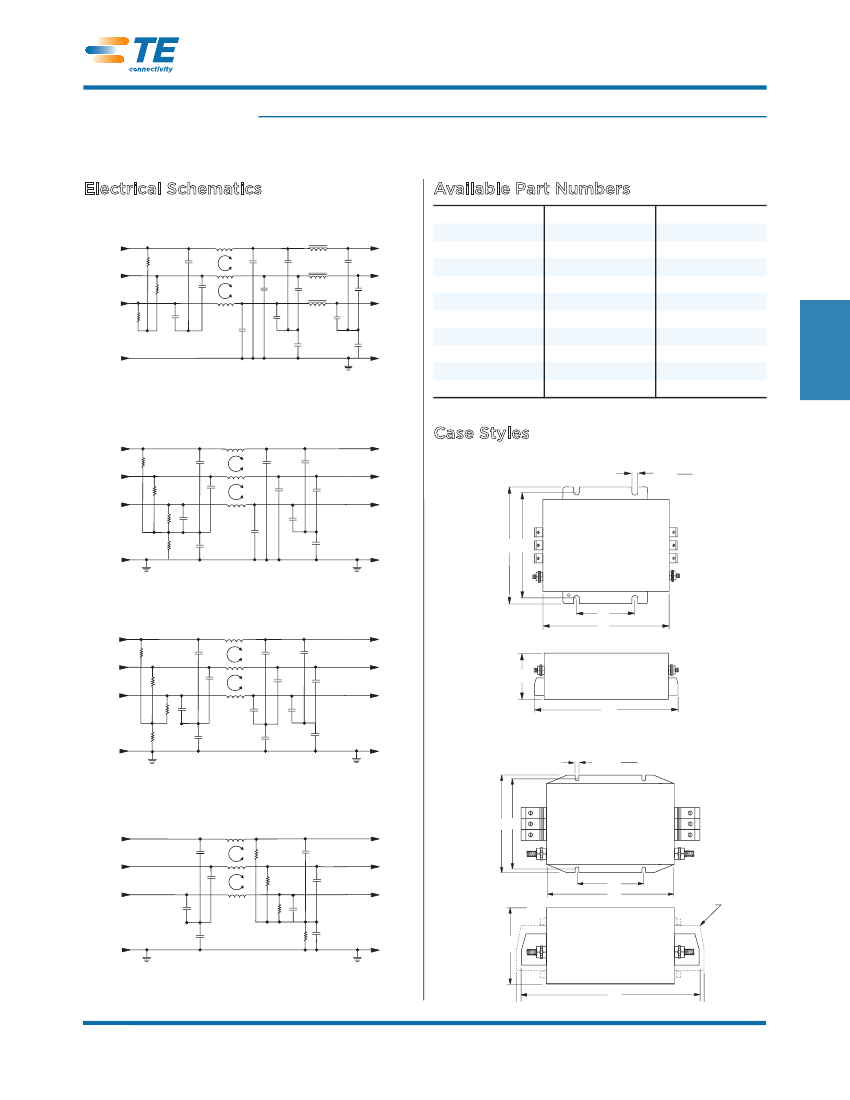

Electrical Schematics
(continued)
12 to 50A FCD10
Power line
L1
Available Part Numbers
Device
L1
L2
L2
L3
L3
6FCD10
12FCD10
16FCD10
25FCD10
36FCD10
50FCD10
PE
PE
12FCD10B
50FCD10BS
16FCD10B
80FCD10BS
25FCD10B
110FCD10BS
36FCD10B
150FCD10BS
50FCD10B
150FCD10BS-95
80FCD10B
180FCD10BS
110FCD10B
230FCD10BS
150FCD10B
150FCD10B-95
180FCD10B
230FCD10B
2
Three Phase Filters
12 to 50A FCD10B
Power line
L1
Device
L1
Case Styles
6 to 50A FCD10 & FCD10B
Slots: .260
6.61
L2
L2
L3
L3
B
D
PE
PE
80 to 230A FCD10B
Power line
L1
F
Device
L1
E
L2
L2
C
L3
L3
A
80 to 150A FCD10B
50 to 150A FCD10BS
PE
PE
Slots: .260
6.61
FCD10BS
Power line
L1
Device
L1
B
D
L2
L2
F
L3
L3
E
150FCD10B-95
Terminal Block
C
PE
PE
A
A
(150FCD10B-95)
119
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
Corcom Product Guide
3-phase Delta External Filter for Frequency Converters
Catalog: 1654001
Issue Date: 06.2011
(continued)
FCD Series

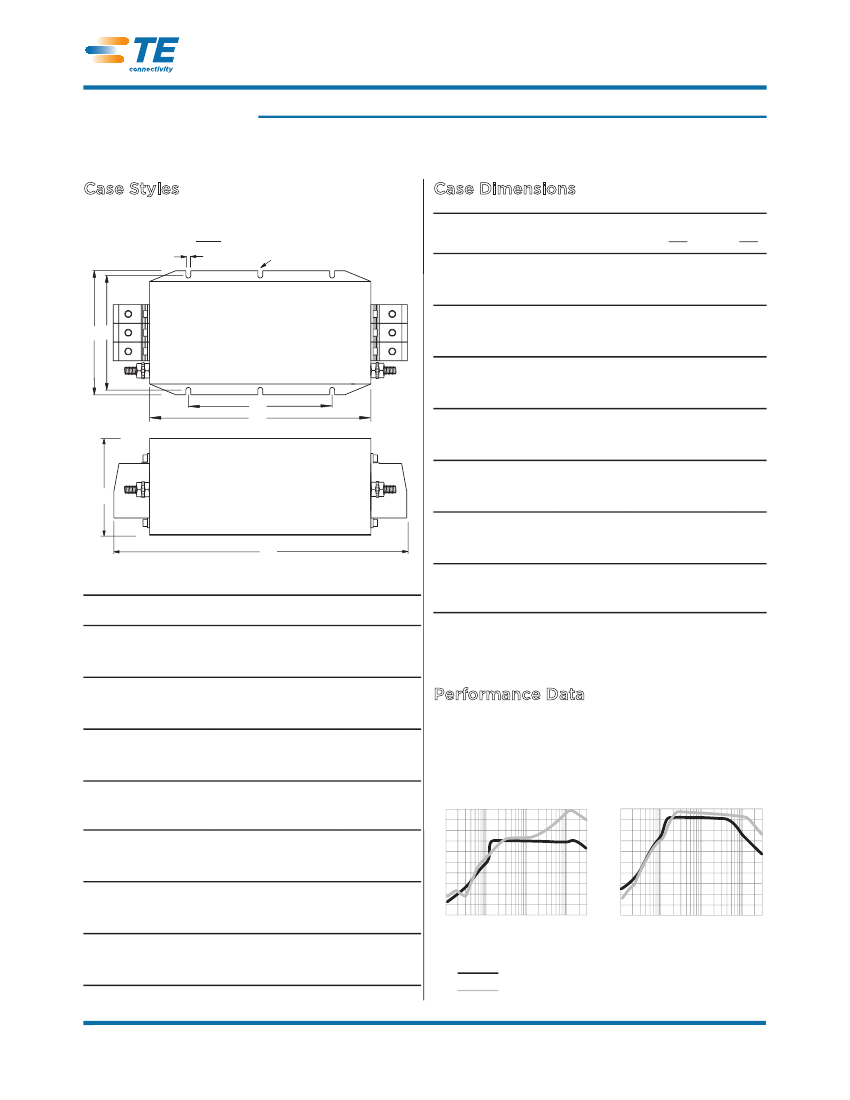

Case Styles
(continued)
180 to 230FCD10B\BS
Slots: .260
6.61
Center slot on
180 & 230A only
Case Dimensions
Part No.
A
B
C
D
E
F
6FCD10
12FCD10/10B
16FCD10/10B
25FCD10/10B
36FCD10/10B
50FCD10/10B
50FCD10BS
80FCD10B/BS
110FCD10B/BS
150FCD10B/BS
150FCD10B-95
150FCD10BS-95
180FCD10B/BS
230FCD10B/BS
B D
F
E
C
A
Terminals
Part No.
6FCD10
Line/Load
Ground
Line/Load
Ground
Line/Load
Ground
Terminal
Ground
Size
8-32
Torque max.
lbf-in [N-m]
20.7 [2.34]
7.08 [0.8]
26.58 [3.0]
7.08 [0.8]
4mm²
terminal block
12FCD10/10B
16FCD10/10B
25FCD10/10B
36FCD10/10B
M5
Performance Data
Typical Insertion Loss
Measured in closed 50 Ohm system
4mm²
terminal block
M5
26.58 [3.0]
15.93 [1.8]
26.58 [3.0]
15.93 [1.8]
88.5 [10.0]
20.36 [2.3]
88.5 [10.0]
70.80 [8.0]
88.5 [10.0]
177.0 [20.0]
6mm²
terminal block
M5
6FCD10
db
100
90
80
70
60
12FCD10
db
100
90
80
70
60
50
40
30
20
10
50FCD10/10B
Line/Load
Ground
10mm²
terminal block
M10
50FCD10BS
Line/Load
Ground
16mm²
terminal block
50
40
30
80 to 150FCD10B
80 to 150FCD10BS
Line/Load
150FCD10B/BS-95
Ground
180FCD10B/BS
Line/Load
230FCD10B/BS
M10
20
10
50mm²
terminal block
0
0.01
0.1
1
10
30
Frequency in MHz
0
0.01
0.1
1
10
30
Frequency in MHz
M10
95mm²
terminal block
Common Mode / Asymmetrical (L-G)
Differential Mode / Symmetrical (L-L)
120
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
Corcom Product Guide
3-phase Delta External Filter for Frequency Converters
Catalog: 1654001
Issue Date: 06.2011
(continued)
FCD Series

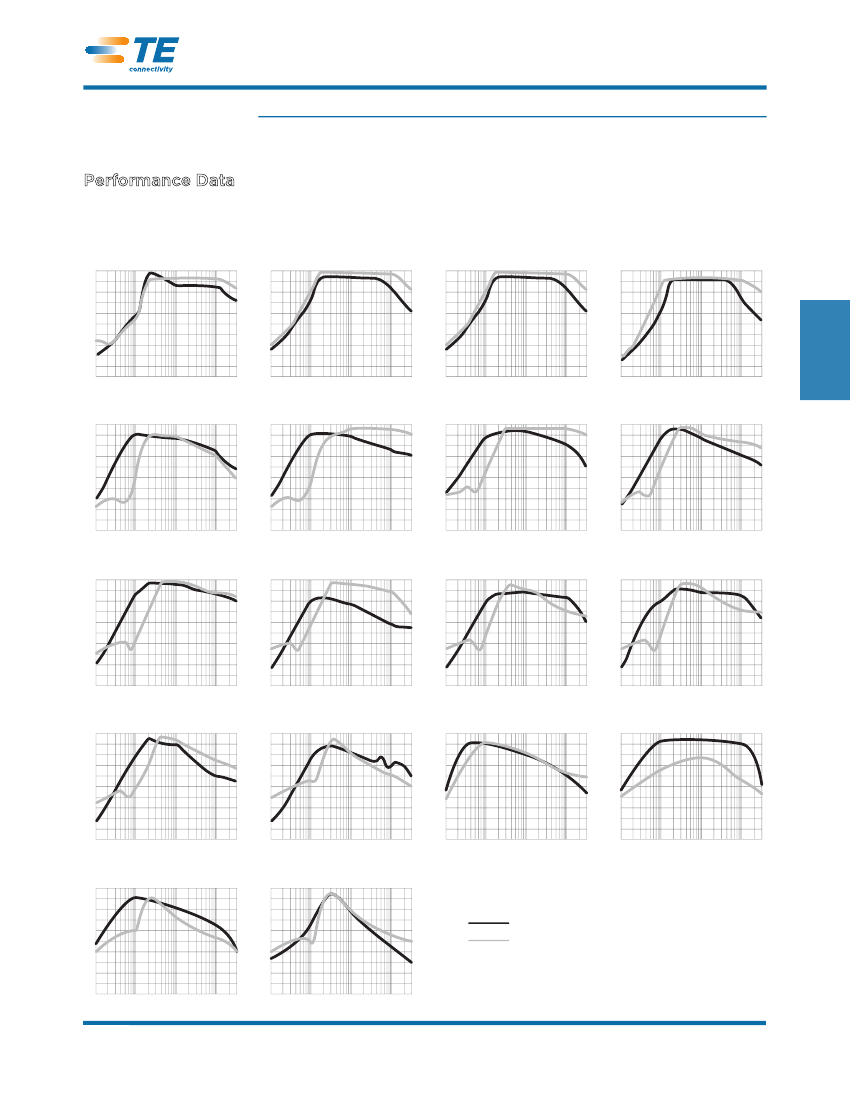

Performance Data
(continued)
Typical Insertion Loss
16FCD10
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
(continued)
Measured in closed 50 Ohm system
25FCD10
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
36FCD10
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
50FCD10
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
2
Three Phase Filters
12FCD10B
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
16FCD10B
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
25FCD10B
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
36FCD10B
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
50FCD10B
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
80FCD10B
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
110FCD10B
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
150FCD10B
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
180FCD10B
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
230FCD10B
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
50/80/110FCD10BS
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
150FCD10BS
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
180FCD10BS
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
230FCD10BS
db
100
90
80
70
60
50
40
30
20
10
0
0.01
0.1
1
10
30
Frequency in MHz
Common Mode / Asymmetrical (L-G)
Differential Mode / Symmetrical (L-L)
121
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
Corcom Product Guide
3-phase Delta External Filter for Frequency Converters
Catalog: 1654001
Issue Date: 06.2011
(continued)
FCD Series
Performance Data
(continued)
Minimum Insertion Loss
Measured in closed 50 Ohm system
Common Mode / Asymmetrical (Line to Ground)
Differential Mode / Symmetrical (Line to Line)
122
Dimensions are in inches and millimeters unless otherwise specified. Values in italics
are metric equivalents. Dimensions are shown for reference purposes only.
Specifications subject to change.
For email, phone or live chat, please go to
te.com/help
corcom.com
