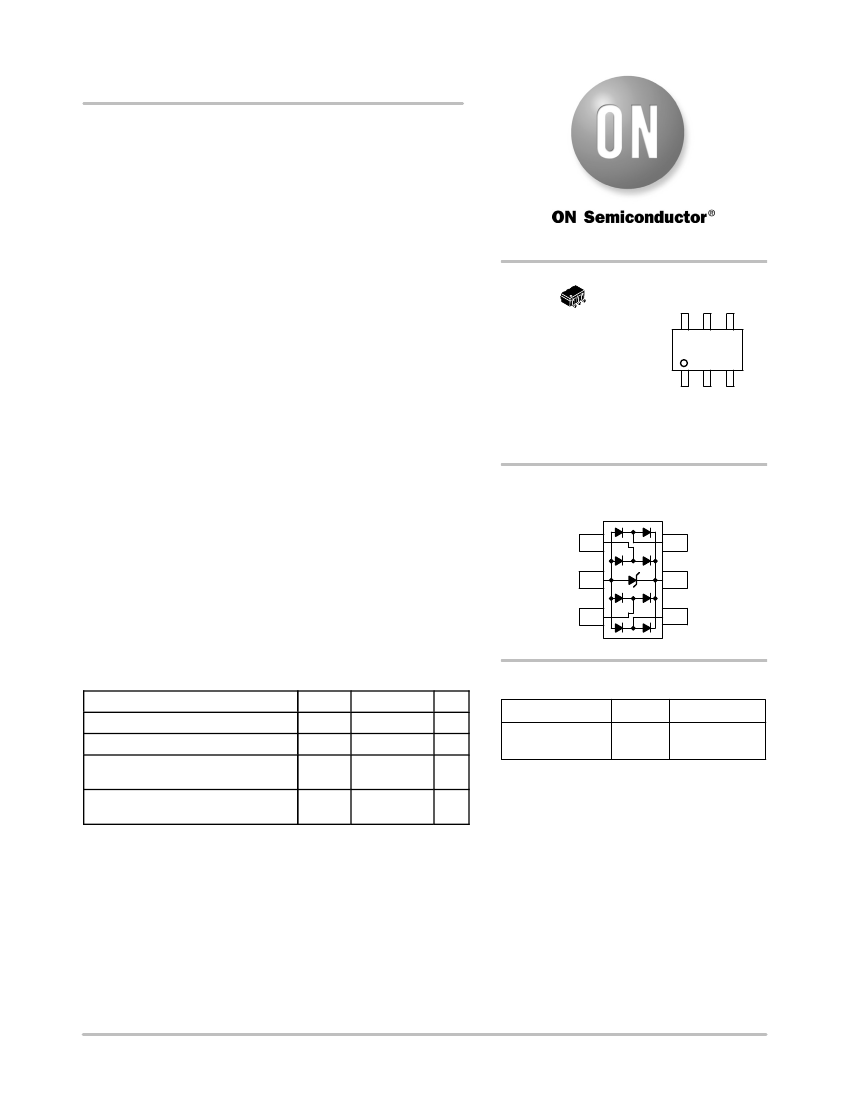

*See Application Note AND8308/D for detailed explanations of
datasheet parameters.
ELECTRICAL CHARACTERISTICS
(T
J
= 25°C unless otherwise specified)
Parameter
Reverse Working Voltage
Breakdown Voltage
Reverse Leakage Current
Clamping Voltage
Clamping Voltage
Clamping Voltage
ESD Clamping Voltage
Maximum Peak Pulse Current
Junction Capacitance
Junction Capacitance
Symbol
V
RWM
V
BR
I
R
V
C
V
C
V
C
V
C
I
PP
C
J
C
J
(Note 1)
I
T
= 1 mA, (Note 2)
V
RWM
= 5.5 V
I
PP
= 1 A (Note 3)
I
PP
= 6 A (Note 3)
I
PP
= 1 A (Note 4)
Per IEC61000−4−2 (Note 5)
8 x 20
ms
Waveform (Note 3)
V
R
= 0 V, f = 1 MHz between I/O Pins and GND
V
R
= 0 V, f = 1 MHz between I/O Pins
8.0
8.7
9.0
See Figures 1 & 2
12
3.0
1.5
A
pF
pF
6.0
1.0
11
15
12
Conditions
Min
Typ
Max
5.5
Unit
V
V
mA
V
V
V
1. TVS devices are normally selected according to the working peak reverse voltage (V
RWM
), which should be equal or greater than the DC
or continuous peak operating voltage level.
2. V
BR
is measured at pulse test current I
T
.
3. Nonrepetitive current pulse (Pin 5 to Pin 2).
4. Nonrepetitive current pulse (I/O to GND).
5. For test procedure see Figures 3 and 4 and Application Note AND8307/D.
http://onsemi.com
2
NUP4114UCW1

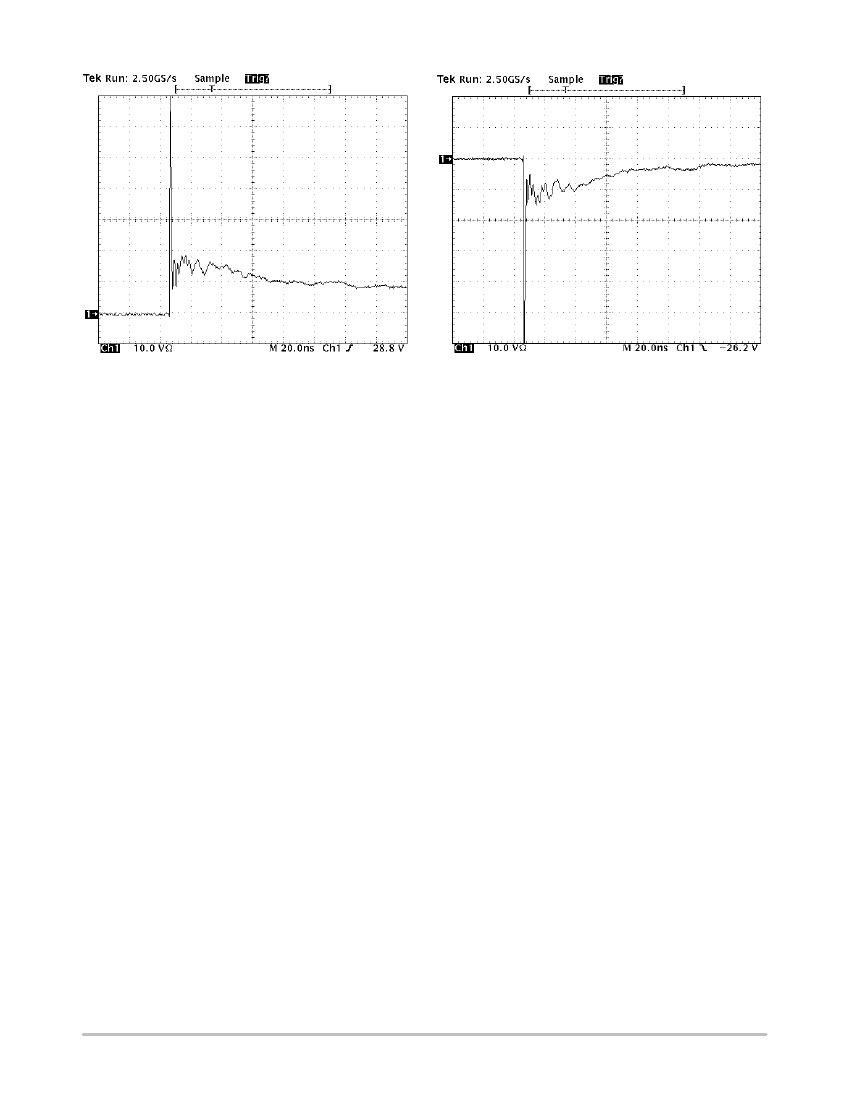

Figure 1. ESD Clamping Voltage Screenshot
Positive 8 kV Contact per IEC61000−4−2
Figure 2. ESD Clamping Voltage Screenshot
Negative 8 kV Contact per IEC61000−4−2
http://onsemi.com
3
NUP4114UCW1
IEC 61000−4−2 Spec.
Test
Voltage
(kV)
2
4
6
8
First Peak
Current
(A)
7.5
15
22.5
30
Current at
30 ns (A)
4
8
12
16
Current at
60 ns (A)
2
4
6
8
I @ 60 ns
10%
t
P
= 0.7 ns to 1 ns
I @ 30 ns
IEC61000−4−2 Waveform
I
peak
100%
90%
Level
1
2
3
4

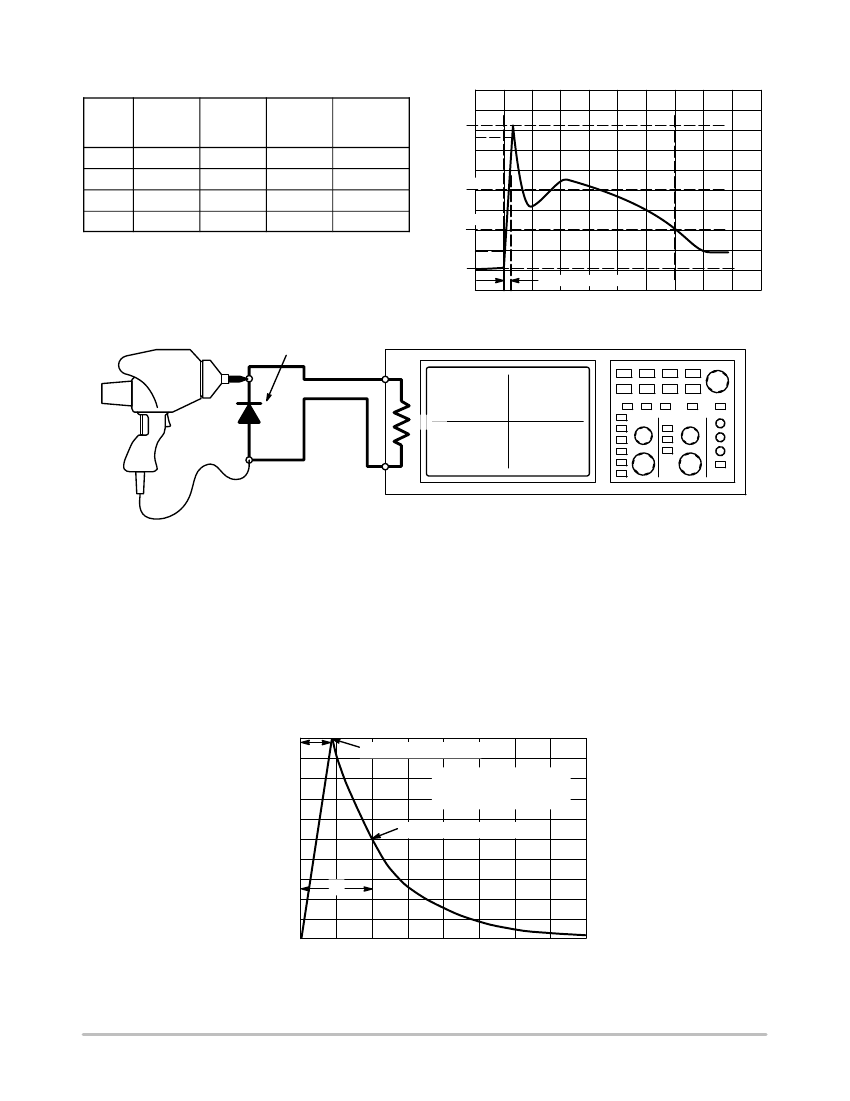

Figure 3. IEC61000−4−2 Spec
ESD Gun
TVS
Oscilloscope
50
W
Cable
50
W
Figure 4. Diagram of ESD Test Setup
The following is taken from Application Note
AND8308/D
−
Interpretation of Datasheet Parameters
for ESD Devices.
ESD Voltage Clamping
For sensitive circuit elements it is important to limit the
voltage that an IC will be exposed to during an ESD event
to as low a voltage as possible. The ESD clamping voltage
is the voltage drop across the ESD protection diode during
an ESD event per the IEC61000−4−2 waveform. Since the
IEC61000−4−2 was written as a pass/fail spec for larger
100
% OF PEAK PULSE CURRENT
90
80
70
60
50
40
30
20
10
0
0
20
t
P
t
r
systems such as cell phones or laptop computers it is not
clearly defined in the spec how to specify a clamping voltage
at the device level. ON Semiconductor has developed a way
to examine the entire voltage waveform across the ESD
protection diode over the time domain of an ESD pulse in the
form of an oscilloscope screenshot, which can be found on
the datasheets for all ESD protection diodes. For more
information on how ON Semiconductor creates these
screenshots and how to interpret them please refer to
AND8307/D.
PEAK VALUE I
RSM
@ 8
ms
PULSE WIDTH (t
P
) IS DEFINED
AS THAT POINT WHERE THE
PEAK CURRENT DECAY = 8
ms
HALF VALUE I
RSM
/2 @ 20
ms
40
t, TIME (ms)
60
80
Figure 5. 8 X 20
ms
Pulse Waveform
http://onsemi.com
4
NUP4114UCW1
PACKAGE DIMENSIONS
D
e
SC−88/SC70−6/SOT−363
CASE 419B−02
ISSUE W
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI
Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
3. 419B−01 OBSOLETE, NEW STANDARD 419B−02.
DIM
A
A1
A3
b
C
D
E
e
L
H
E
MILLIMETERS
MIN
NOM MAX
0.80
0.95
1.10
0.00
0.05
0.10
0.20 REF
0.10
0.21
0.30
0.10
0.14
0.25
1.80
2.00
2.20
1.15
1.25
1.35
0.65 BSC
0.10
0.20
0.30
2.00
2.10
2.20
INCHES
NOM MAX
0.037 0.043
0.002 0.004
0.008 REF
0.004 0.008 0.012
0.004 0.005 0.010
0.070 0.078 0.086
0.045 0.049 0.053
0.026 BSC
0.004 0.008 0.012
0.078 0.082 0.086
MIN
0.031
0.000
6
5
4
H
E
1
2
3
−E−
b
6 PL
0.2 (0.008)
M
E
M
A3
C
A
A1
L
SOLDERING FOOTPRINT*
0.50
0.0197
0.65
0.025
0.65
0.025
0.40
0.0157
1.9
0.0748
SCALE 20:1
mm
inches
SC−88/SC70−6/SOT−363
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
ON Semiconductor
and
are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice
to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability
arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages.
“Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All
operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights
nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications
intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should
Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates,
and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death
associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal
Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
Literature Distribution Center for ON Semiconductor
P.O. Box 5163, Denver, Colorado 80217 USA
Phone:
303−675−2175 or 800−344−3860 Toll Free USA/Canada
Fax:
303−675−2176 or 800−344−3867 Toll Free USA/Canada
Email:
orderlit@onsemi.com
N. American Technical Support:
800−282−9855 Toll Free
USA/Canada
Europe, Middle East and Africa Technical Support:
Phone: 421 33 790 2910
Japan Customer Focus Center
Phone: 81−3−5773−3850
ON Semiconductor Website: www.onsemi.com
Order Literature:
http://www.onsemi.com/orderlit
