2TW74-7 datasheet, PDF - EEWORLD Datasheet

2TW74-7: DescriptionToggle Switch, DPDT, Momentary, Screw Terminal, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size72KB，1 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric Compare View All

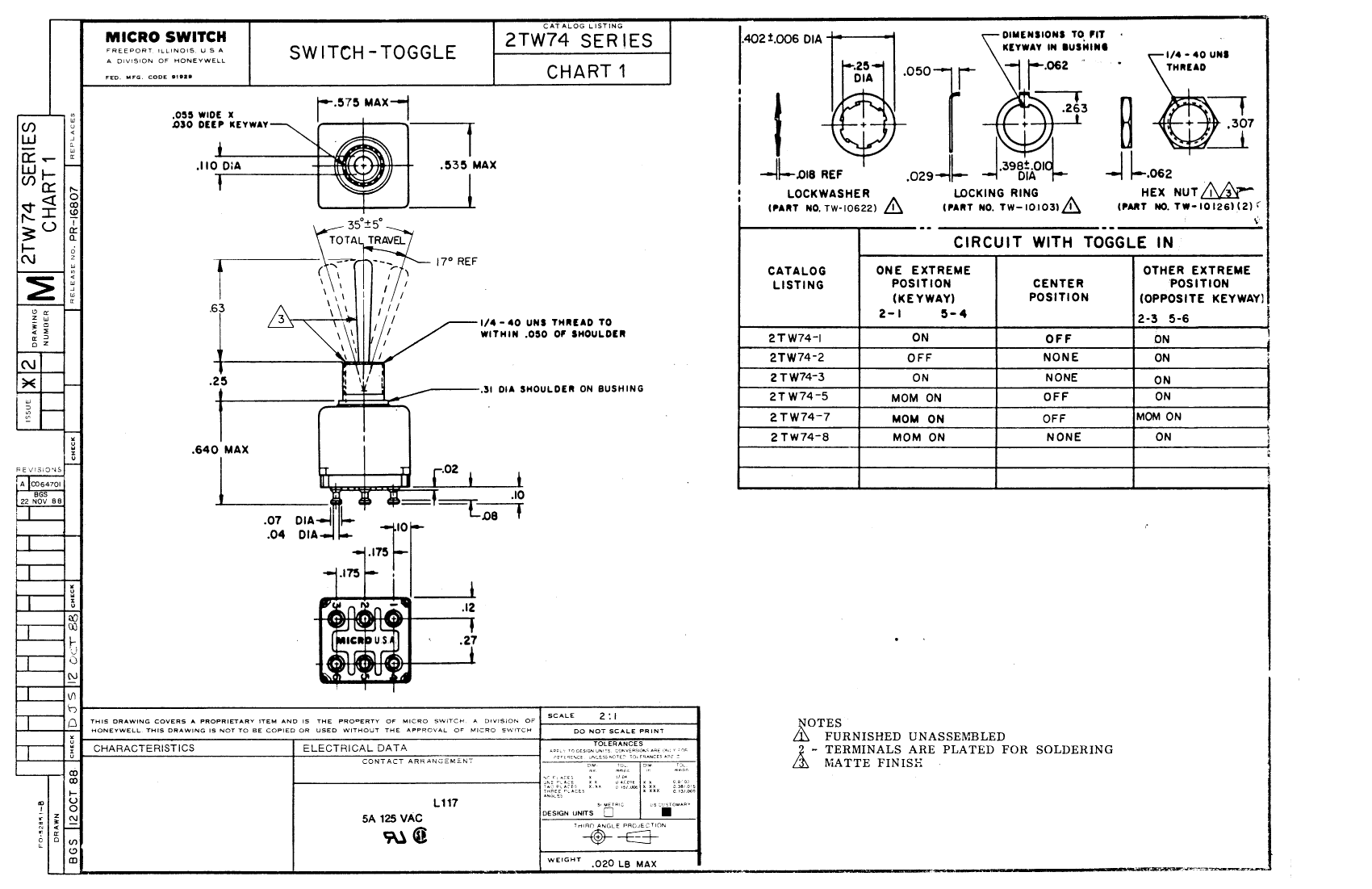

2TW74-7 Overview

Toggle Switch, DPDT, Momentary, Screw Terminal, Panel Mount-threaded

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
body width	13.59 mm
body height	16.26 mm
Body length or diameter	14.61 mm
Contact (AC) maximum rated R load	5A@125VAC
Maximum contact current (AC)	5 A
Maximum contact voltage (AC)	125 V
Manufacturer's serial number	2TW74
Installation features	PANEL MOUNT-THREADED
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Switch type	TOGGLE SWITCH
Termination type	SCREW
Base Number Matches	1

	2TW74-7	2TW74-5	2TW74-2	2TW74-1	2TW74-3
Description	Toggle Switch, DPDT, Momentary, Screw Terminal, Panel Mount-threaded	Toggle Switch, DPST, Momentary, Screw Terminal, Panel Mount-threaded	Toggle Switch, DPST, Latched, Screw Terminal, Panel Mount-threaded	Toggle Switch, DPDT, Latched, Screw Terminal, Panel Mount-threaded	Toggle Switch, DPDT, Latched, Screw Terminal, Panel Mount-threaded
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
body width	13.59 mm	13.59 mm	13.59 mm	13.59 mm	13.59 mm
body height	16.26 mm	16.26 mm	16.26 mm	16.26 mm	16.26 mm
Body length or diameter	14.61 mm	14.61 mm	14.61 mm	14.61 mm	14.61 mm
Contact (AC) maximum rated R load	5A@125VAC	5A@125VAC	5A@125VAC	5A@125VAC	5A@125VAC
Maximum contact current (AC)	5 A	5 A	5 A	5 A	5 A
Maximum contact voltage (AC)	125 V	125 V	125 V	125 V	125 V
Manufacturer's serial number	2TW74	2TW74	2TW74	2TW74	2TW74
Installation features	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED
surface mount	NO	NO	NO	NO	NO
Switch action	MOMENTARY	MOMENTARY	LATCHED	LATCHED	LATCHED
switch function	DPDT	DPST	DPST	DPDT	DPDT
Switch type	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH
Termination type	SCREW	SCREW	SCREW	SCREW	SCREW
Base Number Matches	1	1	1	1	1
