370505: Description7.50mm; File Size212KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet View All

370505 Overview

7.50mm

Preview

Download Datasheet

View All

This document was generated on 04/22/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0393710005

Active

7.50mm (.295") Beau™ Eurostyle™ Pluggable PCB Terminal Block, 180° Wire Entry, 5

Circuits

Documents:

3D Model

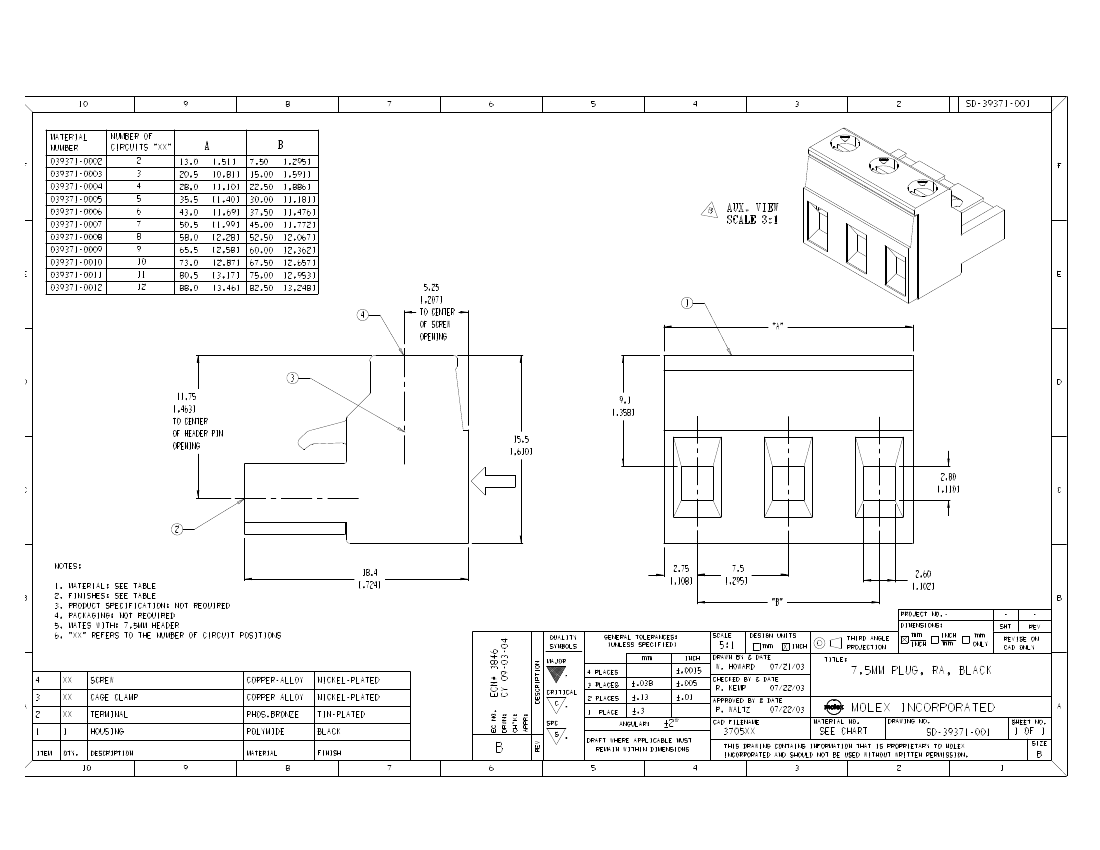

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

Agency Certification

E48521

Series

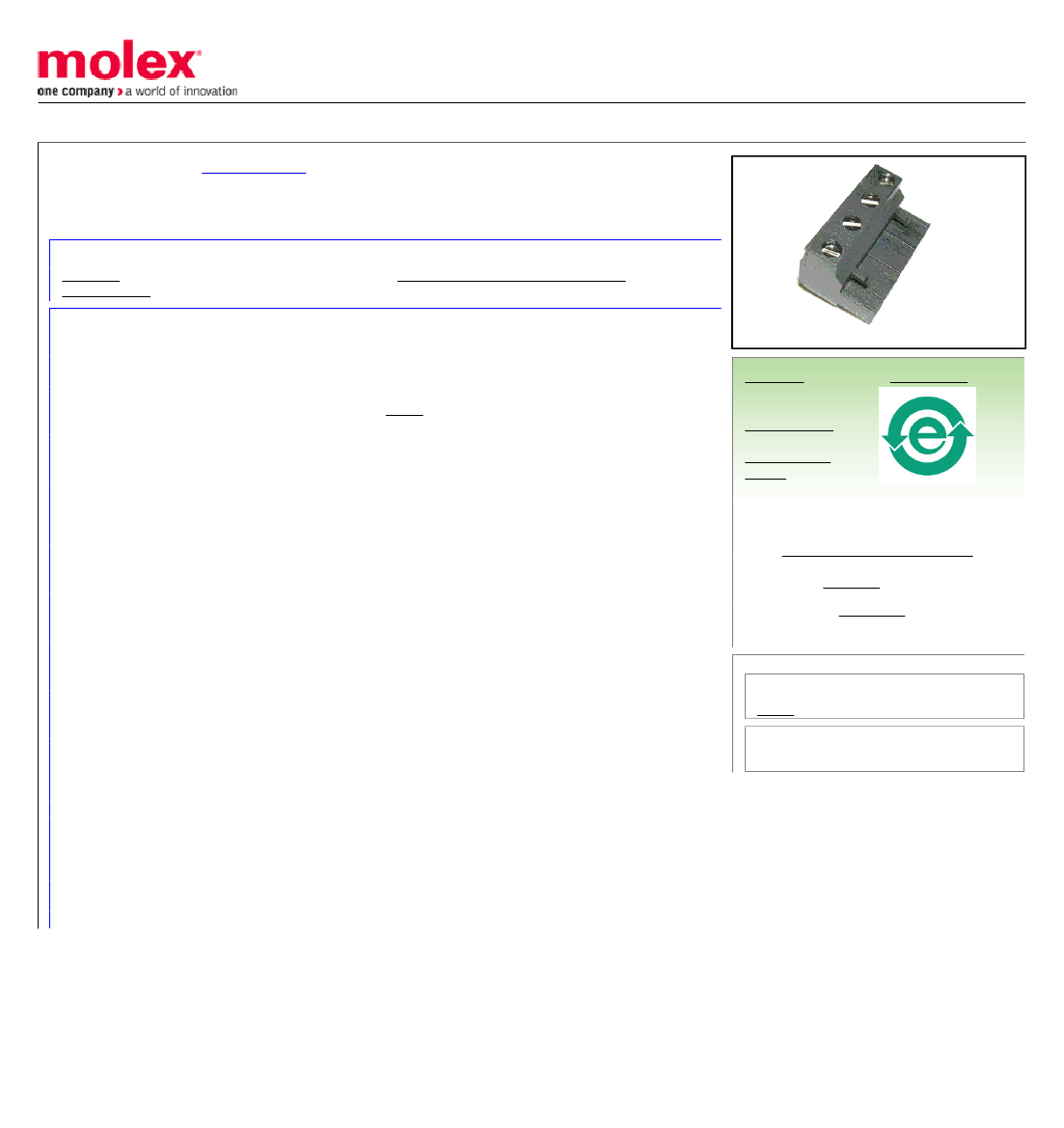

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Component Type

Product Literature Order No

Product Name

Type

Terminal Blocks

39371

Wire-to-Board

Plug

USA-261

Eurostyle™Pluggable

Euro Block

Physical

Circuits (Loaded)

Entry Angle

Flammability

Lock to Mating Part

Number of Rows

Orientation

PCB Retention

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Wire Size AWG

Wire Size mm²

180° Angle

94V-0

None

Right Angle

N/A

0.295 In

7.50 mm

Yes

110°C

12, 14, 16, 18, 20, 22, 24, 26, 28, 30

0.05 - 2.50

Search Parts in this Series

39371Series

Mates With

39372 & 39373 Headers

Electrical

Current - Maximum per Contact

Voltage - Maximum

15A

300V

Material Info

Old Part Number

370505

Reference - Drawing Numbers

Sales Drawing

SD-39371-001

This document was generated on 04/22/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
