395272002 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 395272002

395272002: Description5.00mm; CategoryThe connector terminals; File Size147KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

395272002 Overview

5.00mm

395272002 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 04/26/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0395272002

Active

5.00mm (.197") Pitch Eurostyle™ Vertical Plug, with Retention Screws, Rear Wire

Entry, 2 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-39500-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series

image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Not Reviewed

Halogen-Free

Status

Not Reviewed

Need more information on product

environmental compliance?

Email productcompliance@molex.com

For a multiple part number RoHS Certificate of

Compliance, click here

Please visit the Contact Us section for any

non-product compliance questions.

General

Product Family

Series

Application

Comments

Component Type

Product Literature Order No

Product Name

Type

Terminal Blocks

39527

Wire-to-Board

Rear Wire Entry

Plug

USA-355

ESE, Eurostyle™Pluggable

Euro Block

Physical

Circuits (Loaded)

Entry Angle

Lock to Mating Part

Number of Rows

Orientation

Panel Mount

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Polarized to Mating Part

Stackable

Temperature Range - Operating

Wire Size AWG

Wire Size mm²

Horizontal

Yes

Vertical

0.197 In

5.00 mm

Yes

-40°C to +105°C

12, 14, 16, 18, 20, 22, 24, 26

0.13 - 3.31

Search Parts in this Series

39527Series

Mates With

Most 5.00mm (.197") Pitch Industry

Standard PCB Headers, 39525 Vertical

PCB Header with Threaded Retention

Inserts, 39526 Horizontal PCB Header with

Threaded Retention Inserts

Electrical

Current - Maximum per Contact

Voltage - Maximum

10A

300V

Material Info

Reference - Drawing Numbers

Product Specification

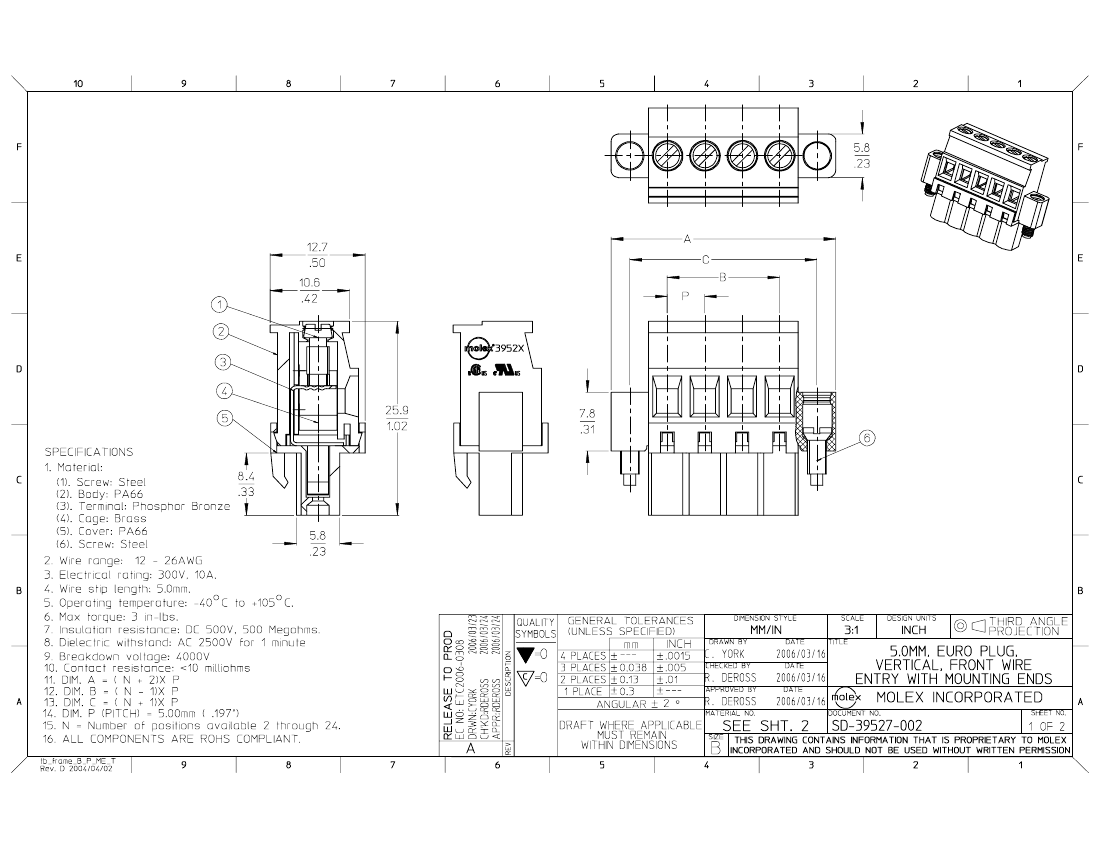

Sales Drawing

PS-39500-001

SD-39527-002

This document was generated on 04/26/2010

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
