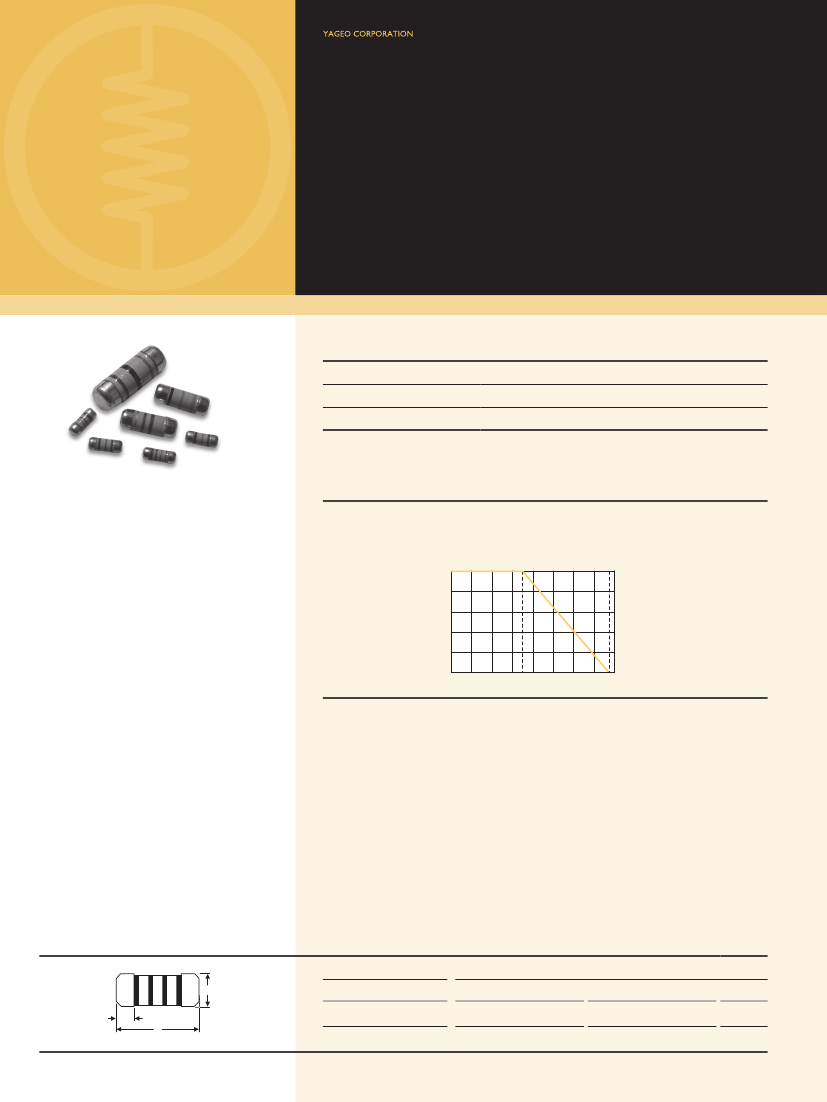

Through-hole resisTors
Melf Metal Film resistors
high Power Type
ultra Miniature style [ MMP series ]
FeATures
Power Rating
Resistance Tolerance
T.C.R.
1W, 2W
±1%, ±2%, ±5%
±50ppm/°C, ±100ppm/°C
DerATiNg CurVe
iNTroDuCTioN
The MMP Series Melf Metal Film High Power
Resistors are manufactured using a vacuum
sputtering system to deposit multiple layers of
mixed metal alloys and passivative materials
onto a carefully treated high grade ceramic
substrate. SMD enabled structure and high
power in small packages.
For resistors operated in ambient temperatures above 70°C, power rating must be derated
in accordance with the curve below.
Rated Load (%)
70
100
80
60
40
20
20
40
60
80
100 120 140 160
155 °C
Ambient Temperature (°C)
DiMeNsioNs
sTYle
D
C
L
Unit: mm
DiMeNsioN
l
5.9±0.2
8.5±0.2
D
2.2±0.1
3.2±0.2
C Min.
0.5
0.5
ultra Miniature
MMP100
MMP200
23
Note:
eleCTriCAl ChArACTerisTiCs
sTYle
Power Rating at 70°C
Maximum Working Voltage
Maximum Overload Voltage
Voltage Proof on Insulation
Resistance Range
Operating Temp. Range
Temperature Coefficient
MMP100
1W
350V
700V
500V
1Ω - 1MΩ & 0Ω for E24 & E96 series value
-55°C to +155°C
±50ppm/°C, ±100ppm/°C
MMP200
2W
Note: Special value is available on request
eNViroNMeNTAl ChArACTerisTiCs
PerForMANCe TesT
Short Time Overload
Voltage Proof on Insulation
Temperature Coefficient
Insulation Resistance
Solderability
Solvent Resistance of Marking
Periodic-pulse Overload
Damp Heat Steady State
Endurance at 70°C
Temperature Cycling
Resistance to Soldering Heat
TesT MeThoD
IEC 60115-1 4.13
IEC 60115-1 4.7
IEC 60115-1 4.8
IEC 60115-1 4.6
IEC 60115-1 4.17
IEC 60115-1 4.30
IEC 60115-1 4.39
IEC 60115-1 4.24
IEC 60115-1 4.25
IEC 60115-1 4.19
IEC 60115-1 4.18
2.5 times RCWV for 5 sec. (Not more than maximum Overload Voltage)
In V-Block for 60 sec., test voltage as above table
Between -55°C to +155°C
in V-block for 60 Sec.
245±5°C for 3±0.5 Sec.
IPA for 5±0.5 Min. with ultrasonic
4 times RCWV 10,000 cycles (1 Sec. on, 25 Sec. off)
40±2°C, 90-95% RH for 56 days, loaded with 0.1 times RCWV
APPrAise
±0.5%+0.05Ω
No Breakdown
By type
>10,000MΩ
95% Min. coverage
No deterioration of
coatings and markings
±1.0%+0.05Ω
±2.0%+0.1Ω
70±2°C at RCWV (or Umax., Whichever less) for 1,000 Hr. (1.5Hr.on, 0.5Hr. Off) ±2.0%+0.1Ω
-55°C
Room Temp.
+155°C
Room Temp. (5 cycles)
260±3°C for 10±1 Sec., immersed to a point 3±0.5mm from the body
±0.75%+0.05Ω
±0.5%+0.05Ω
Revision: 2020
Note: RCWV(Rated Continuous Working Voltage) = Power Rating x Resistance Value or Max. working voltage listed above, whichever less.
