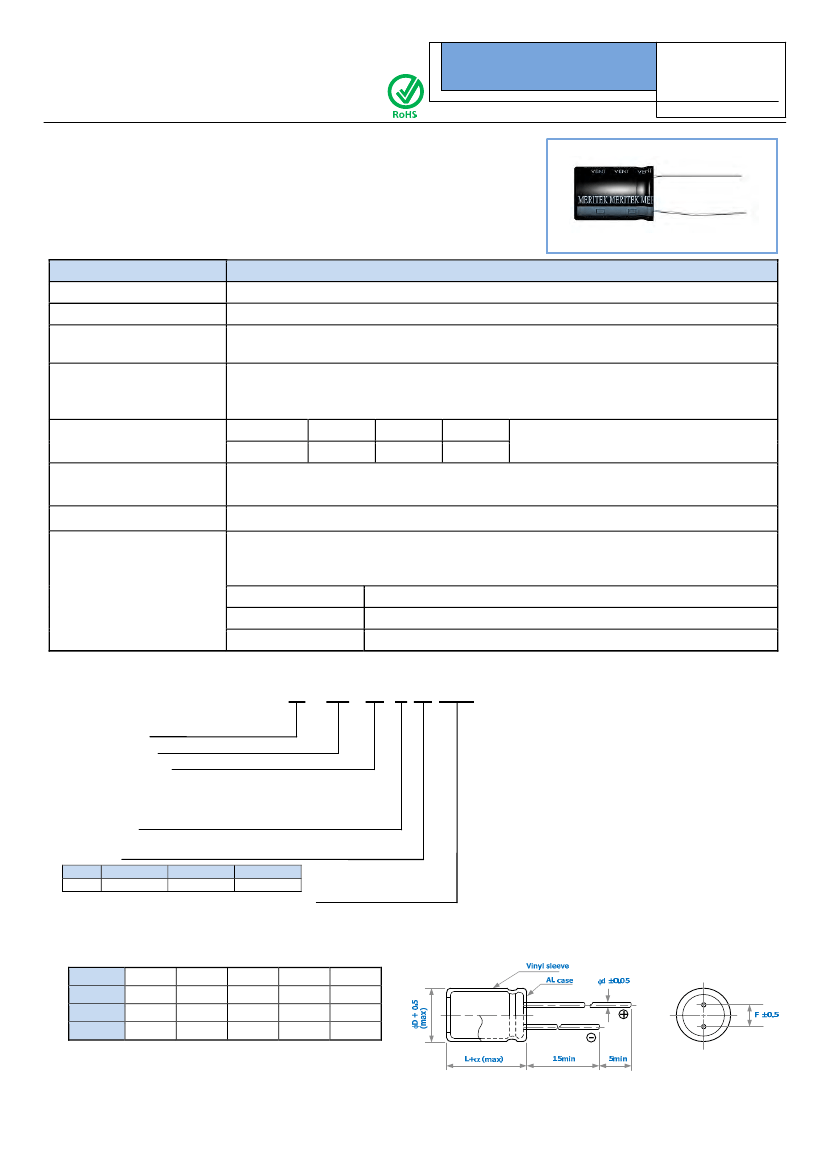

Aluminum Electrolytic Capacitors
BP
Series
(Bi-Polarized, 85°C)
MERITEK
F
EATURES
Have high frequency and high ripple current characteristics.
Suitable for equalizing of horizontal deflection of TV sets and terminals.
S
PECIFICATIONS
Item
Operating Temp Range
Rated Working Voltage
Capacitance Tolerance
(120Hz 20C)
Leakage Current
(20C)
Surge Voltage
(20C)
W.V.
S.V.
25
32
35
44
50
63
Characteristic
- 40 ~ +85C
25 ~ 50VDC
20%(M) ,
10%(K)
100 (A) After 5 minutes in both directions
I : Leakage Current (A)
C : Rated Capacitance(F)
V : Working Voltage (V)
Dissipation Factor ( tan
)
tan
≤
0.05
(120Hz 20C)
Low Temperature Stability
Load Life
Capacitance change shall be within
10%
of the value at 25C over operation temperature range.
After 2000 hours application of W.V. and +85C ripple current value
, the capacitor shall meet
the following limits. ( DC + ripple peak voltage
rated working voltage ) ( The polarity need to
exchange every 250 hours )
Capacitance Change
Dissipation Factor
Leakage Current
15% of initial.
200% of initial specified value
initial specified value
P
ART
N
UMBER
S
YSTEM
BP
Meritek Series
Rated Voltage
Rated Capacitance
Express in micro farad(uF), First two digits are
significant figures, Third digit denotes number of
zeros. ‘R’ denotes decimal point for values less
than 10uF
50V
120 M TA 22x40
Tolerance
M -
20%,
10%(K)
Package
Code
TA
Tape & Ammo
TR
Tape & Reel
Blank
Case size –
(D) Diameter x (L) Length in mm (Optional)
D
IMENSIONS (mm)
D
F
d
10
5.0
0.6
1.5
12.5
5.0
0.6
1.5
16
7.5
0.8
1.5
18
7.5
0.8
1.5
22
10.0
1.0
2.0
Rev. 7
