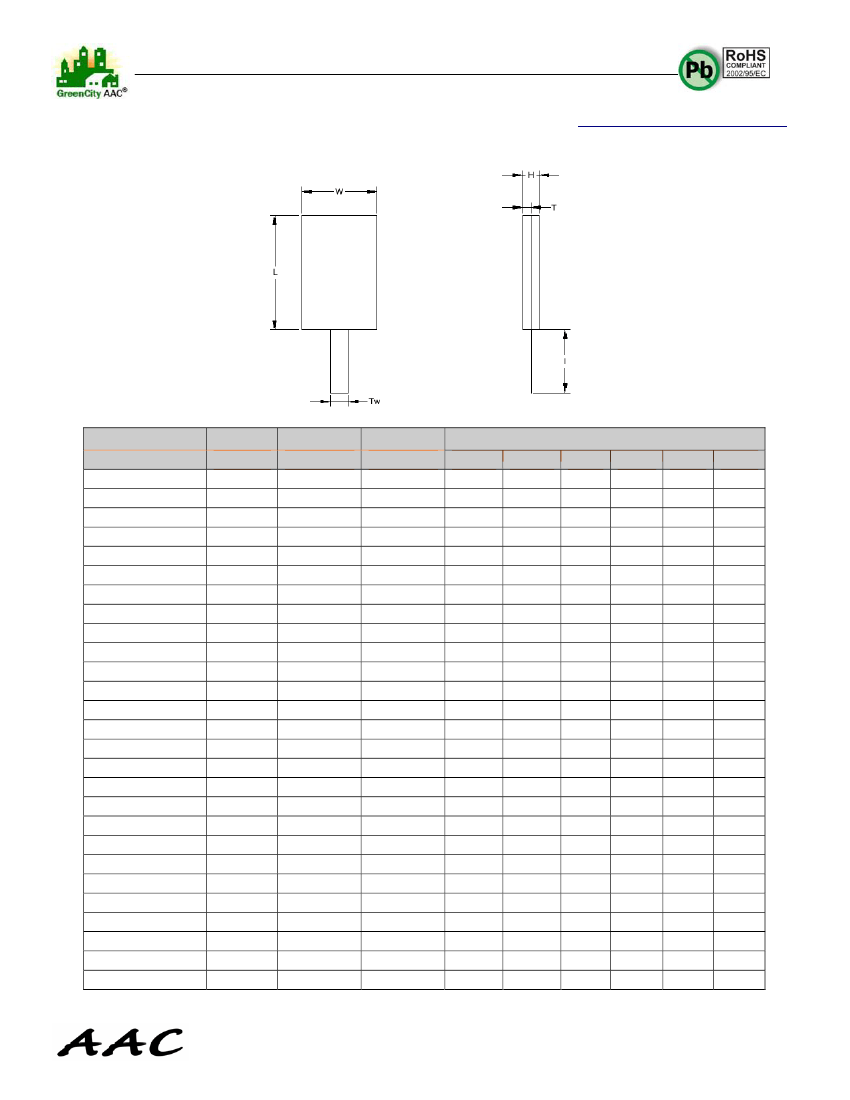

Termination – Tab & Cover (TTB Series)
The content of this specification may change without notification 10/01/09
Terminations
Tab & Cover
◆
Resistance*: 50Ω
◆
Substrate Material: BeO, AlN
◆
Resistance Tolerance: ±5%
◆
Power: 3-300W
◆
Freqency Range*: DC-18GHz
◆
Operation Temperature: -55 ~ +150°C
◆
Temperature Coefficient: ±150ppm/°C
◆
RoHS Compliant
◆
*Customization is available

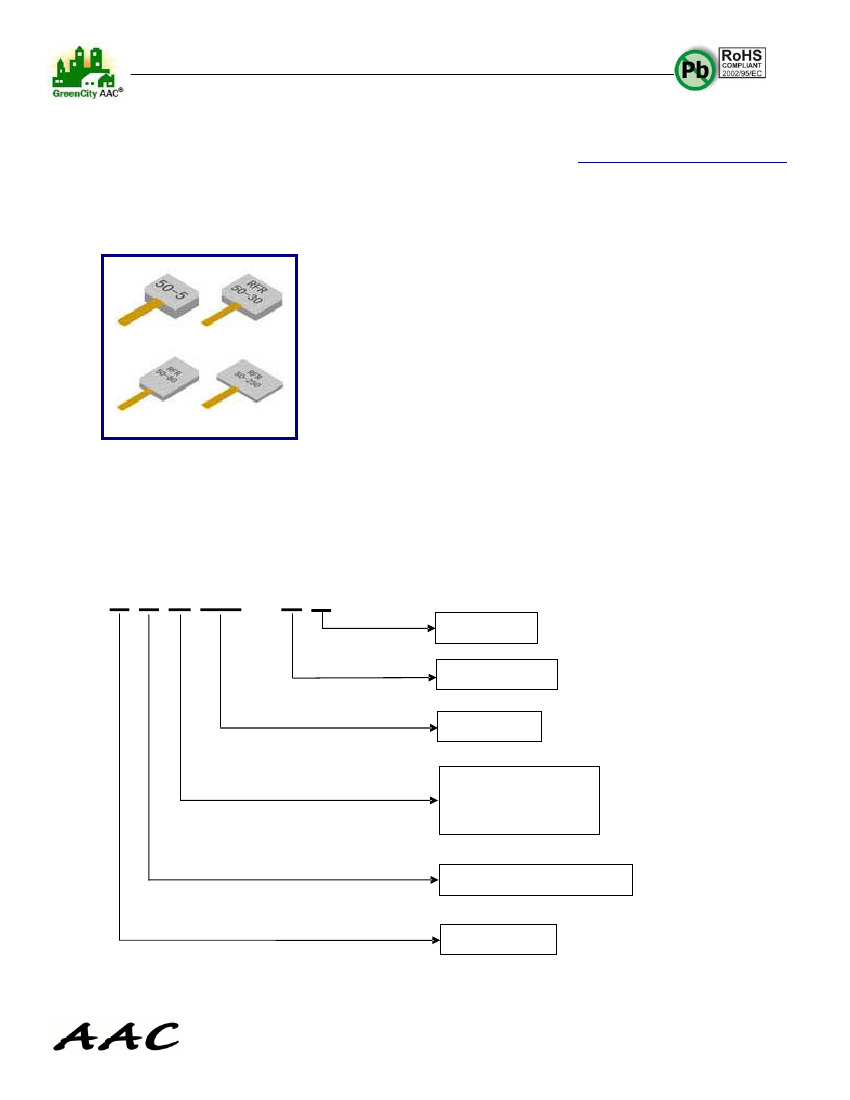

Termination – Tab & Cover (TTB series)
Explanation to P/N
T T B 50 – 3 T
Case Type
Power Value
Impedance
Substrate Material
B: BeO
A: AlN
Tab & Cover Package
Termination
American Accurate Components, Inc.
188 Technology Drive, Unit H, Irvine, CA 92618
Tel: 949-453-9888 Fax: 949-453-8889 Email: sales@aacix.com
1
Termination – Tab & Cover (TTB Series)
The content of this specification may change without notification 10/01/09
Terminations
Tab & Cover
P/N
TTB50-3T
TTB50-3TZ
TTB50-5TP
TTB50-5TPP
TTB50-5TZPP
TTB50-5T
TTB50-5TZ
TTB50-5TG
TTB50-10T
TTB50-10TZ
TTB50-10TG
TTB50-10TP
TTB50-10TPP
TTB50-20TG
TTB50-20TP
TTB50-20TPP
TTB50-20TZPP
TTB50-20TG
TTB50-20TGG
TTB50-20T
TTB50-20TZ
TTB50-30TPP
TTB50-30TZPP
TTB50-30T
TTB50-40T
TTB50-40TZ
TTB60-60T
Power
(W)
3
3
5
5
5
5
5
5
10
10
10
10
10
20
20
20
20
20
20
20
20
30
30
30
40
40
60
Frequency
(GHz)
DC-6
DC-6
DC-4
DC-6
DC-6
DC-6
DC-6
DC-6
DC-6
DC-6
DC-6
DC-6
DC-6
DC-6
DC-18
DC-6
DC-6
DC-6
DC-3
DC-3
DC-3
DC-4
DC-4
DC-6
DC-4
DC-4
DC-4
VSWR
max
1.20
1.20
1.20
1.20
1.20
1.20
1.20
1.20
1.25
1.25
1.25
1.25
1.25
1.30
1.35
1.20
1.25
1.25
1.20
1.20
1.20
1.25
1.25
1.20
1.25
1.25
1.25
W
3
2.5
1.27
5
2.5
4
3
4
4
3
4
3
2.5
5
5
2.5
4
3
4
5
4
6
4.7
6
6
4.7
6
L
2.5
3
2.54
2.5
5
3
4
4
3
4
4
2.5
3
2.5
2.5
5
3
4
4
4
5
4.7
6
6
4.7
6
5
Size(mm)
T
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
H
1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.6
1.8
1.8
1.6
1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.6
1.9
1.9
2.2
2.2
1.8
2.2
2.2
1.8
I
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
6
6
6
6
6
6
Tw
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
American Accurate Components, Inc.
188 Technology Drive, Unit H, Irvine, CA 92618
Tel: 949-453-9888 Fax: 949-453-8889 Email: sales@aacix.com
2
Termination – Tab & Cover (TTB Series)
The content of this specification may change without notification 10/01/09
Terminations
Tab & Cover
P/N
TTB50-60TZ
TTB50-60TG
TTB50-80T
TTB50-80TZ
TTB50-100TPP
TTB50-100T
TTB50-100TZ
TTB50-100TG
TTB50-150TZ
TTB50-150TPP
TTB50-150T
TTB50-250TPP
TTB50-250TZ
TTB50-250T
TTB50-300T
Power
(W)
60
60
80
80
100
100
100
100
150
150
150
250
250
250
300
Frequency
(GHz)
DC-4
DC-6
DC-3
DC-3
DC-3
DC-3
DC-2.2
DC-3
DC-3
DC-3
DC-3
DC-3
DC-3
DC-3
DC-2.5
VSWR
max
1.25
1.25
1.20
1.20
1.20
1.20
1.20
1.20
1.20
1.20
1.20
1.20
1.20
1.20
1.20
W
5
6
9
6
9
6
10
8
8
6.35
10
9.5
10
12.7
12.7
L
6
6
6
9
6
9
8
10
9.5
9.5
10
9.5
10
10
12.7
Size(mm)
T
1
1
1
1
1
1
1
1
1.5
1
1
1.5
1.5
1.5
1.5
H
1.8
1.8
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
2.2
I
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
TW
1
1
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1
1.4
1.4
2.5
2.5
2.5
American Accurate Components, Inc.
188 Technology Drive, Unit H, Irvine, CA 92618
Tel: 949-453-9888 Fax: 949-453-8889 Email: sales@aacix.com
3
