AZ696
10 AMP SUBMINIATURE
POWER RELAY
FEATURES
•
Miniature size: Form A version: 0.63" (16 mm) height,
1.10" (30 mm) length, 0.39" (10 mm) width
•
High sensitivity, 100 mW pickup
•
Dielectric strength 4000 Vrms
•
Isolation spacing greater than 8 mm
•
Approvals/Standards include: UL, VDE, IEC
•
10 Amp switching capability
•
Epoxy sealed for automatic wave soldering and cleaning
•
UL, CUR file E43203
CONTACTS
Arrangement
Ratings
SPDT (1 Form C)
SPST (1 Form A)
Resistive load:
Max. switched power: 300 W or 2500 VA
Max. switched current: 10 A
Max. switched voltage: 150* VDC or 380 VAC
UL Rating:
10 A at 30 VDC resistive
10 A at 250 VAC general use
1
/
4
HP 120 VAC
1
/
2
HP 250 VAC
B 300 pilot duty
*
Note: If switching voltage is greater than 30 VDC, special
precautions must be taken. Please contact the factory.
GENERAL DATA
SPST (1 Form B)
Life Expectancy
Mechanical
Electrical
Operate Time (typical)
Release Time (typical)
Minimum operations
10 million
1 X 10
5
at 10 A 240 VAC Res.
10 ms at nominal coil voltage
5 ms at nominal coil voltage
(with no coil suppression)
Dielectric Strength
4000 Vrms coil to contact
(at sea level for 1 min.)
1000 Vrms between open contacts
Insulation
Resistance
Dropout
Ambient Temperature
Operating
Storage
Vibration
1000 megohms min. at 20°C, 500 VDC,
50% RH
Greater than 10% of nominal coil voltage
At nominal coil voltage
-40°C (-40°F) to 70°C (158°F)
-40°C (-40°F) to 110°C (230°F)
0.062" DA at 10–55 Hz
20 g
P.B.T. polyester
Tinned copper alloy, P.C.
270°C (518°F)
5 seconds
80°C (176°F)
30 seconds
14 grams
Material
Resistance
Silver cadmium oxide or silver tin oxide
< 30 milliohms initially
(at rated current, voltage drop method)
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Temperature
100 mW
1.5 W at 20°C (68°F) ambient
1.2 W at 40°C (104°F) ambient
20°C (36°F) at nominal coil voltage
Max. 110°C (230°F)
Shock
Enclosure
Terminals
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
Max. Immersion Time
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
Weight
04/15/05W

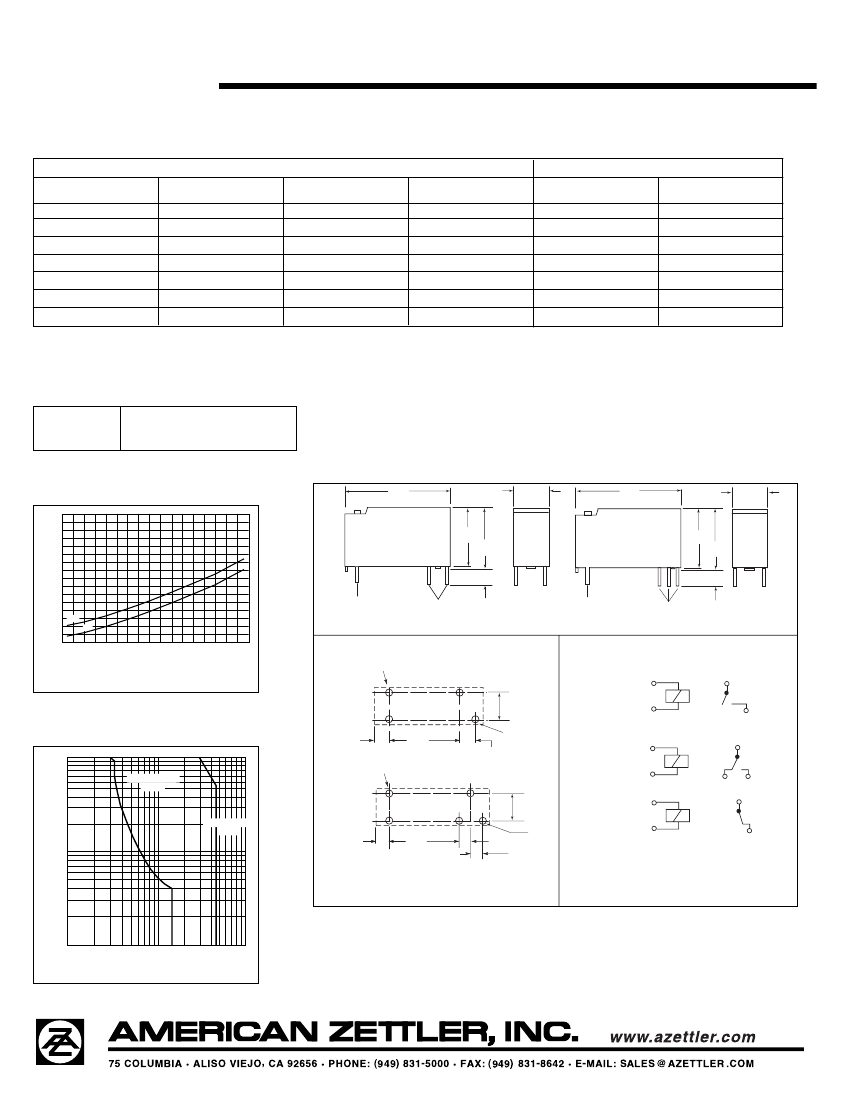

AZ696
RELAY ORDERING DATA
COIL SPECIFICATIONS
Nominal Coil
VDC
5
6
9
12
18
24
48
Must Operate
VDC
3.5
4.2
6.3
8.4
12.6
16.8
33.6
Max Continuous
VDC
12.0
14.5
22.0
29.5
44.0
54.0
102.0
Coil Resistance
Ohms ± 10%
110
160
360
660
1,500
2,200
8,000
ORDER NUMBER
1 Form A
(SPST-NO)
AZ696–1A–5D
AZ696–1A–6D
AZ696–1A–9D
AZ696–1A–12D
AZ696–1A–18D
AZ696–1A–24D
AZ696–1A–48D
1 Form C
(SPDT)
AZ696–1C–5D
AZ696–1C–6D
AZ696–1C–9D
AZ696–1C–12D
AZ696–1C–18D
AZ696–1C–24D
AZ696–1C–48D
* Substitute “1B” in place of “1A” for 1 Form B contact. ADD suffix “E” to “1A” or “1B” or “1C” for silver tin oxide contacts.
Add Suffix “E” at the end of order number for sealed version.
INTERNATIONAL APPROVALS
Germany
VDE 0435/09.72 at 8 Amps
VDE 0631/12.83 at 8 Amps
VDE 0700/1/2.81 at 8 Amps
MECHANICAL DATA
Coil Temperature Rise
160
150
140
130
120
110
100
90
80
70
60
50
40
30
20
10
0
1.10
(28)
.394
(10)
1.18
(30)
.394
(10)
Coil Temperature Rise
˚C
.618
(15.7)
.638
(16.2)
.618
(15.7)
.638
(16.2)
.138 + .02 - 0
(3.5 + .5 - 0)
.024 x .035
(0.6 x 0.9)
10A
0A
60%
80%
100%
120%
140%
160%
180%
200%
220%
.138 + .02 - 0
(3.5 + .5 - 0)
.024 x .035
(0.6 x 0.9)
.024 x .039
(0.6 x 1)
.024 x .039
(0.6 x 1)
Percent of Nominal Coil Voltage at 20˚C
2 x
∅
.051
(1.3)
PC BOARD LAYOUT
WIRING DIAGRAM
1
3
4
.299
(7.6.)
1 FORM A
2
Maximum Switching Capacity
10.0
9.0
8.0
7.0
6.0
5.0
4.0
3.0
2.0
.122
(3.1)
.748
(19)
2 x
∅
.059
(1.5)
.197
(5)
1
DC Resistive
Load
2 x
∅
.051
(1.3)
FORM A
FORM B
4
3
4
5
5
1 FORM C
2
.299
(7.6.)
1
CURRENT
AC Resistive
Load
.122
(3.1)
1 FORM B
2
1.0
.9
.8
.7
.6
.5
.748
(19)
.126
(3.2)
.126
(3.2)
3 x
∅
.059
(1.5)
FORM C
.4
.3
.2
Viewed toward terminals
Viewed toward terminals
Dimensions in inches with metric equivalents in parentheses. Tolerance: ± .010"
1000
100
10
.1
VOLTAGE
400
500
600
700
800
900
50
60
70
80
90
200
300
20
30
40
04/15/05W
