BL-Q40A-44S-13 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > BL-Q40A-44S-13

Preview

BL-Q40A-44S-13: DescriptionLED NUMERIC DISPLAY, 4 DIGIT; File Size126KB，4 Pages; ManufacturerBETLUX; Websitehttp://www.betlux.com/

Download Datasheet View All

BL-Q40A-44S-13 Overview

LED NUMERIC DISPLAY, 4 DIGIT

Preview

Download Datasheet

View All

LED NUMERIC DISPLAY, 4 DIGIT

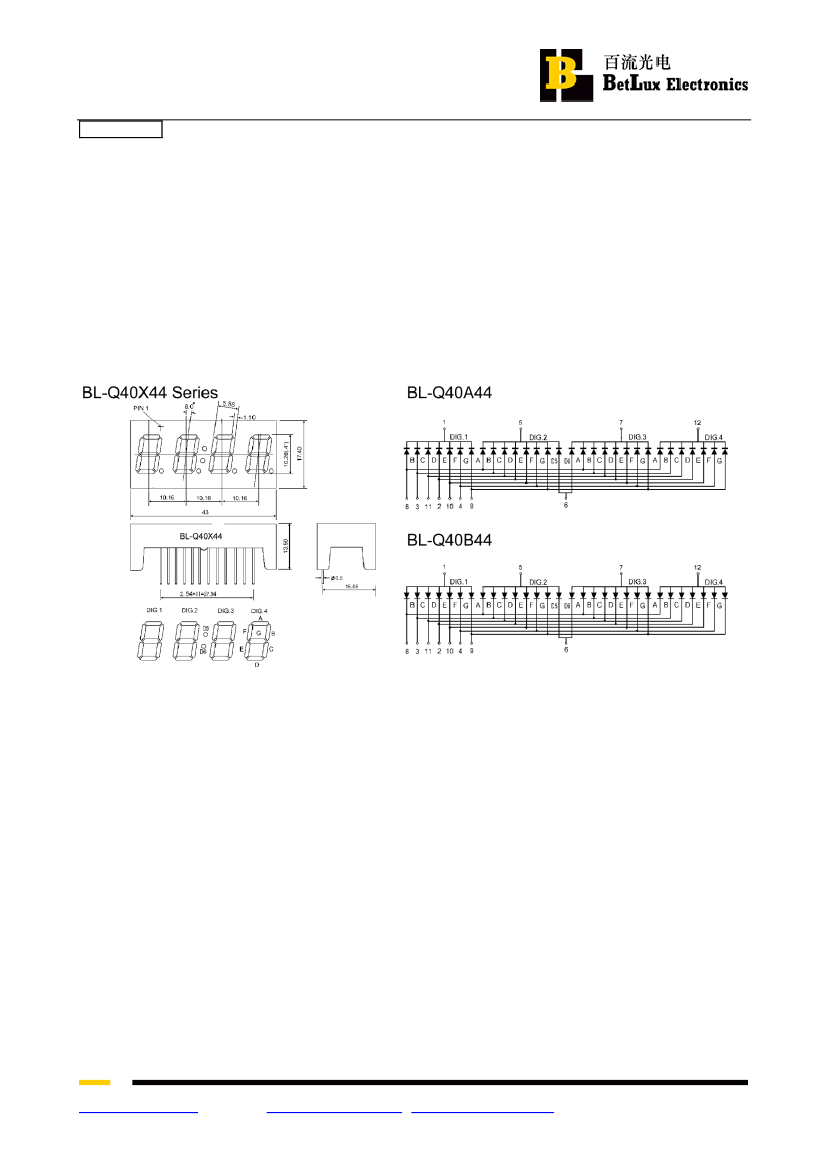

BL-Q40X-44

■　

Features:

10.26mm (0.4” Four digit and Over numeric display series

)

Low current operation.

Excellent character appearance.

Easy mounting on P.C. Boards or sockets.

I.C. Compatible.

ROHS Compliance.

Super Bright

Electrical-optical characteristics: (Ta=25

℃

)

(Test Condition: IF=20mA)

Part No

Chip

Common Cathode

BL-Q40A-44S-XX

BL-Q40A-44D-XX

BL-Q40A-44UR-XX

BL-Q40A-44E-XX

BL-Q40A-44Y-XX

BL-Q40A-44G-XX

Common Anode

BL-Q40B-44S-XX

BL-Q40B-44D-XX

BL-Q40B-44UR-XX

BL-Q40B-44E-XX

BL-Q40B-44Y-XX

BL-Q40B-44G-XX

Emitte

d Color

Hi Red

Super

Red

Ultra

Red

Orange

Yellow

Green

Material

GaAlAs/GaAs,SH

GaAlAs/GaAs,DH

GaAlAs/GaAs,DDH

GaAsP/GaP

GaP/GaP

(nm)

660

635

585

570

Unit:V

Typ

1.85

2.10

2.20

Max

2.20

2.50

TYP.(mcd

)

105

115

160

115

120

Ultra Bright

Electrical-optical characteristics: (Ta=25℃)

(Test Condition: IF=20mA)

Part No

Common Cathode

BL-Q40A-44UHR-XX

BL-Q40A-44UE-XX

BL-Q40A-44YO-XX

BL-Q40A-44UY-XX

BL-Q40A-44UG-XX

BL-Q40A-44PG-XX

BL-Q40A-44B-XX

BL-Q40A-44W-XX

Common Anode

BL-Q40B-44UHR-XX

BL-Q40B-44UE-XX

BL-Q40B-44YO-XX

BL-Q40B-44UY-XX

BL-Q40B-44UG-XX

BL-Q40B-44PG-XX

BL-Q40B-44B-XX

BL-Q40B-44W-XX

Emitted Color

Ultra Red

Ultra Orange

Ultra Amber

Ultra Yellow

Ultra Green

Ultra Pure Green

Ultra Blue

Ultra White

Chip

Material

AlGaInP

InGaN

λP

(nm)

645

630

619

590

574

525

470

Unit:V

Typ

Max

2.10

2.20

3.80

2.70

2.50

4.50

4.20

TYP.(mcd

)

160

140

135

140

195

125

160

-XX: Surface / Lens color：

Number

Ref Surface Color

White

Epoxy Color

Water

clear

Black

White

diffused

Gray

Red

Diffused

Red

Green

Diffused

Green

Yellow

Diffused

APPROVED : XU L CHECKED :ZHANG WH DRAWN: LI FS

REV NO: V.2

Page 1 of 4

WWW.BETLUX.COM

EMAIL:

SALES@BETLUX.COM

BETLUX@BETLUX.COM
