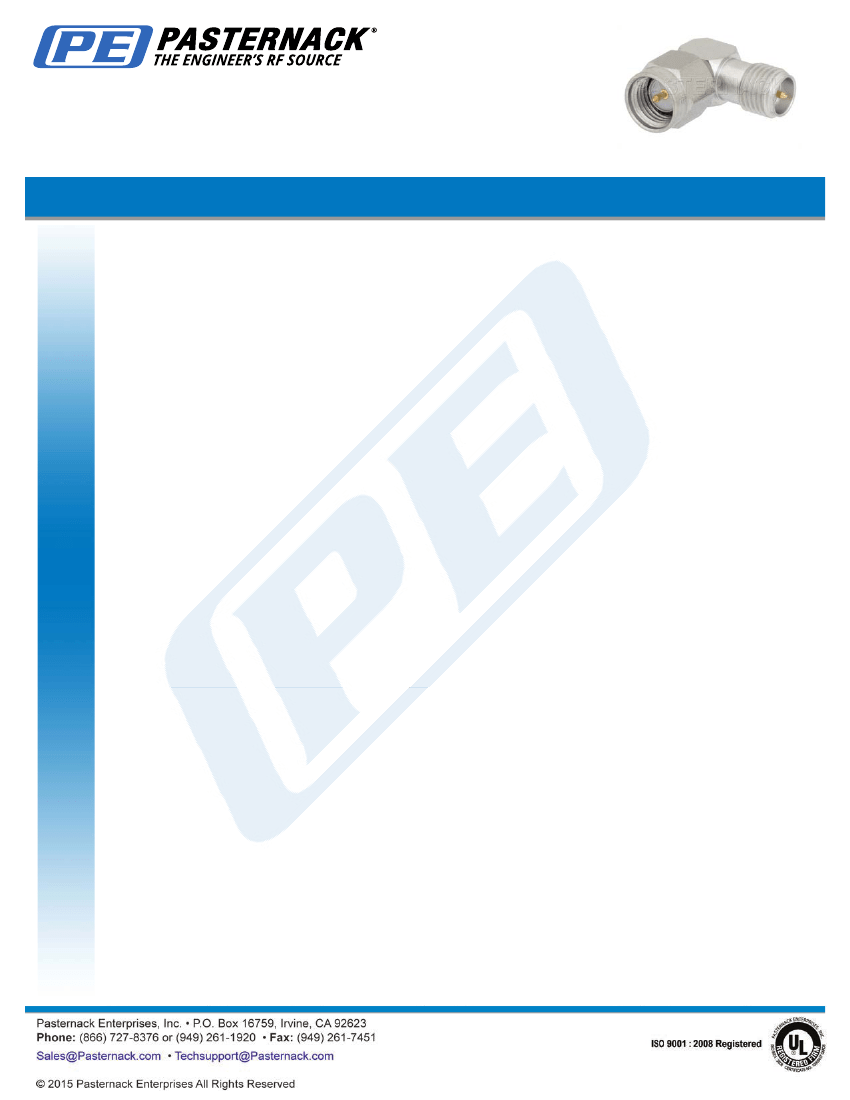

SMA Male to Reverse Polarity SMA Female Right Angle Adapter
TECHNICAL DATA SHEET
Configuration
Connector 1
Impedance 1
Connector Specification 1
Connector 2
Impedance 2
Adapter Design
Body Style
SMA Male
50 Ohms
MIL-STD-348
SMA Female Reverse Polarity
50 Ohms
Standard
Right Angle

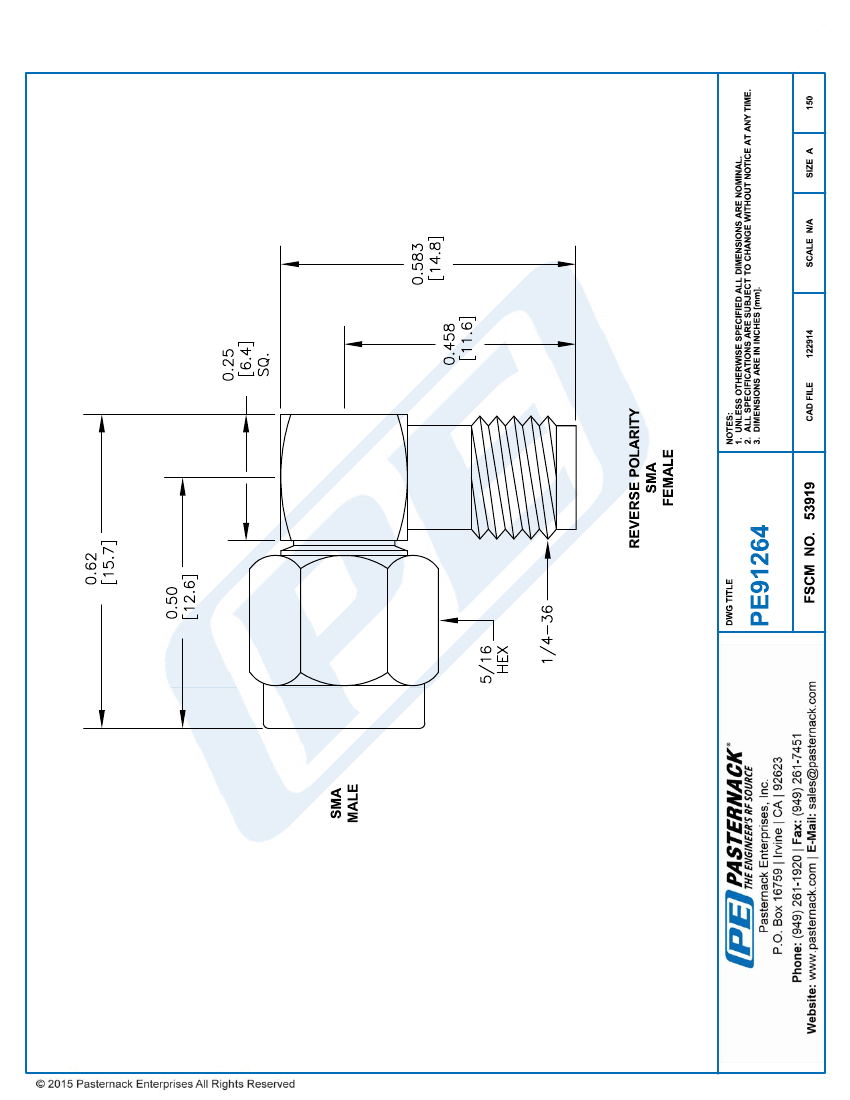

PE91264
Electrical Specifications
Frequency Range
Maximum VSWR
Maximum Operating Voltage, Vrms
Dielectric Withstanding Voltage, Vrms
Minimum Insulation Resistance, mOhms
DC to 12.4 GHz
1.23:1
335
1,500
5,000
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
0.62 [15.75]
0.312 [7.92]
0.583 [14.81]
Connector 1
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Coupling Nut Material and Plating
Coupling Nut Plating Specification
Hex Size, Inch
Body Material and Plating
Body Plating Specification
Dielectric Type
Connector 2
Type
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
SMA Male
Beryllium Copper, Gold
MIL-G-45204
Passivated Stainless Steel
QQ-P-35
5/16
Passivated Stainless Steel
QQ-P-35
PTFE
SMA Female Reverse Polarity
Beryllium Copper, Gold
MIL-G-45204
Passivated Stainless Steel
QQ-P-35
PTFE
Environmental Specifications
Temperature
Operating Range
-65 to +165 deg C
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Male to Reverse Polarity SMA Female Right Angle Adapter PE91264
PE91264 REV 1.0
1
SMA Male to Reverse Polarity SMA Female Right Angle Adapter
TECHNICAL DATA SHEET
Compliance Certifications
(visit www.Pasternack.com for current document)
Not RoHS Compliant
PE91264
Plotted and Other Data
Notes:
•
Values at +25 °C, sea level
SMA Male to Reverse Polarity SMA Female Right Angle Adapter from Pasternack Enterprises has same day shipment for
domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability and are part
of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Male to Reverse Polarity SMA Female Right Angle Adapter PE91264
URL:
http://www.pasternack.com/sma-male-sma-female-right-angle-adapter-pe91264-p.aspx
PE91264 REV 1.0
2
