GBJ25A thru GBJ25M
Glass Passivated Single-Phase Bridge Rectifiers
Reverse Voltage 50 to 1000 Volts Forward Current 25.0 Amperes
Features
Thin Single In-Line package
Ideal for printed circuit boards
Glass passivated chip junction
High surge current capability
High case dielectric strength of 2500 V
RMS
Plastic package has Underwriters Laboratory Flammability
Classification 94V-0
Mechanical Data
Case: GBJ(5S)
Epoxy meets UL-94V-0 Flammability rating
Terminals: Plated leads solderable per MIL-STD-750,
Method 2026
High temperature soldering guaranteed:
260
o
C/10 seconds, 0.375 (9.5mm) lead length,
5lbs.(2.3kg) tension
Polarity: As marked on body
Mounting Torque: 10 cm-kg (8.8 inches-lbs) max.
Recommended Torque: 5.7cm-kg (5 inches-lbs)
Typical Applications
General purpose use in ac-to-dc bridge full wave rectification for
Switching Power Supply, Home Appliances, Office Equipment,
Industrial Automation applications

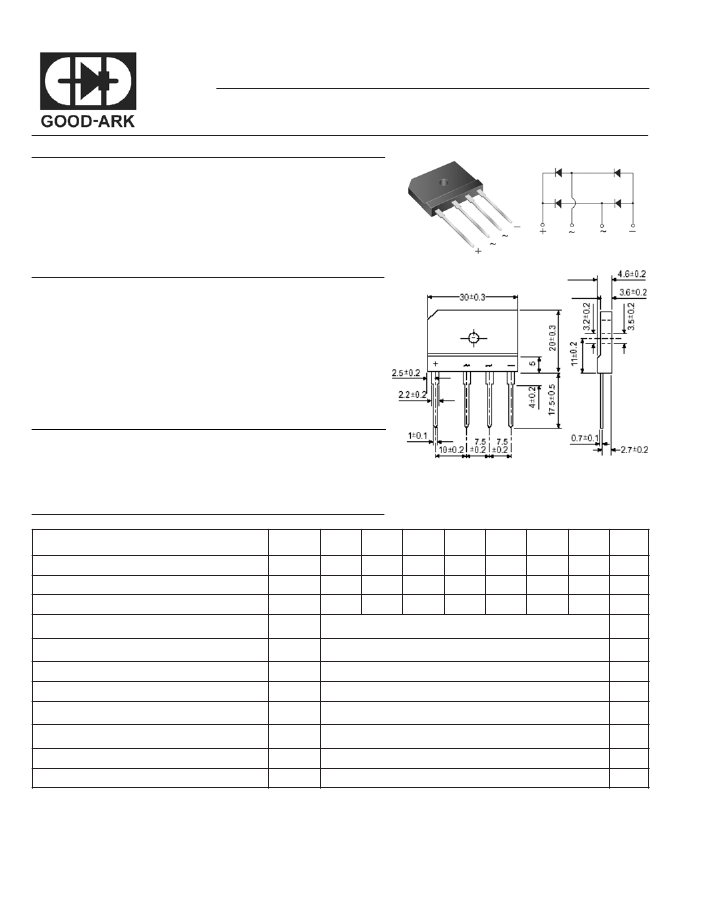

Package outline dimensions in millimeters
Maximum Ratings and Electrical Characteristics
Rating at 25
o
C ambient temperature unless otherwise specified.
Parameter
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward
rectified output current at
T
C
=98
o
C
T
A
=25
o
C
Symbols
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I
2
t
V
F
I
R
R
θ
JA
R
θ
JC
V
ISO
T
J
, T
STG
GBJ25A
GBJ25B
GBJ25D
GBJ25G
GBJ25J
GBJ25K
GBJ25M
Units
Volts
Volts
Volts
Amps
Amps
A
2
se c
Volt
uA
o
50
35
50
100
70
100
200
140
200
400
280
400
25
(1)
3.5
(2)
350
500
1.0
5
250
22
(2)
1.0
(1)
2500
-55 to +150
600
420
600
800
560
800
1000
700
1000
Peak forward surge current, 8.3ms single half sine-wave
superimposed on rated load (JEDEC Method)
Rating for fusing (t<8.3ms)
Maximum instantaneous forward voltage drop per leg at 12.5A
Maximum DC reverse current
at rated DC blocking voltage per leg
Typical thermal resistance per leg
Dielectric strength (Therminals to case, AC 1 minute)
Operating junction and storage temperature range
T
A
=25
o
C
T
A
=125
o
C
C/W
Volts
o
C
Notes:
1. Unit case mounted on 26.5x26.5x0.15cm thick Al plate heatsink
2. Units mounted on P.C.B. without heatsink
3. Recommended mounting position is to bolt down on heatsink with silicone thermal compound for maximum heat transfer with #6 screw
