PE-W42S001-3

Description
WR-42 Instrumentation Grade Straight Waveguide Section 3 Inch Length with UG595/U Flange Operating from 18 GHz to 26.5 GHz
CategoryThe connector
File Size409KB,4 Pages
ManufacturerPasternack Enterprises
Websitehttps://www.pasternack.com/
Download Datasheet View All

PE-W42S001-3 Overview

WR-42 Instrumentation Grade Straight Waveguide Section 3 Inch Length with UG595/U Flange Operating from 18 GHz to 26.5 GHz

WR-42 Instrumentation Grade Straight Waveguide Section 3 Inch
Length with UG595/U Flange Operating from 18 GHz to 26.5 GHz
TECHNICAL DATA SHEET
PE-W42S001-3
Pasternack’s instrumentation grade waveguide sections are constructed of a high quality oxygen free hard copper with high
precision mechanical tolerances as tight as ±0.001” that ensures repeatable and consistent RF performance. Our commercial
and instrumentation grade waveguide sections range in size from WR-12 to WR-137 and include grooved and non-grooved
flanged designs. Standard lengths of Pasternack waveguide sections are offered from 3” to 12” in 3” increments and each
waveguide section is labeled for easy identification. Custom lengths are available upon request. Our commercial grade wave-
guide sections are painted blue and our instrumentation grade versions are hard gold plated over a copper flash.
WR-12 to WR-137 Waveguide Sections
Grooved and Non-Grooved Flange Designs
Available for frequency ranges between 5.8 GHz to 90 GHz
Comprehensive waveguide offering also includes E-Bends, H-Bends, Waveguide to Coax Adapters, Filters, Termina-
tions, and more.
High Precision Tolerance as Tight as ±0.001”
Electrical Specifications
Description
Frequency Range

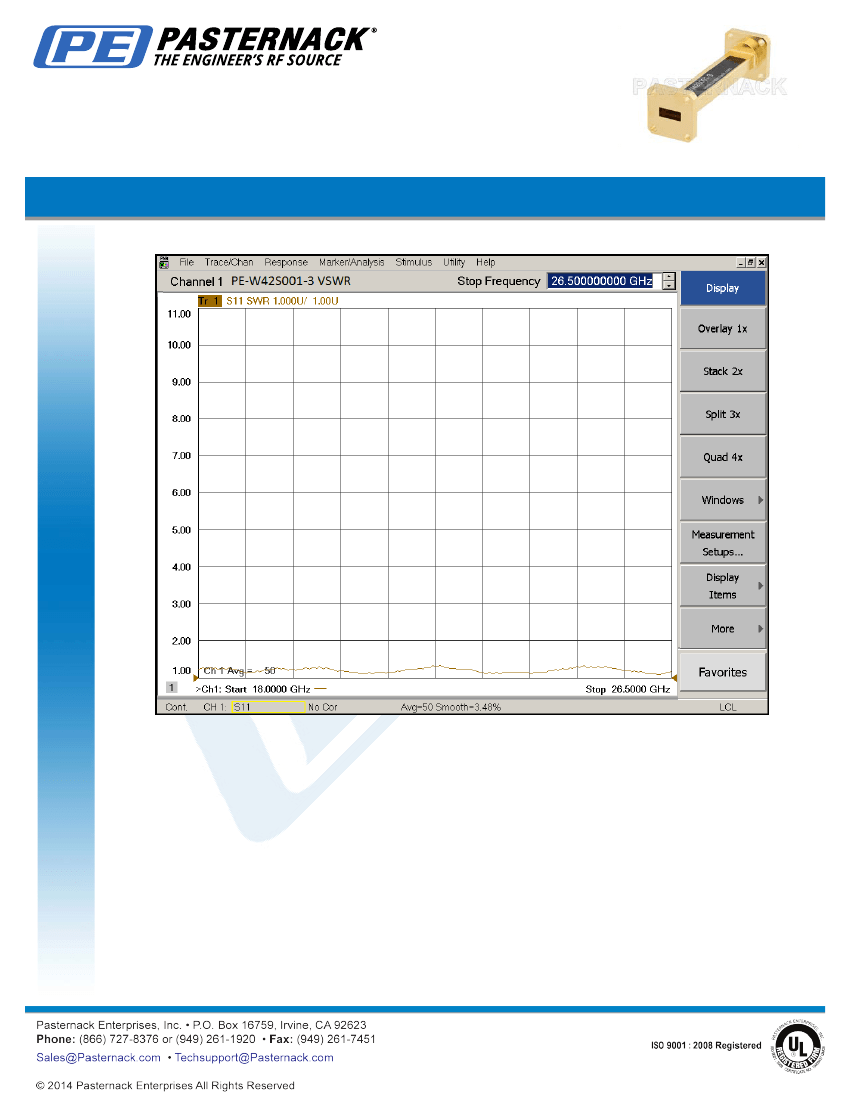

VSWR

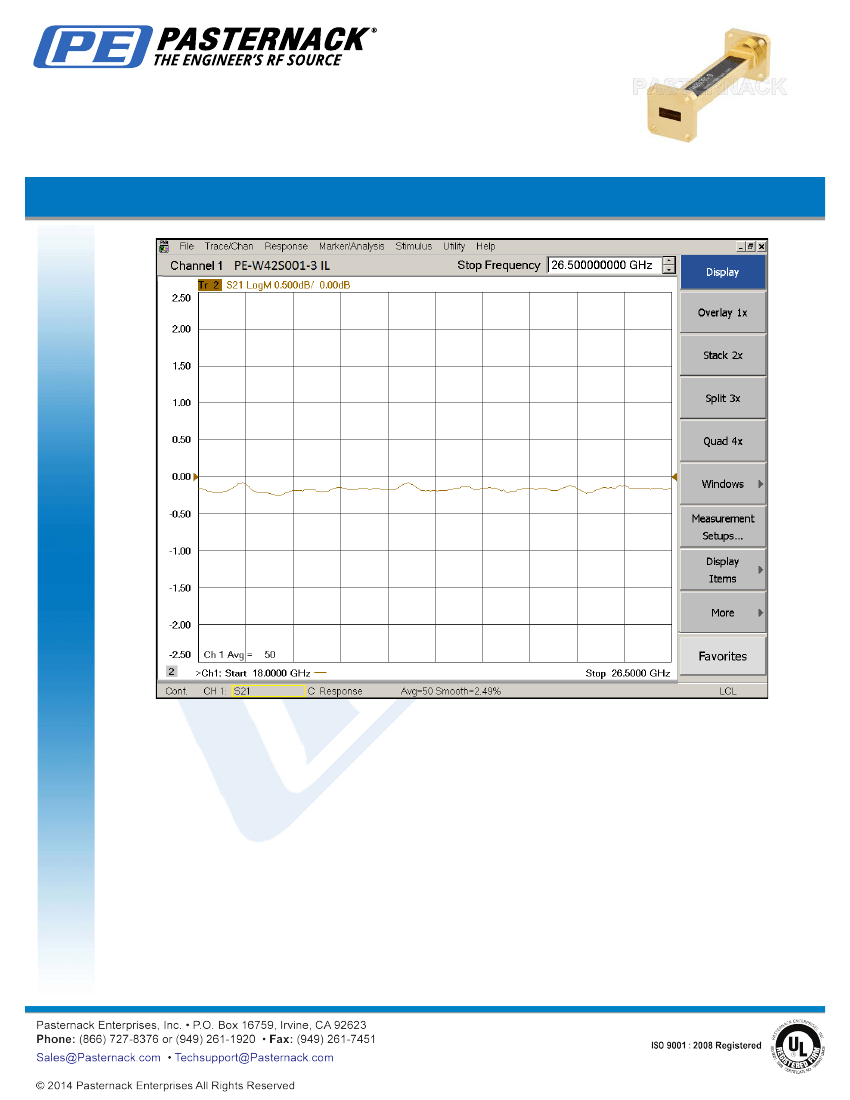

Insertion Loss
.
Minimum
18
Typical
Maximum
26.5
1.06:1
0.08 [0.26]
Units
GHz
dB/ft [dB/m]

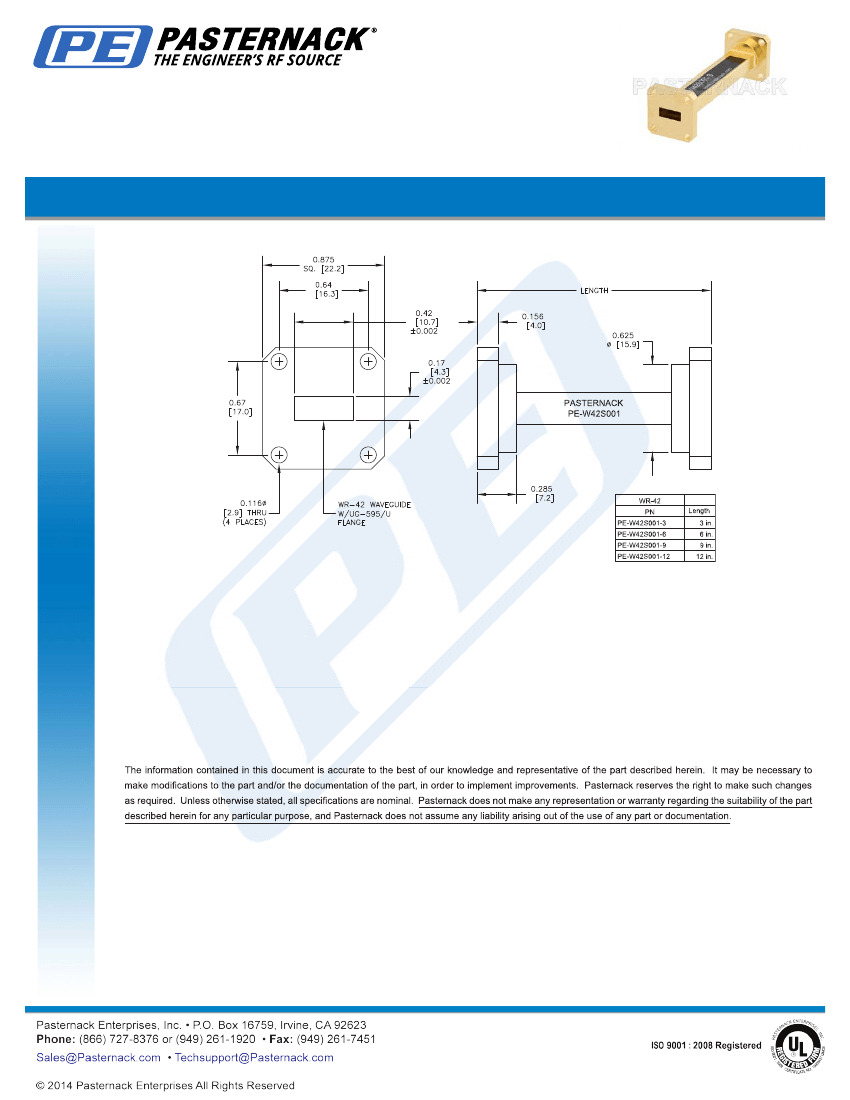

Mechanical Specifications
Waveguide Size
Waveguide Design
Section Length
Description
Interface
Material
Plating
Color
...
WR-42
Instrumentation Grade
3 in [76.2 mm]
Flange 1
UG595/U
Oxygen Free Hard Copper
Hard Gold over Copper Flash
Gold
Waveguide
WR-42
Oxygen Free Hard Copper
Hard Gold over Copper Flash
Gold
Flange 2
UG595/U
Oxygen Free Hard Copper
Hard Gold over Copper Flash
Gold
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Notes:
Values at +25 °C, sea level
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: WR-42 Instrumentation Grade Straight Waveguide Section 3 Inch Length with UG595/U
Flange Operating from 18 GHz to 26.5 GHz
PE-W42S001-3
PE-W42S001-3 REV 1
1
