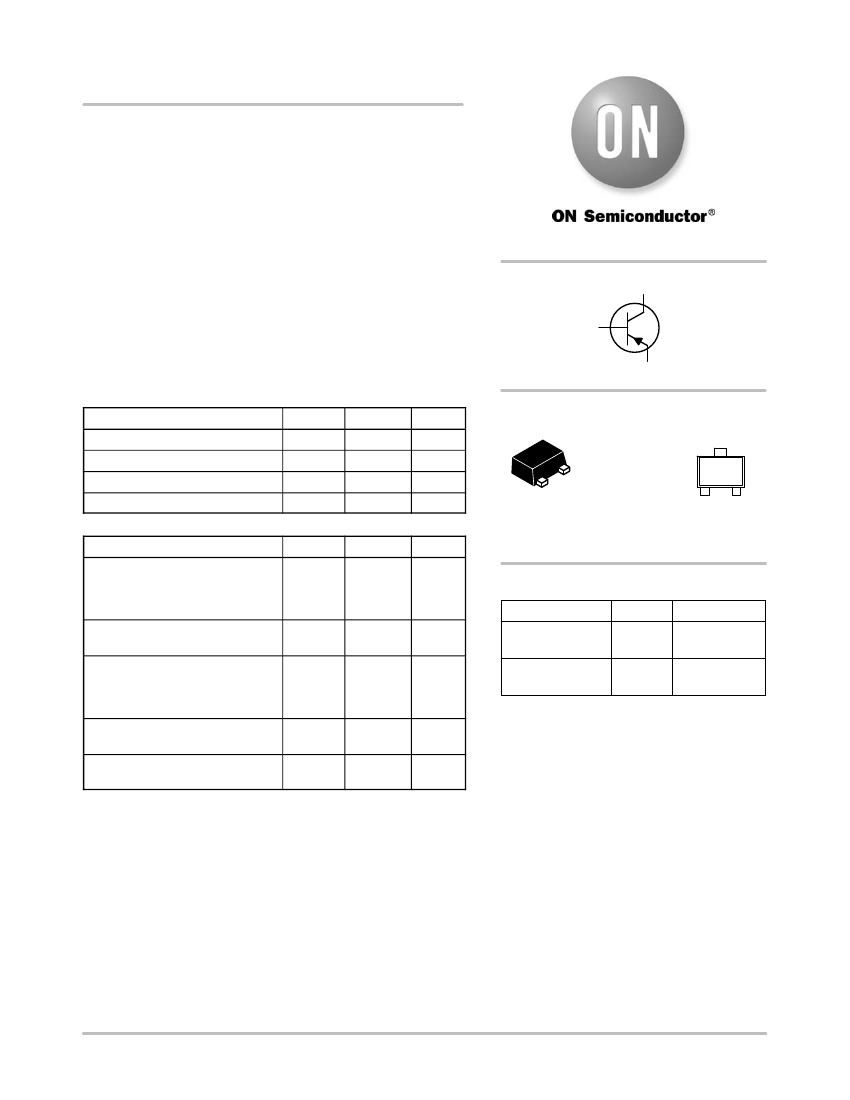

BC856BM3, NSVBC856BM3
General Purpose Transistor
PNP Silicon
This transistor is designed for general purpose amplifier
applications. It is housed in the SOT−723 which is designed for low
power surface mount applications.
Features
http://onsemi.com
COLLECTOR
3
1
BASE
2
EMITTER
•
NSV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q101
Qualified and PPAP Capable
•
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
MAXIMUM RATINGS
Rating
Collector−Emitter Voltage
Collector−Base Voltage
Emitter−Base Voltage
Collector Current
−
Continuous
Symbol
V
CEO
V
CBO
V
EBO
I
C
Value
−65
−80
−5.0
−100
Unit
V
V
V
mA
1
3
MARKING
DIAGRAM
SOT−723
CASE 631AA
STYLE 1
3B M
2
THERMAL CHARACTERISTICS
Characteristic
Total Device Dissipation FR− 5 Board
(Note 1)
T
A
= 25°C
Derate above 25°C
Thermal Resistance,
Junction to Ambient (Note 1)
Total Device Dissipation
Alumina Substrate (Note 2)
T
A
= 25°C
Derate above 25°C
Thermal Resistance,
Junction to Ambient (Note 2)
Junction and Storage
Temperature Range
Symbol
P
D
Max
265
Unit
mW
3B = Specific Device Code
M = Date Code
ORDERING INFORMATION
2.1
R
qJA
P
D
470
640
mW/°C
°C/W
mW
Device
BC856BM3T5G
NSVBC856BM3T5G
Package
SOT−723
(Pb−Free)
SOT−723
(Pb−Free)
Shipping
†
8000 / Tape &
Reel
8000 / Tape &
Reel
5.1
R
qJA
T
J
, T
stg
195
−55
to
+150
mW/°C
°C/W
°C
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
1. FR− 5 = 1.0
0.75
0.062 in.
2. Alumina = 0.4
0.3
0.024 in. 99.5% alumina.
©
Semiconductor Components Industries, LLC, 2013
September, 2013
−
Rev. 2
1
Publication Order Number:
BC856BM3/D
BC856BM3, NSVBC856BM3

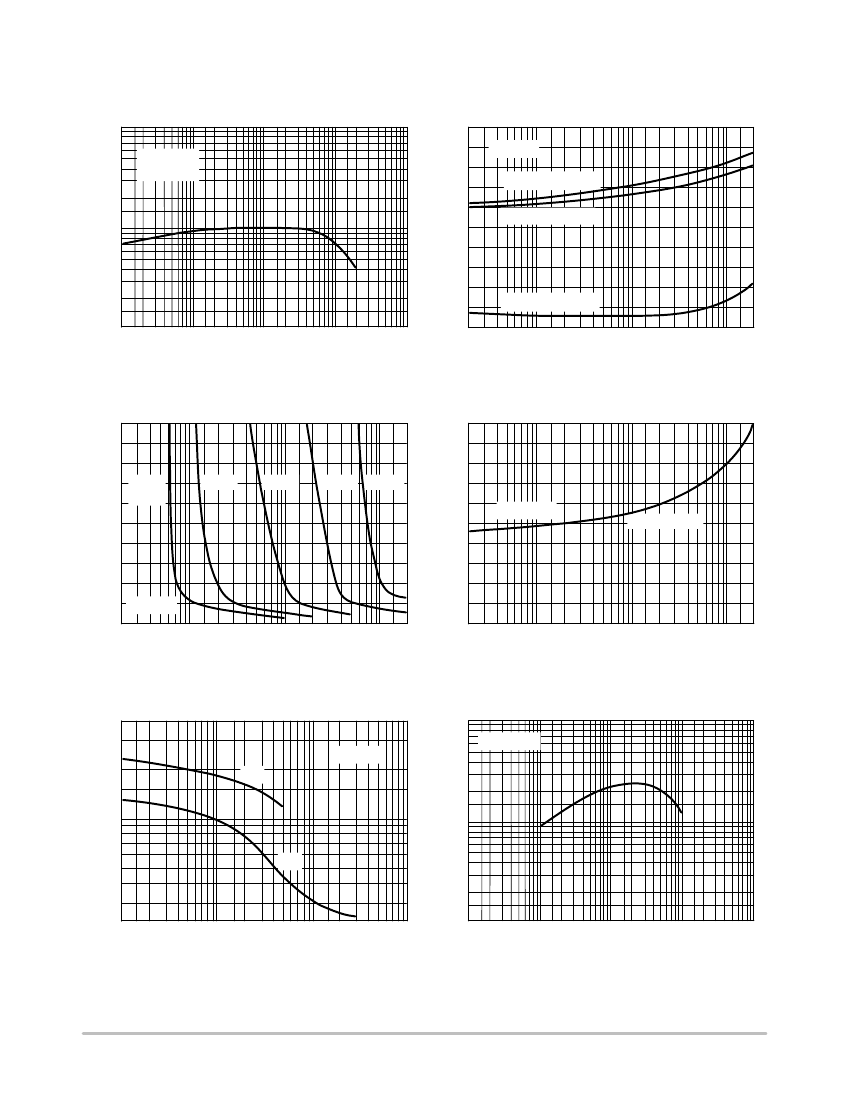

TYPICAL CHARACTERISTICS
-1.0
hFE , DC CURRENT GAIN (NORMALIZED)
V
CE
= -5.0 V
T
A
= 25°C
2.0
1.0
0.5
V, VOLTAGE (VOLTS)
T
J
= 25°C
-0.8
V
BE(sat)
@ I
C
/I
B
= 10
-0.6
V
BE
@ V
CE
= -5.0 V
-0.4
-0.2
0.2
0
-0.2
V
CE(sat)
@ I
C
/I
B
= 10
-1.0 -2.0 -5.0 -10 -20 -50 -100 -200
I
C
, COLLECTOR CURRENT (mA)
-0.5
-50 -100 -200
-5.0 -10 -20
-1.0 -2.0
I
C
, COLLECTOR CURRENT (mA)
-0.1 -0.2
Figure 1. DC Current Gain
Figure 2. “On” Voltage
VCE , COLLECTOR-EMITTER VOLTAGE (VOLTS)
-2.0
θ
VB, TEMPERATURE COEFFICIENT (mV/
°
C)
-1.0
-1.6
I
C
=
-10 mA
-20 mA
-50 mA
-100 mA -200 mA
-1.4
-1.2
-1.8
q
VB
for V
BE
-55°C to 125°C
-0.8
-2.2
-0.4
T
J
= 25°C
0
-0.02
-0.05 -0.1 -0.2
-0.5 -1.0 -2.0
I
B
, BASE CURRENT (mA)
-5.0
-10
-20
-2.6
-3.0
-0.2
-0.5 -1.0
-50
-2.0
-5.0 -10 -20
I
C
, COLLECTOR CURRENT (mA)
-100 -200
Figure 3. Collector Saturation Region
Figure 4. Base−Emitter Temperature Coefficient
f T, CURRENT-GAIN - BANDWIDTH PRODUCT
40
T
J
= 25°C
C, CAPACITANCE (pF)
20
C
ib
500
V
CE
= -5.0 V
200
100
50
10
8.0
6.0
4.0
2.0
-0.1 -0.2
C
ob
20
-0.5
-1.0 -2.0
-5.0 -10 -20
V
R
, REVERSE VOLTAGE (VOLTS)
-50 -100
-100
-1.0
-10
I
C
, COLLECTOR CURRENT (mA)
Figure 5. Capacitance
Figure 6. Current−Gain
−
Bandwidth Product
http://onsemi.com
3
BC856BM3, NSVBC856BM3
PACKAGE DIMENSIONS
SOT−723
CASE 631AA
ISSUE D
−X−
b1
D
3
NOTES:
1. DIMENSIONING AND TOLERANCING PER ASME
Y14.5M, 1994.
2. CONTROLLING DIMENSION: MILLIMETERS.
3. MAXIMUM LEAD THICKNESS INCLUDES LEAD
FINISH. MINIMUM LEAD THICKNESS IS THE MINIMUM
THICKNESS OF BASE MATERIAL.
4. DIMENSIONS D AND E DO NOT INCLUDE MOLD
FLASH, PROTRUSIONS OR GATE BURRS.
DIM
A
b
b1
C
D
E
e
H
E
L
L2
MILLIMETERS
MIN
NOM
MAX
0.45
0.50
0.55
0.15
0.21
0.27
0.25
0.31
0.37
0.07
0.12
0.17
1.15
1.20
1.25
0.75
0.80
0.85
0.40 BSC
1.15
1.20
1.25
0.29 REF
0.15
0.20
0.25
A
−Y−
E
H
E
b
0.08 X Y
C
SIDE VIEW
1
2X
2
2X
e
TOP VIEW
3X
1
L
STYLE 1:
PIN 1. BASE
2. EMITTER
3. COLLECTOR
3X
L2
BOTTOM VIEW
RECOMMENDED
SOLDERING FOOTPRINT*
0.40
2X
PACKAGE
OUTLINE
2X
0.27
1.50
3X
0.52
0.36
DIMENSIONS: MILLIMETERS
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
ON Semiconductor
and
are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC owns the rights to a number of patents, trademarks,
copyrights, trade secrets, and other intellectual property. A listing of SCILLC’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. SCILLC
reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any
particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without
limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications
and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC
does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for
surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where
personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and
its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly,
any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture
of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
Literature Distribution Center for ON Semiconductor
P.O. Box 5163, Denver, Colorado 80217 USA
Phone:
303−675−2175 or 800−344−3860 Toll Free USA/Canada
Fax:
303−675−2176 or 800−344−3867 Toll Free USA/Canada
Email:
orderlit@onsemi.com
N. American Technical Support:
800−282−9855 Toll Free
USA/Canada
Europe, Middle East and Africa Technical Support:
Phone: 421 33 790 2910
Japan Customer Focus Center
Phone: 81−3−5817−1050
ON Semiconductor Website: www.onsemi.com
Order Literature:
http://www.onsemi.com/orderlit
For additional information, please contact your local
Sales Representative
http://onsemi.com
4
BC856BM3/D
