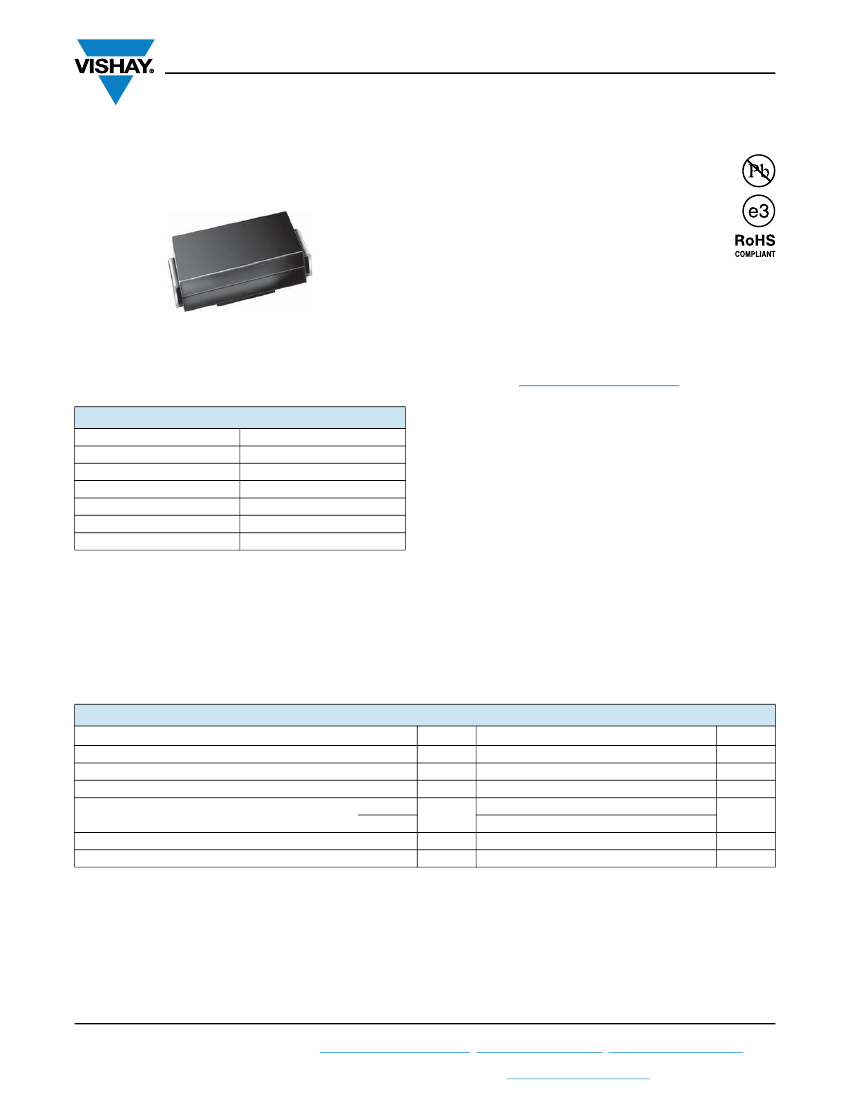

BYS11-90

www.vishay.com

Vishay General Semiconductor

Surface Mount Schottky Barrier Rectifier

FEATURES

• Low profile package

• Ideal for automated placement

• Guardring for overvoltage protection

• Low power losses, high efficiency

• Very low switching losses

• High surge capability

• Meets MSL level 1, per J-STD-020, LF maximum peak of

260 °C

DO-214AC (SMA)

• AEC-Q101 qualified available

- Automotive ordering code: base P/NHE3

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

max.

Package

Diode variations

1.5 A

90 V

40 A

0.75 V

150 °C

DO-214AC (SMA)

Single

TYPICAL APPLICATIONS

For use in high frequency inverters, switching power

supplies, freewheeling diodes, oring diode, DC/DC

converters, and reverse battery protection.

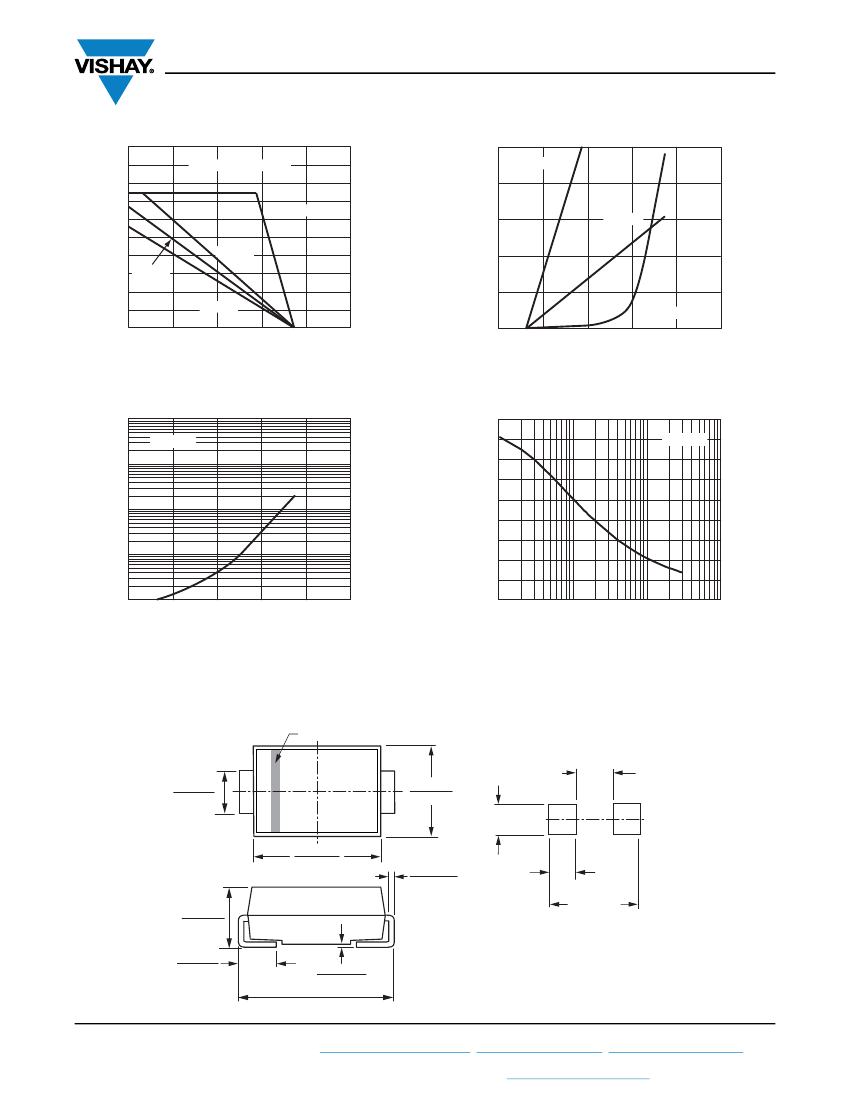

MECHANICAL DATA

Case:

DO-214AC (SMA)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E3 - RoHS-compliant, commercial grade

Base P/NHE3 - RoHS-compliant and AEC-Q101 qualified

Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified

(“_X” denotes revision code e.g. A, B, .....)

Terminals:

Matte tin plated leads, solderable per

J-STD-002 and JESD 22-B102

E3 suffix meets JESD 201 class 2 whisker test, HE3 suffix

meets JESD 201 class 2 whisker test

Polarity:

Color band denotes cathode end

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Device marking code

Maximum repetitive peak reverse voltage

Maximum average forward rectified current

Peak forward surge current single half sine-wave

superimposed on rated load

Voltage rate of change (rated V

)

Junction and storage temperature range

8.3 ms

10 ms

RRM

F(AV)

FSM

dV/dt

, T

STG

SYMBOL

BYS11-90

BYS109

1.5

10 000

-55 to +150

V/μs

°C

UNIT

Revision: 23-Dec-14

Document Number: 86014
