FP5ZC8V2 thru FP5ZC200
Surface Mount Zener Diodes
Vz Range:8.2 to 200V Power Dissipation:0.5W
Features
•
•
•
•
•
•
Toal power dissipation:max,500mW
Low leakage current
Moisture sensitivity: level 1 per J STD 020
1,
J-STD-020
Solder dip 260 °C, 10 s
Low profile， typical thickness 1.0mm
For use in stabilizing and clipping circuits with high power rating
eSGA
(SOD‐123FL)
Maximum Ratings and Thermal Characteristics
(TA = 25 °C unless otherwise noted)
Parameter
Zener current
Power dissipation
p
Maximum instantaneous
forward voltage at 200mA
Thermal resistance junction to
ambient air
Operating junction and
storage temperature range
Ptot
V
F
Rthja
TJ, TSTG
Symbol
Value
See Next Table
500
1.2
90
-65 to +175
mW
V
℃/W
℃
Unit
Note:1),The thermal resistance from junction to ambient,case or mount,mounted on P.C.B with 5 5
N t 1) Th th
l
i t
f
j
ti t
bi t
t
t d
P C B ith 5×5mm copper pads,2 OZ,FR4 PCB
d 2 OZ FR4
Electrical Characteristics
Zener voltage
Part
Number
FP5ZC8V2
FP5ZC9V1
FP5ZC10
FP5ZC11
FP5ZC12
FP5ZC13
Marking
Code
4Z
5A
5B
5C
5D
5E
VZ /V
Vz(MIN) Vz(NOR) Vz(MAX)
7.7
8.2
8.7
8.5
9.1
9.6
9.4
10
10.6
10.4
11
11.6
11.4
12
12.7
12.4
13
14.1
(TA = 25 °C unless otherwise noted)
Test
current
IZT
mA
5
5
5
5
5
5
Dynamic
resistance
ZZK
Ω
30
30
30
30
35
35
IZK
mA
5
5
5
5
5
5
Reverse Reverse
Temp
current
voltage
Coefficient of
IR(Max)
IR(Ma )
µAdc
5
5
5
5
5
5
VR
V
5
6
7
8
9
10
zener
voltage,TKvz
%/k
0.03...0.08
0.03...0.09
0.03...0.1
0.03...0.11
0.03...0.11
0.03...0.11
www.goodark.com
1/5
2014.12-Rev.B
FP5ZC8V2 thru FP5ZC200
Surface Mount Zener Diodes
Vz Range:8.2 to 200V Power Dissipation:0.5W

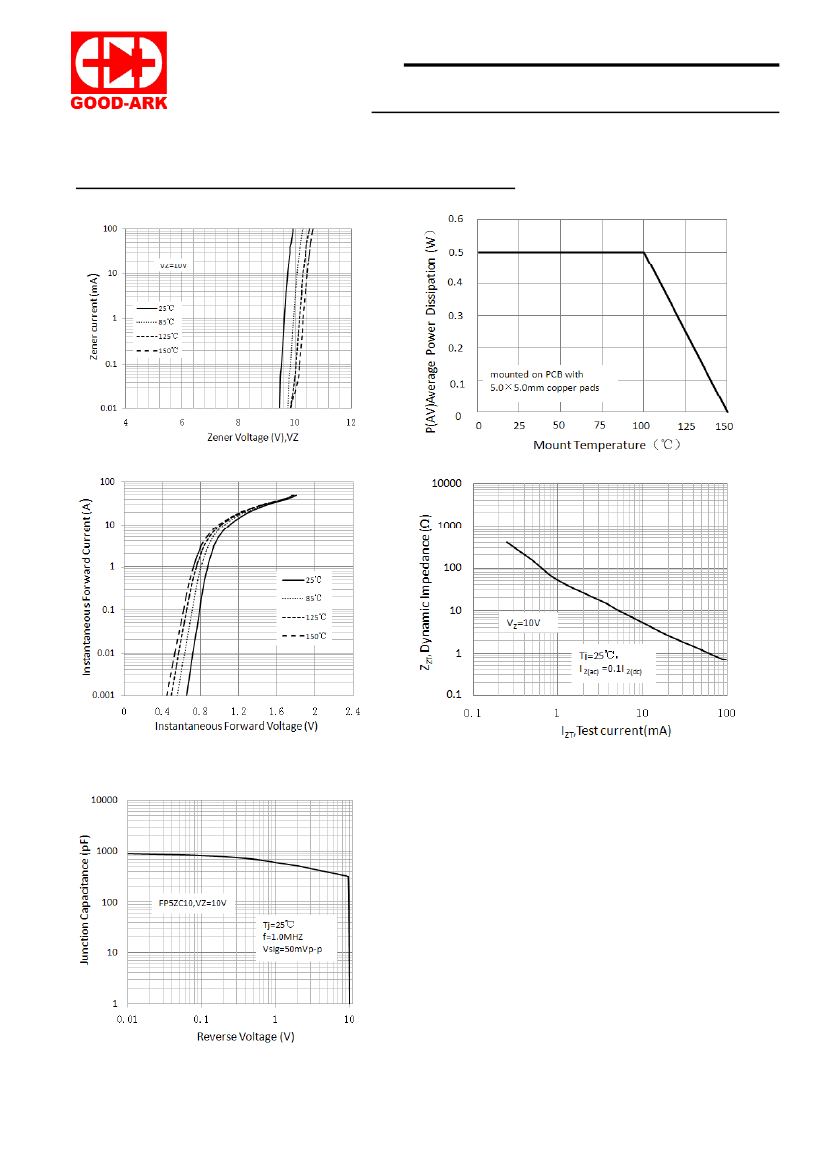

Ratings and Characteristics Curves
(TA = 25℃ unless otherwise noted)
Figure 1. Typical Zener Voltage
Figure 2. Steady State POWER Derating
Figure 3. Typical Instantaneous Forward
Characteristics
Figure 4. Typical Zener Impedance
Figure 5. Typical Junction Capacitance
www.goodark.com
3/5
2014.12-Rev.B

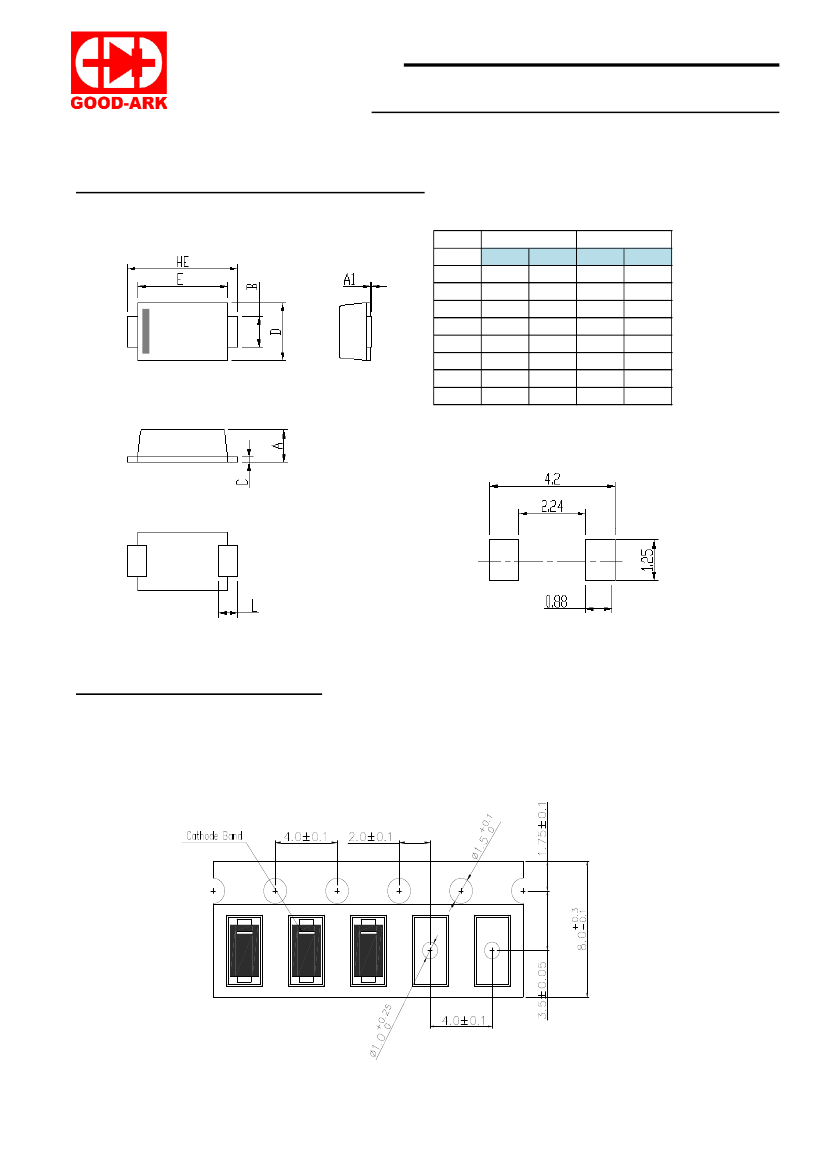

FP5ZC8V2 thru FP5ZC200
Surface Mount Zener Diodes
Vz Range:8.2 to 200V Power Dissipation:0.5W
Disclaimers
These materials are intended as a reference to assist our customers in the selection of the
Suzhou Good-Ark product best suited to the customer’s application; they do not convey any
license under any intellectual property rights or any other rights belonging to Suzhou Good-
rights,
rights,
Ark Electronics Co., Ltd.or a third party.
Suzhou Good-Ark Electronics Co., Ltd. assumes no responsibility for any damage, or
infringement of any third-party’s rights, originating in the use of any product data, diagrams,
charts, programs, algorithms, or circuit application examples contained in these materials.
All information contained in these materials, including product data, diagrams, charts,
programs and algorithms represents information on products at the time of publication of
these materials, and are subject to change by Suzhou Good-Ark Electronics Co., Ltd.
without notice due to product improvements or other reasons. It is therefore recommended
that customers contact Suzhou Good-Ark Electronics Co., Ltd. or an authorized Suzhou
Good-Ark Electronics Co., Ltd. for the latest product information before purchasing a product
listed herein The information described here may contain technical inaccuracies or
herein.
typographical errors. Suzhou Good-Ark Electronics Co., Ltd. assumes no responsibility for
any damage, liability, or other loss rising from these inaccuracies or errors. Please also pay
attention to information published by Suzhou Good-Ark Electronics Co., Ltd. by various
means, including our website home page.
(http://www.goodark.com)
When using any or all of the information contained in these materials, including product data,
diagrams, charts, programs, and algorithms, Please be sure to evaluate all information as a
total system before making a final decision on the applicability of the information and
products. Suzhou Good-Ark Electronics Co., Ltd. assumes no responsibility for any damage,
liability or other loss resulting from the information contained herein.
The i
Th prior written approval of S h G d A k El t i C Ltd i necessary to reprint
itt
l f Suzhou Good-Ark Electronics Co., Ltd. is
t
i t
or reproduce in whole or in part these materials.
Please contact Suzhou Good-Ark Electronics Co., Ltd. or an authorized distributor for further
details on these materials or the products contained herein.
www.goodark.com
5/5
2014.12-Rev.B
