PTV09A-2020U-A203: DescriptionPotentiometer, Carbon Film, 0.05W, 20000ohm, 20V, 20% +/-Tol, 1 Turn(s), 3917, ROHS COMPLIANT; CategoryPassive components The resistor; File Size213KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric Compare View All

PTV09A-2020U-A203 Overview

Potentiometer, Carbon Film, 0.05W, 20000ohm, 20V, 20% +/-Tol, 1 Turn(s), 3917, ROHS COMPLIANT

PTV09A-2020U-A203 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator direction	HORIZONTAL
Actuator type	SHAFT
structure	Square
gang number	1
JESD-609 code	e3
Manufacturer's serial number	PTV09
Installation features	THROUGH HOLE MOUNT
Number of terminals	3
number of turns	1
Maximum operating temperature	50 °C
Minimum operating temperature	-10 °C
Package height	11.7 mm
Package length	9.8 mm
Package shape	RECTANGULAR PACKAGE
Package form	PCB Mount
Package width	4.2 mm
Rated power dissipation(P)	0.05 W
resistance	20000 Ω
resistance law	AUDIO
Resistor type	POTENTIOMETER
rotation angle	280 deg
series	PTV09
size code	3917
surface mount	NO
technology	CARBON FILM
Terminal surface	Tin (Sn)
Terminal shape	FLAT
Tolerance	20%
Operating Voltage	20 V

Preview

Download Datasheet

View All

Features

■

Carbon element

■

Insulated shaft

■

Snap-in clip

■

Center detent option

■

RoHS compliant*

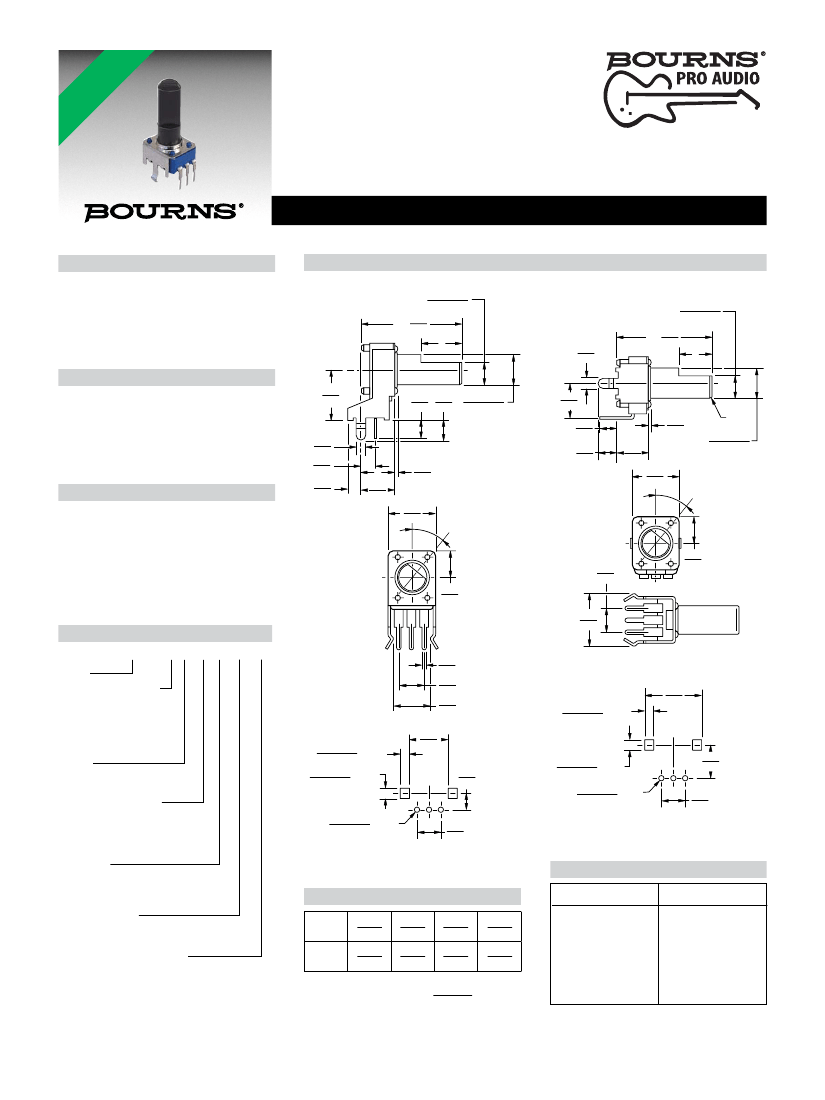

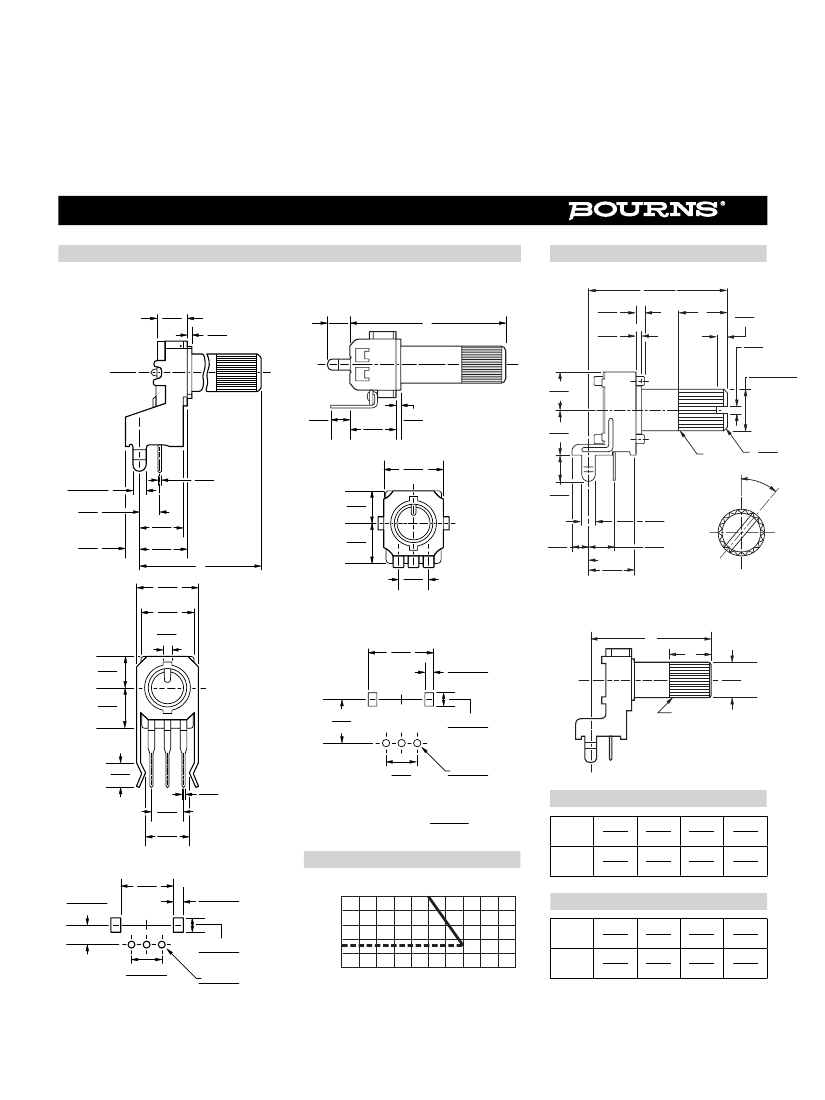

PTV09 Series - 9 mm Potentiometer

Electrical Characteristics

Taper .................................... Linear, audio

Standard Resistance Range

....................... 1 K ohms to 1 M ohms

Standard Resistance Tolerance.....±20 %

Residual Resistance

.....................500 ohms or ±1 % max.

Environmental Characteristics

Operating Temperature..-10 °C to +50 °C

Power Rating

(Linear and Audio) ................0.05 watt

Maximum Operating Voltage

(Linear and Audio) .... 20 VDC, 50 VAC

Sliding Noise ...................... 100 mV max.

Mechanical Characteristics

Mechanical Angle .....................280 ° ±5 °

Rotational Torque ............10 to 100 g-cm

Detent Torque ..................40 to 200 g-cm

Stop Strength ..................... 2 kg-cm min.

Rotational Life ................... 10,000 cycles

Soldering Condition

............300 °C max. within 3 seconds

Hardware .............. No hardware supplied

How To Order

10.0

(.393)

3.8

3.5

(.137) (.149)

Product Dimensions

PTV09A-2 (with shaft style F)

4.5

-0.1

(.177

)

-0.0003

PTV09A-4 (with shaft style F)

4.5

-0.1

(.177

)

-0.0003

0.5

(.019)

2.0

(.078)

0.5

(.019)

6.0

-0.1

(.236

-0.0003

)

7.0

(.275)

3.5

(.137)

3.8

(.149)

6.8

(.267)

9.8

(.385)

0.8

(.031)

C0.5

6.0

-0.1

(.236

-0.0003

)

2.0

(.078)

3.3

(.129)

2.6

(.102)

6.8

(.267)

0.8

(.031)

9.8

(.385)

5.5

(.216)

5.0

(.196)

5.5

(.216)

11.4

(.448)

PTV09A - 2 0 20 F - B 203

Model

Terminal Conﬁguration

(Pin Layout)

• 2 = PC Pins Vertical/

Down Facing

• 4 = PC Pins Horizontal/

Rear Facing

Option

• 0 = No Detent

• 2 = Center

Standard Shaft Length

• 15 = 15 mm

• 20 = 20 mm

• 25 = 25 mm

• 30 = 30 mm

Shaft Style

• F = Flat Type Insulated Shaft

• S = Insulated Knurled (18 Teeth)

• U = Insulated Knurled (40 Teeth)

Resistance Taper

• A = Audio Taper

• B = Linear Taper

Resistance Code (See Table)

Other styles available.

DIMENSIONS:

0.8

3 PLCS.

(.031)

5.0

(.196)

7.4

(.291)

RECOMMENDED PCB LAYOUT

10.6

(.417)

PLCS.

RECOMMENDED PCB LAYOUT

1.8

-0.0

2 PLCS.

(.070

+0.0007

)

-0.0

+0.2

2.1

-0.0

2 PLCS.

+0.0007

(.082

-0.0

)

+0.2

1.8

-0.0

+0.0007

(.070

-0.0

)

8.2

(.322)

3.3

(.129)

2.1

-0.0

2 PLCS.

(.082

+0.0007

)

-0.0

1.0

-0.0

3 PLCS.

(.039

+0.0007

)

-0.0

+0.2

7.0

(.275)

5.0

(.196)

1.0

-0.0

3 PLCS.

(.039

+0.0007

)

-0.0

+0.2

5.0

(.196)

SHAFT SHOWN IN CCW POSITION

Standard Resistance Table

Resistance

(Ohms)

1,000

2,000

5,000

10,000

20,000

50,000

100,000

200,000

500,000

1,000,000

Resistance

Code

102

202

502

103

203

503

104

204

504

105

F-Type Shaft

(.591)

(.236)

(.787)

(.275)

(.984)

(.472)

(INCHES)

(1.181)

(.472)

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.

PTV09A-2020U-A203 Related Products

	PTV09A-2020U-A203	PTV09A-2020F-A504	PTV09A-2020U-A504	PTV09A-4020F-A104	PTV09A-2020U-A105	PTV09A-2020U-A103	PTV09A-2020U-A104	PTV09A-2020F-A204	PTV09A-2020U-A204	PTV09A-4020F-A204
Description	Potentiometer, Carbon Film, 0.05W, 20000ohm, 20V, 20% +/-Tol, 1 Turn(s), 3917, ROHS COMPLIANT	Potentiometer, Carbon Film, 0.05W, 500000ohm, 20V, 20% +/-Tol, 1 Turn(s), 3927, ROHS COMPLIANT	Potentiometer, Carbon Film, 0.05W, 500000ohm, 20V, 20% +/-Tol, 1 Turn(s), 3917, ROHS COMPLIANT	Potentiometer, Carbon Film, 0.05W, 100000ohm, 20V, 20% +/-Tol, 1 Turn(s), 3943, ROHS COMPLIANT	Potentiometer, Carbon Film, 0.05W, 1000000ohm, 20V, 20% +/-Tol, 1 Turn(s), 3917, ROHS COMPLIANT	Potentiometer, Carbon Film, 0.05W, 10000ohm, 20V, 20% +/-Tol, 1 Turn(s), 3917, ROHS COMPLIANT	Potentiometer, Carbon Film, 0.05W, 100000ohm, 20V, 20% +/-Tol, 1 Turn(s), 3917, ROHS COMPLIANT	Potentiometer, Carbon Film, 0.05W, 200000ohm, 20V, 20% +/-Tol, 1 Turn(s), 3927, ROHS COMPLIANT	Potentiometer, Carbon Film, 0.05W, 200000ohm, 20V, 20% +/-Tol, 1 Turn(s), 3917, ROHS COMPLIANT	Potentiometer, Carbon Film, 0.05W, 200000ohm, 20V, 20% +/-Tol, 1 Turn(s), 3943, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	PCB Mount, 3943	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	PCB Mount, 3927	ROHS COMPLIANT	PCB Mount, 3943
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator direction	HORIZONTAL	HORIZONTAL	HORIZONTAL	VERTICAL	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL	HORIZONTAL	VERTICAL
Actuator type	SHAFT	SHAFT	SHAFT	SHAFT	SHAFT	SHAFT	SHAFT	SHAFT	SHAFT	SHAFT
structure	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square
gang number	1	1	1	1	1	1	1	1	1	1
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3	e3
Manufacturer's serial number	PTV09	PTV09	PTV09	PTV09	PTV09	PTV09	PTV09	PTV09	PTV09	PTV09
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of terminals	3	3	3	3	3	3	3	3	3	3
number of turns	1	1	1	1	1	1	1	1	1	1
Maximum operating temperature	50 °C	50 °C	50 °C	50 °C	50 °C	50 °C	50 °C	50 °C	50 °C	50 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
Package height	11.7 mm	11 mm	11.7 mm	6.8 mm	11.7 mm	11.7 mm	11.7 mm	11 mm	11.7 mm	6.8 mm
Package length	9.8 mm	9.8 mm	9.8 mm	9.8 mm	9.8 mm	9.8 mm	9.8 mm	9.8 mm	9.8 mm	9.8 mm
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Package form	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount	PCB Mount
Package width	4.2 mm	6.8 mm	4.2 mm	11 mm	4.2 mm	4.2 mm	4.2 mm	6.8 mm	4.2 mm	11 mm
Rated power dissipation(P)	0.05 W	0.05 W	0.05 W	0.05 W	0.05 W	0.05 W	0.05 W	0.05 W	0.05 W	0.05 W
resistance	20000 Ω	500000 Ω	500000 Ω	100000 Ω	1000000 Ω	10000 Ω	100000 Ω	200000 Ω	200000 Ω	200000 Ω
resistance law	AUDIO	AUDIO	AUDIO	AUDIO	AUDIO	AUDIO	AUDIO	AUDIO	AUDIO	AUDIO
Resistor type	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER	POTENTIOMETER
rotation angle	280 deg	280 deg	280 deg	280 deg	280 deg	280 deg	280 deg	280 deg	280 deg	280 deg
series	PTV09	PTV09	PTV09	PTV09	PTV09	PTV09	PTV09	PTV09	PTV09	PTV09
size code	3917	3927	3917	3943	3917	3917	3917	3927	3917	3943
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	CARBON FILM	CARBON FILM	CARBON FILM	CARBON FILM	CARBON FILM	CARBON FILM	CARBON FILM	CARBON FILM	CARBON FILM	CARBON FILM
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal shape	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%	20%
Operating Voltage	20 V	20 V	20 V	20 V	20 V	20 V	20 V	20 V	20 V	20 V
