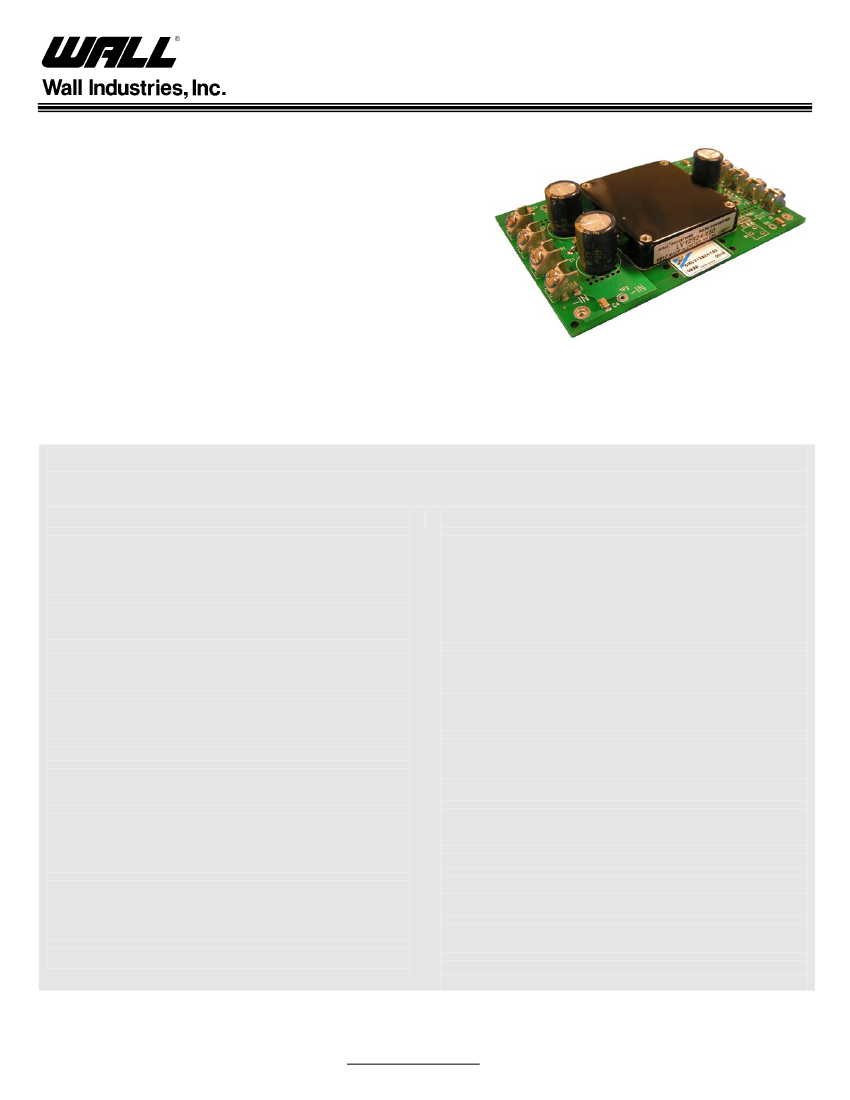

Rev D
CMLV Series
Half-Brick
50-150 Watt, Single Output
Chassis Mount DC/DC Converter
FEATURES
APPLICATIONS
●
Soft Start
●
For use in 12V and 24V Battery Applications
●
100% Burn In
●
For use in Intermediate and Distributed
●
High Reliability
Bus Architectures (IBA)
●
Remote ON/OFF
●
Telecommunications Equipment
●
Up to 89% Efficient
●
Network (LANs/WANs) Equipment
●
Cost Efficient Solution
●
Next Generation Low Voltage, High
●
Fast Transient Response
Current Microprocessors and ICs
●
Fixed Switching Frequency
●
Encapsulated for Added Ruggedness
●
Short Circuit and Over Current Protected
●
Remote Sense Compensation to 10% Vout
DESCRIPTION
The CMLV series consists of high density, low input voltage, isolated converters on a chassis mount with a wide input voltage
range. Low input voltage converters are uncommon in the industry and the CMLV series offers the flexibility of operation with
both 12V and 24V busses. These state-of-the-art converters’ features include fast transient response, short circuit protection,
over current protection, soft start, and many other features that are required for today’s demanding applications.
SPECIFICATIONS:
CMLV Series
All specifications apply @ 25°C ambient unless otherwise noted
INPUT SPECIFICATIONS
Input Voltage Range .....................................................10-36VDC
UVLO Turn On at ...................................................... 9.6VDC max
UVLO Turn off at ....................................................... 9.5VDC max
Input Filter ..............................................See Technical Datasheet
Remote ON/OFF
...........................
Logic Enable referenced to -Vin,
No suffix........................................... Open/High=ON, Low=OFF
“R” suffix .......................................... Open/High=OFF, Low=ON
Input Reflected Ripple current..................................... 225mA typ.
Input Surge Voltage ................................. 50VDC max for 100ms
PROTECTION SPECIFICATIONS
Current Limit ................................................................... 110-140%
Short Circuit Protection ................................................. Continuous
GENERAL SPECIFICATIONS
Efficiency ............................................................................ To 89%
Switching Frequency ...................................................400KHz typ.
Isolation Voltage
Input to Output ..........................................................1500VDC
Input to Case ..............................................................500VDC
Output to Case............................................................500VDC
Isolation Resistance....................................................... 10MΩ min.
OUTPUT SPECIFICATIONS
Output Voltage ................................................................ see table
Voltage Accuracy ................................................................... ±1%
Output Adjustability .............................................................. ±10%
Output Current ................................................................ see table
Output Power .................................................................. see table
Line Regulation (LL to HL at FL) ......................................... ±0.2%
Load Regulation (20% to 100% load).................................. ±0.2%
Ripple/Noise (20 MHz BW) ................................................... 1.5%
Remote Sense Compensation ............................................... 10%
Transient Response (50% load step) ..................................250ms
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature (case).............................. -40°C ~ +100°C
Storage Temperature............................................. -50°C ~ +125°C
Humidity..............................................................................To 95%
Temperature Coefficient ................................................ ±0.2% / °C
MTBF .................................................................... 2,563,116 hours
PHYSICAL SPECIFICATIONS
Weight ...................................................................... 7.52oz (213g)
Dimensions (L x W x H) ...........................5.70 x 3.40 x 1.34 inches
144.8 x 86.4 x 34 mm
Case Material................................................. thick, aluminum alloy
Due to advances in technology, specifications subject to change without notice
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
02/24/2011
Page 1 of 3
Rev D
CMLV Series
Half-Brick
50-150 Watt, Single Output
Chassis Mount DC/DC Converter
MODEL SELECTION GUIDE
Model Number for
Threaded Inserts
CMLV12S3.3-75
CMLV12S5-100
CMLV12S8-100
CMLV12S12-100
CMLV12S12-120
CMLV12S12-150
CMLV12S15-50
CMLV12S15-100
CMLV12S15-125
CMLV12S15-150
CMLV12S18-150
CMLV12S20-100
CMLV12S24-150
CMLV12S26-150
CMLV12S28-150
CMLV12S48-150
Model Number for
Thru-Hole Inserts
CMLV12S3.3-75TH
CMLV12S5-100TH
CMLV12S8-100TH
CMLV12S12-100TH
CMLV12S12-120TH
CMLV12S12-150TH
CMLV12S15-50TH
CMLV12S15-100TH
CMLV12S15-125TH
CMLV12S15-150TH
CMLV12S18-150TH
CMLV12S20-100TH
CMLV12S24-150TH
CMLV12S26-150TH
CMLV12S28-150TH
CMLV12S48-150TH
12/24 VDC
(10 - 36 VDC)
Input Voltage Range
Output Voltage
3.3 VDC
5 VDC
8 VDC
12 VDC
12 VDC
12 VDC
15 VDC
15 VDC
15 VDC
15 VDC
18 VDC
20 VDC
24 VDC
26 VDC
28 VDC
48VDC
Output Current
21.4A
20.0A
12.5A
8.3A
10.0A
12.5A
3.3A
6.6A
8.3A
10.0A
8.33A
5.0A
6.25A
5.76A
5.35A
3.125A
Output Power
75W
100W
100W
100W
120W
150W
50W
100W
125W
150W
150W
100W
150W
150W
150W
150W
NOTES
1. Pin to pin tolerance: ±0.01" [± 0.3mm], pin diameter tolerance: ± 0.005" [± 0.13mm].
2. Case material of the DC/DC converter: 0.040" [1.02mm] thick, aluminum alloy 3003-0, per: QQA 250/2.
3. Unit comes with either 3M x 0.5 threaded thru inserts or for Ø.125 thru-hole for the chassis mount board add "TH" suffix to
model part number (Ex: CMLV12S15-100TH).
4. Active high enable is standard; for active low enable add the suffix “R” to the part number (Ex: CMLV12S15-100R).

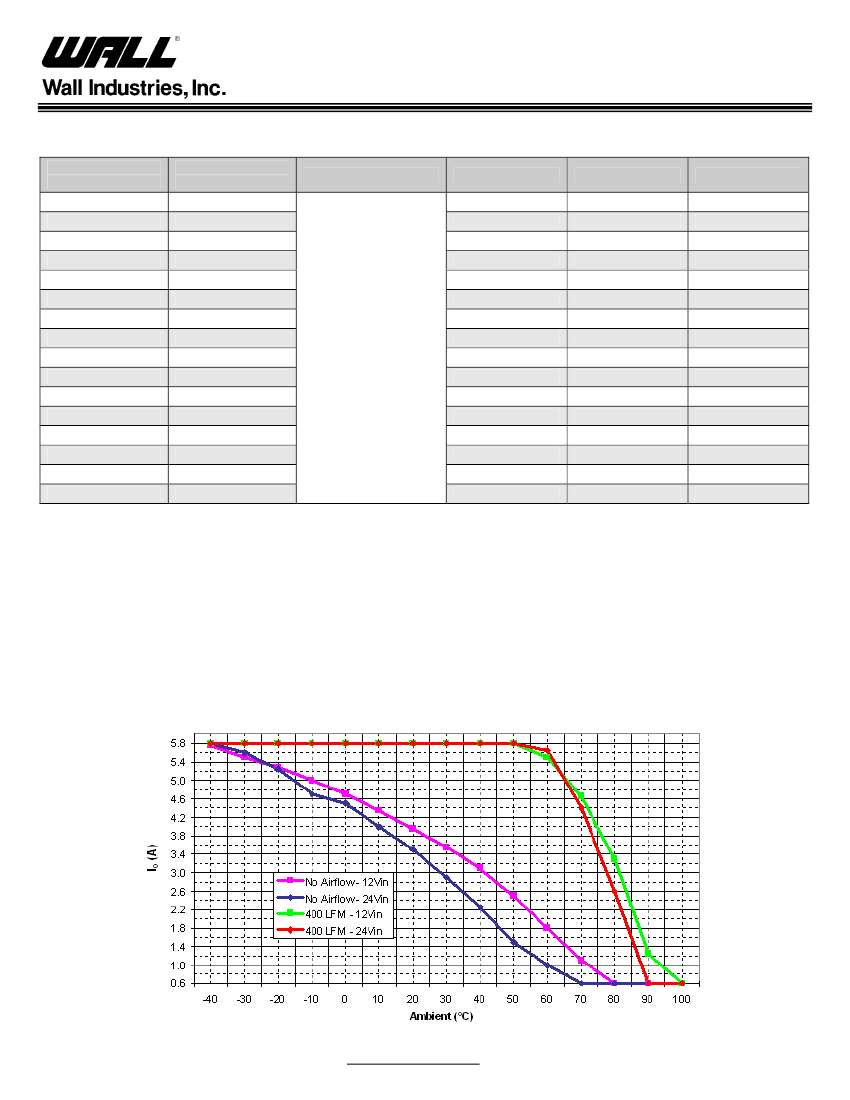

DERATING CURVE
CMLV12S26-150 AMBIENT vs OUTPUT CURRENT
02/24/2011
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
Page 2 of 3
Rev D
CMLV Series
Half-Brick
50-150 Watt, Single Output
Chassis Mount DC/DC Converter

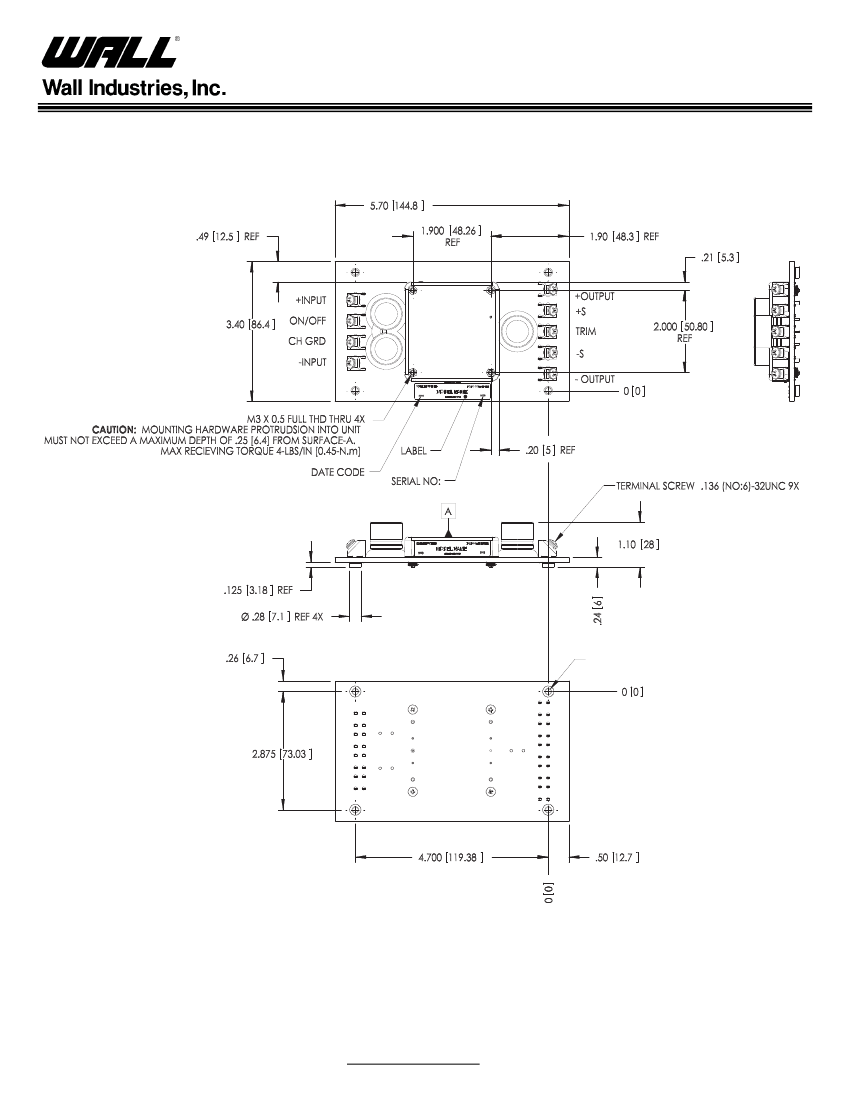

MECHANICAL DRAWING
Unit: inches [mm]
SEE NOTE-4
NOTES:
1. PIN TO PIN TOLERANCE ± 0.01 [±0.3], PIN DIAMETER
TOLERANCE: ±0.005 [±0.13].
2. CASE MATERIAL OF THE CONVERTER: Ø.040 [1.02] THICK,
ALUMINUM ALLOY 3003-0, PER: QQA 250/2.
3. UNLESS OTHERWISE SPECIFIED.
TO ORDER:
4. UNIT COMES WITH EITHER .112 (NO.4)-4OUNC-2B
THREADED THRU INSERTS OR FOR Ø.125 THRU-
HOLE FOR THE CHASSIS MOUNT BOARD ADD: “TH”
SUFFIX TO MODEL PART NUMBER.
EXAMPLE: CMLV12S15-100TH
02/24/2011
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
Page 3 of 3
