DATASHEET
Rev. A
DTEM1036 SERIES
100~240VAC Input Voltage Range
C14, C8, and C6 AC Inlet Connector Types
15~36 Watts, Single Outputs
Medical AC/DC Desktop Power Supplies
IEC-320-C14
IEC-320-C8
IEC-320-C6
FEATURES
Single Outputs
CEC/Energy Star Level IV Compliant
RoHS & WEEE Compliant
Short Circuit and Over Voltage Protection
MTBF: > 30,000 Hours
100~240VAC Input Voltage Range
C14, C8, and C6 AC Inlet Connectors Available
Dimensions: 3.86” x 1.77” x 1.22”
UL60601-1 Medical Approvals
Optional Output Connectors Available
DESCRIPTION
The DTEM1036 series of medical AC/DC desktop power supplies provides up to 36 Watts of continuous output
power in a 3.86” x 1.77” x 1.22” package. This series consists of single output models with a wide input voltage
range of 100~240VAC. The DTEM1036 series is RoHS, WEEE, and CEC/Energy Star Level IV compliant and
has UL60601-1 medical approvals. These models are also protected against over voltage and short circuit
conditions. This series has three AC inlet connector types available: IEC-320-C14, IEC-320-C8, and IEC-320-C6.
Please call factory for ordering details.
05/24/2012
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
Page 1 of 4
Rev. A
DTEM1036 Series
C14, C8, & C6 Inlet Types
15~36 Watts, Single Outputs
Medical AC/DC Desktop Power Supplies
SPECIFICATIONS:
DTEM1036 SERIES
All specifications are based on 25°C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.
We reserve the right to change specifications based on technological advances.
SPECIFICATION
INPUT SPECIFICATIONS
Input Voltage Range
Input Frequency
Input Current
Inrush Current
OUTPUT SPECIFICATIONS
Output Voltage
(See Note 2)
Line Regulation
Load Regulation
Output Current
Minimum Load
Output Power
Ripple & Noise
Hold-up Time
Turn-on Time
PROTECTION
Over Voltage Protection
Short Circuit Protection
GENERAL SPECIFICATIONS
Efficiency (typical)
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature
Storage Temperature
Storage Humidity
MTBF
PHYSICAL SPECIFICATIONS
Dimensions (L x W x H)
AC Inlet Connector
(See Note 1)
Weight
SAFETY & EMC
Safety Standards
Compliance
05/24/2012
TEST CONDITIONS
Min
100
50
Typ
Max
240
60
1.0
60
Unit
VAC
Hz
A
A
See Table
defined by changing ±10% of input voltage
from nominal line and rated load.
-1
-5
0
See Table
Measured at nominal line and full load with
20MHz limited bandwidth and 0.1µF ceramic
and 47µF aluminum capacitors in parallel
across the output.
8.3
3
Automatic recovery
Automatic recovery
82
0
-20
5
30,000
50
85
95
%
°C
°C
%
hours
240
mVp-p
ms
s
+1
+5
See Table
A
%
%
3.86 x 1.77 x 1.22 inches
(98 x 45 x 31 mm)
IEC-320-C14, C8, and C6
7.76oz (220g)
UL60601-1
RoHS, WEEE, CEC/Energy Star Level IV
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
Page 2 of 4
Rev. A
DTEM1036 Series
C14, C8, & C6 Inlet Types
15~36 Watts, Single Outputs
Medical AC/DC Desktop Power Supplies
MODEL SELECTION TABLE
Model Number
(1)
DTEM1036A1
DTEM1036B1
DTEM1036C1
DTEM1036D1
DTEM1036E1
DTEM1036A2
DTEM1036B2
DTEM1036C2
DTEM1036D2
DTEM1036E2
DTEM1036A3
DTEM1036B3
DTEM1036C3
DTEM1036D3
DTEM1036E3
100 ~ 240 VAC
100 ~ 240 VAC
100 ~ 240 VAC
Input Voltage Range
Output Voltage
(2)
9 ~ 15 VDC
9 ~ 15 VDC
9 ~ 15 VDC
9 ~ 15 VDC
9 ~ 15 VDC
9 ~ 15 VDC
9 ~ 15 VDC
9 ~ 15 VDC
9 ~ 15 VDC
9 ~ 15 VDC
9 ~ 15 VDC
9 ~ 15 VDC
9 ~ 15 VDC
9 ~ 15 VDC
9 ~ 15 VDC
Output Current
Min
Max
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
3A
2.5A
2A
1.5A
1A
3A
2.5A
2A
1.5A
1A
3A
2.5A
2A
1.5A
1A
Maximum
Output Power
36W
30W
24W
18W
15W
36W
30W
24W
18W
15W
36W
30W
24W
18W
15W
IEC-320-C6
IEC-320-C8
IEC-320-C14
AC Inlet Type
NOTES
1. The number in
red
represents the type of AC inlet connector: “1” for IEC-320-C14 type, “2” for IEC-320-C8
type, and “3” for IEC-320-C6 type.
2. The output voltage is specified as a range (Ex: 9~15VDC); the customer must specify what they want the
voltage set at.
3. Ripple and Noise is measured at nominal line and full load with 20MHz limited bandwidth and a 0.1µF ceramic
and 47µF aluminum capacitors in parallel on the output.
4. Optional output connectors are available. Please call factory for ordering details.
05/24/2012
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
Page 3 of 4
Rev. A
DTEM1036 Series
C14, C8, & C6 Inlet Types
15~36 Watts, Single Outputs
Medical AC/DC Desktop Power Supplies

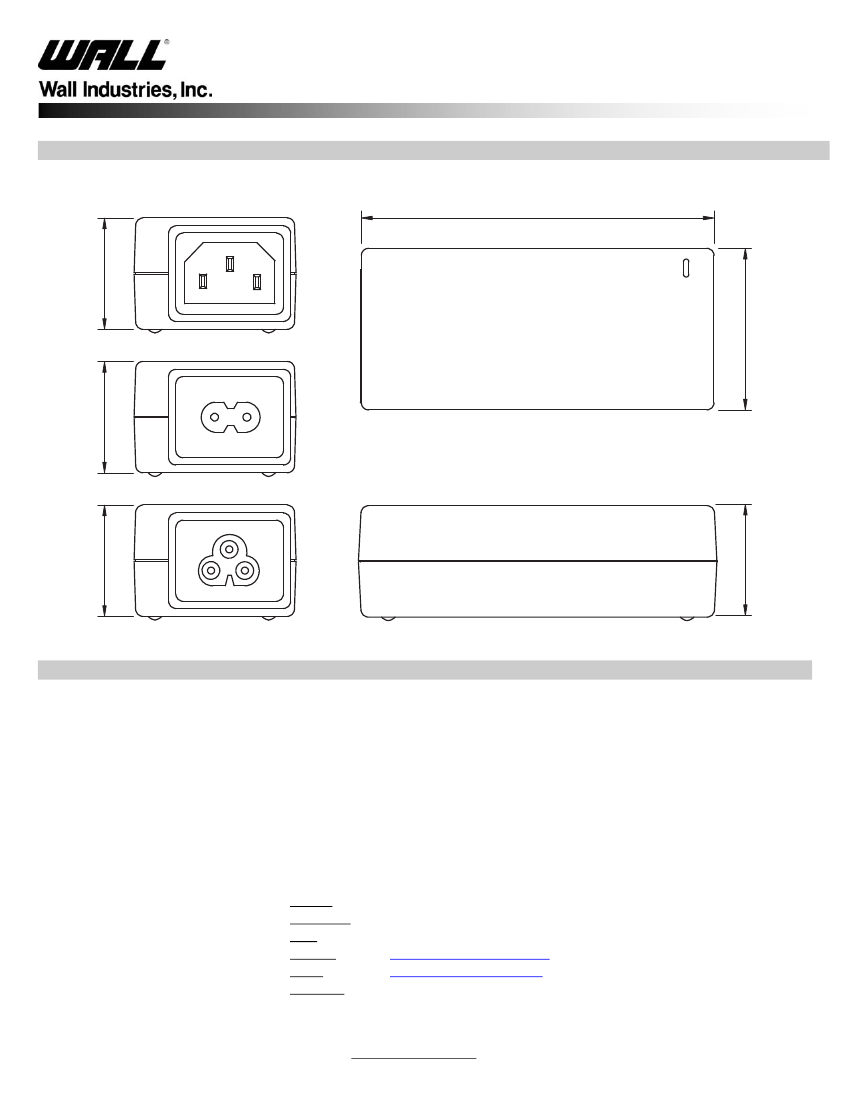

MECHANICAL DRAWING
Unit: inches (mm)
3.86±0.04 (98±1)
1.22±0.04 (31±1)
1.77±0.04 (45±1)
IEC-320-C14
1.22±0.04 (31±1)
IEC-320-C8
1.22±0.04 (31±1)
1.22±0.04 (31±1)
IEC-320-C6
COMPANY INFORMATION
Wall Industries, Inc. has created custom and modified units for over 50 years. Our in-house research and development
engineers will provide a solution that exceeds your performance requirements on-time and on budget. Our ISO9001-2008
certification is just one example of our commitment to producing a high quality, well-documented product for our customers.
Our past projects demonstrate our commitment to you, our customer. Wall Industries, Inc. has a reputation for working
closely with its customers to ensure each solution meets or exceeds form, fit and function requirements. We will continue to
provide ongoing support for your project above and beyond the design and production phases. Give us a call today to discuss
your future projects.
Contact
Wall Industries
for further information:
Phone:
Toll Free:
Fax:
E-mail:
Web:
Address:
(603)778-2300
(888)587-9255
(603)778-9797
sales@wallindustries.com
www.wallindustries.com
5 Watson Brook Rd.
Exeter, NH 03833
Page 4 of 4
05/24/2012
