DATASHEET
Rev. C
DTEM1060 SERIES
100~240VAC Input Voltage Range
C14 and C8 AC Inlet Connector Types
42~55 Watts, Single Outputs
rd
3 Edition Medical Safety Approvals
Medical AC/DC Desktop Power Supplies
IEC-320-C14
IEC-320-C8
MEDICAL
FEATURES
Single Outputs
CEC/Energy Star Level V Compliant
RoHS & WEEE Compliant
Short Circuit and Over Voltage Protection
MTBF: > 30,000 Hours
100~240VAC Input Voltage Range
C14, and C8 AC Inlet Connectors Available
Optional Output Connectors Available
UL/cUL UL60601-1 (3
rd
Edition), TUV/RH EN/IEC
60601-1 (3
rd
Edition), CB, CE, and FCC Safety Approvals
DESCRIPTION

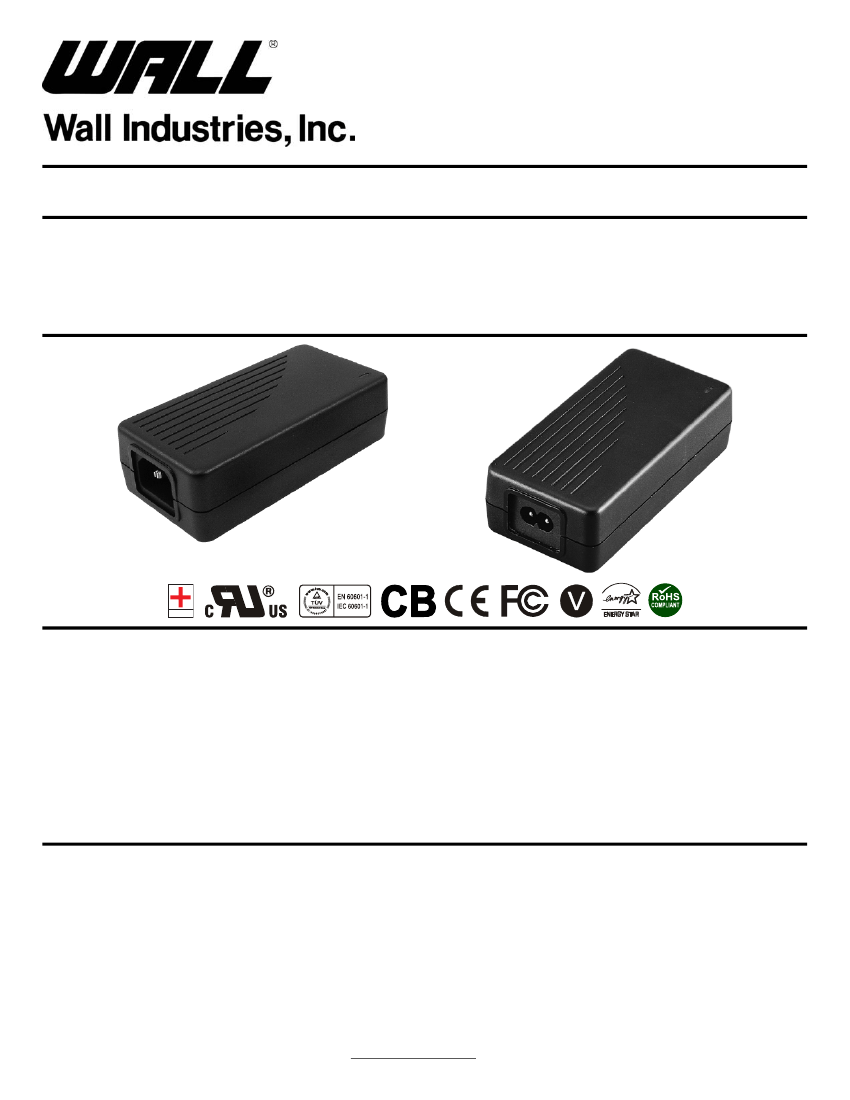

The DTEM1060 series of medical AC/DC desktop power supplies provides up to 55 Watts of continuous output
power in a 4.72” x 2.36” x 1.37” package. This series consists of single output models with a wide input voltage
range of 100~240VAC. These models are protected against over voltage and short circuit conditions and are
RoHS, WEEE, and CEC/Energy Star Level V compliant. This series also has UL/cUL UL60601-1 (3
rd
edition),
TUV/RH EN/IEC 60601-1 (3
rd
edition), CB, CE, and FCC safety approvals. The DTEM1060 series has two AC
inlet connector types available: IEC-320-C14 and IEC-320-C8. Please call factory for ordering details.
09/20/2012
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
Page 1 of 4
Rev. C
DTEM1060 Series
C14 & C8 Inlet Types
42~55 Watts, Single Outputs
Medical AC/DC Desktop Power Supplies
SPECIFICATIONS: DTEM1060 SERIES
All specifications are based on 25°C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.
We reserve the right to change specifications based on technological advances.
SPECIFICATION
INPUT SPECIFICATIONS
Input Voltage Range
Input Frequency
Input Current
Inrush Current
OUTPUT SPECIFICATIONS
Output Voltage
(See Note 2)
Line Regulation
TEST CONDITIONS
Min
100
50
Typ
Max
240
60
1.5
80
Unit
VAC
Hz
A
A
See Table
defined by changing ±10% of input voltage
from nominal line and rated load.
-1
-5
0
See Table
See Table
8.3
3
Automatic recovery
Automatic recovery
85
0
-20
5
30,000
40
85
95
%
°C
°C
%
hours
ms
s
+1
+5
See Table
%
%
A
Load Regulation
Output Current
Minimum Load
Output Power
Ripple & Noise
Hold-up Time
Turn-on Time
PROTECTION
Over Voltage Protection
Short Circuit Protection
GENERAL SPECIFICATIONS
Efficiency (typical)
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature
Storage Temperature
Storage Humidity
MTBF
PHYSICAL SPECIFICATIONS
Dimensions (L x W x H)
AC Inlet Connector
(See Note 1)
Weight
SAFETY & COMPLIANCE
Safety Standards
Compliance
4.72 x 2.36 x 1.37 inches
(120 x 60 x 34.8 mm)
IEC-320-C14 and IEC-320-C8
9.88oz (280g)
UL/CUL UL60601-1 (3
rd
ed.), TUV/RH EN/IEC 60601-1 (3
rd
ed.), CB, CE, FCC
RoHS, WEEE, CEC/Energy Star Level V
09/20/2012
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
Page 2 of 4
Rev. C
DTEM1060 Series
C14 & C8 Inlet Types
42~55 Watts, Single Outputs
Medical AC/DC Desktop Power Supplies
MODEL SELECTION TABLE
Model Number
(1)
Input Voltage Range
Output Voltage
(2)
13 ~ 17 VDC
18 ~ 24 VDC
Output Current
Min
Max
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
4.2A
3A
4.2A
2.8A
3.5A
2.3A
4.2A
3A
4.2A
2.8A
3.5A
2.3A
Ripple & Noise
(3)
250mVp-p
350mVp-p
250mVp-p
350mVp-p
250mVp-p
350mVp-p
250mVp-p
350mVp-p
250mVp-p
350mVp-p
250mVp-p
350mVp-p
Maximum
Output Power
55W
55W
50W
50W
42W
42W
55W
55W
50W
50W
42W
42W
AC Inlet Type
DTEM10601A
DTEM10601B
DTEM10601C
DTEM10601D
DTEM10601E
DTEM10601F
DTEM10602A
DTEM10602B
DTEM10602C
DTEM10602D
DTEM10602E
DTEM10602F
100 ~ 240 VAC
100 ~ 240 VAC
12 ~ 17 VDC
18 ~ 24 VDC
12 ~ 17 VDC
18 ~ 24 VDC
13 ~ 17 VDC
18 ~ 24 VDC
12 ~ 17 VDC
18 ~ 24 VDC
12 ~ 17 VDC
18 ~ 24 VDC
IEC-320-C14
IEC-320-C8
NOTES
1. The number in
red
represents the type of AC inlet connector: “1” for IEC-320-C14 type and “2” for IEC-320-C8 type.
2. The output voltage is specified as a range (Ex: 18~24VDC); the customer must specify what they want the voltage set at.
3. Ripple and Noise is measured at nominal line and full load with 20MHz limited bandwidth and a 0.1µF ceramic and 47µF aluminum
capacitors in parallel on the output.
4. Optional output connectors are available. Please call factory for ordering details.

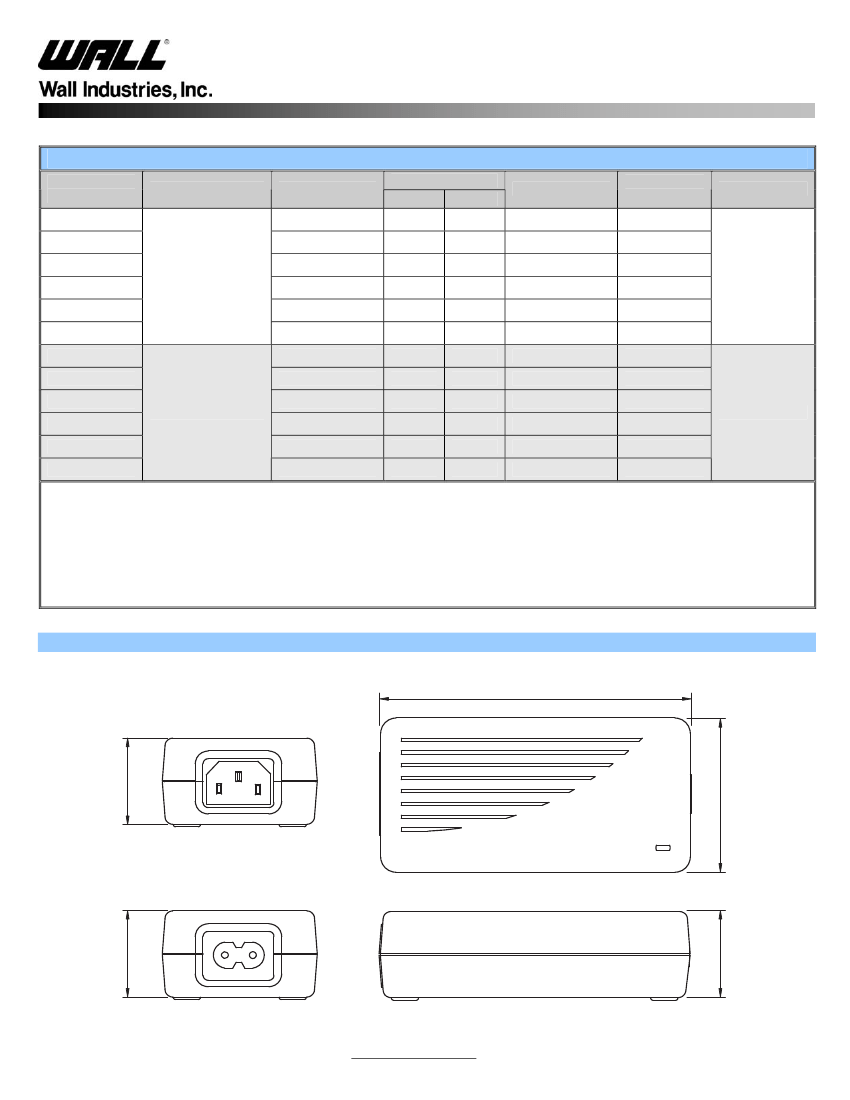

MECHANICAL DRAWING
Unit: inches (mm)
4.72±0.04 (120±1)
2.36±0.04 (60±1)
1.37±0.04
(34.8±1)
IEC-320-C14
1.37±0.04
(34.8±1)
1.37±0.04
(34.8±1)
IEC-320-C8
09/20/2012
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
Page 3 of 4
Rev. C
DTEM1060 Series
C14 & C8 Inlet Types
42~55 Watts, Single Outputs
Medical AC/DC Desktop Power Supplies
COMPANY INFORMATION
Wall Industries, Inc. has created custom and modified units for over 50 years. Our in-house research and development
engineers will provide a solution that exceeds your performance requirements on-time and on budget. Our ISO9001-2008
certification is just one example of our commitment to producing a high quality, well-documented product for our customers.
Our past projects demonstrate our commitment to you, our customer. Wall Industries, Inc. has a reputation for working
closely with its customers to ensure each solution meets or exceeds form, fit and function requirements. We will continue to
provide ongoing support for your project above and beyond the design and production phases. Give us a call today to discuss
your future projects.
Contact
Wall Industries
for further information:
Phone:
Toll Free:
Fax:
E-mail:
Web:
Address:
(603)778-2300
(888)587-9255
(603)778-9797
sales@wallindustries.com
www.wallindustries.com
5 Watson Brook Rd.
Exeter, NH 03833
09/20/2012
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
Page 4 of 4
