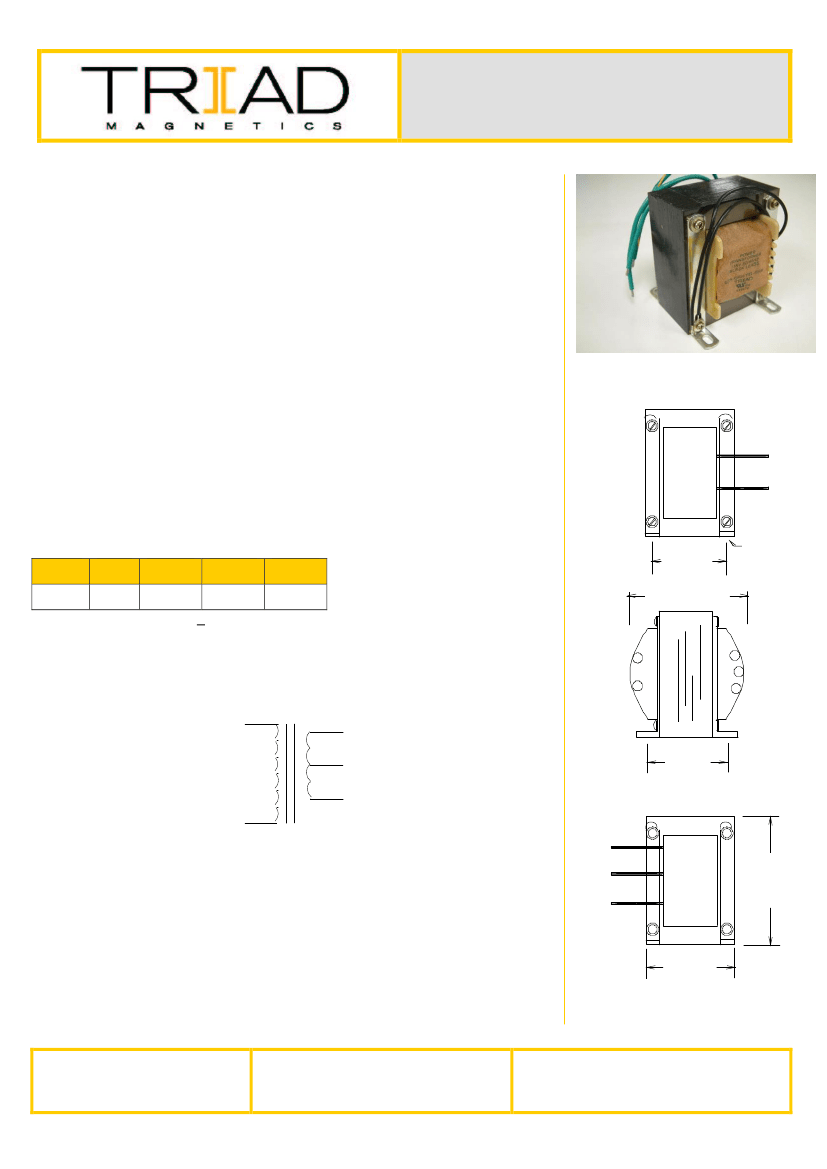

F-258U_13

Description
Chassis Mount: Single Secondary
File Size105KB,1 Pages
ManufacturerTriad Magnetics
Websitehttps://www.triadmagnetics.com/
Download Datasheet View All

F-258U_13 Overview

Chassis Mount: Single Secondary

P
OWE R
T
RAN S FO R M E R
Chassis Mount: Single Secondary
F-258U
Electrical Specifications (@25C)
1. Maximum Power: 160.0 VA
2. Primary: 115V 50/60 Hz
3. Secondary: 20.0VCT @ 8.0 Amps
4. Voltage Regulation: 10 % TYP @ full load to no load
5. Temperature Rise: 35C TYP (45C MAX allowed)
Description:
The F-258U is part of a series which has a long history of reliable service in the
field, made from a proven design and constructed with UL recognized materials.
Construction:
Wound on a single channel nylon bobbin. Materials are UL recognized, Class B
(130º C) rated.
Safety:
These products are 100% hipot tested with an insulation of 1500V between
primary and secondary windings as well as between the primary / secondary
windings and the core.
BLK
BLK
Dimensions:
A
3.750
B
3.125
C
3.50
Units: In inches
D
2.50
E
2.875
D
C
.203 X.37
5
SLO
TS
4 PLACE
S
Lead length: 7.0 inches + 1 inch
Weight: 6.40 lbs
Schematic:
BLK
GRN
GRN/YEL
E
GRN
BLK
Primary:
Black to Black
Secondary: Green to Green
GRN
GRN/YEL
A
GRN
RoHS Compliance:
As of manufacturing date February 2005, all standard products meet
the requirements of 2011/65/EU, known as the RoHS initiative.
* Upon printing, this document is considered “uncontrolled”. Please contact Triad
Magnetics’ website for the most current version.
B
Web: www.TriadMagnetics.com
Phone 951-277-0757
Fax 951-277-2757
460 Harley Knox Blvd.
Perris, California 92571
Publish Date: May 11, 2015
