50 Ohm SMA Circulator Operating From 135 MHz to
175 MHz And 150 Watts With 20 dB Isolation
TECHNICAL DATA SHEET
Configuration
Connector 1
Connector 2
Frequency Range
Design
SMA Female
SMA Female
135 MHz to 175 MHz
Circulator
PE8426
Electrical Specifications
(Values at 25°C, sea level)
Description
Frequency Range
Impedance
Insertion Loss
Forward Power
Reverse Power
Input VSWR
Isolation
.
20
Minimum
135
Typical
50
Maximum
175
0.5
150
100
1.3:1
Units
MHz
Ohms
dB
Watts
Watts
dB
Mechanical Specifications
Temperature
Operating Range
Size
Length
Width
Height
.
-30 to 70 deg C
3.7 in [93.98 mm]
3.3 in [83.82 mm]
1.2 in [30.48 mm]
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Plotted and Other Data
Notes:
• Values at 25 °C, sea level
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
50 Ohm SMA Circulator Operating From 135 MHz to 175 MHz And 150 Watts With 20 dB
Isolation PE8426
PE8426 REV 1.0
1
50 Ohm SMA Circulator Operating From 135 MHz to
175 MHz And 150 Watts With 20 dB Isolation
TECHNICAL DATA SHEET

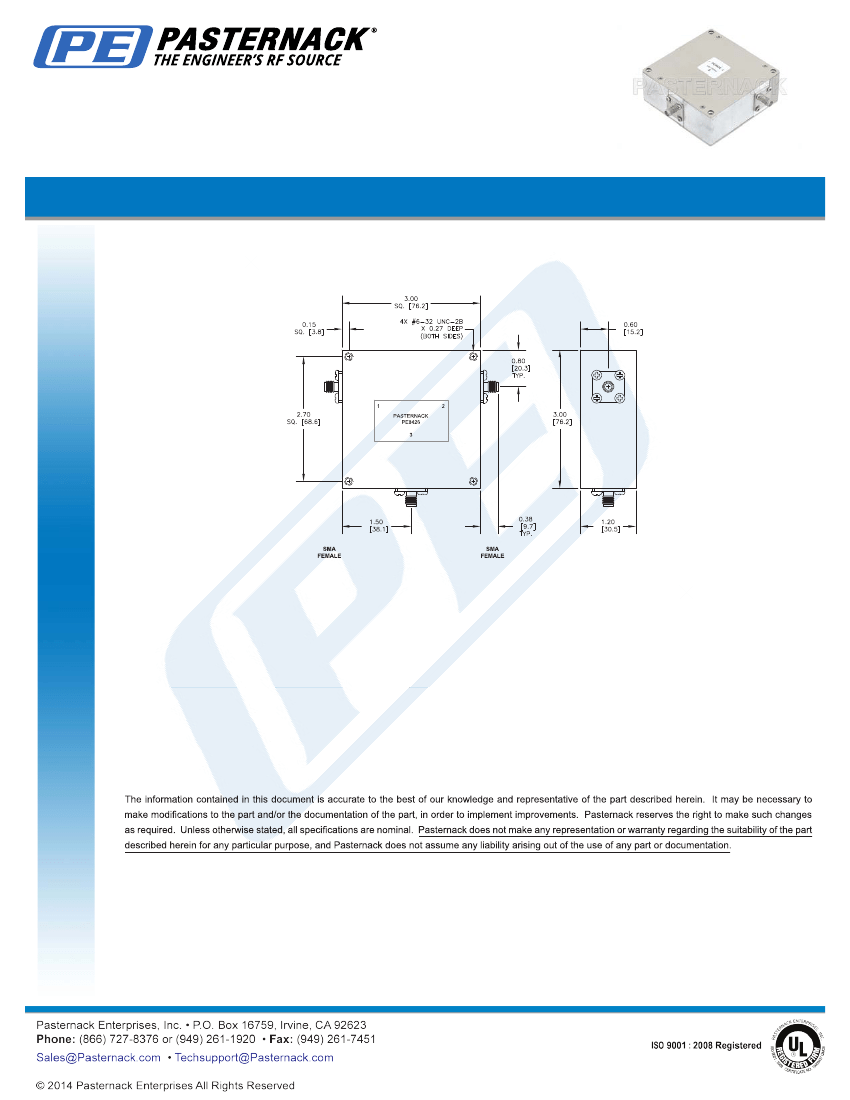

Outline Drawing
PE8426
50 Ohm SMA Circulator Operating From 135 MHz to 175 MHz And 150 Watts With 20 dB Isolation from Pasternack En-
terprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products
maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
50 Ohm SMA Circulator Operating From 135 MHz to 175 MHz And 150 Watts With 20 dB Isola-
tion PE8426
URL:
http://www.pasternack.com/50-ohm-sma-circulator-135-175-mhz-150-watts-20-db-pe8426-p.aspx
PE8426 REV 1.0
2
