CB182K154J-- datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> CB182K154J--

CB182K154J--: DescriptionFilm Capacitor, Polyester, 630V, 5% +Tol, 5% -Tol, 0.15uF, Surface Mount, 6054, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size132KB，1 Pages; ManufacturerAVX; Environmental Compliance; Related ProductsFound1parts with similar functions to CB182K154J--

Download Datasheet Parametric Compare View All

CB182K154J-- Overview

Film Capacitor, Polyester, 630V, 5% +Tol, 5% -Tol, 0.15uF, Surface Mount, 6054, CHIP, ROHS COMPLIANT

CB182K154J-- Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	AVX
package instruction	CHIP, ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	0.15 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYESTER
JESD-609 code	e3
Installation features	SURFACE MOUNT
negative tolerance	5%
Number of terminals	2
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
positive tolerance	5%
Rated (AC) voltage (URac)	250 V
Rated (DC) voltage (URdc)	630 V
size code	6054
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal shape	WRAPAROUND
Base Number Matches	1

Preview

Download Datasheet

View All

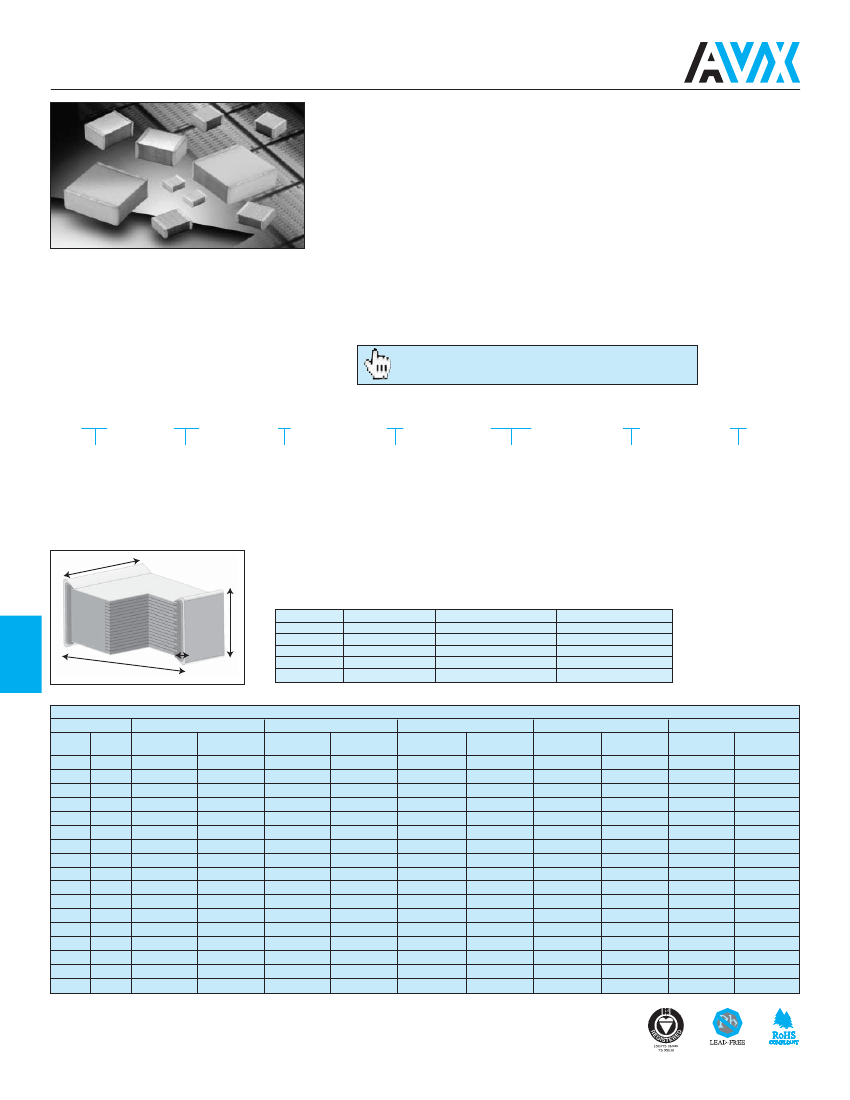

Film Chip Capacitors

CB-PET Series High Temperature PET Dielectric

Film chip capacitor using a naked and stacked construction with metallized High

Temperature PET (polyethylene terephtalate).

• Use of high temperature dielectric films makes these capacitors suitable for IR or

vapor phase reflow processes. This chip is built without specific encapsulation.

• The intrinsic elasticity of the dielectric film allows an excellent compatibility of the

capacitor with all types of material for printed circuit boards.

• The self-healing property of film technology results in a safe open failure mode and

better overall reliability.

• Excellent thermal shock resistance

• Low dissipation factor, ESR & ESL

• No piezoelectric effect

• Available in tape and reel suitable for automatic placement

• Non-polar construction

Check for up-to-date CV Tables at

http://www.avx.com/docs/catalogs/cb-petht.pdf

HOW TO ORDER

Type

SMD Lead Free

Size

04 = 2220

05 = 2824

16 = 4030

17 = 5040

18 = 6054

Dielectric

2 = PET-HT

Voltage

50/63V = D

100V = E

250V = G

400V = I

630V = K

0104

Capacitance

EIA Code

1st digit: 0

2nd & 3rd digit:

the 2nd significant figures

of the capacitance value

4th digit: the number of

zeros to be added to the

capacitance value

Tolerance

K = 10%

J = 5%

Suffix Packaging

-- = Bulk

BC = tape & reel

diameter: 330mm

millimeters (inches)

Size Code

Equivalent Size

2220

2824

4030

5040

6054

Length (L)

5.7±0.50 (0.224±0.020)

7.1±0.50 (0.280±0.020)

10.2±0.60 (0.402±0.024)

12.7±0.60 (0.500±0.024)

15.2±0.60 (0.598±0.024)

Width (W)

5.0±0.50 (0.197±0.020)

6.1±0.50 (0.240±0.020)

7.6±0.80 (0.299±0.031)

10.2±0.80 (0.402±0.031)

13.7±0.80 (0.539±0.031)

Film Chip

Capacitrors

Value

0.010µF

0.015

0.022

0.033

0.047

0.068

0.100

0.150

0.220

0.330

0.470

0.680

1.0µF

1.5

2.2

3.3

4.7

Cap

Code

0103

0153

0223

0333

0473

0683

0104

0154

0224

0334

0474

0684

0105

0155

0225

0335

0475

Capacitance

63 Vdc / 40 Vac

Size Code

H max

VOLTAGE (Vdc / Vac)

100 Vdc / 63 Vac

250 Vdc - 160 Vac

Size Code

H max

Size Code

H max

400 Vdc / 200 Vac

Size Code

2220

H max

2.4

3.0

4.2

4.6

3.6

4.7

4.6

4.0

5.6

630 Vdc / 250 Vac

Size Code

2220

2824

4030

5040

6054

H max

2.8

4.0

3.6

5.1

3.6

5.2

5.0

4.3

5.8

2220

2824

2220

2824

4030

6054

3.3

3.5

4.0

5.3

5.7

5.2

4.9

2220

2824

4030

5040

6054

3.3

4.0

4.4

5.2

5.7

6.1

5.5

5.2

7.1

2824

4030

5040

6054

3.0

4.1

4.55

4.4

5.1

5.6

6.15

6.5

6.0

7.0

2824

4030

5040

6054

For other values : upon request

LEAD-FREE

COMPATIBLE

COMPONENT

CB182K154J-- Related Products

	CB182K154J--	CB182K154KBC	CB182K154JBC	CB182K154K--	CB182G155KBC	CB182G155K--	CB182G155JBC	CB182G155J--	CB052K223KBC
Description	Film Capacitor, Polyester, 630V, 5% +Tol, 5% -Tol, 0.15uF, Surface Mount, 6054, CHIP, ROHS COMPLIANT	Film Capacitor, Polyester, 630V, 10% +Tol, 10% -Tol, 0.15uF, Surface Mount, 6054, CHIP, ROHS COMPLIANT	Film Capacitor, Polyester, 630V, 5% +Tol, 5% -Tol, 0.15uF, Surface Mount, 6054, CHIP, ROHS COMPLIANT	Film Capacitor, Polyester, 630V, 10% +Tol, 10% -Tol, 0.15uF, Surface Mount, 6054, CHIP, ROHS COMPLIANT	Film Capacitor, Polyester, 250V, 10% +Tol, 10% -Tol, 1.5uF, Surface Mount, 6054, CHIP, ROHS COMPLIANT	Film Capacitor, Polyester, 250V, 10% +Tol, 10% -Tol, 1.5uF, Surface Mount, 6054, CHIP, ROHS COMPLIANT	Film Capacitor, Polyester, 250V, 5% +Tol, 5% -Tol, 1.5uF, Surface Mount, 6054, CHIP, ROHS COMPLIANT	Film Capacitor, Polyester, 250V, 5% +Tol, 5% -Tol, 1.5uF, Surface Mount, 6054, CHIP, ROHS COMPLIANT	Film Capacitor, Polyester, 630V, 10% +Tol, 10% -Tol, 0.022uF, Surface Mount, 2824, CHIP, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	CHIP, ROHS COMPLIANT	CHIP, ROHS COMPLIANT	CHIP, ROHS COMPLIANT	CHIP, ROHS COMPLIANT	, 6054	, 6054	, 6054	, 6054	, 2824
Reach Compliance Code	compli	compli	compli	compli	compliant	compliant	compliant	compliant	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	0.15 µF	0.15 µF	0.15 µF	0.15 µF	1.5 µF	1.5 µF	1.5 µF	1.5 µF	0.022 µF
Capacitor type	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR	FILM CAPACITOR
dielectric materials	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER	POLYESTER
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
negative tolerance	5%	10%	5%	10%	10%	10%	5%	5%	10%
Number of terminals	2	2	2	2	2	2	2	2	2
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	BULK	TR	TR	BULK	TR	BULK	TR	BULK	TR
positive tolerance	5%	10%	5%	10%	10%	10%	5%	5%	10%
Rated (DC) voltage (URdc)	630 V	630 V	630 V	630 V	250 V	250 V	250 V	250 V	630 V
size code	6054	6054	6054	6054	6054	6054	6054	6054	2824
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Maker	AVX	AVX	AVX	AVX	-	-	-	-	AVX
Rated (AC) voltage (URac)	250 V	250 V	250 V	250 V	-	-	-	-	250 V
Base Number Matches	1	1	1	1	1	1	1	1	-
