DUAL-SOCKET
2U SERVER
PLATFORM
TA80-B7071
B7071T80V8HR / B7071T80V8HR-2T
B7071T80V8HR-N / B7071T80V8HR-X
B7071T80V8HR-2T-N
Front View
2U Server Platform Designed for up
to 4x GPGPU/Coprocessor Modules
Deployment
Dual LGA2011 socket supports (2) E5-2600 v3 series CPU
Intel® C612 PCH
●
(8)+(8) DIMM slots
Support up to 512GB RDIMM DDR4 2133/1866/1600
Support up to 1,024GB LRDIMM DDR4 2133/1600
Support up to 2,048 LRDIMM 3DS DDR4 2133/1600
*Follow latest Intel DDR4 Memory POR*
●
(4) Full-Height/ Full-Length PCI-E Gen3 x16 slots support
(4) Double-deck GPU adapters/Coprocessor modules
●
(1) Full-Height/ Half-Length PCI-E Gen3 x8 slots
●
(8) hot-swap 2.5" SAS/SATA 6G HDDs
●
(2) Internal 2.5" fixed SATA 6Gb/s HDDs
●
(2) GbE + (1) dedicated for IPMI
(2) 10GbE + (1) dedicated for IPMI (-2T SKU)
●
Onboard BMC w/ IPMI and iKVM support
●
(1+1) Redundant, ERP1U high-efficiency 1,600W PSU w/ PFC, 80 plus Platinum Certified
●
●
(8) hot-swap 2.5” SAS/SATA 6G HDDs
Back View
• (4) Double-width, Full-Size PCI-E x16 slots for GPU deployment
• (1+1) hot-swap 1.6KW RPSU, 80+ Platinum
Specifications are subject to change without notice. Items pictured may only be representative.

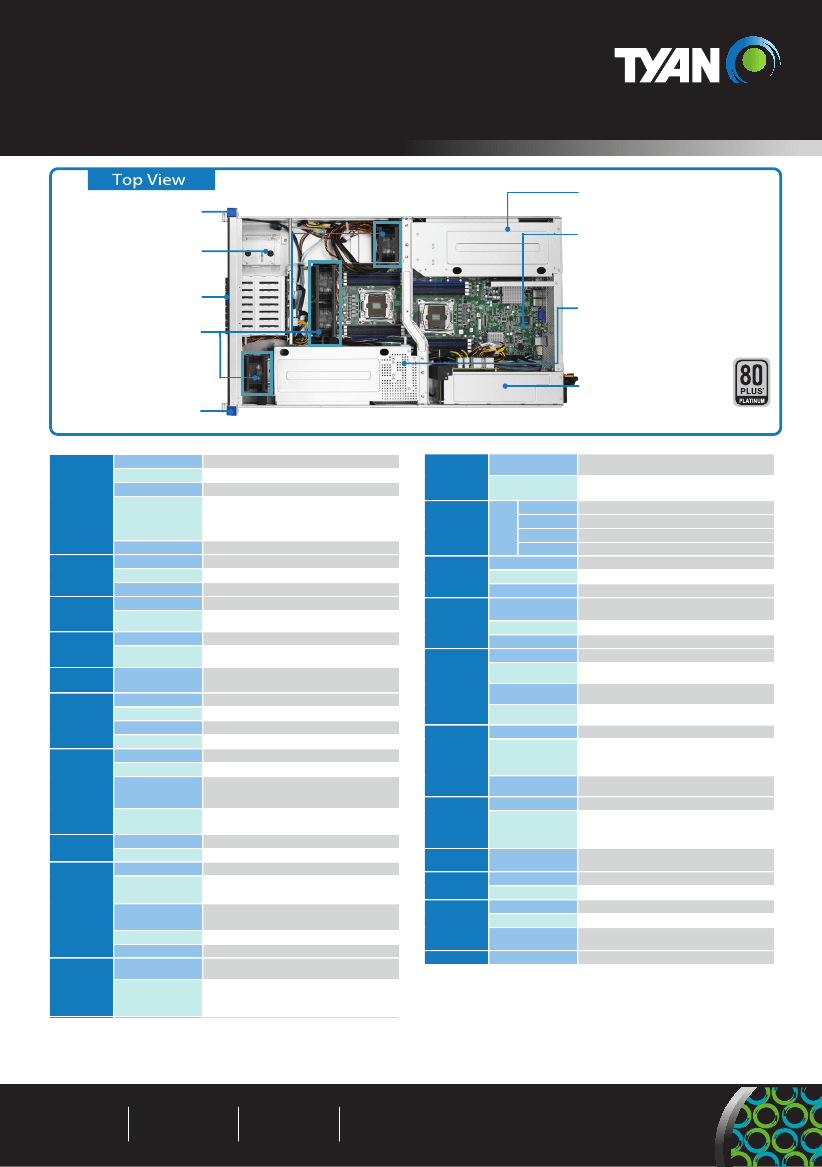

TA80-B7071
M1702T70-USB
Front USB Module
(2) Internal 2.5"
fixed HDDs
(8) hot-swap SAS/SATA
6G HDDs
System FANs
(4) 8038
B7071T80V8HR / B7071T80V8HR-2T / B7071T80V8HR-N
B7071T80V8HR-X / B7071T80V8HR-2T-N
Specifications
• Up to (2) Double-width, Full-size
(Gen.3) x16 GPGPU adapters/
Coprocessor Modules
S7071GM2NR/-2T
(2) LGA2011 sockets
(8+8) R-DDR4 1600/1333/1066MHz
Max.512GB
(2) GbE/10GbE + (1) IPMI ports
• Up to (2) Double-width, Full-size
(Gen.3) x16 GPGPU adapters/
Coprocessor Modules
• (1) Full-Height/ Half-Length PCI-E
Gen3 x8
PSU
ERP1U (1+1) 1,600W RPSU
80+ Platinum
(1,600W Max. only for 200-240V AC)
2U Rackmount
TA80
30.31" x 17.32" x 3.43" (780 x 440 x 87mm)
S7071GM2NR
S7071GM2NR-2T
S7071GM2NR-N
S7071GM2NR-2T-N
17KG
(1) PWR (w/ LED) / (1) RST / (1) ID
(1) ID / (1) IPMI/Warning
(2) USB ports
2.5" Hot-Swap / (8)
SAS / SATA 6.0Gb/s
2.5" Fixed / (2)
SATA 6Gb/s
(4) 8cm fans
ERP1U
1+1
1600 Watts Max. (only for 200-240V AC)
PFC / 80-plus Platinum
LGA2011 / (2)
Max up to 145W
Up to 9.6/ 8.0/ 6.4 GT/s with Intel QuickPath
Interconnect (QPI) support
Intel
®
C612
-
(8)+(8) DIMM slots
RDIMM DDR4 2133/1866/1600 / LRDIMM DDR4 2133/
1600 / LRDIMM 3DS DDR4 2133/1600
Up to 512GB RDIMM/ 1,024GB LRDIMM/ 2,048GB
LRDIMM 3DS *Follow
4 Channels per CPU
1.2V
(1) PCI-E Gen.3 x16 slot (w/ x8 link)
(4) PCI-E Gen3 x16 slot
M2091-R, PCI-E x16 1U riser card (right)
M2207-R32-2F, PCI-E Gen3 x16 slot (right)
M2208-L32-2F, PCI-E Gen3 x16 slot (left)
Operating
System
Regulation
OS supported list
FCC (DoC)
CE (DoC)
Operating Temp.
Operating
Environment
RoHS
Non-operating Temp.
In/Non-operating
Humidity
RoHS 6/6 Complaint
Graphic
S7071GM2NR-X
Storage
LAN
Controller
Connector
SATA Controller
Speed
RAID
Connector type
Resolution
Chipset
USB
Port Q'ty
(2) GbE ports + (1) dedicated for IPMI
(2) 10GbE ports + (1) dedicated for IPMI (-2T SKU)
Intel
®
I350-BT2 + Realtek
®
RTL8211E
Intel
®
I350-AT2 + Realtek
®
RTL8211E (-2T SKU)
(2) Mini-SAS (8-ports) + (2) SATA (totally support 10 ports)
M1701T70-FPB
Front Panel Module
Form Factor
Chassis Name
System
(Recommend
Chassis)
Dimension (H x W x D)
Motherboard
Gross Weight
Buttons
Intel
®
C612
6.0 Gb/s
RAID 0/1/10/5 (Intel
®
RST)
D-Sub 15-pin
up to 1920 x 1200
Aspeed AST2400
(3) USB3.0 ports (2 at rear, 1 TYPE-A)
(2) USB2.0 ports (2 at front)
(1) D-Sub 15-pin VGA port
(3) ports (1 dedicate port for IPMI)
Aspeed AST2400
Monitors voltage for CPU, memory, chipset & power
supply
Monitors temperature for CPU & memory & system
environment
Over temperature warning indicator
Fan & PSU fail LED indicator
Onboard Aspeed AST2400
IPMI 2.0 compliant baseboard management controller
(BMC) / Supports storage over IP and remote platform-
flash / USB 2.0 virtual hub
24-bit high quality video compression / 10/100 Mb/s
MAC interface
AMI / 16MB
User-configurable H/W monitoring / Auto-configurable of
hard disk types / SMBIOS 2.7/PnP/Wake on LAN / PXE
boot support / ACPI 3.0/ACPI sleeping states S4,S5
Please refer to our Intel OS supported list.
Class A
Yes
10° C ~ 35° C (50° F~ 95° F)
- 40° C ~ 70° C (-40° F ~ 158° F)
90%, non-condensing at 35° C
Yes
Front Panel
LEDs
I/O Ports
Type / Q'ty
Supported HDD
Interface
Type / Q'ty
Supported HDD
Interface
External Drive
Bay
Internal Drive
Bay
Input /Output
VGA
RJ-45
Chipset
System Cooling
FAN
Configuration
Type
Power Supply
Redundancy
Output Watts
Efficiency
Socket Type / Q'ty
Processor
Thermal Design
Power (TDP) wattage
System Bus
Chipset
Chipset
Super I/O
Supported DIMM Qty
DIMM Type / Speed
Memory
Capacity
Memory channel
Memory voltage
PCI-E
Expansion Slots
Pre-install TYAN Riser
Card
System
Monitoring
Voltage
Temperature
LED
Onboard Chipset
Supported CPU Series
Intel
®
Xeon
®
Processor E5-2600 v3 Series
System
Management
AST2400 IPMI Feature
AST2400 iKVM Feature
Brand / ROM size
BIOS
Feature
