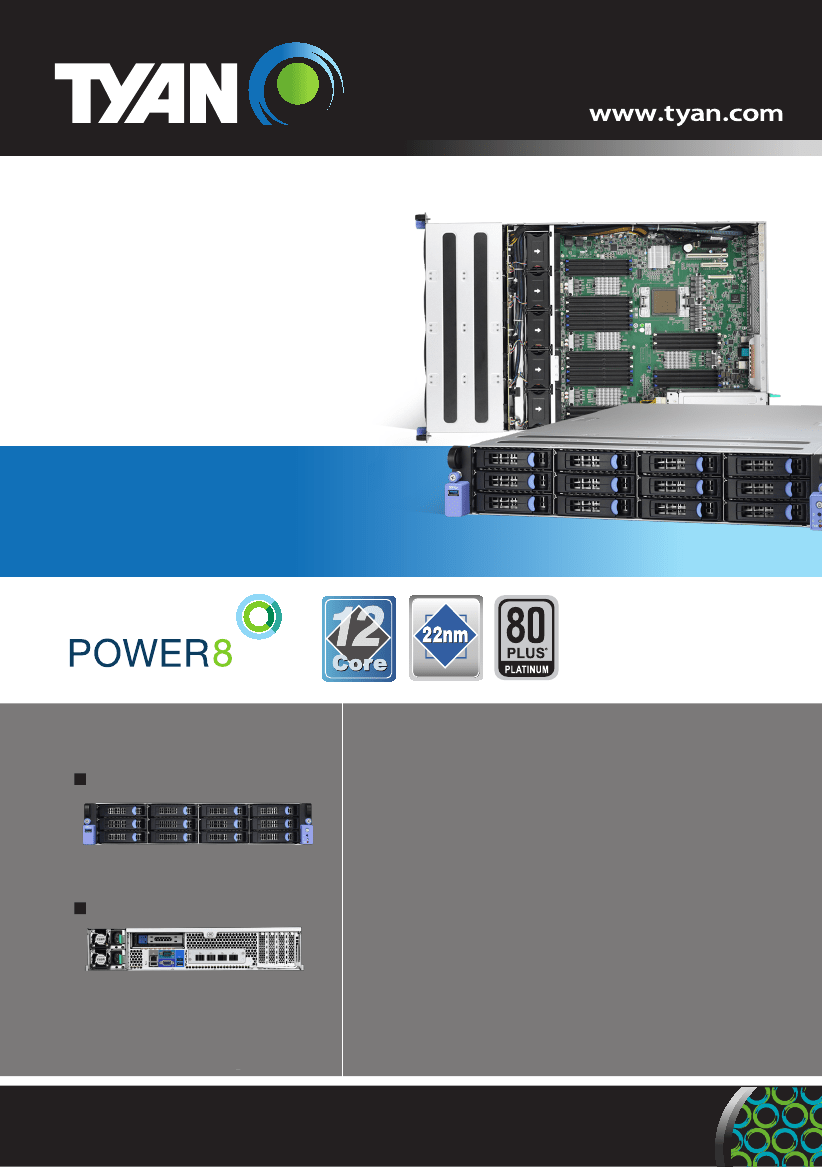

IBM POWER8
2U SINGLE-
SOCKET
PLATFORM
TN71-BP012
BSP012T71V14HR-4T-3 / BSP012T71V14HR-4T-4
BSP012T71V14HR-4T-5
Front View
2U IBM POWER8 Habanero
Platform Designed for
Commercialized System
●
• (12) hot-swap 3.5” SAS 12Gb/s HDDs
• (1) Front USB v3.0
●
●
Back View
●
●
• (2) easy-swap 3.5” SATA 6Gb/s HDD
• (1) PCI-E Gen.3 x16 slot
• (4) 10GBASE-T (on mezzanine)
• (1+1) 1,200W RPSU @ 220Vac
●
●
●
Single IBM POWER8 Turismo SCM socket bundle with
(1) IBM POWER8 8-Core 3.325 GHz processor (-3 SKU) or
(1) IBM POWER8 10-Core 2.926 GHz processor (-4/-5 SKU)
(1) PLX PEX8748
(4) IBM Centaur Memory Bu ers
(32) DIMM slots support up to 1,024GB RDIMM DDR3L 1333
Bunndle with (8) R-DDR3L 16GB (-3 SKU) or
(16) R-DDR3L 16GB (-4 SKU) or
(32) R-DDR3L 16GB (-5 SKU)
(1) Half-Height/ Full-Length PCI-E Gen3 x16 slot support
(3) Half-Height/ Half-Length PCI-E Gen3 x8 slots support
Up to (14) hot-swap 3.5"" SAS 12G/SATA 6G HDDs
(Pre-install MP012-9235-4I TYAN Mezz Card)
Bunndle with (2) 4TB HDDs (-3/-4 SKU) or (2) 1TB SSD (-5 SKU)
(1) PHY dedicated for IPMI (via Broadcom BCM5221)
(4) 10GbE (Pre-install MP012-B840-4T TYAN LAN Mezz Card)
Onboard BMC w/ IPMI and iKVM support
(1+1) 1,200W RPSU w/ PFC, 80 plus Platinum Certi ed
Specifications are subject to change without notice. Items pictured may only be representative.
TN71-BP012
M1714T71-USB
Front USB Module
SP012GMR
(1) IBM POWER8 Turismo
SCM sockets
(32) R-DDR4 DDR3L-RDIMM
1333 Max.1,024GB
(1) PHY ports
(12) hot-swap 3.5” SAS
12G/SATA 6G HDDs
System FANs
(5) 8038
M1811T71-FB
Front Panel Module
BSP012T71V14HR-4T-3 / BSP012T71V14HR-4T-4
BSP012T71V14HR-4T-5

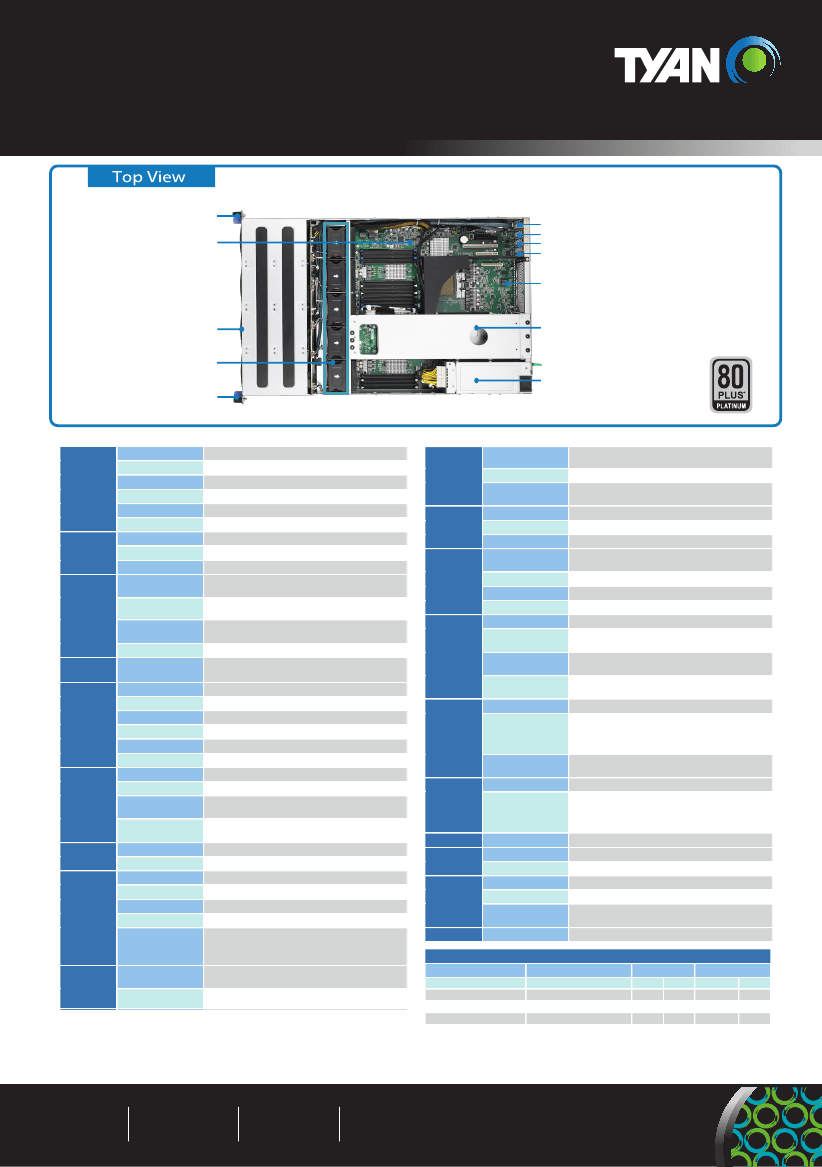

Specifications
(1) HH/HL PCI-E Gen.3 x8 slot (from PLX) (#1)
(1) HH/HL PCI-E Gen.3 x8 slot (from PLX) (#2)
(1) HH/FL PCI-E Gen.3 x16 slot (from CPU) (#3)
(1) HH/HL PCI-E Gen.3 x8 slot (from CPU) (#4)
MP012-B840-4T
4x 10GBASE-T Mezz.
(2) easy-swap 3.5” HDDs (boot)
(connected to embedded mezz. card)
RPSU
(1+1) 1,200W hot-swap RPSU
@ 220Vac, 80+ Platinum
Form Factor
System
(Recommend
Chassis)
Chassis Name
Dimension (H x W x D)
Barebone
2U Rackmount
TN71
28" x 17.72" x 3.43" (711 x 450 x 87mm)
BP012T71V14HR
SP012GMR
21KG
(1) ID / (1) PWR w/ LED
(1) ID / (1) Warning
(1) USB 3.0 port
3.5" Hot-Swap / (14) *(12) in front need a discrete HBA/
RAID adapter to enable / *(2) in rear w/ 2-in-1 HDD tray
Port Q'ty
LAN
PHY Controller
(4) 10GbE ports
(1) PHY dedicated for IPMI
Broadcom BCM5221
Pre-install TYAN LAN
MP012-B840-4T support (4) 10GbE RJ45 ports
(Broadcom 57840)
Mezz Card
Connector type
Graphic
Resolution
Chipset
USB
D-Sub 15-pin
up to 1920 x 1200
Aspeed AST2400
(4) USB ports (1 USB3.0 at front, 2 USB3.0 at rear, 1
USB1.1 at rear for BMC F/W update only)
(1) DB-9 COM port
(1) D-Sub 15-pin port
(4) 10GbE + (1) PHY dedicated for IPMI
Aspeed AST2400
Monitors voltage for CPU, memory, chipset & power
supply
Monitors temperature for CPU & memory & system
environment
Over temperature warning indicator / Fan & PSU fail LED
indicator
Onboard Aspeed AST2400
IPMI 2.0 compliant baseboard management controller
Motherboard
Gross Weight
Buttons
Front Panel
LEDs
I/O Ports
Type / Q'ty
I/O Ports
COM
VGA
RJ-45
Chipset
Supported HDD
External Drive
Interface
Bay
Pre-install TYAN
Mezz Card
Pre-install HDD/SSD
System Cooling
FAN
Configuration
SAS 12Gb/s/ SATA 6Gb/s
MP012-9235-4I w/SATA 6G to enable (2) 3.5" HDDs in
rear (Marvell 88SE9235)
(2) 4TB HDDs (-3/-4 SKU) or (2) 1TB SSD (-5 SKU)
(5) 8cm fans
RPSU
1+1
AC 100-127V/12.47A / AC 200-240V/7.08A
1,200 Watts / *100-127V support 1,000 Watts only
47 - 63 Hertz
80-plus Platinum
IBM POWER8 Turismo SCM processor
IBM POWER8 Turismo SCM/ (1)
Up to 190W
(1) IBM POWER8 8-Core 3.325 GHz processor (-3 SKU)
(1) IBM POWER8 10-Core 2.926 GHz processor (-4/-5 SKU)
System
Monitoring
Voltage
Temperature
LED
Onboard Chipset
Type
Redundancy
Power Supply
Input Range
Output Watts
Frequency
Efficiency
Supported CPU Series
System
AST2400 IPMI Feature
(BMC) / Supports storage over IP and remote platform-
flash / USB 2.0 virtual hub
Management
AST2400 iKVM
Feature
Brand / ROM size
PNOR
Feature
OS supported list
FCC (DoC)
CE (DoC)
Operating Temp.
Operating
Environment
RoHS
Non-operating Temp.
In/Non-operating
Humidity
RoHS 6/6 Complaint
24-bit high quality video compression / 10/100 Mb/s MAC
interface
IBM / 64MB
Boot from USB device / CD-ROM / Storage / PXE via LAN /
IPMI Support / Device Tree / Console Redirection / OCC
(Power Management) / Petitboot Bootloader (PPC64)
Please refer to our Intel OS supported list.
Class A
Yes
10° C ~ 35° C (50° F~ 95° F)
- 40° C ~ 70° C (-40° F ~ 158° F)
90%, non-condensing at 35° C
Yes
Socket Type / Q'ty
Processor
Thermal Design
Power (TDP) wattage
Pre-install Processor
Chipset
Switch IC
Chipset
Supported DIMM Qty
DIMM Type / Speed
Capacity
Memory
Memory voltage
Pre-install Memory
Operating System
(1) PLX PEX8748
(4) IBM Centaur Memory Buffers
(32) DIMM slots
DDR3L-RDIMM 1333
Up to 1,024GB
1.35V
(8) R-DDR3L 16GB (-3 SKU) or
(16) R-DDR3L 16GB (-4 SKU) or
(32) R-DDR3L 16GB (-5 SKU)
(1) PCI-E Gen3 x16 slot
(3) PCI-E Gen3 x8 slots
MP012-9235-4I / MP012-B840-4T
Regulation
L10 system configuration
Model: TN71-BP012
SKU
BSP012T71V14HR-4T-3
BSP012T71V14HR-4T-4
BSP012T71V14HR-4T-5
IBM Pow er8 Processors
Cores
8
10
10
Memory
Size
16 GB
16 GB
16 GB
Qty
8
16
32
Hard Driv es
Size
4 TB
4 TB
1 TB SSD
Qty
2
2
2
Expansion
Slots
PCI-E
Pre-install TYAN
Mezz Card
(Specifications are subject to change without notice. Items pictured may only be representative.)
MITAC COMPUTING TECHNOLOGY CORP.
TYAN Business Unit
USA
Tel: +1-510-651-8868
Fax: +1-510-651-7688
Taiwan
Tel: +886-2-2652-5888
Fax: +886-2-2652-5805
Japan
Tel: +81-3-3769-8311
Fax: +81-3-3769-8328
China
Shanghai Tel: +86-21-61431188 Ext 1366
China Tel:-86-010-62555015 Ext 8302
