EURO
QUARTZ
7 x 5mm High Frequency HCMOS Oscillator
FEATURES
Industry-standard 7.0 x 5.0mm SMD package
Frequency Range 125MHz to 320.0MHz
High Q crystal and ultra-low jitter multiplier circuit
Supply voltage 2.5 Volts or 3.3 Volts
Tristate function to conserve power
DESCRIPTION
XOF91 series oscillators are designed to provide very high quality
LVCMOS outputs at frequencies from 125MHz to 320MHz. A high Q
crystal and ultra-low jitter multiplier circuit provide extremely good
performance. An enable/disable function is standard and the
oscillator may also be specified with a power down function.
SPECIFICATION
Frequency Range:
Output Logic:
Integrated Phase Jitter:
Period Jitter RMS:
Period Jitter Peak to Peak:
Frequency Stability
Commercial:
Industrial:
Supply Voltage:
Output Voltage
High '1':
Low '0':
Rise/Fall Time:
Current Consumption:
Load:
Start-up Time:
Duty Cycle:
Static Discharge Protection:
Ageing:
PHASE NOISE
Offset
10Hz
100Hz
1kHz
10kHz
100kHz
1MHz
10MHz
Frequency 155.250MHz
-62 dBc/Hz
-92 dBc/Hz
-120 dBc/Hz
-132 dBc/Hz
-128 dBc/Hz
-140 dBc/Hz
-150 dBc/Hz
125.0MHz to 200.0MHz (15pF load)
125.0MHz to 320.0MHz (10pF load)
LVCMOS
0.4ps typical 0.5ps max
(12kHz ~ 20MHz) at 155.520MHz
3ps typical, 5 ps max. at 155.520MHz
20ps typ., 30ps max. at 155.520MHz
±10ppm to ±100ppm -10° to +70°C
±20ppm to ±100ppm -40° to +85°C
+2.5 Volts ±5% or +3.3VDC ±5%
90% Vdd minimum
10% Vdd minimum
2.4ns typical, 15pF load.
(20%Vdd to 80%Vdd)
40mA max.
15pF
5ms typical, 10ms maximum
50% ±5% (Measured at Vdd-1.3V)
2kV maximum
±3pmm max. first year then ±2ppm

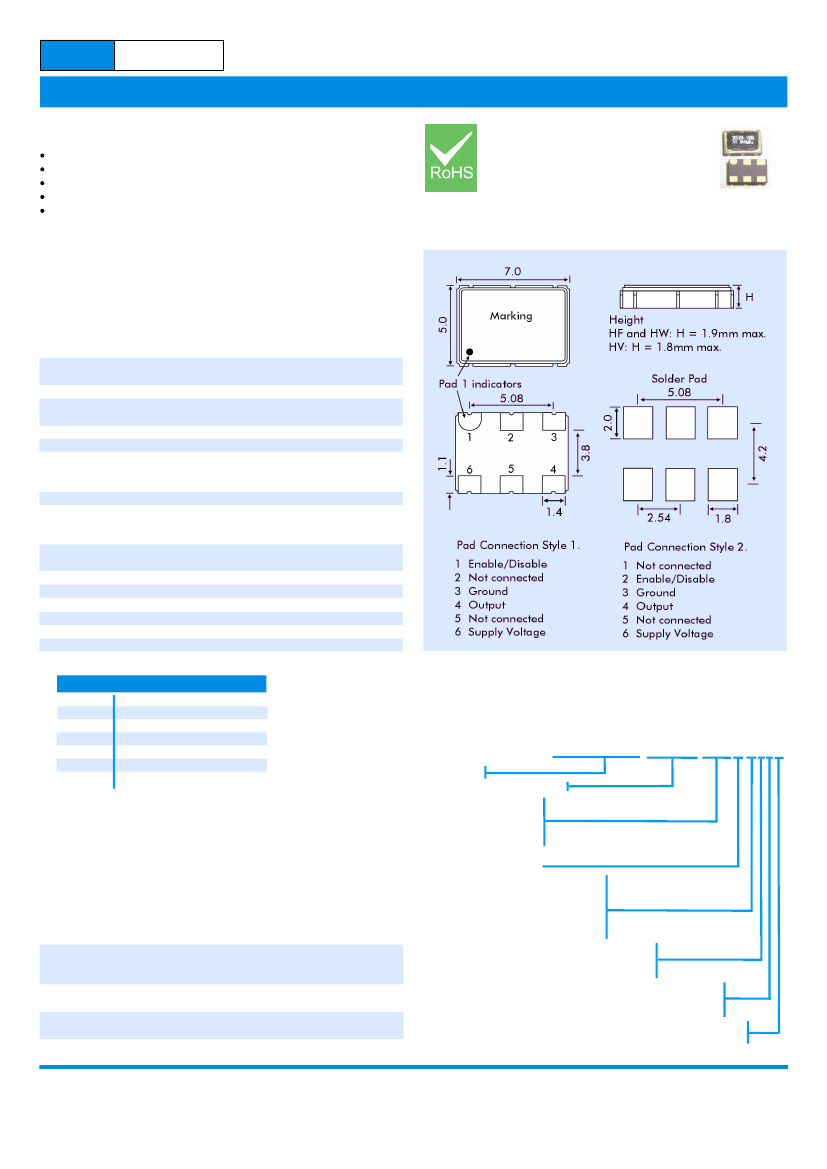

OUTLINE & DIMENSIONS
XOF91 Oscillators
125MHz to 320MHz
PART NUMBER SCHEDULE
Example:
200.00MHz
XOF91050UCTA2
ABSOLUTE MAXIMUM RATINGS
Permanent damage may occur if units are operated beyond
specified limits.
Supply Voltage:
+4.6 VDC max.
Input Voltage Vi:
Vss-0.5 min., Vdd +0.5V max.
Input Voltage Vo:
Vss-0.5 min., Vdd +0.5V max.
PAD 1 OPTIONS
DISABLE
Output is disabled when enable/disable pad is
taken below 0.3 Vcc referenced to ground
Oscillator is continues to run.
Oscillator is enable when enable/disable Pad is
taken above 0.7 Vcc referenced to ground.
Available by special request: Oscillator shuts down
when disabled.
ENABLE
POWER DOWN
Frequency
Series Designation XOF91
Stability
100 = ±100ppm
050 = ±50ppm
025 = ±25ppm
(For non-standard use '020' for ±20ppm e.g.)
Output LVCMOS
Operating Temp. Range
C = Commercial
(-10°~70°C)
I = Industrial
(-40°~+85°C)
Pad 1 Option
T=Tristate (enable/disable)
P= Powerdown
Supply Voltage =
A = 3.3 Volts
B = 2.5 Volts
Pad Connection Style*
Connection Style 1 or Style 2
*Check availability with Euroquartz engineering
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
