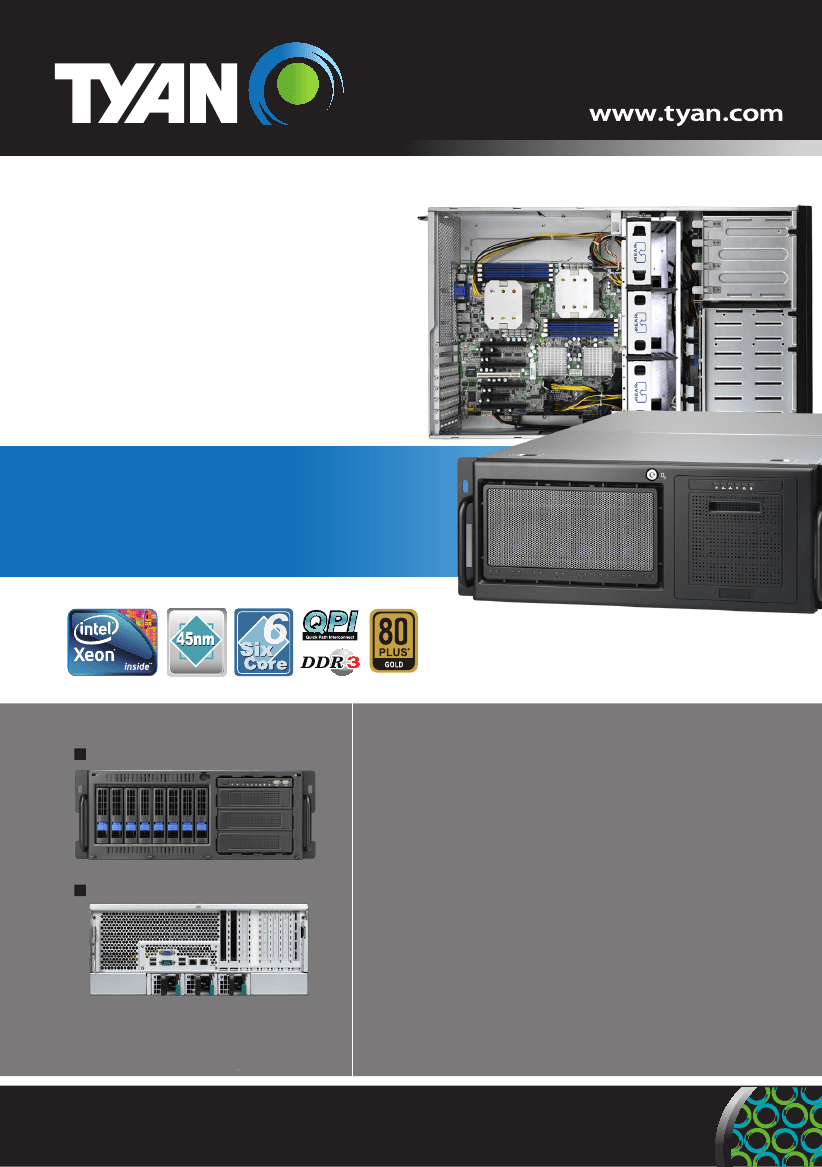

4U GPGPU
SERVER
PLATFORM
FT48-B7025
B7025F48W4H / B7025F48W8HR (BTO)
Front View
4U dual-socket SMP server
implementation for GPGPU applications
Dual LGA1366 sockets support up to (2) Intel® Xeon® processors 5500
series (codenamed Nehalem-EP)
Support QPI 6.4/ 5.86/ 4.8 GT/s
Dual Intel® 5520 IOH
Intel® ICH10R South Bridge
(8) 240-pin DDR3 DIMM slots support up to 64GB R-DDR3
1333/1066/800MHz w/ ECC memory
(4) Full-Height/ Full-Length PCI-E Gen.2 x16 slots supporting (4)
double-deck GPU adapters
(1) Full-Height/ Full-Length PCI-E Gen.2 x8 slot (w/ x4 link)
(1) Full-Height/ Full-Length PCI-E Gen.2 x4 slot
(1) Full-Height/ Full-Length PCI 32/33MHz slot
Onboard Audio
(2) GbE LAN
TPM 1.2 (Trusted Platform Module) support
(4/8) Hot-swap 3.5" SAS HDDs w/ RAID 0, 1, 1E support
Onboard BMC w/ IPMI and iKVM support
(2+0)
Redundancy ready, ERP1U high-efficiency 1,300W PSU w/ PFC,
80-PLUS Certified (B7025F48W4H)
(2+1)
Redundant, ERP1U high-efficiency 1,300W PSU w/ PFC, 80-PLUS
Certified (B7025F48W8HR)
Back View
Specifications are subject to change without notice. Items pictured may only be representative.
FT48-B7025
B7025F48W4H / B7025F48W8HR (BTO)

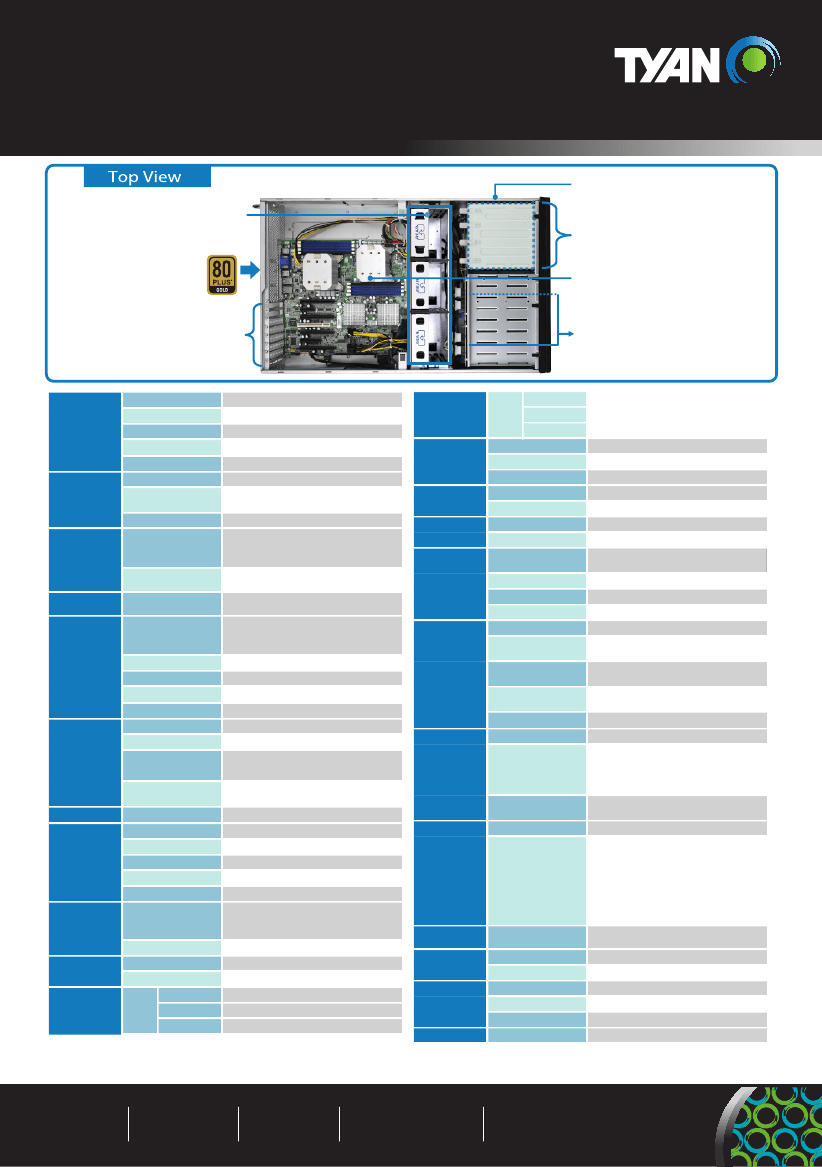

Hot-swap System FANs
(3) 12038 as default
Allocated at lowest deck
(2+1) EPS1U 1,
1300W PSU, 80-PLUS
(2) installed as default
(8) Expansion slots
mechanically available
Support up to (4) Full-sized
GPU cards
Form Factor
Chassis Model
System
Dimension (H x W x D)
Specifications
M1018
front panel board
(Buttons, LEDs, USB ports)
(3) 5.25’ media bays
S7025WAGM2NR-B
(2) LGA1366 sockets
(8) R-DDR3 1333/1066/800MHz
Max.64GB, (2) GbE ports
M1216-P
4-port SAS backplane
(1) M1216-P as default
Add the 2nd M1216-P for
another (4) expanded HDDs
Controller
Storage
SATA
Speed
RAID
Connector type
Graphic
Resolution
Chipset
Audio
TPM
Chipset
Feature
Chipset
Version
USB
Input /Output
COM
VGA
RJ-45
Chipset
Voltage
System
Monitoring
Temperature
LED
(On system front
Others
Onboard Chipset
Server
Management
ICH10R
3.0 Gb/s
RAID 0/1/10/5 (Intel® Matrix RAID)
D-Sub 15-pin
1600x1200@60Hz
Aspeed AST2050
Realtek ALC262
HDA 2.0 spec. compliant
Infineon SLB9635
TPM v1.2
(7) USB2.0 ports (4 at rear, 2 at front, 1
type A onboard)
(1) DB-9 port
(1) D-Sub 15-pin VGA port
(2) GbE ports
Winbond W83793G
Monitors voltage for CPU, memory, chipset
& power supply
Monitors temperature for CPU & system
environment
Fan fail LED indicator
Over temperature warning indicator
Watchdog timer support
Onboard Aspeed AST2050
4U Rackmount
FT48
6.9" x 16.7" x 27.6" (176 x 425 x 700mm)
S7025WAGM2NR-B
46.8 kg
(1) RST / (1) ID / (1) PWR / (1) NMI
(1) Power / (1) ID / (2) LAN / (1) HDD
(1) Warning
(2) USB ports
3.5" Hot-Swap / (4)
Extra (4) hot-swap trays available for add-
on
SAS 3.0Gb/s
(3) 12cm fans
ERP1U swappable / (2+0)
(B7025F48W4H),
ERP1U hot-swap / (2+1) (B7025F48W8HR)
Full-range AC(100-240V)
47 - 63 Hertz
1,300 Watts (2x 650W)
PFC / 80-plus
Intel
®
Xeon
®
processor 5500 series
LGA1366 / (2)
Motherboard
Gross Weight
Buttons
Front Panel
LEDs
I/O Ports
External Drive
Bay
Type / Q'ty
Supported HDD
Interface
System Cooling
FAN
Configuration
Type
Power Supply
Input Range
Frequency
Output Watts
Efficiency
Supported CPU Series
Socket Type / Q'ty
Processor
Thermal Design
Max. up to 95W
Power (TDP) wattage
System Bus
Up to 4.8/ 5.86/ 6.4GT/s with Intel
QuickPath Interconnect (QPI) support
(2) Intel
®
5520 / ICH10R
(4+4) DIMM slots
DDR3 800/1066/1333 RDIMM/UDIMM
Up to 64GB RDIMM / 32GB UDIMM
6 Channels (3 Channels per CPU)
1.5V
(4) FH/FL PCI-E Gen.2 x16 slots
(1) FH/FL PCI-E Gen.2 x8 slot (w/ x4 link)
(1) FH/FL PCI-E Gen.2 x4 slot
(1) FH/FL PCI 32/33MHz slot
(2)
Intel
®
82574L
LSI SAS1068E
3.0 Gb/s
RAID 0/1/1E (LSI Integrated RAID)
Chipset
Chipset
Supported DIMM Qty
DIMM Type / Speed
IPMI 2.0 compliant baseboard management
controller (BMC)
AST2050 IPMI Feature
BIOS update
USB 2.0 virtual hub
AST2050 iKVM
24-bit high quality video compression
Feature
Dual 10/100 Mb/s MAC interfaces
Brand / ROM size
AMI / 4MB
Plug and Play (PnP)
PCI2.3 /WfM2.0 /SMBIOS2.3 /PXE boot
ACPI 2.0 power management
Power on mode after power recovery
User-configurable H/W monitoring
Auto-configurable of hard disk types
Multiple boot options
Please refer to our OS supported list.
Class A
Yes
10° C ~ 35° C (50° F~ 95° F)
90%, non-condensing at 35° C
Yes
Memory
Capacity
Memory channel
Memory voltage
BIOS
Feature
Expansion
Slots
PCI-E
PCI
Operating
System
Regulation
Operating
Environment
RoHS
OS supported list
FCC (DoC)
CE (DoC)
Operating Temp.
In/Non-operating Humidity
LAN
Port Q'ty
Controller
Controller
SAS
Speed
RAID
Storage
Non-operating Temp.
- 40° C ~ 70° C (-40° F ~ 158° F)
RoHS 6/6 Complaint
