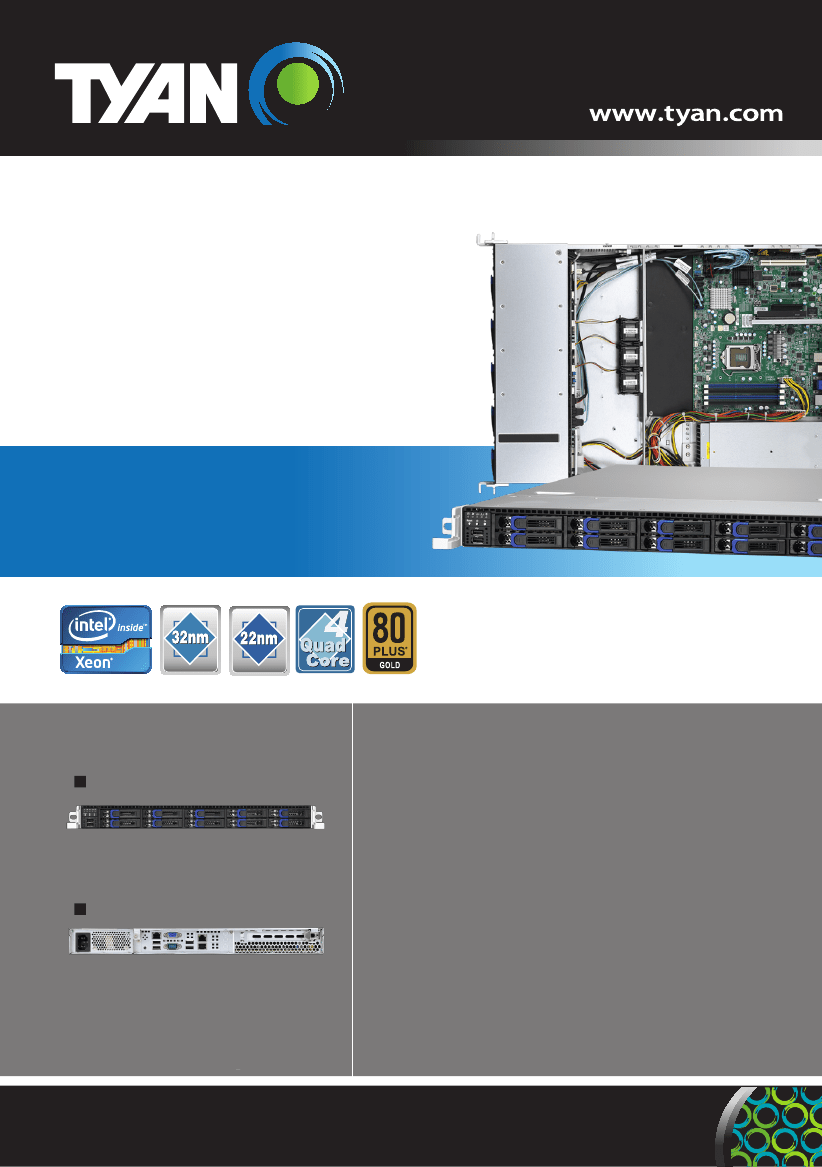

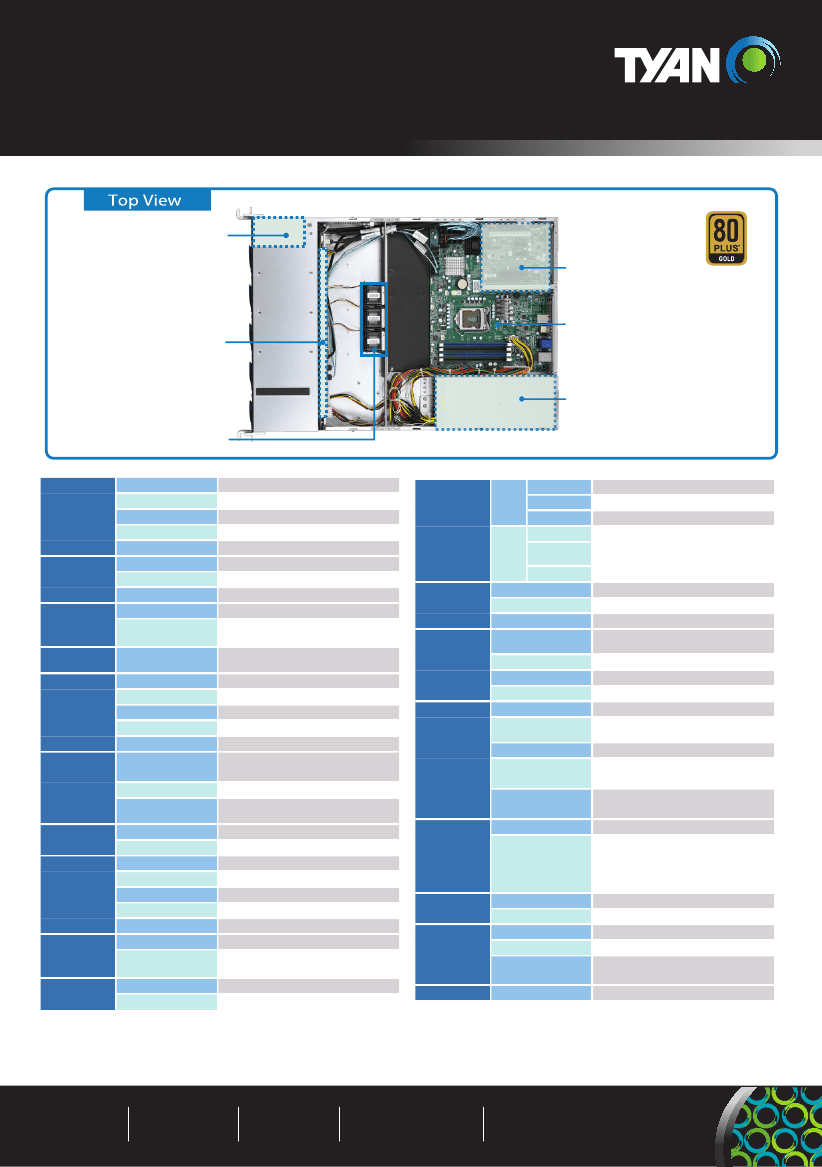

SINGLE-SOCKET

1U OPTIMIZATION

PLATFORM

GT62A-B5512

B5512G62AW10H / B5512G62AV10H

Front View

Single-socket server platform for

Rack Optimization, Server Storage

applications



Single LGA1155 socket supports (1) E3-12xx and I3-21xx

(32nm / 22nm) series CPU



Intel® C200 PCH and LSI SAS2008 design



(4) 240-pin DDR3 DIMM slots support up to 32GB U-DDR3

1600/1333/1066 MHz w/ ECC memory



(1) PCI-E Gen3 slot by riser



(4) SATA-II connectors w/ RAID 0, 1, 10, 5 support



(2) SATA-III connectors



(8) SAS/SATA 6G ports from LSI SAS2008 (B5512G62AW10H)



(2) GbE + (1) PHY dedicate for IPMI Link



(10) Support SAS/SATA 2.5" HDD



Onboard BMC w/ IPMI and iKVM support

* Need a discrete HBA to enable all ten(10) drives. (B5512G62AV10H SKU)

(10) Hot-Swap 2.5” SATA-III/ SAS HDDs

Back View

(1) FH/FL PCI-E (G3) x16 slots

Specifications are subject to change without notice. Items pictured may only be representative.

B5512G62AW10H Related Products

	B5512G62AW10H	GT62A-B5512	B5512G62AV10H
Description	Single-socket server platform for Rack Optimization, Server Storage applications	Single-socket server platform for Rack Optimization, Server Storage applications	Single-socket server platform for Rack Optimization, Server Storage applications
