COST-EFFECTIVE
SMP SERVER
PLATFORM
GT20A-B7040
B7040G20AV4H
Front View
(4) Hot-Swap 3.5”/ 2.5” SAS/ SATA 6G HDDs
Cost-effective 1U Dual-Socket Server
Implementation for power-efficient
Applications
Dual LGA1356 socket supports (2) E5-2400 series CPU
Intel® C602 PCH
(6+3) DDR-III DIMM slots
Supporting up to 288GB LRDIMM ECC 1333/1066 memory
Supporting up to 144GB R-DDR3 ECC 1600/1333/1066 memory
Supporting up to 72GB U-DDR3 ECC 1333/1066 memory
(1) Half-Height/ Half-Length PCI-E Gen3 x8 slot
(4) Hot-swap 3.5"/2.5" SAS/SATA 6G HDDs
(2) GbE ports (2x Intel® 82574L)
Onboard BMC w/ IPMI and iKVM support
(1) EPS1U Full-range AC (100-240V) 500W PSU, 80-PLUS Gold
(B7040G20AV4H)
Back View
(1) HH PCI-E (G3) x8 slot
Specifications are subject to change without notice. Items pictured may only be representative.
GT20A-B7040
B7040G20AV4H
Slim-type DVD-ROM Drive
(Opt.)
M1008 (R04)

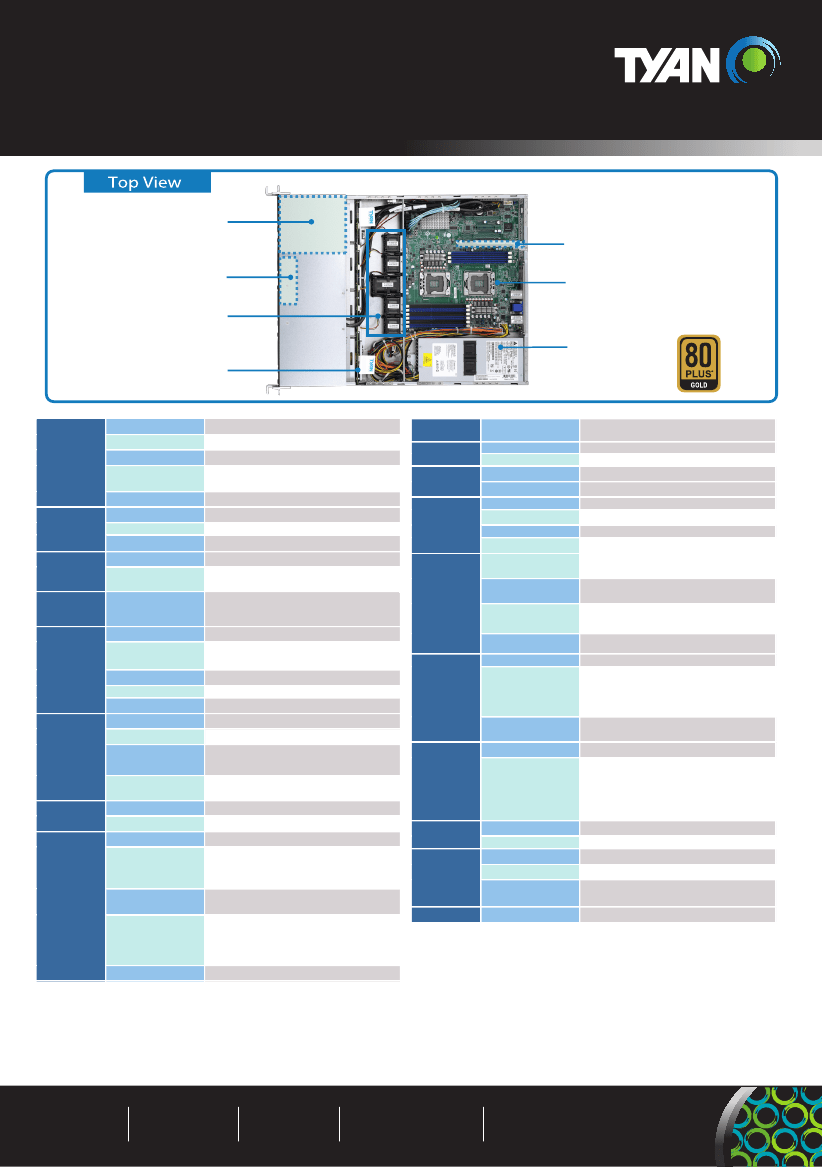

Integrated front panel board
Easy-swap System FANs
(4) 4028 + (1) 4056
M1235
Integrated FAN board &
4-port SAS/SATA 6G
HDD backplane board
Form Factor
Chassis Name
System
Dimension (D x W x H)
Specifications
M2210-L8-1F
Provide (1) half-height
PCI-E (Gen. 3) x8 slot
S7040GM2NR
(2) LGA1356 sockets (B2)
(6+3) R-DDR3 1600/1333/1066MHz
Max.288GB , (2) GbE ports
EPS1U 500W PSU
80-PLUS Gold
1U Rackmount
GT20A
22.4" x 1.72" x 17.2" (568.96 x 43.6 x 436mm )
S7040GM2NR-1U-B
17 kg
(1) PWR / (1) RST / (1) NMI / (1) ID
(1) HDD / (1) ID / (1) Warning / (2) LAN
(2) USB ports
3.5" or 2.5" Hot-Swap / (4)
SAS / SATA 6.0Gb/s
(4) 4028 + (1) 4056 f ans
EPS1U
100-127V /8A
200-240V/ 4A
50/60 Hertz
500 Watts
80-PLUS Gold
LGA1356 / (2)
Storage
Expansion
Slots
LAN
Graphic
Recommended TYAN
Riser Card
Port Q'ty
Controller
Connector type
Chipset
USB
COM
VGA
RJ-45
Voltage
M2210-L8-1F, PCI-E Gen3 x8 slot (lef t)
(2) GbE ports (B7040G20AV4H)
Intel® 82574L
D-Sub 15-pin
Aspeed AST2300
(6) USB2.0 ports (4 at rear,2 at f ront)
(1) port (rear)
(1) D-Sub 15-pin (rear)
(2) GbE ports
Monitors v oltage f or CPU, memory , chipset &
power supply
Monitors temperature f or CPU & sy stem
env ironment
Motherboard
Gross Weight
Buttons
Front Panel
LEDs
I/O Ports
External Drive
HDD backplane
Bay
support
System
FAN
Cooling
Configuration
Type
Input Range
Power Supply
Frequency
Output Watts
Efficiency
Socket Type / Q'ty
Processor
Average CPU Power
(ACP) wattage
System Bus
Chipset
Chipset
Super I/O
Supported DIMM Qty
DIMM Type / Speed
Type / Q'ty
Input /Output
System
Monitoring
Temperature
LED (On system front
Fan f ail LED indicator
Ov er temperature warning indicator
panel)
Others
Onboard Chipset
Watchdog timer support
Server
Management
Supported CPU Series
Intel Xeon Processor E5-2400 series
Onboard Aspeed AST2300
IPMI 2.0 compliant baseboard management
controller (BMC) / Supports storage ov er IP
AST2300 IPMI Feature
and remote platf orm-f lash / USB 2.0 v irtual
hub
24-bit high quality v ideo compression /
AST2300 iKVM
Feature
10/100/1000 Mb/s MAC interf ace
Brand / ROM size
AMI / 8MB
Plug and Play (PnP) /PCI2.3 /Wf M2.0
/SMBIOS2.3 /PXE boot / ACPI 2.0 power
management /Power on mode af ter power
recov ery / User-conf igurable H/W monitoring /
Auto-conf igurable of hard disk ty pes
Class A
Y es
10° C ~ 35° C (50° F~ 95° F)
Max up to 95W
Up to 8.0/ 7.2/ 6.4 GT/s with Intel QuickPath
Interconnect (QPI) support
INTEL C602
-
(6+3) DIMM slots
LRDIMM ECC 1333/1066 memory
R-DDR3 ECC 1600/1333/1066 memory
U-DDR3 ECC 1333/1066 memory
up to 288GB LRDIMM / 144GB RDIMM / 72GB
UDIMM
3 Channels per CPU / Support 2 R/LR-DIMMs
or 2 UDIMMs per channel (CPU 0) / Support 1
R/LR-DIMMs or 1 UDIMMs per channel (CPU
1)
1.5V/ 1.35V
Regulation
BIOS
Feature
FCC (DoC)
CE (DoC)
Operating Temp.
Operating
Environment
RoHS
Non-operating Temp.
- 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating
Humidity
RoHS 6/6 Complaint
90%, non-condensing at 35° C
Y es
Memory
Capacity
Memory channel
Memory voltage
