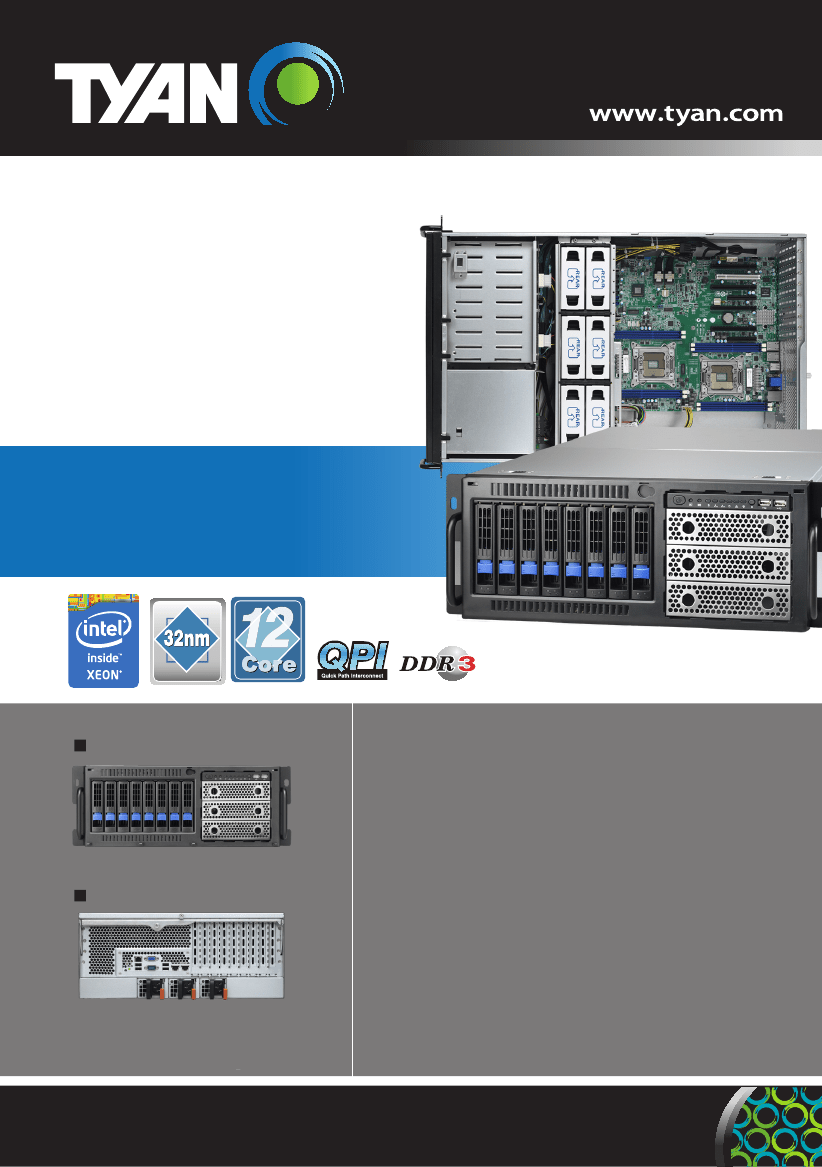

DUAL-SOCKET
4GPGPU
PLATFORM
FT48-B7055
B7055F48V8HR / B7055F48W8HR / B7055F48V8HR-2T(BTO)
B7055F48V8HR-N129(BTO) / B7055F48V8HR-N429(BTO)
Front View
4U Dual-Socket Server Implementation for
GPGPU and HPC Applications
Dual LGA2011 socket supports Intel Xeon Processor E5-2600/E5-2600
v2 Series CPU
Intel® C602 PCH and INTEL SAS ROM key design
(4+4) 240-pin UDIMM/RDIMM/LRDIMM ECC 1066/1333/1600/1866
*Speed 1866 only for 1 slot per channel 1.5V(Blue color DIMM slot )
(4) Full-Height/ Full-Length PCI-E Gen3 x16 slots support (4)
Double-deck GPU adapters
(2) Full-Height/ Full-Length PCI-E x8 slots
(1) Full-Height/ Full-Length PCI slot
(4) SATA-II connectors w/ RAID 0, 1, 10, 5 support
(2) SATA-III connectors
(8) SAS/SATA 3G ports(SCU)enabled by Intel® option ROM kit
(3) GbE (via Intel® I350-BT2 + Intel® 82574L), or (2) 10GbE (via Intel®
X540-AT2) + (1) GbE (Intel® 82574L) (-2T SKU)
Optional TPM 1.2 (Trusted Platform Module) support
(4/8) Hot-swap 3.5" SAS HDDs w/ RAID 0, 1, 1E support
Onboard BMC w/ IPMI and iKVM support
(2+1) Redundant, ERP1U high-efficiency 1,540W PSU w/ PFC, 80-PLUS
Certified (B7055F48V8HR / B7055F48W8HR / B7055F48V8HR-2T)
(8) Hot-Swap 3.5” SATA-III/ SAS HDDs
Back View
(4) FH/FL PCI-E (G3) x16 slots +
(2) FH/HL PCI-E (G3) x8 slots +
(1) FH/FL PCI Slot
Specifications are subject to change without notice. Items pictured may only be representative.
B7055F48V8HR / B7055F48W8HR / B7055F48V8HR-2T(BTO)
B7055F48V8HR-N129(BTO) / B7055F48V8HR-N429(BTO)
FT48-B7055

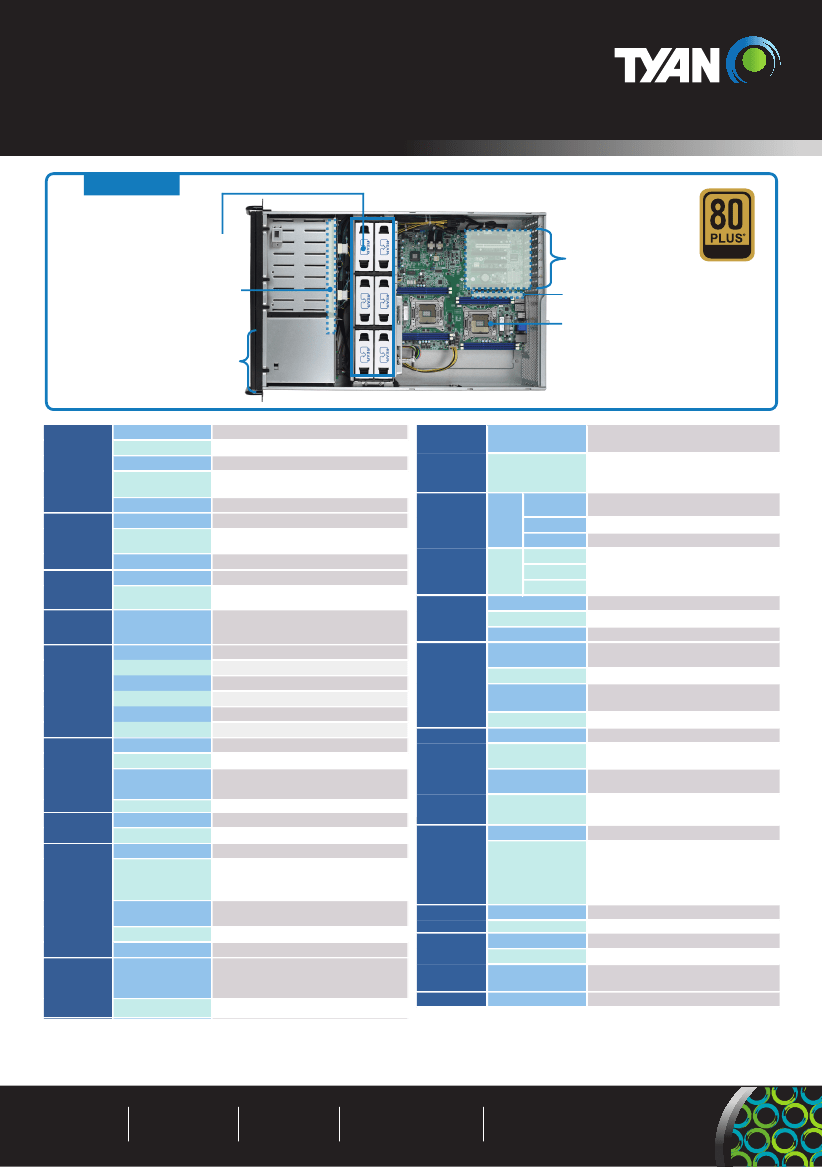

TOP View
Hot-swap System FANs
(5+1) 12038
2 x M1237F48-BP
4-port SAS 6G/SATA-III
HDD backplane board
Specifications
Support (4) PCI-e x16
GOLD
PCI-E #8 Slot for TYAN FT48
S7055GM3NR-B
(2) LGA2011 sockets
(4+4) R-DDR3 1600/1333/1066MHz
Max.256GB , (3) GbE ports
M1018
Front Panel Board
Form Factor
System
(Recommend
Chassis)
Chassis Name
Dimension (H x W x D)
4U Rackmount
FT48
6.9" x 16.7" x 27.6" (176 x 425 x 700mm)
Port Q'ty
LAN
Controller
Controller
Speed
RAID
Controller
SATA
Speed
RAID
Connector type
Graphic
Resolution
Chipset
USB
(3) GbE ports (B7055F48V8HR/B7055F48W8HR)
(1) GbE / (2) 10GbE ports (B7055F48V8HR-2T)
Intel
®
82574L + Intel
®
I350-BT2
(B7055F48V8HR/B7055F48W8HR)
Intel
®
82574L + Intel
®
X540-AT2(B7055F48V8HR-2T)
Motherboard
Gross Weight
Buttons
S7055GM3NR-B / S7055WGM3NR-B
S7055GM3NR-2T-B
46KG
(1) PWR (w/ LED) / (1) RST / (1) NMI / (1) ID
(1) Power / (1) ID / (2) LAN / (1) HDD
(1) Warning
(2) USB ports
3.5" Hot-Swap / (8)
8-bay f or 3.5"HDD ,6Gb/s mini-SAS backplane
upto (6) 12cm f ans ( def ault : 3 FANs)
ERP1U
PFC / 80-plus
2+1
100-127V AC / 200-240V AC
50/60 Hertz
1,540W (2 x 770W)
Socket R
Up to 150W
QPI link upto 8GT/s
SAS
(opt.)
Storage
Intel
®
Integrated RAID upgrade ROM 5
(B7055F48W8HR)
6.0 Gb/s
RAID 0/1/10
Intel
®
C602 series
6.0 Gb/s
RAID 0/1/10/5 (INTEL RAID stack)
D-Sub 15-pin
up to 1920 x 1200
Aspeed AST2300
(7) USB2.0 ports (2 at rear, 4 via cable,
1 type A onboard)
(1) port (rear)
(1) D-Sub 15-pin VGA port
(3) GbE ports
Nuvoton 83773G
Monitors voltage for CPU, memory, chipset &
power supply
Monitors temperature for CPU & system
environment
Front Panel
LEDs
I/O Ports
Type / Q'ty
External Drive
Supported HDD
Bay
Interface
System
FAN
Cooling
Configuration
Type
Efficiency
Power Supply
Redundancy
Input Range
Frequency
Output Watts
Socket Type / Q'ty
Processor
Average CPU Power
(ACP) wattage
System Bus
Chipset
Chipset
Super I/O
Supported DIMM Qty
DIMM Type / Speed
Memory
Capacity
Memory channel
Memory voltage
Expansion
Slots
PCI-E
PCI
Input /Output
COM
VGA
RJ-45
Chipset
Voltage
Supported CPU Series
Intel
®
Xeon
®
Processor E5-2600/E5-2600 v2
System
Monitoring
Temperature
Intel
C602
®
LED (On system front
Fan fail LED indicator
panel)
Over temperature warning indicator
Brand / ROM size
AMI / 8MB
Plug and Play (PnP) /PCI2.3 /WfM2.0
/SMBIOS2.3 /PXE boot / ACPI 2.0 power
management /Power on mode after power
recovery / User-configurable H/W monitoring /
Auto-configurable of hard disk types
Class A
Yes
10° C ~ 35° C (50° F~ 95° F)
- 40° C ~ 70° C (-40° F ~ 158° F)
90%, non-condensing at 35° C
Yes
-
(4+4) DIMM slots
UDIMM/RDIMM/LRDIMM ECC 1066/1333/
1600/1866
*Speed 1866 only for 1 slot per channel 1.5V
(Blue color DIMM slot )
up to 64GB UDIMM / 128GB RDIMM / 256GB
LRDIMM
4 Channels per CPU
1.5V/ 1.35V
(4) PCI-E Gen3 x16 slots (slot #7, #5, #3, #1)
(1) PCI-E Gen2 x8 slots (slot #4)
(1) PCI-E Gen3 x8 slots (slot #8)
(1) PCI 32-bit slot (slot #2)
BIOS
Feature
Regulation
FCC (DoC)
CE (DoC)
Operating Temp.
Non-operating Temp.
In/Non-operating
Humidity
RoHS 6/6 Complaint
Operating
Environment
RoHS
(Specifications are subject to change without notice. Items pictured may only be representative.)
MITAC INTERNATIONAL CORP.
TYAN Business Unit
USA
Tel: +1-510-651-8868
Fax: +1-510-651-7688
Taiwan
Tel: +886-2-2652-5888
Fax: +886-2-2652-5805
Japan
Tel: +81-3-3769-8311
Fax: +81-3-3769-8328
Europe
Sales: +32 2456 1721
Technical Support: +32 2456 1722
