COST-EFFECTIVE
DUAL-SOCKET
1U PLATFORM
GT24-B7066
B7066G24W4H / B7066G24V4H / B7066G24W4HR(BTO)

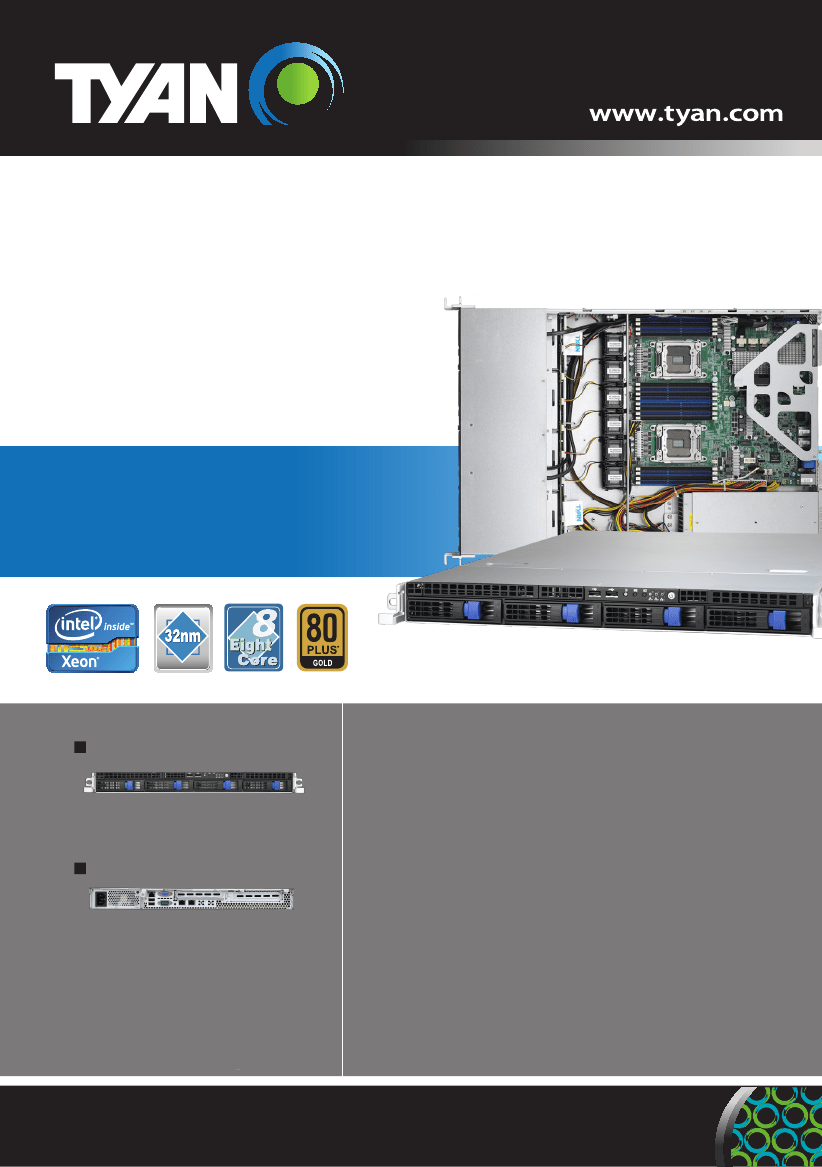

Front View
Cost-effective 1U Dual-Socket Server
Implementation for Server Applications
●
•SAS/SATA
6Gb/s compatible HDD backplane pre-installed
•(4)
Hot-Swap 3.5” HDD carriers w/ 2.5” bracket included
Dual LGA2011 socket supports (2) Intel
®
Xeon
®
Processor E5-2600/E5-2600
v2 Series CPU
Intel® C602 PCH
(8)+(8) DIMM slots
UDIMM/RDIMM/LRDIMM ECC 1066/1333/1600/1866
●
●
Back View
•(2)
FH/HL PCI-E (G3) x16 slots
*Speed 1866 only for 1 slot per channel 1.5V(Blue color DIMM slot )
(2) Half-Height/ Half-Length PCI-E Gen3 x16 slot
(4) Hot-swap 3.5"/2.5" SAS/SATA 6G HDDs
●
(3) GbE ports (Intel® I350 + Intel® 82574L shared with IPMI)
●
Onboard BMC w/ IPMI and iKVM support
●
(1) EPS1U 500W PSU, 80-PLUS Gold (B7066G24W4H/B7066G24V4H SKU)
(1+1) ERP1U 450W PSU hot-swap, 80-PLUS Silver (B7066G24W4HR(BTO)SKU)
●
●
Specifications are subject to change without notice. Items pictured may only be representative.
GT24-B7066
Slim-type DVD-ROM Drive
(Opt.)
B7066G24W4H / B7066G24V4H / B7066G24W4HR(BTO)

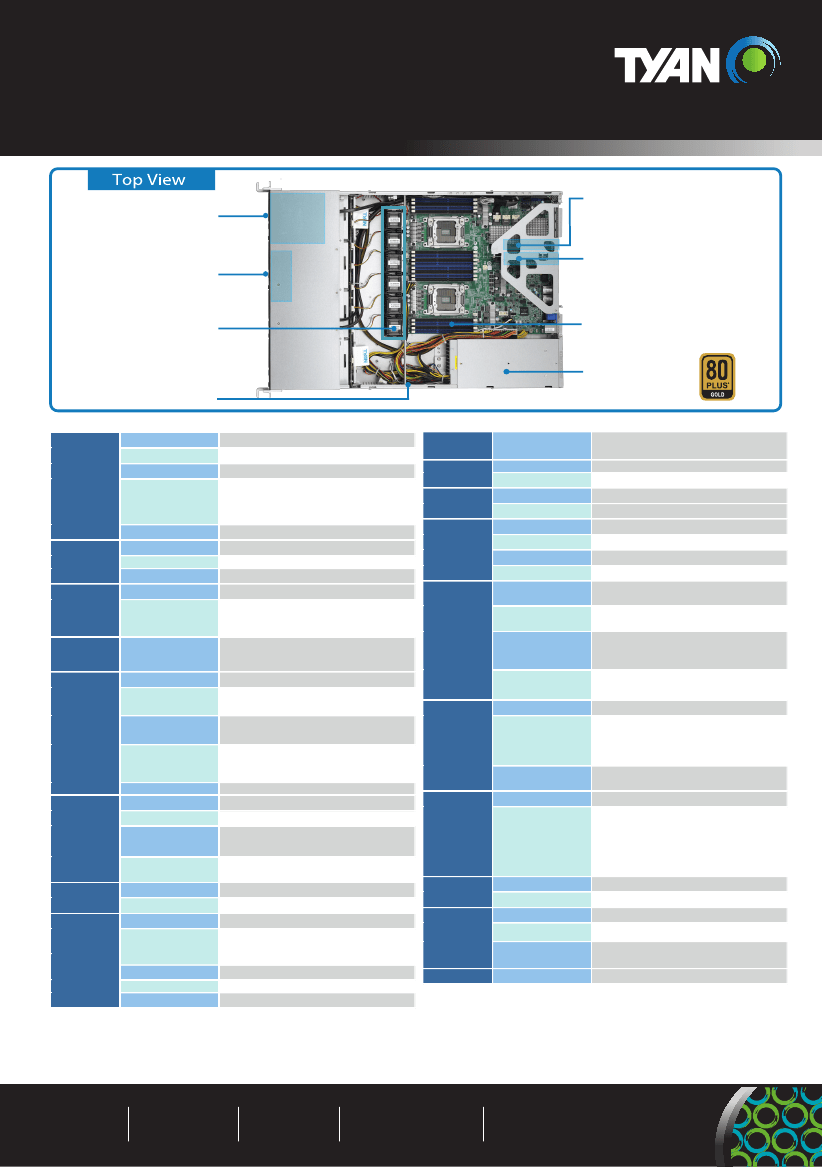

Specifications
M2091 (slot #6)
Provide (1) FH/HL
PCI-E (Gen. 3) x16 slot
M2091-R (slot #6.5)
Provide (1) FH/HL
PCI-E (Gen. 3) x16 slot
S7066WGM3NR
(2) LGA2011 sockets (B2)
(8+8) R-DDR3 1600/1333/1066MHz
Max.512GB , (3) GbE ports
EPS1U 500W PSU,
80-PLUS Gold
M1008
Integrated front panel board
Easy-swap System FANs
(6) 4028
M1235
Integrated FAN board &
4-port SAS/SATA 6G
HDD backplane board
Form Factor
Chassis Name
Dimension (H x W x D)
1U Rackmount
GT24
25.4" x 17.2" x 1.72" (645 x 436 x 43.6mm)
S7066WGM3NR
(B7066G24W4H/B7066G24W4HR(BTO)SKU)
or S7066GM3NR (B7066G24V4H SKU)
17 kg
(1) RST / (1) NMI / (1) ID / (1) PWR w/ LED
(1) HDD / (1) ID / (1) Warning / (3) LAN
(2) USB ports
3.5" or 2.5" Hot-Swap / (4)
SAS / SATA 6.0Gb/s
Expansion
Slots
LAN
Graphic
Pre-install TYAN Riser
M2091, PCI-E x16 1U riser card (lef t) / M2091-
Card
R, PCI-E x16 1U riser card (right)
Port Q'ty
Controller
Connector type
Chipset
USB
COM
VGA
RJ-45
Voltage
(3) GbE ports
Intel
®
I350/82574L shared with IPMI
D-Sub 15-pin
Aspeed AST2300
(4) ports (2 at f ront, 2 at rear)
(1) DB-9 COM port
(1) D-Sub 15-pin (rear)
(3) ports (1 port shared with IPMI)
System
Motherboard
Gross Weight
Buttons
Front Panel
LEDs
I/O Ports
Type / Q'ty
External Drive
HDD backplane
Bay
support
Interface
System
FAN
Cooling
Configuration
Type
Input Range
Power Supply
Efficiency
Input /Output
(6) 4cm f ans
EPS1U / ERP1U
100-127V AC/8A
200-240V AC/4A
80-PLUS Gold or
80-PLUS Sliv er (B7066G24W4HR(BTO)SKU)
500 Watts (B7066G24W4H/B7066G24V4H SKU)
450 Watts (B7066G24W4HR(BTO) SKU)
System
Monitoring
Monitors v oltage f or CPU, memory , chipset &
power supply
Monitors temperature f or CPU & sy stem
Temperature
env ironment
Fan f ail LED indicator / Ov er temperature
LED (On system front
warning indicator / Fan & PSU f ail LED
panel)
indicator
Others
Onboard Chipset
Chassis intrusion detection
Watchdog timer support
Onboard Aspeed AST2300
Server
Management
Output Watts
Redundancy
Socket Type / Q'ty
Processor
Thermal Design
Power (TDP) wattage
System Bus
Chipset
Chipset
Super I/O
Supported DIMM Qty
DIMM Type / Speed
Memory
Capacity
Memory channel
Memory voltage
1+1 (B7066G24W4HR(BTO)SKU)
LGA2011/ (2)
Max up to 130W
Up to 8.0/ 7.2/ 6.4 GT/s with Intel QuickPath
Interconnect (QPI) support
Intel
®
C602
-
(8)+(8) DIMM slots
UDIMM/RDIMM/LRDIMM ECC 1066/1333/1600/1866
*Speed 1866 only for 1 slot per channel 1.5V
(Blue color DIMM slot )
Up to 128GB UDIMM / 256GB RDIMM / 512GB LRDIMM
IPMI 2.0 compliant baseboard management
controller (BMC) / Supports storage ov er IP
AST2300 IPMI Feature
and remote platf orm-f lash / USB 2.0 v irtual
hub
AST2300 iKVM
24-bit high quality v ideo compression /
Feature
10/100 Mb/s MAC interf ace
Brand / ROM size
AMI / 8MB
Plug and Play (PnP) /PCI2.3 /Wf M2.0
/SMBIOS2.3 /PXE boot / ACPI 2.0 power
management /Power on mode af ter power
recov ery / User-conf igurable H/W monitoring /
Auto-conf igurable of hard disk ty pes
Class A
Y es
10° C ~ 35° C (50° F~ 95° F)
Supported CPU Series
Intel
®
Xeon
®
Processor E5-2600/E5-2600 v2
BIOS
Feature
Regulation
FCC (DoC)
CE (DoC)
Operating Temp.
Operating
Environment
RoHS
Non-operating Temp.
- 40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating
Humidity
RoHS 6/6 Complaint
90%, non-condensing at 35° C
Y es
4 Channels per CPU
1.5V/ 1.35V
(Specifications are subject to change without notice. Items pictured may only be representative.)
MITAC INTERNATIONAL CORP.
TYAN Business Unit
USA
Tel: +1-510-651-8868
Fax: +1-510-651-7688
Taiwan
Tel: +886-2-2652-5888
Fax: +886-2-2652-5805
Japan
Tel: +81-3-3769-8311
Fax: +81-3-3769-8328
Europe
Sales: +32 2456 1721
Technical Support: +32 2456 1722
China
Shanghai Tel: +86-21-61431188 Ext 1366
China Tel:-86-010-62555015 Ext 8302
