25HDA14-F-FREQ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> 25HDA14-F-FREQ

25HDA14-F-FREQ: DescriptionLVDS Output Clock Oscillator, 60MHz Min, 320MHz Max, ROHS COMPLIANT, DIP-14/4; CategoryPassive components oscillator; File Size196KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

25HDA14-F-FREQ Overview

LVDS Output Clock Oscillator, 60MHz Min, 320MHz Max, ROHS COMPLIANT, DIP-14/4

25HDA14-F-FREQ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	COMPLIMENTARY OUTPUT
maximum descent time	1 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	320 MHz
Minimum operating frequency	60 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVDS
Output load	50 OHM
physical size	20.2mm x 12.8mm x 5.08mm
longest rise time	1 ns
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	NO
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

EURO

QUARTZ

DESCRIPTION

HDA14 series LVDS output oscillators cover the frequency range

750kHz to 800MHz. The design consists of a crystal operating in 3rd

overtone mode, without a PLL circuit.

SPECIFICATION

Frequency Range:

60MHz to 320.0MHz

Output Logic

LVDS

Phase Noise:

See table

Frequency Stability:

See table

Operating Temp Range

Commercial:

-10° to +70°C

Industrial:

-40° to +85°C

Input Voltage:

+2.5VDC ±5% or +3.3VDC ±5%

Output Logic

High '1' V

1.4V typical, 1.6V max.

Low '0' V

0.9V min., 1.1V typical

Differential Output Voltage V

247mV min., 355mV typ.,

454mV max. Output 1 - Output 2

Differential Output Error dV

: -50mV min., 50mV max.

Output Offset Voltage V

1.125V min., 1.20V typ., 1.375V max.

Offset Magnitude Error dV

0mV min., 3mV typ., 25mV max.

Rise/Fall Times:

0.7ns typical, 1.0ns max.

(20% to 80% of LVDS waveform)

Current Consumption

(15pF load):

16mA max at 212.5MHz

Load:

50W from each output

Start-up Time:

5ms typ., 10ms max.

Duty Cycle:

50%±5% (at 1.5V)

Drive Capability:

100 Ohms between outputs

Input Static Discharge Prot:

2kV min.

Storage Temperature Range:

-55°C to +150°C

Ageing:

±3ppm per year max., ±2ppm

thereafter. At T amb +25°C

ABSOLUTE MAXIMUM RATINGS

(Permanent

damage may be caused if operated beyond these limits.)

Supply Voltage Vdd:

+4.6VDC max.

Input Voltage Vi:

Vss -0.5 min., VDD +0.5V max.

Input Voltage Vo:

Vss -0.5 min., Vdd +0.5V max.

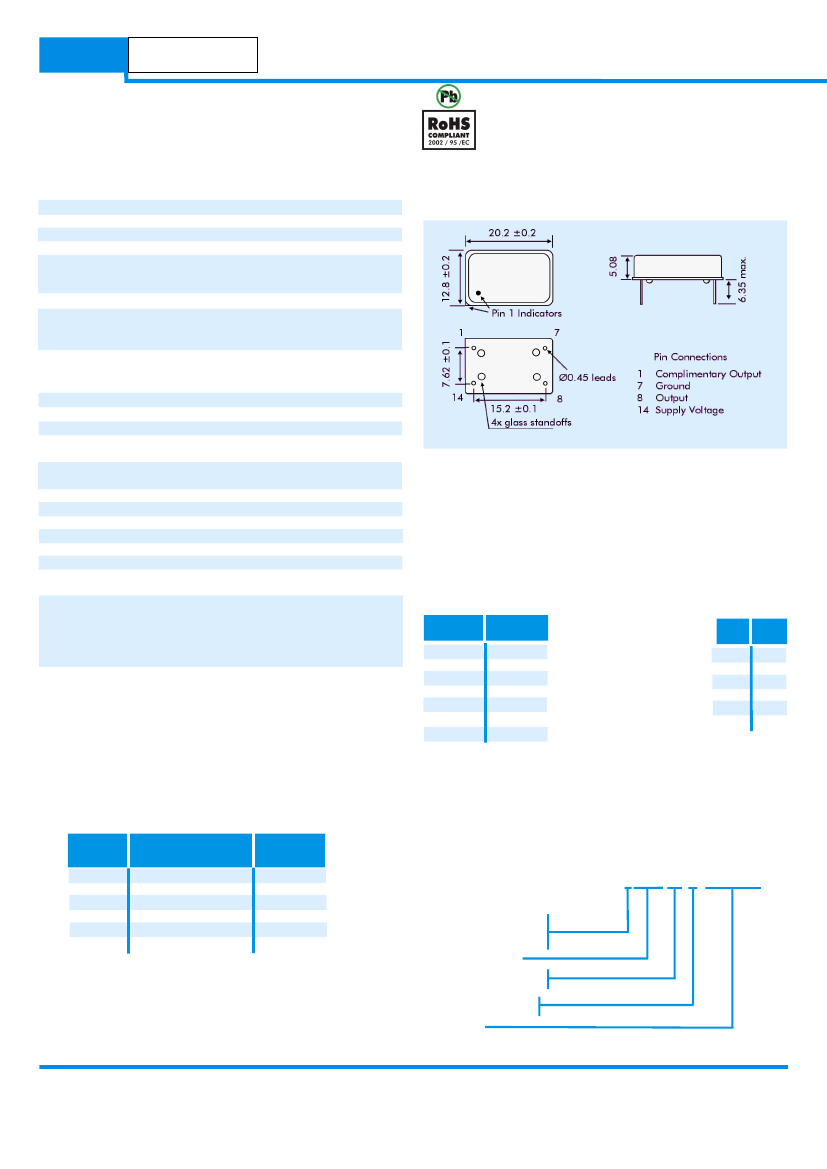

HDA14 LVDS OSCILLATORS

14 pin Dual-in-Line

OUTLINE & DIMENSIONS

PHASE NOISE

(155.520MHz)

Offset

10Hz

100Hz

1kHz

10kHz

100kHz

1MHz

10MHz

dBc/Hz

-72

-100

-125

-132

-142

-147

-149

JITTER

(155.520MHz)

Typ.

Max.

Integrated Phase Jitter: 0.25ps 4.0ps

(12kHz to 20MHz)

Period Jitter:

3.0ps

(RMS)

Period Jitter:

21ps

(peak to peak)

STABILITY OVER TEMPERATURE RANGE

Stability

±ppm

100

Temperature Range Order Code

°C

-10 to +70

-40 to +85

PART NUMBERS

HDA14 oscillator part numbers are derived as follows:

Example:

Supply Voltage

25 = 2.5VDC

3 = 3.3VDC

Series Designation

Package Style

14 pin DIL

Stability Code

(See table)

Frequency

3HDA14-A-250.000

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk
