EN6611B

Description
Bipolar Transistor
File Size563KB,8 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet View All

EN6611B Overview

Bipolar Transistor

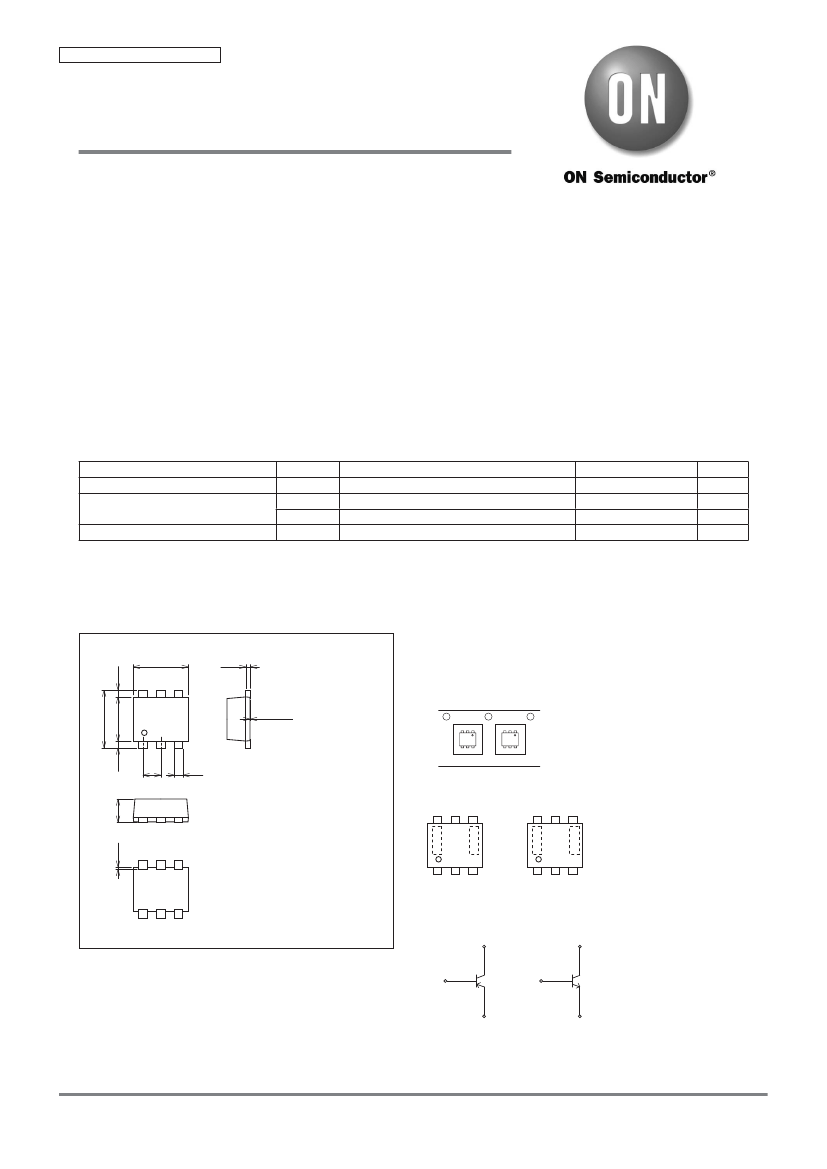

Ordering number : EN6611B
MCH6103/MCH6203
Bipolar Transistor
(–)50V, (–)1A, Low VCE(sat), (PNP)NPN Single MCPH6
Applicaitons
http://onsemi.com
Relay drivers, lamp drivers, motor drivers, flash
Features
Large current capacity
Adoption of MBIT processes
High-speed switching
Low collector-to-emitter saturation voltage
Ultrasmall package facilitates miniaturization in end products (mounting height : 0.85mm)
High allowable power dissipation
Specifications
(
Parameter
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
) : MCH6103
Symbol
VCBO
VCES
VCEO
VEBO
Conditions
Ratings
(--50)80
(-
-50)80
(--)50
(--)5
Unit
V
V
V
V
Absolute Maximum Ratings
at Ta=25°C
Continued on next page.
Package Dimensions
unit : mm (typ)
7022A-007
2.0
0.25
6
5
4
0 to 0.02
Product & Package Information
• Package
: MCPH6
• JEITA, JEDEC
: SC-88, SC-70-6, SOT-363
• Minimum Packing Quantity : 3,000 pcs./reel
0.15
MCH6103-TL-E
MCH6203-TL-E
Packing Type: TL
2.1
1.6
0.25
1
0.65
2
3
0.3
TL
0.85
Marking
1 : Collector
2 : Collector
3 : Base
4 : Emitter
5 : Collector
6 : Collector
MCPH6
LOT No.
LOT No.
LOT No.
LOT No.
0.07
AC
CC
1
2
3
MCH6103
MCH6203
6
5
4
Electrical Connection
1, 2, 5, 6
1, 2, 5, 6
3
3
4
MCH6103
MCH6203
4
Semiconductor Components Industries, LLC, 2013
September, 2013
80812 TKIM/D1004 TSIM TB-00000351/N2000TS (KOTO) TA-2974 No.6611-1/8
