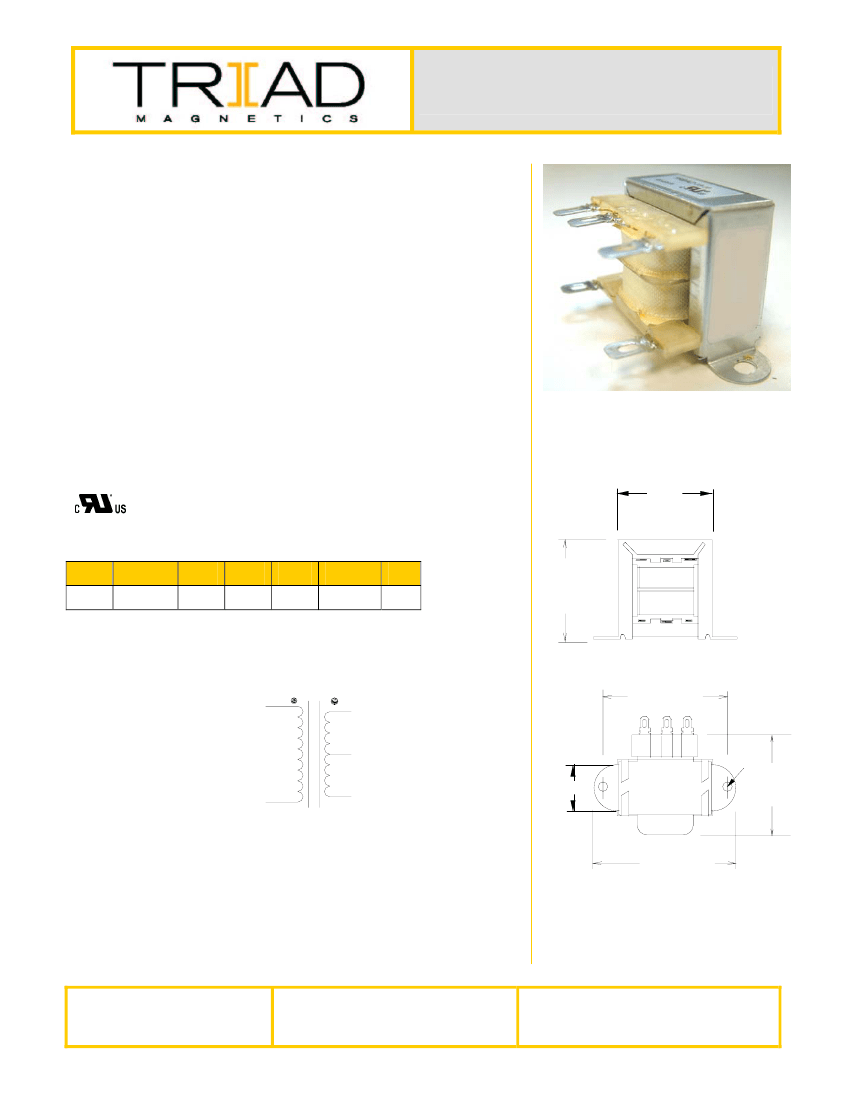

Power Transformer
Chassis Mount: Quick Pack
F3-48
Description:
The F3-48 Quick Pack small power transformer offers a significant reduction
in size and weight over a standard transformer. This transformer can be used
for a wide variety of applications. It is bobbin wound for reduced size and small
operating space.
Electrical Specifications (@25C);
Maximum Power:
2.4VA
Input Voltage:
115VAC@50/60Hz
Output Voltage:
48VCT@0.05A
Hipot:
2500VAC primary to secondary; 1500VAC windings to core.
Construction:
Split bobbin non concentric winding eliminates costly electrostatic shielding.
Termination is suitable for quick connects or soldering.
Built with UL Class B Insulation System.
Safety:
UL: File E53148, UL 5085-1 and 2 (formerly UL 506), General Purpose.
E
6
4
Dimensions:
A
1.187
B
1.75±.03
C
2.062
D
1.187
E
1.625
F
.187 Dia
G
.562
A
Notes:
1. Units: inches.
2. Terminal size: .187” X 0.021”.
3. Weight: .25 lbs
Schematic:
B
1
4
5
3
6
G
Input:
1 to 3
Output:
4 to 6
C
RoHS Compliance:
As of manufacturing date February 2005, all standard products
meet the requirements of 2011/65/EU, known as the RoHS initiative.
* Upon printing, this document is considered “uncontrolled”. Please contact Triad
Magnetics’ website for the most current version.
Web: www.TriadMagnetics.com
Phone 951-277-0757
Fax 951-277-2757
460 Harley Knox Blvd.
Perris, California 92571
Publish Date: December 4, 2013
1
2
3
F
D
