TNC Female Right Angle Bulkhead Mount Connector
Solder Attachment Surface Mount PCB IP 67 Rated
TECHNICAL DATA SHEET
Configuration
Connector
Connector Specification
Connector Interface Type
Attachment Method (Shield/Contact)
Body Style
Mount Method
TNC Female
MIL-STD-348
Surface Mount
Solder
Right Angle
Bulkhead
PE44892
Electrical Specifications
Frequency Range
Impedance
Maximum VSWR
DC to 3 GHz
50 Ohms
1.2:1
Mechanical Specifications
Temperature
Operating Range
Size
Length
Width/Dia.
.
-65 to +165 deg C
1.23 in [31.24 mm]
0.74 in [18.80 mm]
Connector
Type
Contact Material and Plating
Body Material and Plating
Dielectric Type
TNC Female
Beryllium Copper, Gold
Brass, Gold
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
TNC Female Right Angle Bulkhead Mount Connector Solder Attachment Surface Mount PCB
IP 67 Rated PE44892
PE44892 REV 1.0
1
TNC Female Right Angle Bulkhead Mount Connector
Solder Attachment Surface Mount PCB IP 67 Rated
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
•
Values at +25 °C, sea level
PE44892
TNC Female Right Angle Bulkhead Mount Connector Solder Attachment Surface Mount PCB IP 67 Rated from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products
maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
TNC Female Right Angle Bulkhead Mount Connector Solder Attachment Surface Mount PCB IP
67 Rated PE44892
URL:
http://www.pasternack.com/tnc-female-standard-standard-surface-mount-pcb-connector-pe44892-p.aspx
PE44892 REV 1.0
2
TNC Female Right Angle Bulkhead Mount Connector Solder
Attachment Surface Mount PCB IP 67 Rated
PE44892

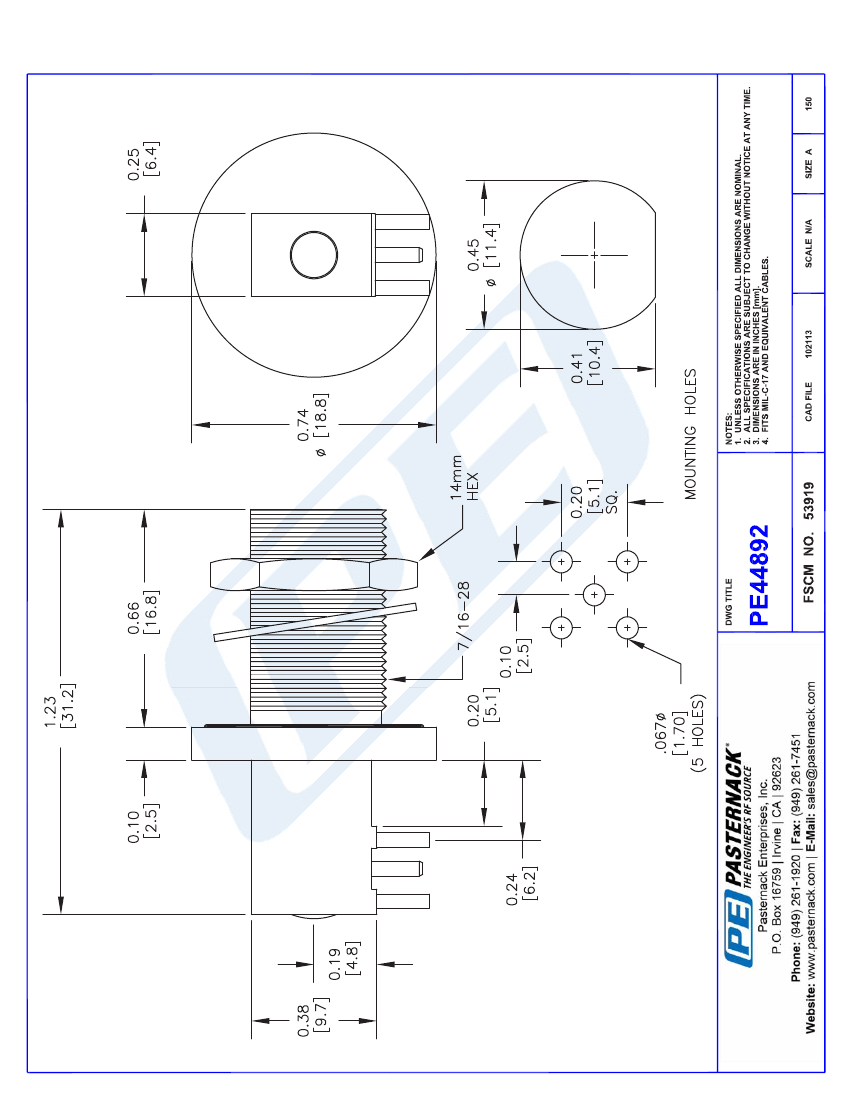

CAD Drawing
