PE4675 Overview

RP TNC Male Right Angle Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG225, RG393

Preview

Download Datasheet

View All

RP TNC Male Right Angle Connector Clamp/Solder Attachment

For RG213, RG214, RG8, RG9, RG225, RG393

TECHNICAL DATA SHEET

PE4675

RP TNC Male Right Angle Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG225,

RG393

Configuration

Connector

Connector Specification

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

TNC Male Reverse Polarity

MIL-C-39012

RG213,RG214,RG8,RG9,RG225,RG393

Clamp/Solder

Right Angle

Electrical Specifications

Impedance, Ohms

Mechanical Specifications

Temperature

Operating Range, deg C

Size

Length, in [mm]

Width/Dia., in [mm]

Height, in [mm]

-65 to +165

1.84 [46.74]

0.75 [19.05]

1.16 [29.46]

0.165 [74.84]

TNC Male Reverse Polarity

Silver

QQ-S-365

Brass, Nickel

Teflon

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Contact Plating Specification

Coupling Nut Material and Plating

Body Material and Plating

Dielectric Type

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

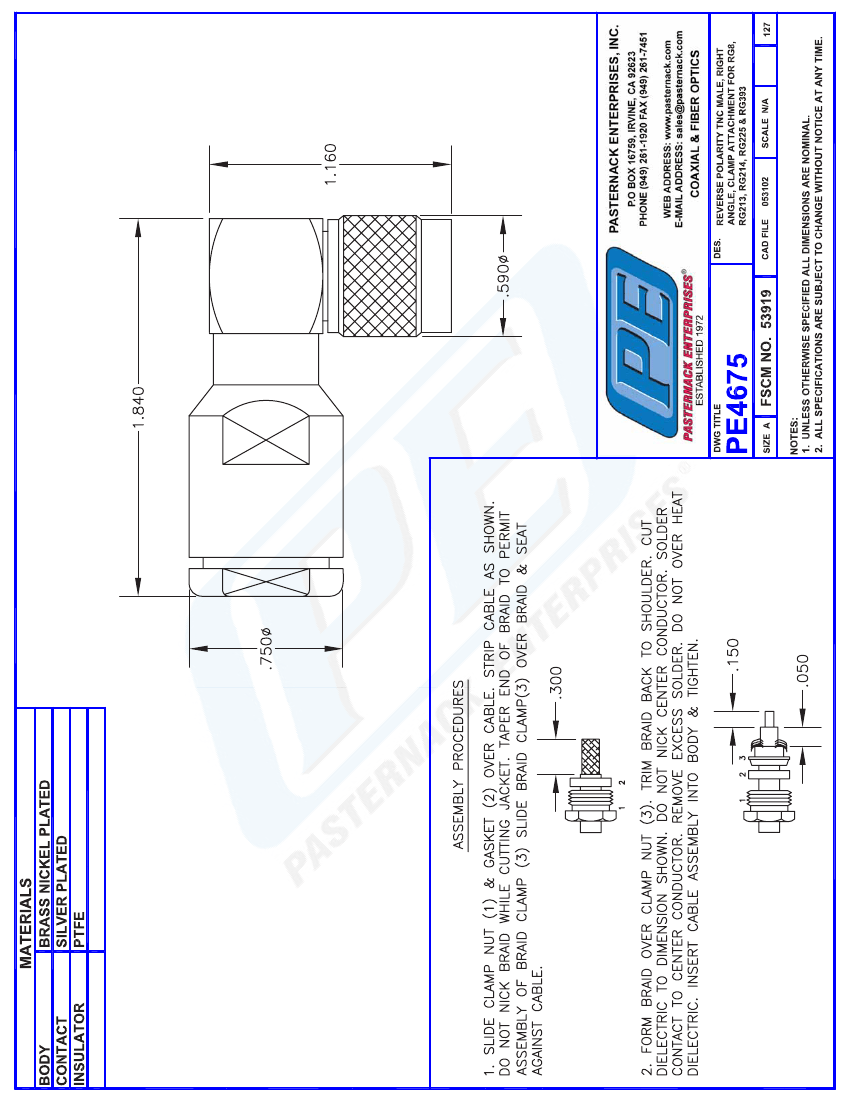

Plotted and Other Data

Notes:

Values at 25 °C, sea level

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

RP TNC Male Right Angle Connector Clamp/Solder Attachment For RG213, RG214, RG8,

RG9, RG225, RG393 PE4675

PE4675 REV
