SSMA Male Connector Solder Attachment 2 Hole Flange
Solder Cup Terminal, .328 inch Hole Spacing
TECHNICAL DATA SHEET
PE44431
SSMA Male Connector Solder Attachment 2 Hole Flange Solder Cup Terminal, .328 inch Hole Spacing
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
Mount Method
SSMA Male
MIL-C-39012
Solder Cup
Solder
Straight
2 Hole Flange
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
-65 to +165
0.695 [17.65]
0.25 [6.35]
0.48 [12.19]
0.006 [2.72]
SSMA Male
Gold
MIL-G-45204
Stainless Steel, Gold
MIL-G-45204
1/4
5 [0.57]
Stainless Steel, Gold
MIL-G-45204
Teflon
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Coupling Nut Material and Plating
Coupling Nut Plating Specification
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
Body Plating Specification
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SSMA Male Connector Solder Attachment 2 Hole Flange Solder Cup Terminal, .328 inch Hole
Spacing PE44431
PE44431 REV 01
1
SSMA Male Connector Solder Attachment 2 Hole Flange
Solder Cup Terminal, .328 inch Hole Spacing
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE44431
SSMA Male Connector Solder Attachment 2 Hole Flange Solder Cup Terminal, .328 inch Hole Spacing from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products
maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SSMA Male Connector Solder Attachment 2 Hole Flange Solder Cup Terminal, .328 inch Hole
Spacing PE44431
URL:
http://www.pasternack.com/ssma-male-standard-solder-cup-terminal-connector-pe44431-p.aspx
PE44431 REV 01
2
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
SSMA Male Connector Solder Attachment 2 Hole Flange
Solder Cup Terminal, .328 inch Hole Spacing
PE44431

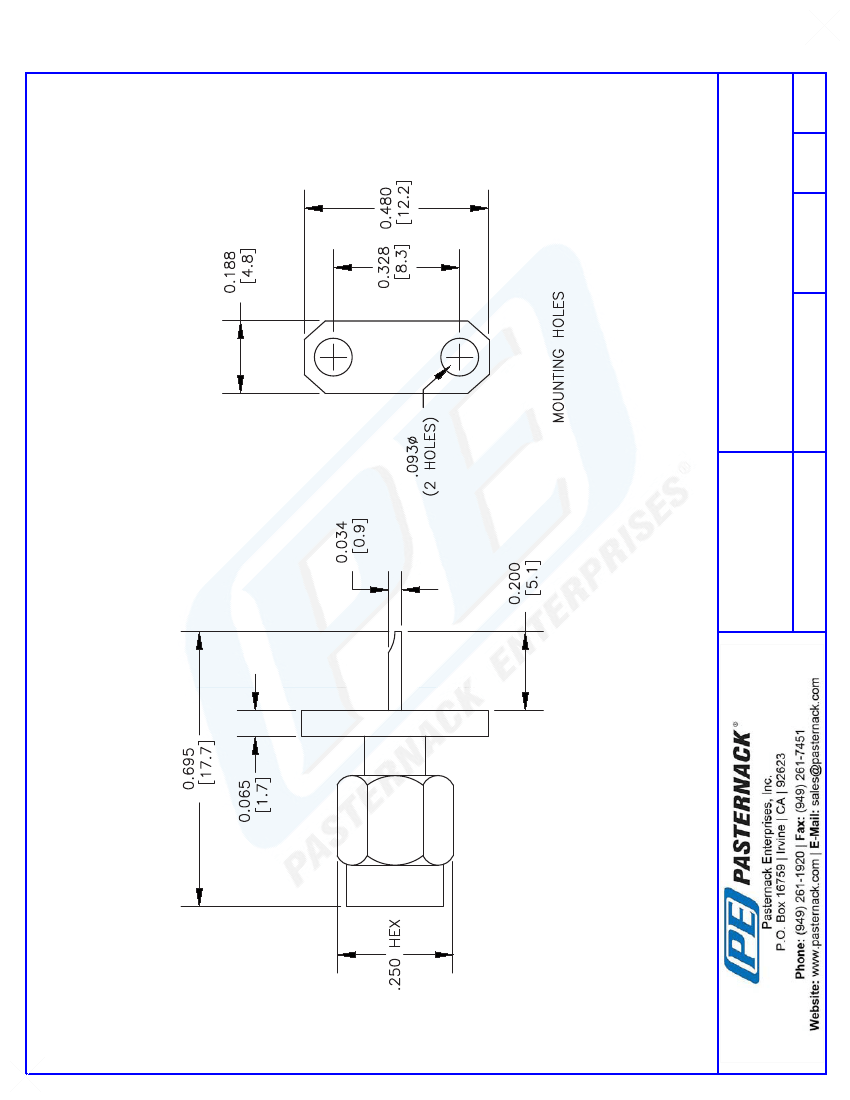

CAD Drawing
PE44431 REV 01
PE44431
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
CAD FILE
040213-A
SCALE N/A
SIZE A
XXXX
3
