20.000MHZXO22100UCTB datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> 20.000MHZXO22100UCTB

20.000MHZXO22100UCTB: DescriptionHCMOS/LSTTL Output Clock Oscillator, 20MHz Nom, ROHS AND REACH COMPLIANT, ULTRA MINIATURE, CERAMIC, SMD, 4 PIN; CategoryPassive components oscillator; File Size217KB，2 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

20.000MHZXO22100UCTB Overview

HCMOS/LSTTL Output Clock Oscillator, 20MHz Nom, ROHS AND REACH COMPLIANT, ULTRA MINIATURE, CERAMIC, SMD, 4 PIN

20.000MHZXO22100UCTB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Installation features	SURFACE MOUNT
Nominal operating frequency	20 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS/LSTTL
Output load	15 pF
physical size	2.5mm x 2.0mm x 0.9mm
longest rise time	10 ns
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	55/45 %
Base Number Matches	1

Preview

Download Datasheet

View All

EURO

QUARTZ

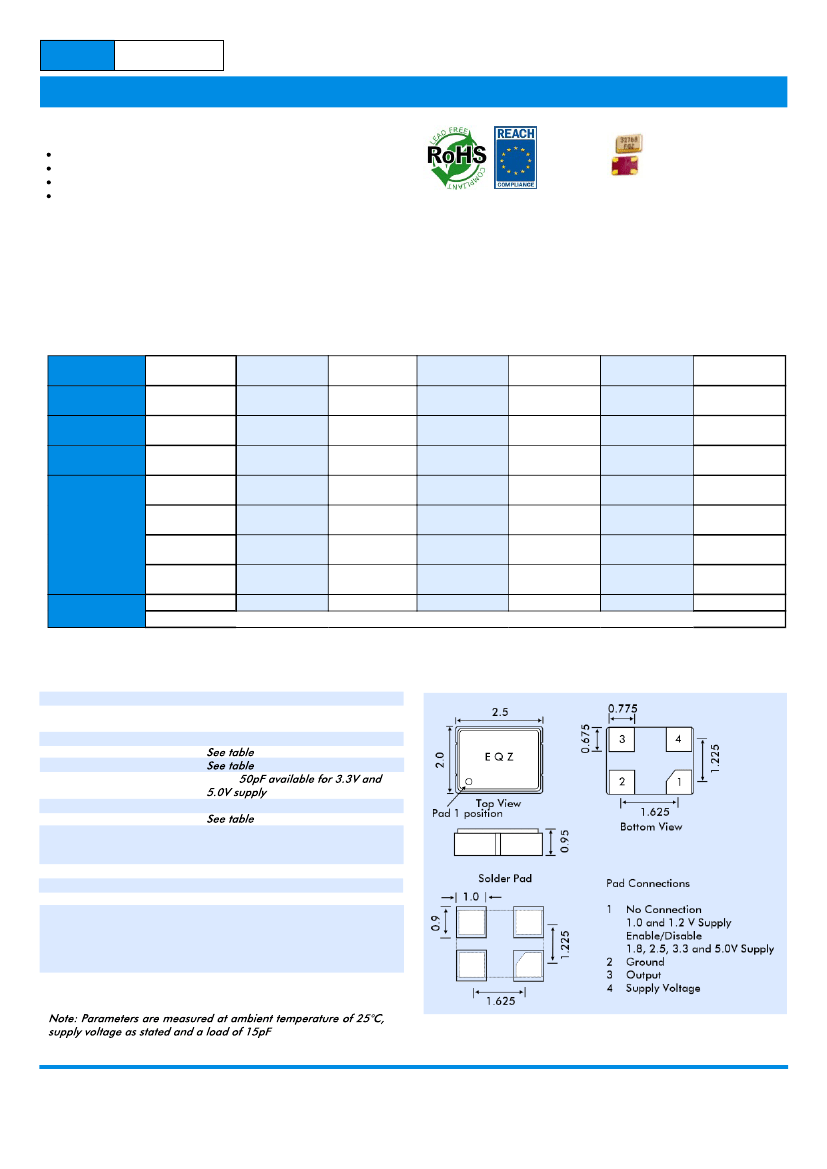

2.5 x 2.0 x 0.9mm SMD HCMOS

FEATURES

Ultra-miniature 2.5 x 2.0 x 0.9mm package

Frequency Range 156kHz to 130MHz

Tristate (Enable/Disable) function as standard

Supply voltage 1.0, 1.2, 1.5, 1.8, 2.5, 3.3 or 5.0Volts

XO22 Series Oscillators

156kHz to 130MHz

Page

1 of 2

DESCRIPTION

XO22 ultra-miniature oscillators consist of a TTL/CMOS-compatible

hybrid circuit and a miniature quartz crystal packaged in a low-profile,

industry-standard ceramic package. XO22 components are fully

specified clock oscillators with low mass and a very small footprint.

SUPPLY VOLTAGE-DEPENDENT PARAMETERS

Supply

Voltage

Frequency

Range

Logic HIGH '1'

(90%Vdd min.)

Logic LOW '0'

(90% Vdd max.)

+1.0VDC±5%

Code = 'F'

312kHz~

60MHz

0.90V min.

0.10V max

[0.3~1.5MHz]

4mA max.

[1.5~20MHz]

4mA max

[20.1~50MHz]

4mA max.

[50.1~60MHz]

12mA max.

6ns max.

+1.2VDC±5%

Code = 'E'

312kHz~

60MHz

1.08V min.

0.12V max

+1.5VDC±5%

Code = 'D'

312kHz~

60MHz

1.35V.min

0.15V max.

+1.8VDC±5%

Code = 'C'

156kHz~

160MHz

1.62V min.

0.18V max.

+2.5VDC±5%

Code = 'B'

156kHz~

160MHz

2.25V min.

0.25V max.

+3.3VDC±5%

Code = 'A'

156kHz~

160MHz

2.97V min.

0.33V max.

+3.3VDC±10%

Code = '_'

156kHz~

160MHz

4.5V min.

0.5V max.

[0.5~1.5MHz]

5mA max.

[1.5~20MHz]

8mA max.

[20.1~50MHz]

15mA max.

[50.1~75MHz]

35mA max.

10ns max.

Current

Consumption

Rise Time/

Fall Time

[0.3~1.5MHz]

[1.0~1.5MHz]

[0.3~1.5MHz]

[0.5~1.5MHz]

4mA max.

5mA max.

[1.5~20MHz]

4mA max.

8mA max.

[20.1~50MHz] [20.1~50MHz] [20.1~50MHz] [20.1~50MHz] [20.1~50MHz]

4mA max.

15mA max.

[50.1~60MHz] [50.1~60MHz] [50.1~160MHz] [50.1~160MHz] [50.1~75MHz]

22mA max.

25mA max.

35mA max.

12mA max.

6ns max.

7ns max.

10ns max.

Measured between 10% ~ 90% of wave form (CL = 15pF)

SPECIFICATION

Frequency Range:

Supply Voltage:

Output Logic:

Frequency Stability:

Rise/Fall Time:

Output Load

Duty Cycle:

Supply Current:

Operating Temperature

Commercial:

Industrial:

Storage Temperature:

Start-up Time:

Ageing:

Tristate Function (Pad 1):

156kHz to 130.0MHz

1.0, 1.2, 1.5, 1.8, 2.5, 3.3Volts ±5%,

or 5.0V±10%

HCMOS/LSTTL

OUTLINE & DIMENSIONS

15pF (

)

50%±5% typical

Packaging:

-10° to +70°C

-40° to +85°C

-55 to +100°C

10ms max.

±5ppm max. in first year at 25°C

Enable/Disable function is standard for

XO22. Output (Pad 3) is active if Pad 1

not connected or Pad 1 is 'HIGH'.

Output high impedance when 'LOW'

or GROUND is applied to Pad 1.

8mm tape, 180mm reel,

1k or 2k pieces per reel

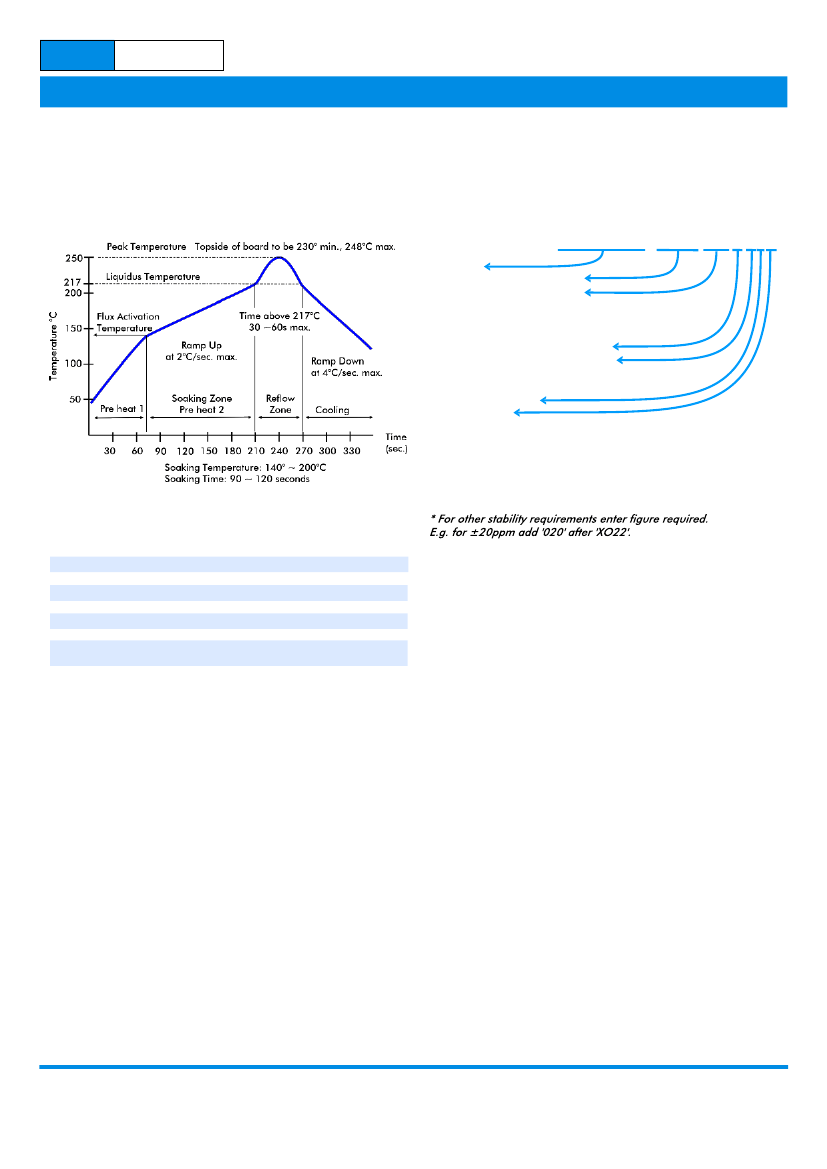

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
