SERIES F370
ENGINEERING DATA SHEET

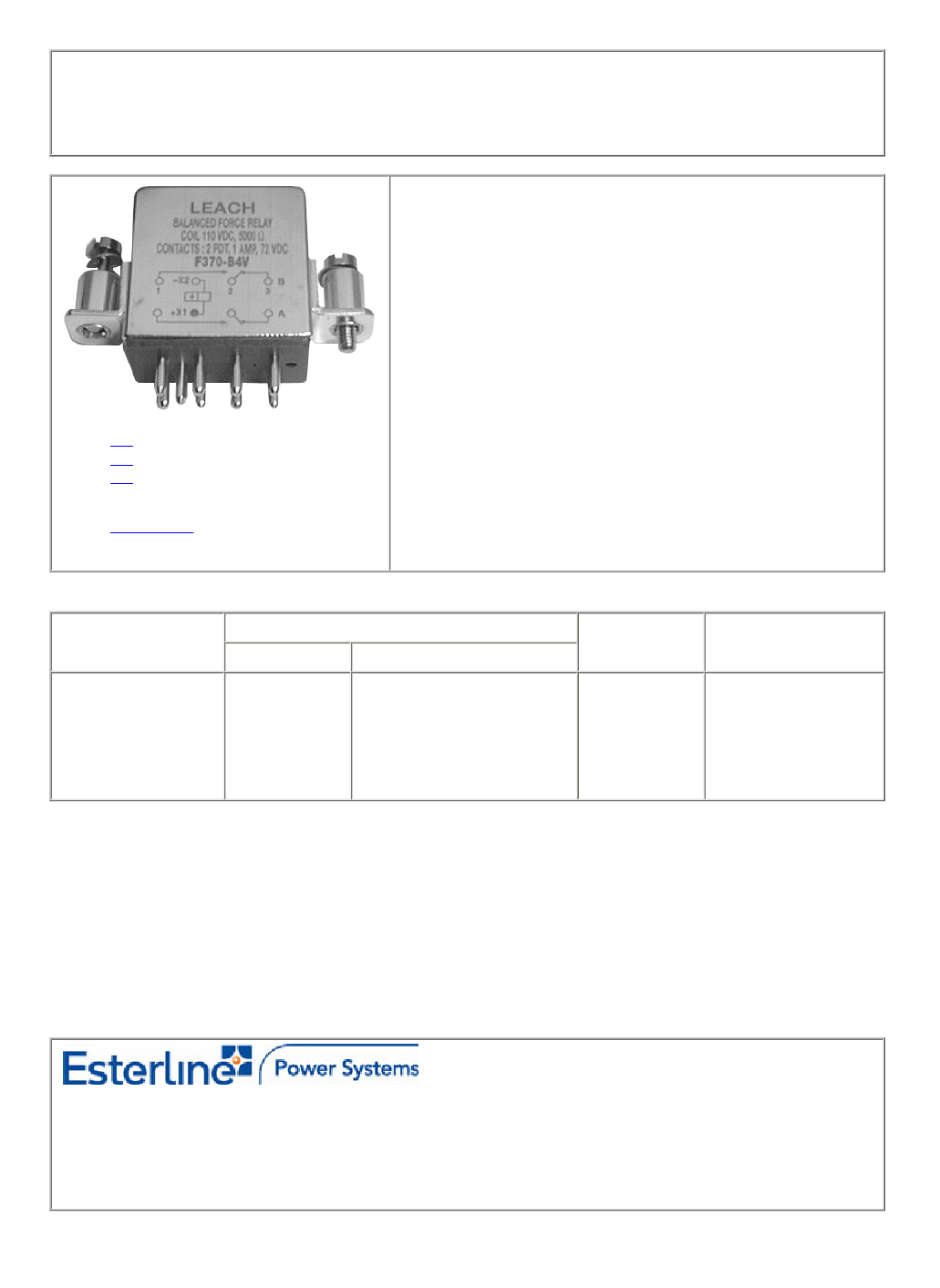

RAILWAY RELAY
2 PDT, 1 AMP / 72VDC
Polarized, non latching, hermetically sealed relay
2 PDT
Contact arrangement
Coil supply
Meets the requiements of
Direct current
MIL-R-6106
CEECC16101-018
NF F 62-002-2
PRINCIPLE TECHNICAL CHARACTERISTICS
Contact rating
APPLICATION NOTES:
001
003
007
APPLICABLE SOCKET:
SF300CE40E
72 Vdc / 1 Amp
< 40 grams
26mm x 25.7mm x 13.3mm max
Weight
Dimensions of can without
hardware
Balanced-force design.
Tin plated, hermetically sealed metal can.
Non-overlapping contact arrangement, see note 4 page 4.
CONTACT ELECTRICAL CHARACTERISTICS
Nominal contact
voltage (Vdc)
72 V
5
≤
U
≤
90 V
15
≤
U
≤
35 V
35
<
U
≤
90 V
90
<
U
≤
140 V
Contact rating in Amps
resistive load
1
1 to 20mA
-
-
-
inductive load (L/R=30ms)
0.6
-
10 mA to 1.50 Amps
10 mA to 0.50 Amps
10 mA to 0.35 Amps
Level
High level
Low level
High level
High level
High level
Minimum
operating cycles
1,000,000 cycles
2,000,000 cycles
2,000,000 cycles
2,000,000 cycles
2,000,000
cycles
Life expectancy for DC loads other than 72Vdc: See application note n°003
Featuring
LEACH
©
power and control solutions
www.esterline.com
AMERICAS
6900 Orangethorpe Ave.
P.O. Box 5032
Buena Park, CA 90622
.
.
Tel: (01) 714-736-7599
Fax: (01) 714-670-1145
EUROPE
2 Rue Goethe
57430 Sarralbe
France
.
.
Tel: (33) 3 87 97 31 01
Fax: (33) 3 87 97 96 86
ASIA
Units 602-603 6/F Lakeside 1
No.8 Science Park West Avenue
Phase Two, Hong Kong Science Park
Pak Shek Kok, Tai Po, N.T.
Hong Kong
Tel: (852) 2 191 3830
Fax: (852) 2 389 5803
Data sheets are for initial product selection and comparison. Contact Esterline Power Systems prior to choosing a component.
Date of issue: 4/06
-9-
Page 1 of 4
COIL CHARACTERISTICS (Vdc)
CODE
Nominal operating voltage
Maximum operating voltage at +85°C
C
6
7.5
H
9
B
12
J
18
A
24
D
36
45
E
SERIES F370
W
72
90
V
110
138
48
60
11.3 15
6.3
8.4
22.5 33
Minimum operating voltage at +70°C, coil previously
4.2
energized at 1.15 Un or at 35°C coil previously eneryized at
Un
Hold voltage at +85°C
Drop-out voltage at -40°C
Coil resistance in Ohms ±10% at +25°C
Maximum back EMF (Volts) (with P suffix)
2.6
0.3
20
-15
12.6 18.5 25.2 33.6 50.4 77
3.2
4.2
6.3
0.9
7.5
1.5
12.5 17.5 22.5 35
1.8
2
3.6
5.5
0.45 0.6
45
-15
80
-15
180 320 650 955 3200 5000
-42
-42
-65
-65
-100 -140
GENERAL CHARACTERISTICS
Operating temperature
Dielectric strength at sea level
All terminals to ground
Contact to contact, isolated terminals
Initial insulation resistance at 500 Vdc
Sinusoidal vibration
Shock
1500 Vrms / 50 Hz
1500 Vrms / 50 Hz
>1000 M
Ω
20 G / 30 to 3000 Hz
100 G / 6 ms
30 G / 18 ms
10 µs
10 ms max
10 ms max
1 ms max
15 mΩ max
-40°C to +85°C
Maximum contact opening time under vibration and shock
Operate time at nominal voltage
Release time
Bounce time
Contact resistance at 5 Amps
Date of issue: 4/06
- 10 -
Page 2 of 4

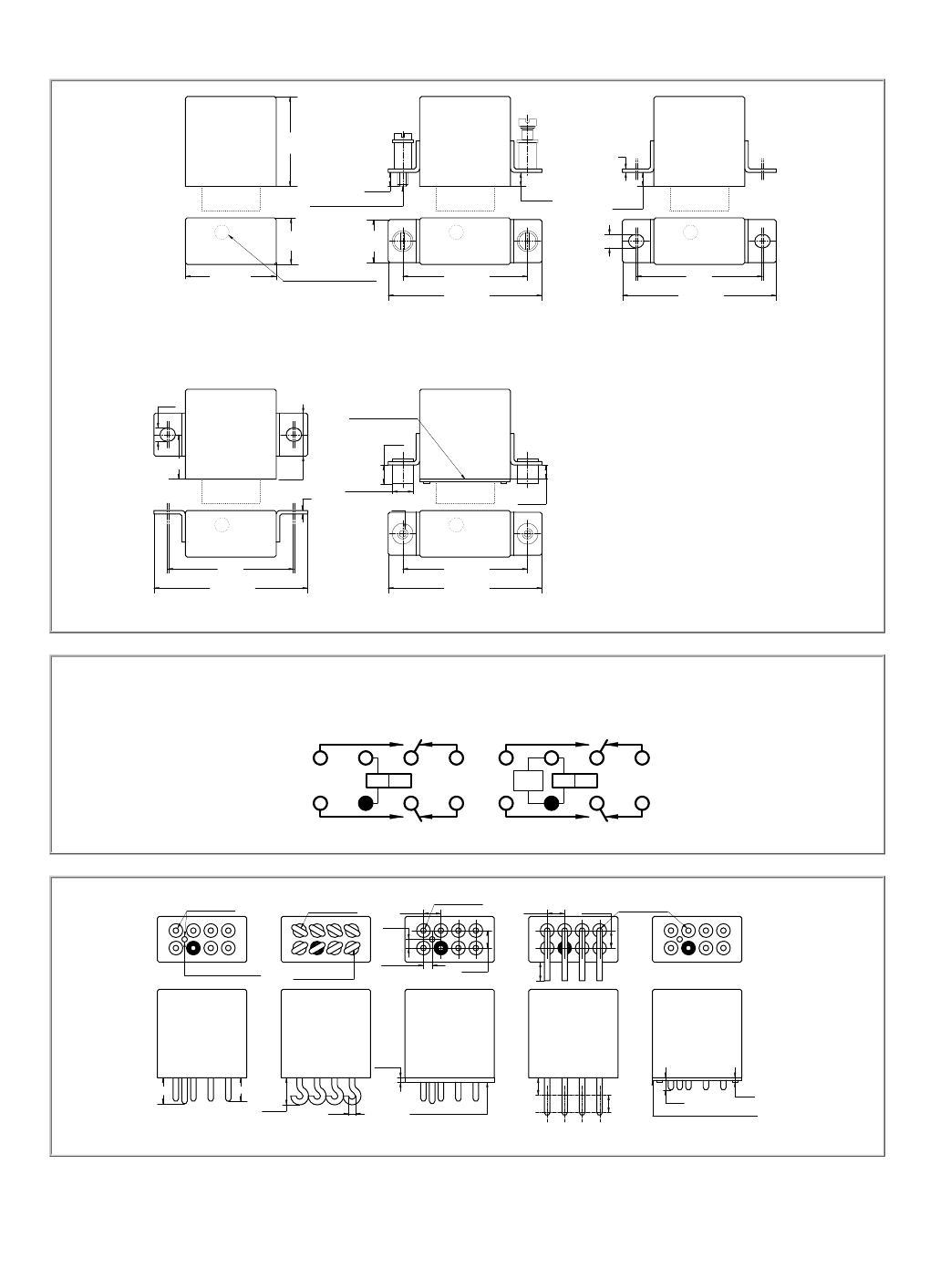

MOUNTING STYLES
SERIES F370
A
B : ISO M3
X
C : UNC
4
ñ0.5
1
D
M3
or 4.40 UNC 2 B
13.3
MAX
26 MAX
12.3
MAX
35.7
ñ0.15
4
ñ0.15
4
ñ0.15
3.8
35.5
36.7
44 MAX
FOR COILS WITH P OPTION : 28.6 MAX
Contrasting bead
44 MAX
DIMENSION X FOR COILS WITHOUT P OPTION : 25.7 MAX
K MOUNTING MAY BE USED WITH 1 OR 8
TERMINAL STYLE; IT INCLUDES THE DELIVERY
OF 10114 ISOLATION SPACER PAD
3.8
J
12.7
12.3
MAX
Isolation pad
10114
5.4
K
1
Ø6
ñ0.1
M3
4
ñ0.15
35.5
36.7
35.7
ñ0.15
Dimensions in mm
Tolerances unless otherwise specified ±0.25mm
44 MAX
44 MAX
SCHEMATIC DIAGRAM
BOTTOM VIEW, DE-ENERGIZED COIL
P OPTION
CE : EXPORTED SPIKES
SUPPRESSOR DEVICE
1
B
+
A
+X1
A
+X1
-X2
2
3
B
1
-X2
2
3
CE
+
TERMINAL TYPES
Ø1.57
-0.03
+0.05
Ø1.57
-0.03
+0.05
5.08
2.54
Ø1.57
ñ0.03
5.08
5.08
Ø1.57
-0.03
+0.05
Polarizing pin
2.54
Ø1.57
ñ0.03
5.08
5.4
1
2
1.3
ñ0.1
4
7
8
7.6
6.9
ñ0.2
5.08
Ø2
SOLDER HOOKS
7.9
MAX
TIN PLATED PINS
Silicone gasket
shore A 15-30
GOLD PLATED PINS
5.08
BENT TIN PLATED PINS
1.27
+0.5
3.6
+0
Isolation pad 10114
SHORT TIN PLATED PINS
Date of issue: 4/06
- 11 -
Page 3 of 4
NUMBERING SYSTEM
SERIES F370
F370 B
4
A
P
Basic series designation__________________________|
|
|
|
|
1-Mounting Styles (A,B,C,D,J,K)_______________________|
|
|
|
2-Terminal Types(1,2,4,8)_________________________________|
|
|
3-Coil Voltage (C,H,B,J,A,D,E,W,V)____________________________|
|
4-Coil Suppressor (P)______________________________________________|
NOTES
1.
2.
3.
4.
Relays with B, D mounting styles and terminal type 4 are compatible with socket SF300CE40E.
Isolation spacer pads for PCB mounting available on request.
For other mounting styles or terminal types, please contact factory.
Non-overlapping arrangement insures that if one of the NO or NC contacts is accidentally welded, none
of the other contacts can be transfered to another state.
TYPICAL CHARACTERISTICS
q
q
Coil resistance temperature change: See application note no. 001
Coil L/R ratio for all types of DC coils is = 9 ms
Date of issue: 4/06
- 12 -
Page 4 of 4
Application notes
N°001
CORRECTION DUE TO COIL COPPER WIRE RESISTANCE
CHANGE IN TEMPERATURE

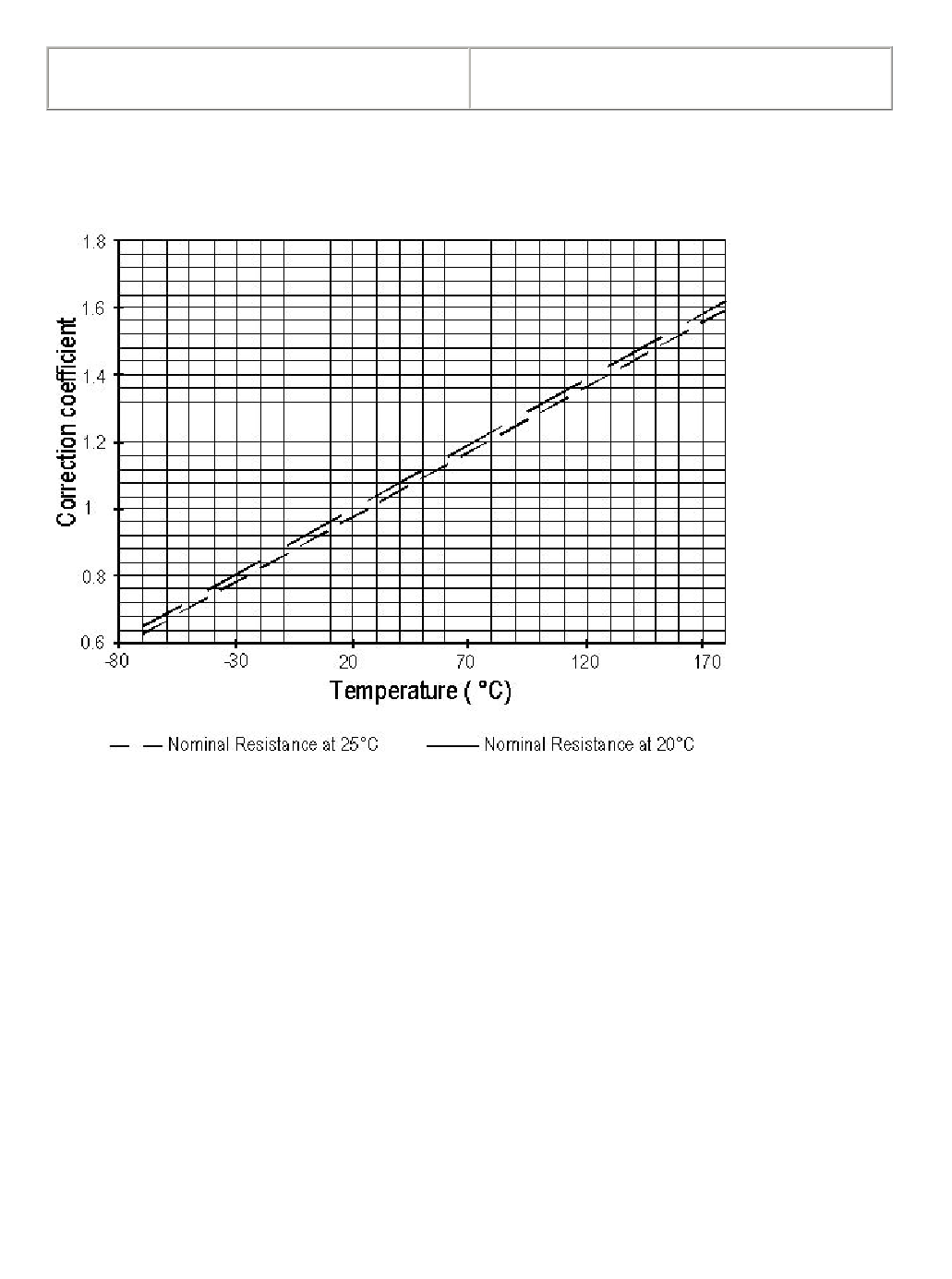

Example: Coil resistance at 25°C: 935 ohms. What is it at 125°C?
Correction coefficient on diagram is: 1.39 at 125°C. R becomes: 935x1.39=1299 Ohms
Correction also applies to operating voltages
Date of issue: 6/00
-1-
Page 1 of 1
