BF080-12-C-0-N-C datasheet, PDF

Datasheet> All Categories > The connector> The connector> BF080-12-C-0-N-C

BF080-12-C-0-N-C: DescriptionBoard Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug,; CategoryThe connector The connector; File Size88KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric Compare View All

BF080-12-C-0-N-C Overview

Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug,

BF080-12-C-0-N-C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.157 inch
subject depth	0.11 inch
body length	0.472 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e3
Manufacturer's serial number	BF080
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	12

Preview

Download Datasheet

View All

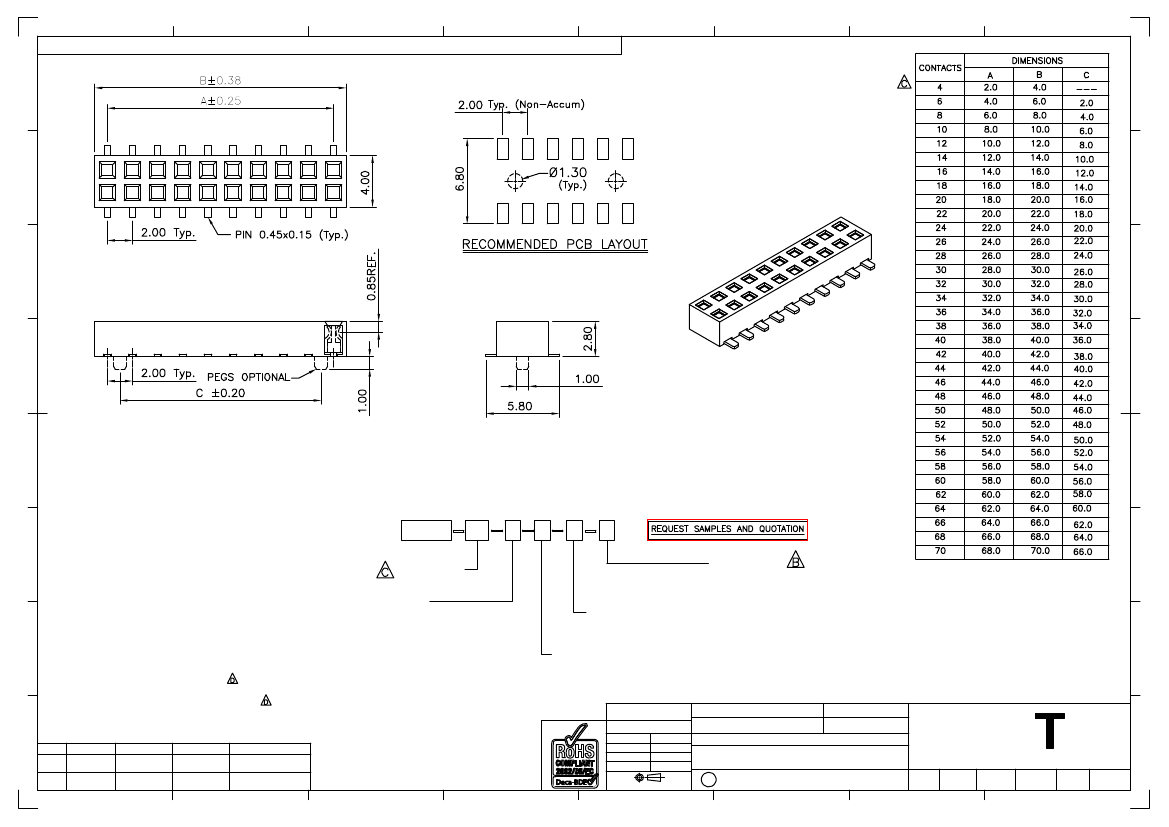

Global Connector Technology Ltd. - BF080: 2.0mm PITCH SOCKET, DUAL ROW, SURFACE MOUNT, LOW PROFILE

SPECIFICATIONS

规格

CURRENT RATING

电流额定值

: 2 AMP

Ordering Grid

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MEGOHMS MIN.

CONTACT RESISTANCE

接触电阻值

: 20m ohms MAX.

DIELECTRIC WITHSTANDING

耐电压

: AC 500 V

OPERATING TEMPREATURE

工½温度

: -40°C TO +105°C

CONTACT MATERIAL

端子物料

: COPPER ALLOY

No. of Contacts

INSULATOR MATERIAL

绝缘½物料

04 to 70

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

OPTIONS

可选物料

: POLYESTER

聚酯

, LCP, UL 94-V0

Contact Plating

SOLDERING PROCESS

可焊性

A = Gold Flash All Over

NYLON 6T (STANDARD

标准物料

) -

B = Selective Gold Flash Contact Area/

IR REFLOW

回流焊

: 260°C for 10 sec.

Tin On Tail

WAVE

波峰焊

:230°C for 5-10 sec.

C = Tin All Over

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

G = 10µ" Gold Contact Area/Tin On Tail

LCP (OPTION

可选物料

) -

I = 30µ" Gold Contact Area/Tin On Tail

IR REFLOW

回流焊

: 260°C for 10 sec.

Standard = Gold Flash All Over

WAVE

波峰焊

:250°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BF030

BF045

BF050

BF055

BF060

BF135

BF140

BF145

BF080

Packing Options

C = Tape and Reel with Film (Standard)

B = Tape and Reel with Cap

D = Tube

E = Tube with Cap

F = Tube with Film

Insulator Material

N = Nylon 6T (Standard)

L = LCP

Locating Peg

0 = No Peg

1 = With Peg

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X. ± 0.30

X.X ± 0.20

X.XX ± 0.15

X.XXX ± 0.10

X.°±5°

.X°±2°

.XX°±1°

.XXX°±0.5°

BF080

Description:-

31 OCT 07

DETAIL

REV

DATE

LYH

DRAWING

RELEASE

31/10/07

PACKING OPTIONS

CHANGED

NO. OF CONTACTS

CHANGED

CHANGE TO SOLDER

TEMP. INFORMATION

05/08/09

2.0mm PITCH SOCKET, DUAL ROW,

SURFACE MOUNT, LOW PROFILE

www.globalconnectortechnology.com

Scale

NTS

Material

See Note

27/04/09

14/05/09

Third Angle Projection

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Drawn by

LYH

E & OE

Sheet No.

1/1

BF080-12-C-0-N-C Related Products

	BF080-12-C-0-N-C	BF080-14-C-0-N-C	BF080-10-C-0-N-C	BF080-04-C-0-N-C	BF080-06-C-0-N-C	BF080-08-C-0-N-C	BF080-18-C-0-N-C
Description	Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug,	Board Connector, 14 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug,	Board Connector, 10 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug,	Board Connector, 4 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug,	Board Connector, 6 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug,	Board Connector, 8 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug,	Board Connector, 18 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch
subject depth	0.11 inch	0.11 inch	0.11 inch	0.11 inch	0.11 inch	0.11 inch	0.11 inch
body length	0.472 inch	0.551 inch	0.394 inch	0.157 inch	0.236 inch	0.315 inch	0.709 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN	SN	SN	SN	SN	SN
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
Manufacturer's serial number	BF080	BF080	BF080	BF080	BF080	BF080	BF080
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Rated current (signal)	2 A	2 A	2 A	2 A	2 A	2 A	2 A
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	12	14	10	4	6	8	18
