PE4036

Description
SMA Male Connector Solder Attachment For RG174, RG316, RG188
CategoryThe connector    The connector
File Size349KB,3 Pages
ManufacturerPasternack Enterprises
Websitehttps://www.pasternack.com/
Environmental Compliance
Download Datasheet Parametric View All

PE4036 Overview

SMA Male Connector Solder Attachment For RG174, RG316, RG188

PE4036 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerPasternack Enterprises
Reach Compliance Codeunknow
ECCN codeEAR99
Connector typeRF SMA CONNECTOR
Manufacturer's serial numberPE4036
Base Number Matches1

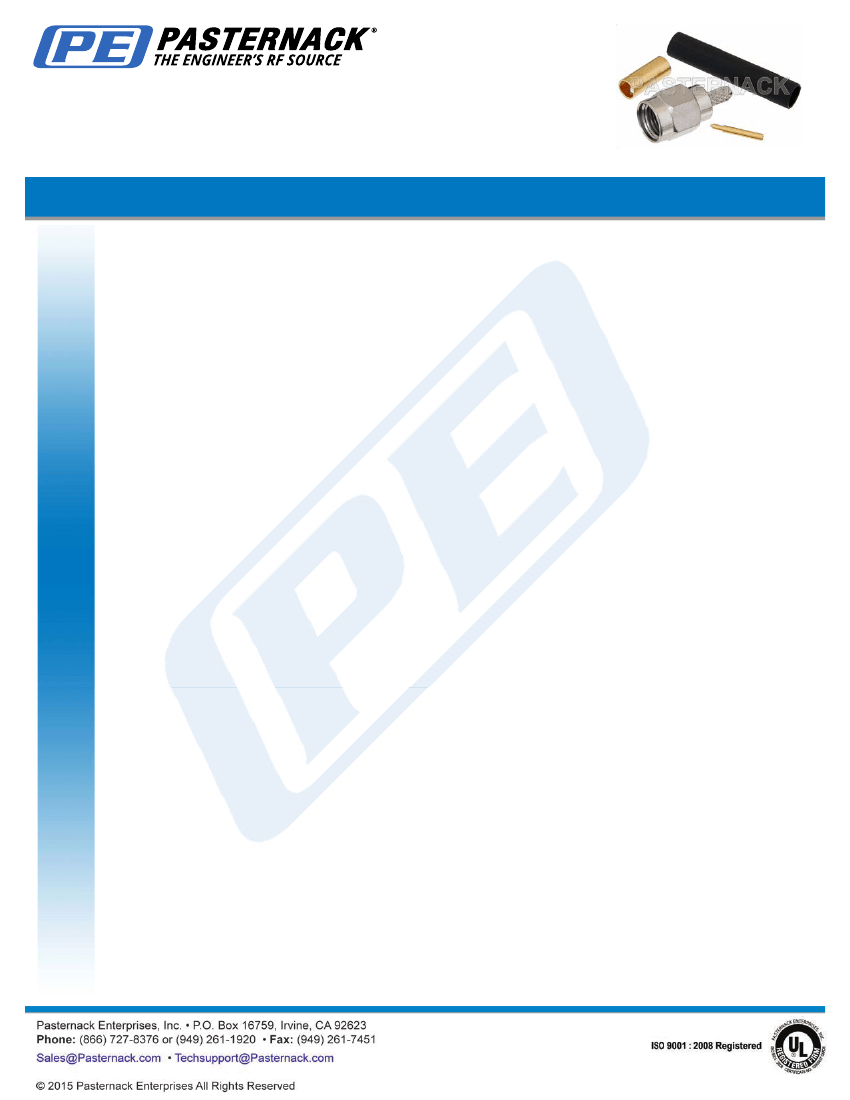

SMA Male Connector Solder Attachment
For RG174, RG316, RG188
TECHNICAL DATA SHEET
Configuration
Connector
Connector Specification
Connector Interface Type
Attachment Method (Shield/Contact)
Body Style
SMA Male
MIL-STD-348A
RG174, RG316, RG188
Solder/Solder
Straight
PE4036
Electrical Specifications
Frequency Range
Impedance
Maximum VSWR
Maximum Operating Voltage
DC to 3 GHz
50 Ohms
1.22:1
335 Volts

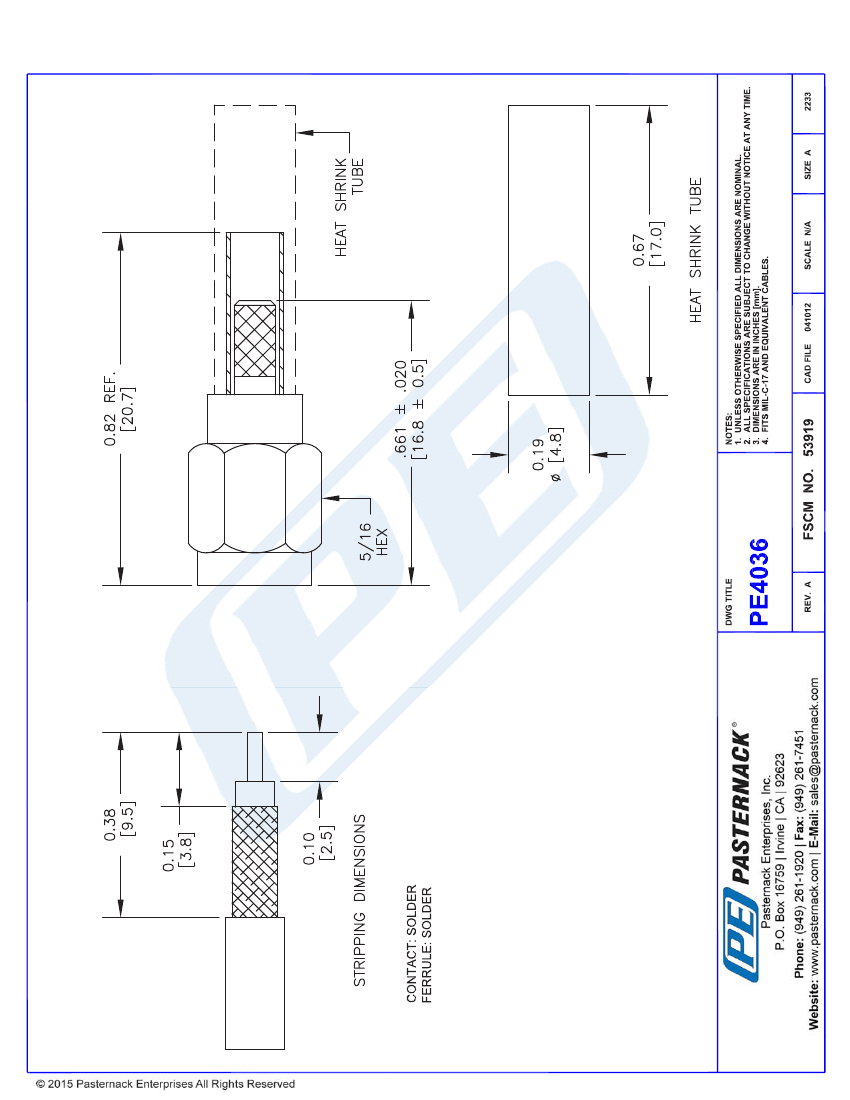

Mechanical Specifications
Temperature
Operating Range
Size
Length
Width/Dia.
.
-40 to +85 deg C
0.82 in [20.83 mm]
0.315 in [8.00 mm]
0.013 lbs [5.9 g]
SMA Male
Brass, Gold
30µ in. minimum
5/16 in
5 in-lbs [0.57 Nm]
Brass, Nickel
100µ in. minimum
Teflon
Weight
Connector
Type
Contact Material and Plating
Contact Plating Specification
Hex Size
Torque
Body Material and Plating
Body Plating Specification
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
SMA Male Connector Solder Attachment For RG174, RG316, RG188 PE4036
PE4036 REV 1.2
1
