LXG80VS1200M22D datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> LXG80VS1200M22D

LXG80VS1200M22D: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 80V, 20% +Tol, 20% -Tol, 1200uF, Through Hole Mount, CAN; CategoryPassive components capacitor; File Size80KB，4 Pages; ManufacturerNIPPON CHEMI-CON; Websitehttp://www.chemi-con.co.jp

Download Datasheet Parametric View All

LXG80VS1200M22D Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 80V, 20% +Tol, 20% -Tol, 1200uF, Through Hole Mount, CAN

LXG80VS1200M22D Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	1200 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e0
leakage current	1.92 mA
Manufacturer's serial number	LXG
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	80 V
ripple current	1420 mA
surface mount	NO
Delta tangent	0.15
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

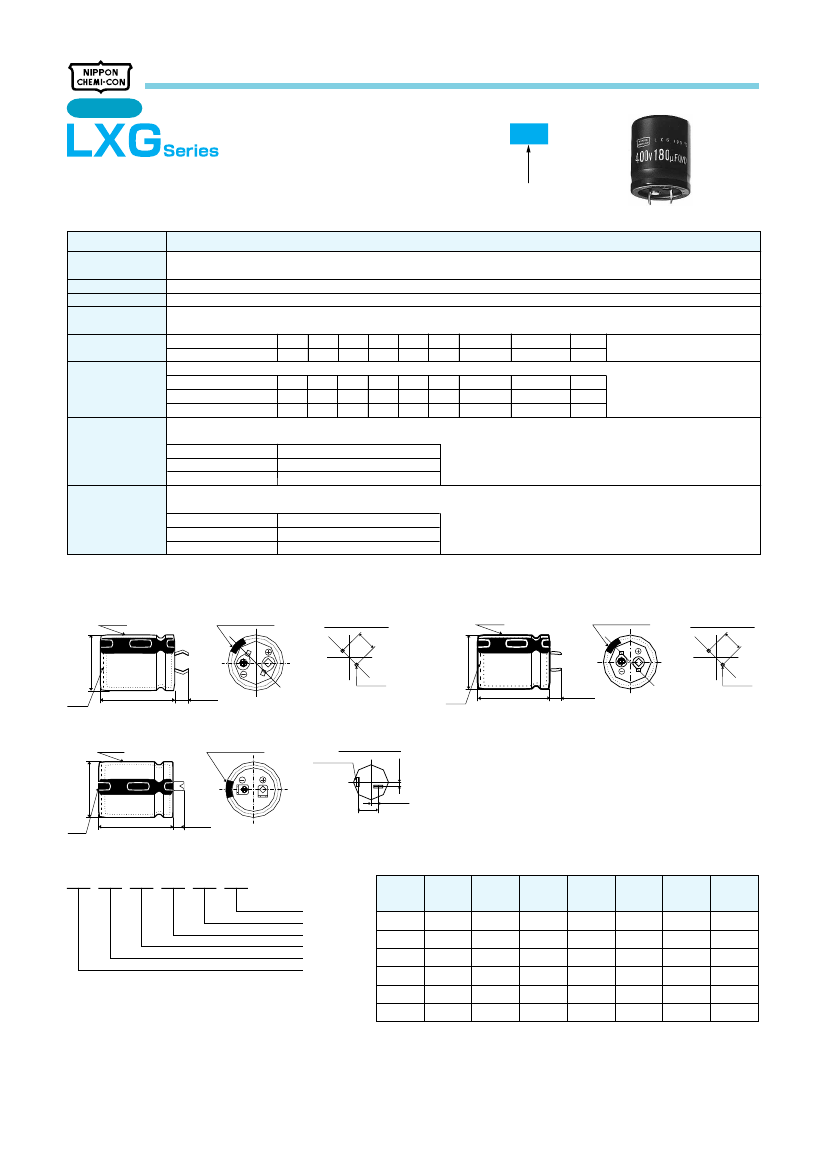

LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS

Upgrade!

LXG

@450V

is newly lined-up

@Load

life with ripple current : 105C 5000 hours

@Non-solvent

proof type

longer life

KMH

Long life snap-ins 105C

?SPECIFICATIONS

Items

Operating

Temperature Range

Rated Voltage Range

Capacitance Tolerance

Leakage Current

Dissipation Factor

(tane)

Low Temperature

Characteristics

(Max. Impedance Ratio)

-40 to +105C (10 to 100V

)

Characteristics

-25 to 105C (200 to 450V

)

Load Life

Shelf Life

(at 20C, 120Hz)

10 to 450V

P20%

(M)

I=0.02CV or 3mA, whichever is smaller.

(at 20C after 5 minutes)

Where, I : Max. leakage current (MA), C : Nominal capacitance (MF), V : Rated voltage (V)

10V 16V 25V 35V 50V 63V 80 & 100V 200 to 400V 450V

Rated Voltage (V

)

0.60 0.45 0.30 0.25 0.20 0.15

0.15

0.20

(at 20C, 120Hz)

tanE (Max.)

Capacitance change : Capacitance at the lowest operating temperature shall not be less than 70% of the 20C value.

Rated Voltage (V

)

10V 16V 25V 35V 50V 63V 80 & 100V 200 to 400V 450V

Z(-25C)/Z(+20C)

(at 120Hz)

Z(-40C)/Z(+20C)

The following specifications shall be satisfied when the capacitors are restored to 20C after subjected to DC voltage with maximum ripple

current is applied for 5000 hours at 105C.

Capacitance change

[P25%

of the initial value

DF (tanE)

[250%

of the initial specified value

Leakage current

[The

initial specified value

The following specifications shall be satisfied when the capacitors are restored to 20C after exposing them for 500 hours at 105C

without voltage applied.

Capacitance change

[P20%

of the initial value

DF (tanE)

[150%

of the initial specified value

Leakage current

[The

initial specified value

?DIMENSIONS

[mm]

@Terminal

type : VN (F22 to

F35)

Sleeve

FD+1max.

@Terminal

type : VS (F22 to

F35)

pc board pin-out

Sleeve

Negative mark

pc board pin-out

2-F2

LP2

5.8P1

FD+1max.

Vent

LP2

4.0P0.5

2-F2

*FD=35mm : 3.5P0.5mm

@Terminal

type : LI (F35)

Sleeve

FD+1max.

Negative mark

5P0.5

Vent

LP2

4.5P1

14.2P1

?PART

NUMBERING SYSTEM

LXG 100

1200

22F

Case code

Cap tolerance (P20%)

Nominal cap in

Terminal type (VN, VS or LI)

Rated voltage in volts

Series name

?CASE

CODE [mm]

Case code Case size Case code Case size Case code Case size Case code Case size

fDbL

22A

22B

22C

22D

22E

22F

22B25

22B30

22B35

22B40

22B45

22B50

25A

25B

25C

25D

25E

25F

25.4B25

25.4B30

25.4B35

25.4B40

25.4B45

25.4B50

30A

30B

30C

30D

30E

30F

30B25

30B30

30B35

30B40

30B45

30B50

35A

35B

35C

35D

35E

35F

35B25

35B30

35B35

35B40

35B45

35B50

4.2P0.5

pc board pin-out

2-1.2B6
