N Female Connector Crimp/Solder Attachment For
RG223, RG142, RG400, RG55, White Bronze
TECHNICAL DATA SHEET
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
N Female
RG223,RG142,RG400,RG55
Crimp/Solder
Straight
PE44789
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
1.45 [36.83]
0.67 [17.02]
0.11 [49.9]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Body Material and Plating
Dielectric Type
N Female
Phosphor Bronze, Gold
Brass, Nexcote
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
N Female Connector Crimp/Solder Attachment For RG223, RG142, RG400, RG55, White Bronze from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
N Female Connector Crimp/Solder Attachment For RG223, RG142, RG400, RG55, White Bronze
PE44789
URL:
http://www.pasternack.com/n-female-standard-rg223-rg142-rg400-rg55-connector-pe44789-p.aspx
PE44789 REV 1.0
1
PE44789

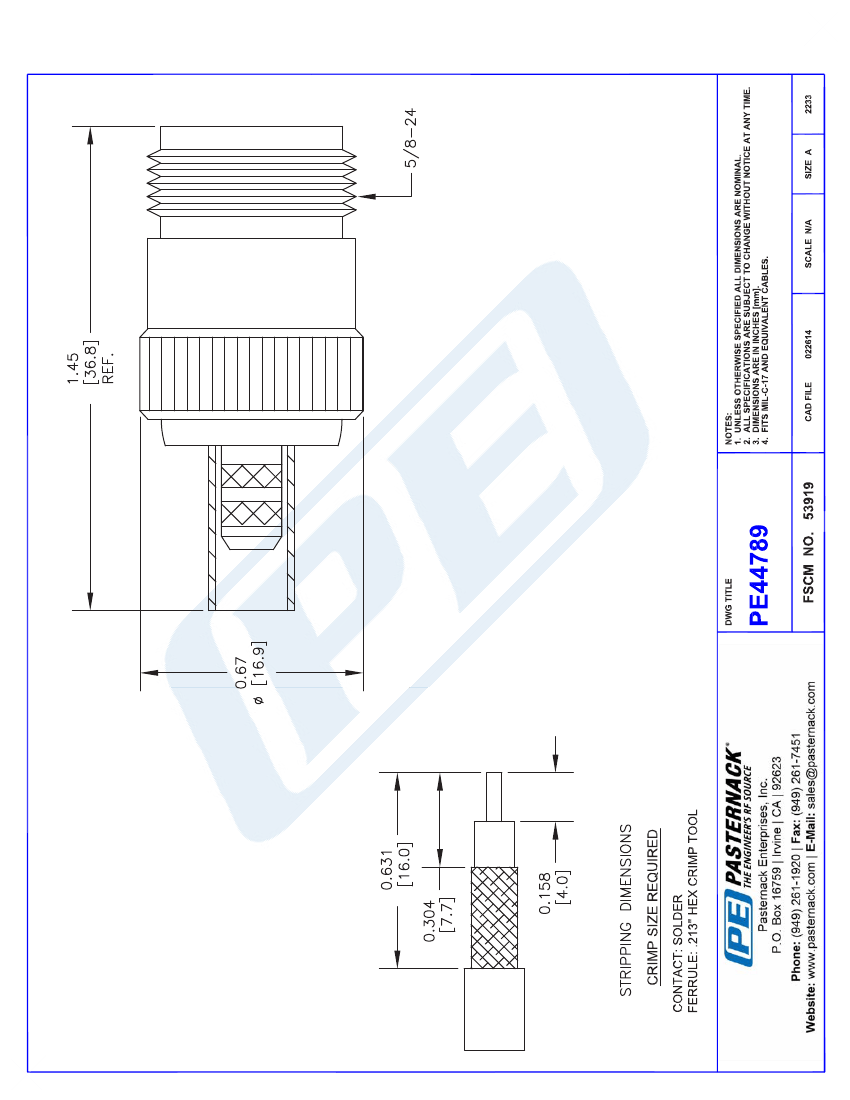

CAD Drawing
N Female Connector Crimp/Solder Attachment For RG223,
RG142, RG400, RG55, White Bronze
© 2014 Pasternack Enterprises All Rights Reserved
PE44789 REV 1.0
2
