IRL530S, SiHL530S
Vishay Siliconix
Power MOSFET
PRODUCT SUMMARY
V
DS
(V)
R
DS(on)
()
Q
g
(Max.) (nC)
Q
gs
(nC)
Q
gd
(nC)
Configuration
V
GS
= 5.0 V
28
3.8
14
Single
D
100
0.16
•
Halogen-free According to IEC 61249-2-21
Definition
• Surface Mount
• Available in Tape and Reel
• Dynamic dV/dt Rating
• Repetitive Avalanche Rated
• Logic Level Gate Drive
• R
DS(on)
Specified at V
GS
= 4 V and 5 V
• 175 °C Operating Temperature
• Compliant to RoHS Directive 2002/95/EC
FEATURES
D
2
PAK (TO-263)
DESCRIPTION
G
G D
S
S
N-Channel MOSFET
Third generation Power MOSFETs from Vishay provide the
designer with the best combination of fast switching,
ruggedized device design, low on-resistance and
cost-effectiveness.
The D
2
PAK (TO-263) is a surface mount power package
capable of accommodating die sizes up to HEX-4. It
provides the highest power capability and the lowest
possible on resistance in any existing surface mount
package. The D
2
PAK (TO-263) is suitable for high current
applications because of its low internal connection
resistance and can dissipate up to 2.0 W in a typical surface
mount application.
D
2
PAK (TO-263)
SiHL530STRR-GE3
a
IRL530STRRPbF
a
SiHL530STR-E3
a
ORDERING INFORMATION
Package
Lead (Pb)-free and Halogen-free
Lead (Pb)-free
Note
a. See device orientation.
ABSOLUTE MAXIMUM RATINGS
(T
C
= 25 °C, unless otherwise noted)
PARAMETER
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current
Pulsed Drain
Linear Derating Factor
Linear Derating Factor (PCB Mount)
e
Single Pulse Avalanche Energy
b
Repetitive Avalanche Current
a
Repetitive Avalanche Energy
a
Maximum Power Dissipation
Maximum Power Dissipation (PCB Mount)
e
Peak Diode Recovery dV/dt
c
Operating Junction and Storage Temperature Range
Soldering Recommendations (Peak Temperature)
Current
a
V
GS
at 5 V
T
C
= 25 °C
T
C
= 100 °C
SYMBOL
V
DS
V
GS
I
D
I
DM
LIMIT
100
± 10
15
11
60
0.59
0.025
290
15
8.8
88
3.7
5.5
- 55 to + 175
300
d
UNIT
V
A
W/°C
mJ
A
mJ
W
V/ns
°C
E
AS
I
AR
E
AR
T
C
= 25 °C
T
A
= 25 °C
P
D
dV/dt
T
J
, T
stg
for 10 s
Notes
a. Repetitive rating; pulse width limited by maximum junction temperature (see fig. 11).
b. V
DD
= 25 V, starting T
J
= 25 °C, L = 1.9 mH, R
g
= 25
,
I
AS
= 15 A (see fig. 12).
c. I
SD
15 A, dI/dt
140 A/μs, V
DD
V
DS
, T
J
175 °C.
d. 1.6 mm from case.
e. When mounted on 1" square PCB (FR-4 or G-10 material).
* Pb containing terminations are not RoHS compliant, exemptions may apply
Document Number: 91342
S11-1055-Rev. C, 30-May-11
www.vishay.com
1
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
IRL530S, SiHL530S
Vishay Siliconix
THERMAL RESISTANCE RATINGS
PARAMETER
Maximum Junction-to-Ambient
Maximum Junction-to Ambient (PCB
Maximum Junction-to-Case (Drain)
SYMBOL
R
thJA
R
thJA
R
thJC
TYP.
-
-
-
MAX.
62
40
1.7
°C/W
UNIT
Note
a. When mounted on 1" square PCB (FR-4 or G-10 material).
SPECIFICATIONS
(T
J
= 25 °C, unless otherwise noted)
PARAMETER
Static
Drain-Source Breakdown Voltage
V
DS
Temperature Coefficient
Gate-Source Threshold Voltage
Gate-Source Leakage
Zero Gate Voltage Drain Current
V
DS
V
DS
/T
J
V
GS(th)
I
GSS
I
DSS
R
DS(on)
g
fs
C
iss
C
oss
C
rss
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
L
D
L
S
Between lead,
6 mm (0.25") from
package and center
of die contact
D
SYMBOL
TEST CONDITIONS
MIN.
TYP.
MAX.
UNIT
V
GS
= 0, I
D
= 250 μA
Reference to 25 °C, I
D
= 1 mA
V
DS
= V
GS
, I
D
= 250 μA
V
GS
= ± 10 V
V
DS
= 100 V, V
GS
= 0 V
V
DS
= 80 V, V
GS
= 0 V, T
J
= 150 °C
V
GS
= 5.0 V
V
GS
= 4.0 V
I
D
= 9.0 A
b
I
D
= 7.5 A
b
100
-
1.0
-
-
-
-
-
6.4
-
0.14
-
-
-
-
-
-
-
-
-
2.0
± 100
25
250
0.16
0.22
-
V
V/°C
V
nA
μA
Drain-Source On-State Resistance
Forward Transconductance
Dynamic
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Total Gate Charge
Gate-Source Charge
Gate-Drain Charge
Turn-On Delay Time
Rise Time
Turn-Off Delay Time
Fall Time
Internal Drain Inductance
Internal Source Inductance
Drain-Source Body Diode Characteristics
Continuous Source-Drain Diode Current
Pulsed Diode Forward Current
a
Body Diode Voltage
Body Diode Reverse Recovery Time
Body Diode Reverse Recovery Charge
Forward Turn-On Time
S
V
DS
= 50 V, I
D
= 9.0 A
b
V
GS
= 0 V,
V
DS
= 25 V,
f = 1.0 MHz, see fig. 5
-
-
-
-
930
250
57
-
-
-
4.7
100
22
48
4.5
7.5
-
-
-
28
3.8
14
-
-
-
-
-
nH
-
ns
nC
pF
V
GS
= 5.0 V
I
D
= 15 A, V
DS
= 80 V,
see fig. 6 and 13
b
-
-
-
V
DD
= 50 V, I
D
= 15 A,
R
g
= 12
,
R
D
= 32, see fig. 10
b
-
-
-
-
G
-
S
I
S
I
SM
V
SD
t
rr
Q
rr
t
on
MOSFET symbol
showing the
integral reverse
p - n junction diode
D
-
-
-
-
-
-
-
-
150
0.93
15
A
60
2.5
200
1.4
V
ns
μC
G
S
T
J
= 25 °C, I
S
= 15 A, V
GS
= 0 V
b
T
J
= 25 °C, I
F
= 15 A, dI/dt = 100 A/μs
b
Intrinsic turn-on time is negligible (turn-on is dominated by L
S
and L
D
)
Notes
a. Repetitive rating; pulse width limited by maximum junction temperature (see fig. 11).
b. Pulse width
300 μs; duty cycle
2 %.
www.vishay.com
2
Document Number: 91342
S11-1055-Rev. C, 30-May-11
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
IRL530S, SiHL530S
Vishay Siliconix
TYPICAL CHARACTERISTICS
(25 °C, unless otherwise noted)

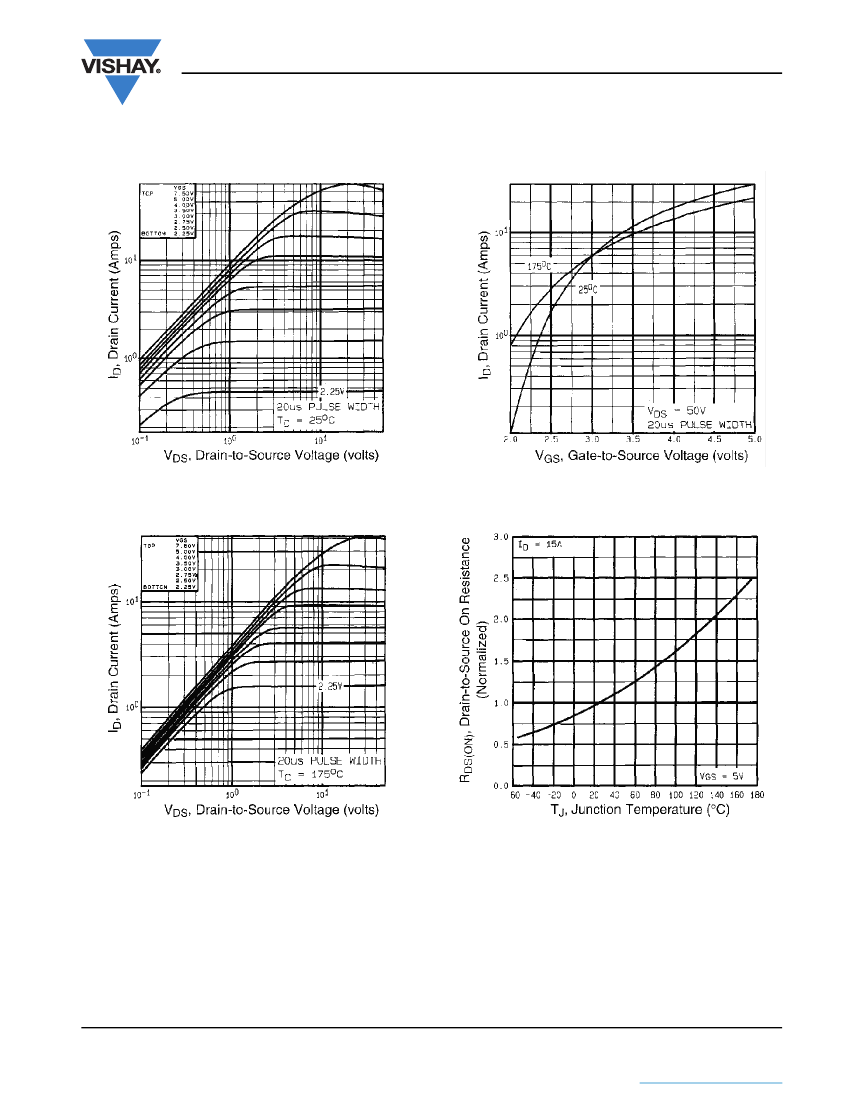

Fig. 1 - Typical Output Characteristics, T
C
= 25 °C
Fig. 3 - Typical Transfer Characteristics
Fig. 2 - Typical Output Characteristics, T
C
= 175 °C
Fig. 4 - Normalized On-Resistance vs. Temperature
Document Number: 91342
S11-1055-Rev. C, 30-May-11
www.vishay.com
3
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
IRL530S, SiHL530S
Vishay Siliconix

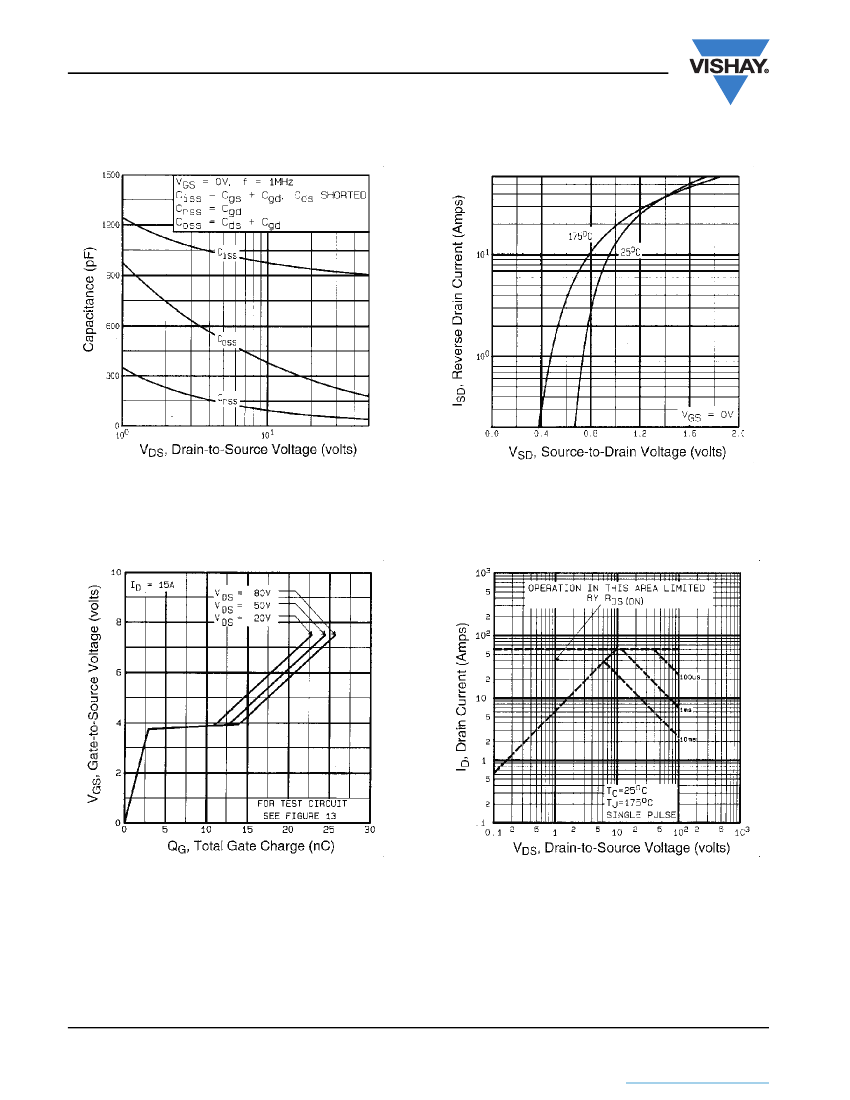

Fig. 5 - Typical Capacitance vs. Drain-to-Source Voltage
Fig. 7 - Typical Source-Drain Diode Forward Voltage
Fig. 6 - Typical Gate Charge vs. Gate-to-Source Voltage
Fig. 8 - Maximum Safe Operating Area
www.vishay.com
4
Document Number: 91342
S11-1055-Rev. C, 30-May-11
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
IRL530S, SiHL530S
Vishay Siliconix
R
D
V
DS
V
GS
R
g
D.U.T.
+
-
V
DD
5V
Pulse width
≤
1 µs
Duty factor
≤
0.1 %
Fig. 10a - Switching Time Test Circuit
V
DS
90 %
10 %
V
GS
t
d(on)
t
r
t
d(off)
t
f

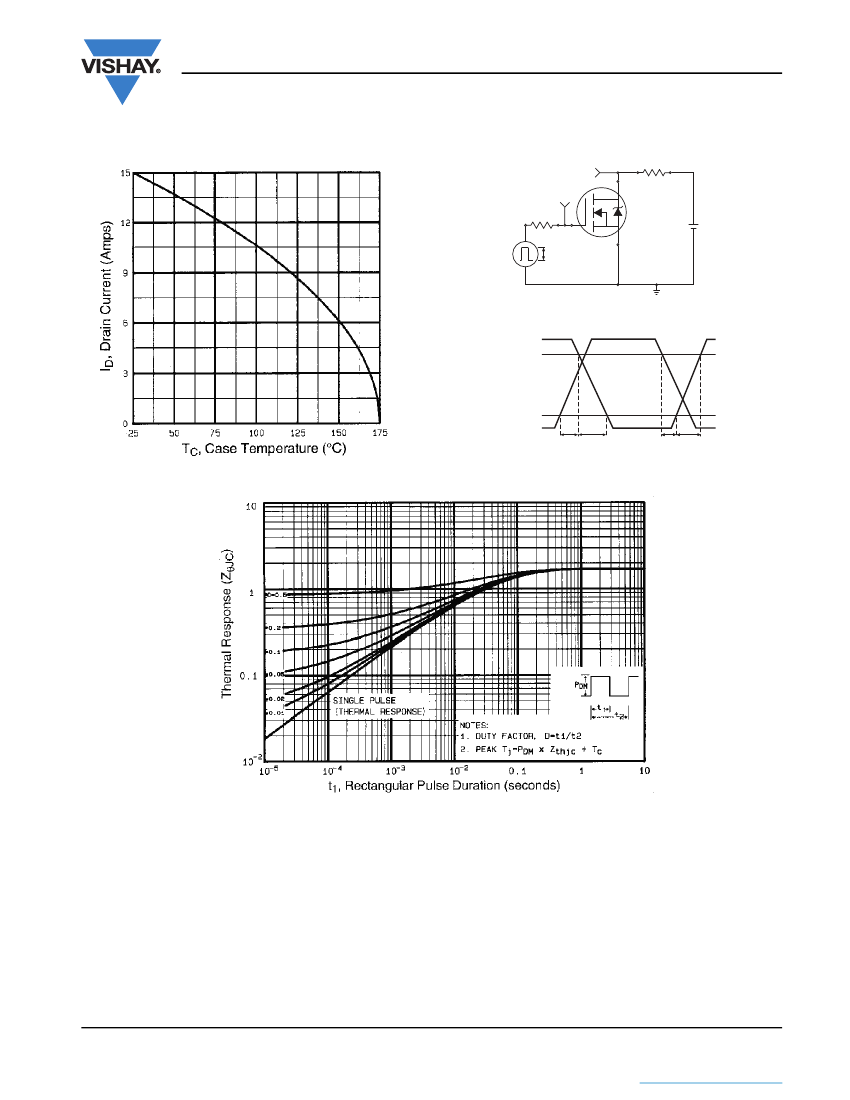

Fig. 9 - Maximum Drain Current vs. Case Temperature
Fig. 10b - Switching Time Waveforms
Fig. 11 - Maximum Effective Transient Thermal Impedance, Junction-to-Case
Document Number: 91342
S11-1055-Rev. C, 30-May-11
www.vishay.com
5
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
