GPEG22SR-TAS datasheet, PDF - EEWORLD Datasheet

GPEG22SR-TAS: DescriptionBoard Connector, 22 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Receptacle,; CategoryThe connector The connector; File Size434KB，4 Pages; ManufacturerCrane Connectors

Download Datasheet Parametric View All

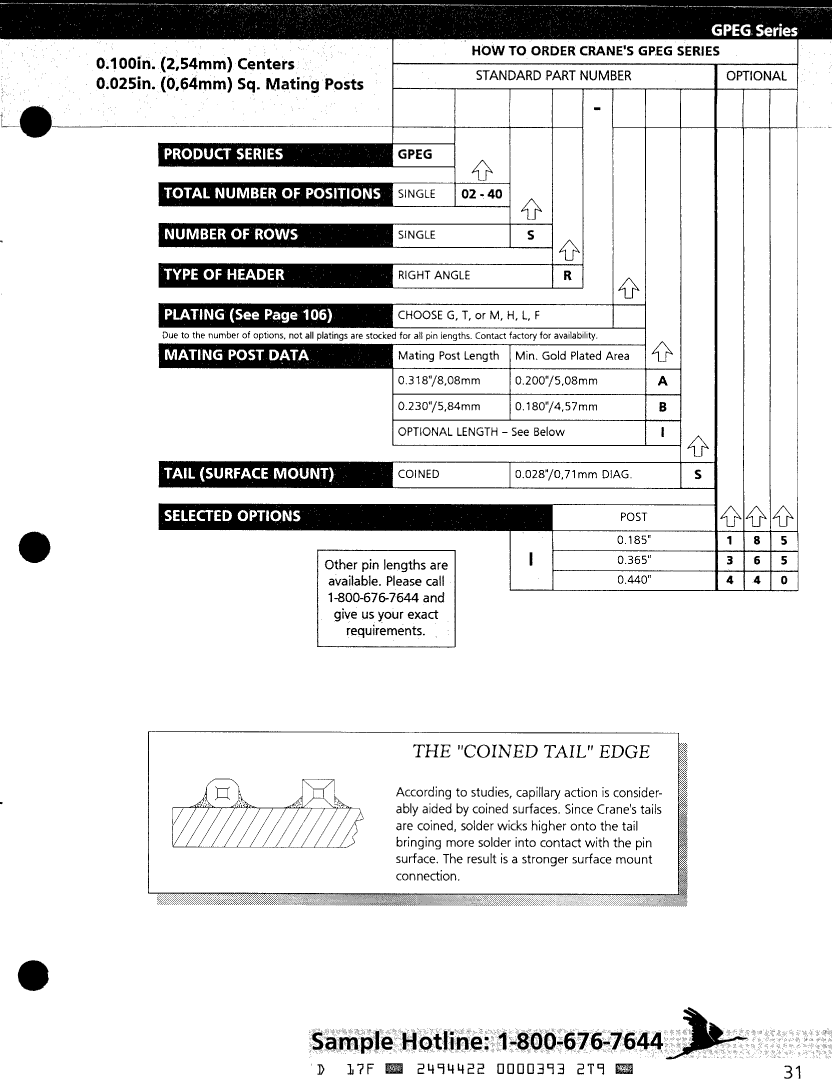

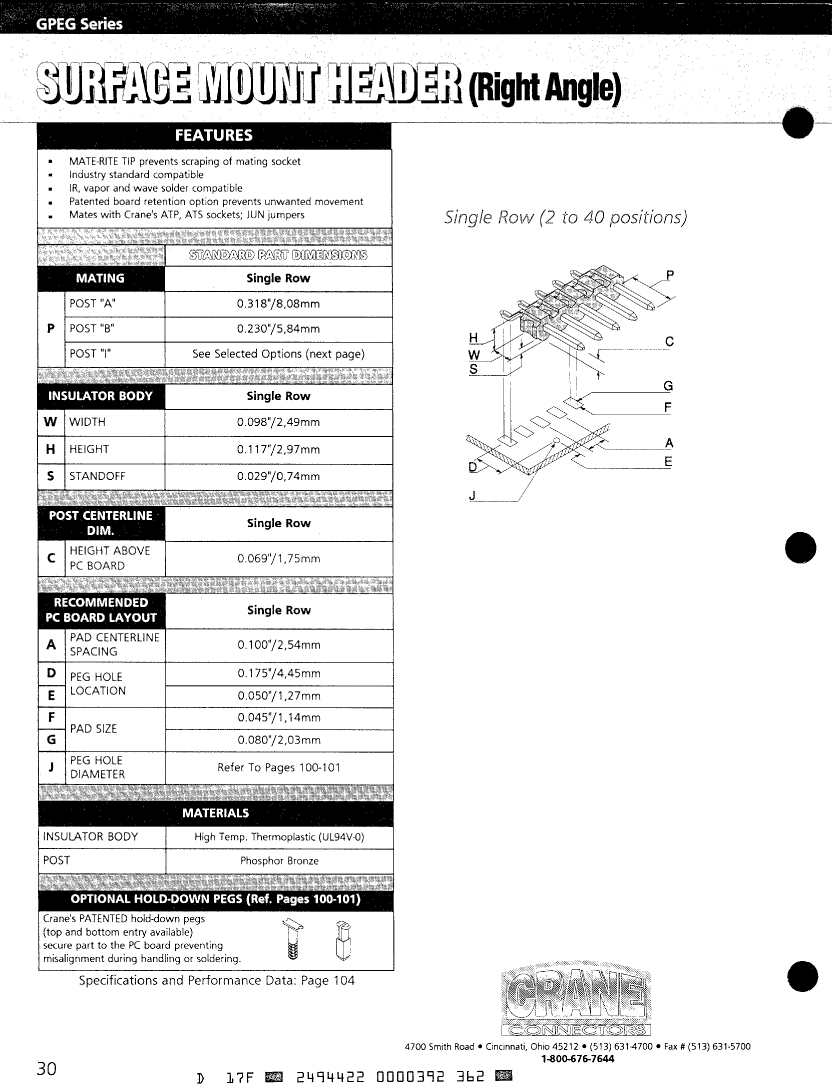

GPEG22SR-TAS Overview

Board Connector, 22 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Receptacle,

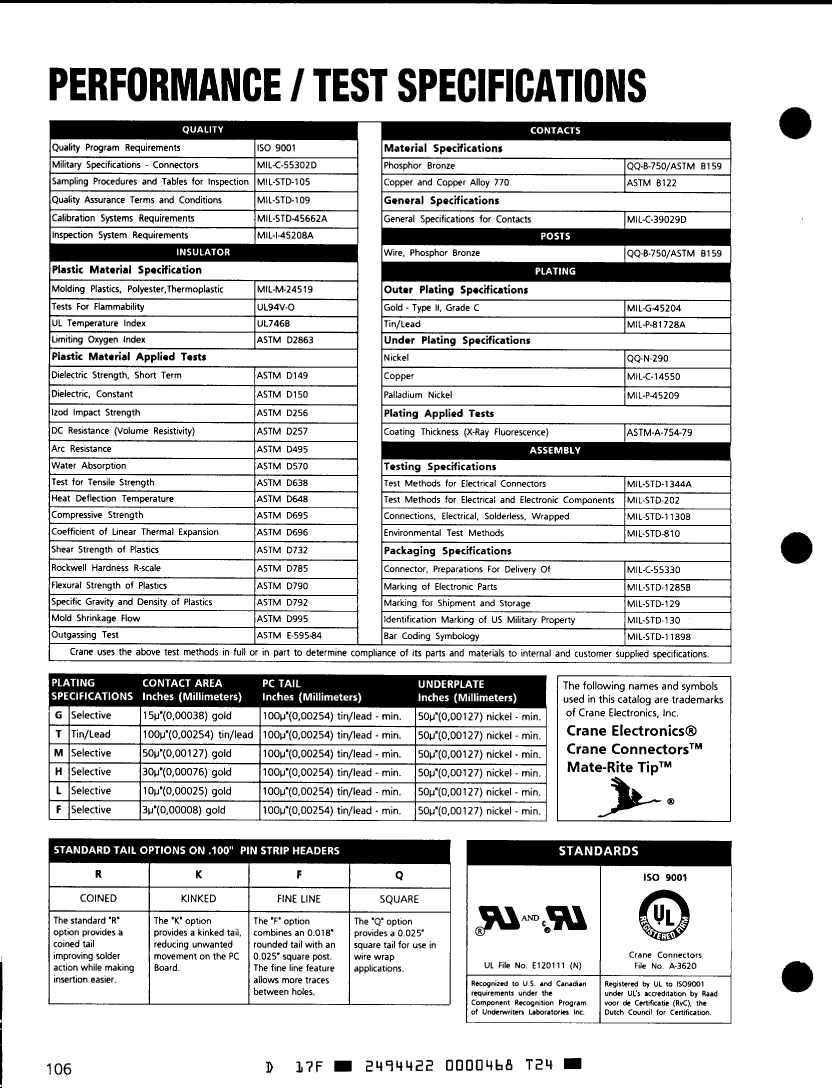

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.117 inch
body length	2.2 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB ON NI
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	50000000000 Ω
insulator material	THERMOPLASTIC
JESD-609 code	e0
Manufacturer's serial number	GPEG
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	220 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
Plating thickness	100u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Total number of contacts	22
