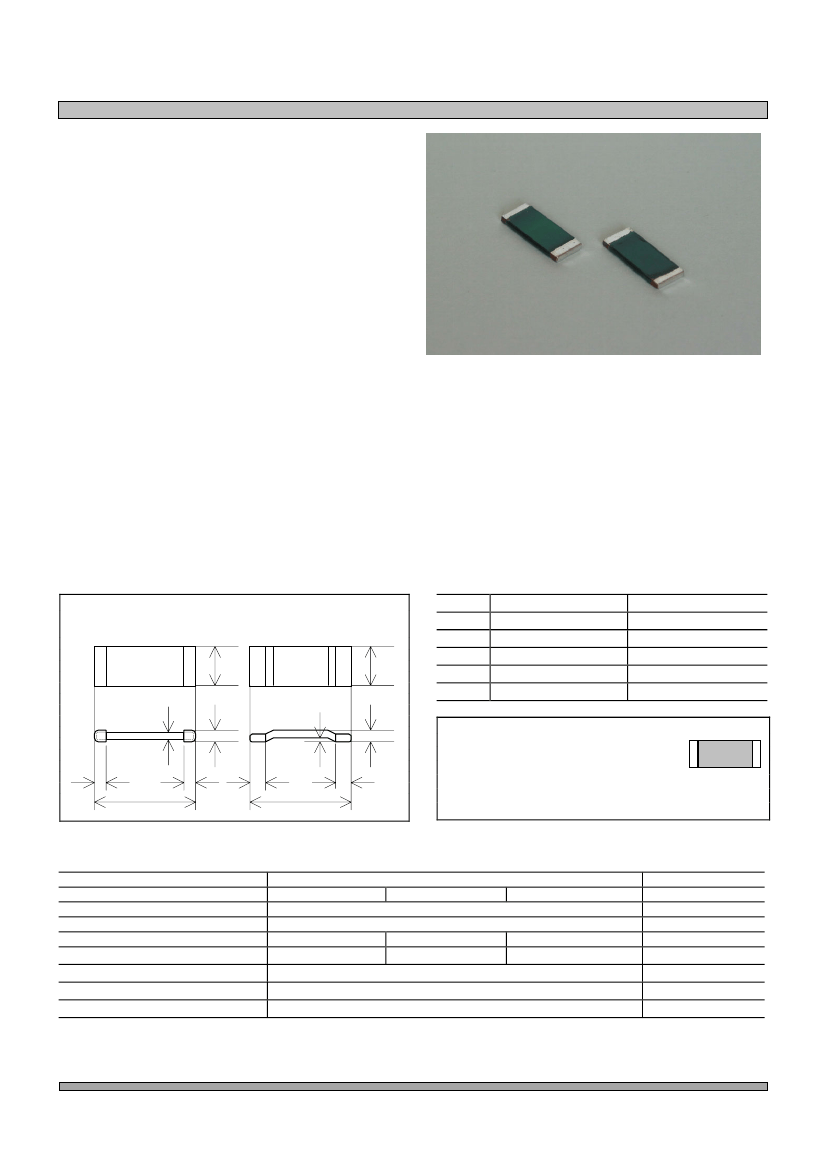

20A Current Shunt Chip Resistors
CS20, CS20J
Features
Surface mount, 12.8mm-5.0mm sized, 20 A rating currents, precision metal plate current shunt chip
resistors, 80 ppm/C TC and 1.0 % tolerance are in standard.
100A rush currents durability for 3 sec. is no problem.
0.5, 1.0, 2.0 and 5.0 milliohms are standard, please call factory about optional resistances values.
Zero resistance as jumper is available at same size.
Applications
High power DC/DC and DC/AC conversion circuit, intelligent power electronics modules of all industrial
switching power sources, AC actuators of electric automobile and AC motor control of air conditioning
electronics.
Dimensional Specifications (mm)
CS20
B
Marking
Type
A
B
C
D
E
CS20
12.8+/-0.5
5.0+/-0.2
2.5max.
(1.3)
2.0max.
CSJ20
12.8+/-0.5
5.0+/-0.2
2.5max.
(2.0)
0.5max.
CSJ20
B
E
C
E
C
(1) Marking shall be done with a method of
IEC 3digits notation.
D
A
D
D
A
D
R001
(2) Type, Resistance, TC, Tolerance and date code
shall be marked on surface of package.
Performances
Type
Resistance
TCR
Tolerance
Rating Current
Detecting Voltages
Maximum Current
Operating Temp.
Storage Temp.
CS20 and CSJ20
1.0m ohm
2.0m ohm
5.0m ohm
0-80ppm(A)
+/-1.0% (F), +/-5.0% (J)
20A
20A
20A
20mV
40mV
100mV
100A (short time within 5 seconds)
-55 to +175C
-55 to +175C
CSJ20
0.04mohm
+0.4%/C
-
20A
-
100A
-55 to +175C
-55 to +175C

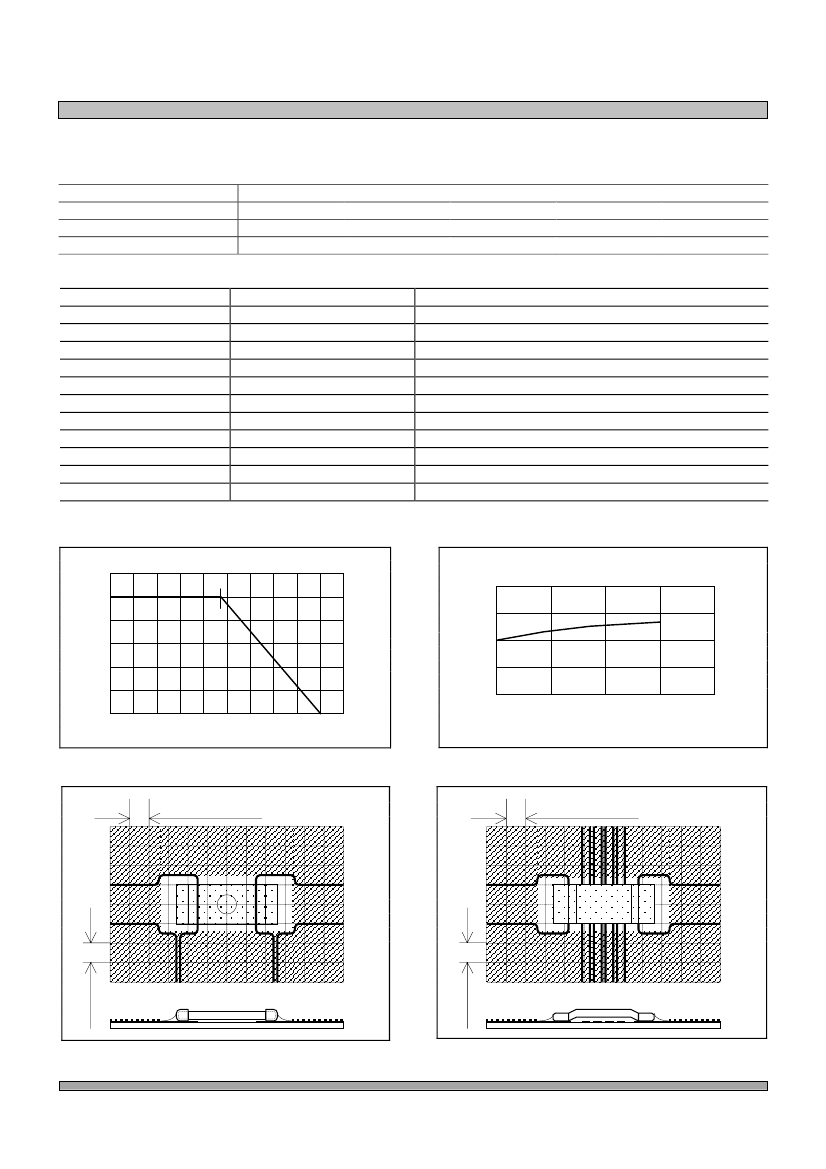

POWER SOLUTION - NIKKOHM
20A Current Shunt Chip Resistors
Ordering Information
Ordering P/N
CS20A1mohmF000
CS20A1mohmJ000
CSJ20-0ohm-000
Type
CS20
CS20
CSJ20
TC
A (100ppm)
A (100ppm)
-
Resistance
1mohm
5mohm
0ohm
Tolerance
F (1%)
J (5%)
-
Additional Code
000
000
000
CS20, CS20J
Specifications
Terms
Short Time Overload
Insulating Voltage
Withstanding Voltage
Heat Shock
Vibration
Soldering Heat
Solderability
Solvent
Terminal Strength
Humidity
Load Life
Specifications
+/-0.5%+0.1mohm)
+/-(0.5%+0.1mohm)
+/-(0.5%+0.1mohm)
+/-(0.5%+0.1mohm)
+/-(0.1%+0.1mohm)
+/-(0.5%+0.1mohm)
90%/surface
+/-(0.5%+0.1mohm)
+/-(0.5%+0.1mohm)
+/-(0.5%+0.1mohm)
Conditions
100A, maximum current, 5seconds.
260C, 10+/-1seconds.
40C, 90-95RH, DC0.1W, 1000 hours
70C, Rated Power, 90min ON, 30min OFF, 1000hours
Derating Curve
% Rating Current
120
100
80
60
40
20
0
-55
0
50
100
150
Ambient Temperature, C
175
200
70
Load life of detecting voltage
V/V%
+0.2
+0.1
0
-0.1
-0.2
1
10
100
hours
1000
10000
Foots Print CS20
2.54mm(100mil)
Foots Print CSJ20 Jumper
2.54mm(100mil)
Current
flow.
R001
Current
flow.
CSJ
Volt sensing.
2.54mm(100mil)
2.54mm(100mil)
