804-066-06

Description
Push-Pull Mighty Mouse Cobra
File Size149KB,1 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet View All

804-066-06 Overview

Push-Pull Mighty Mouse Cobra

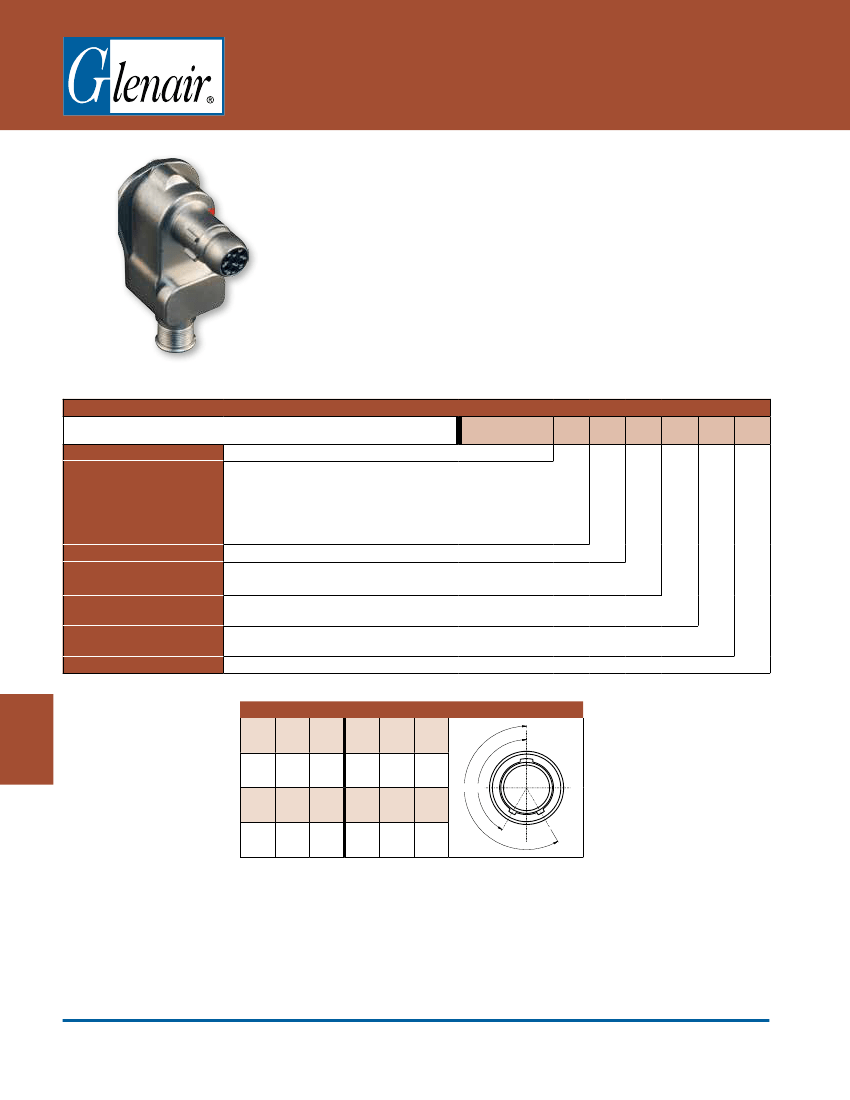

Series 804 Push-Pull Mighty Mouse Cobra™
Plug with Integral Cobra Backshell
804-066-06 Ordering Information
Series 804
plug with integral Cobra™ style ultra–low profile right angle banding
backshell reduces clearance requirements without compromising ruggedness,
environmental protection or shielding performance. Rear cover allows easy access
for soldering wires or installing snap–in crimp pins. Cover gasket prevents moisture
intrusion. Cover has lip for finger grip release. Eight clocking positions. Aluminum
or stainless steel housing, gold–plated copper alloy contacts, fluorosilicone
gasket. Crimp version features snap–in rear release contacts, LCP insulators and
fluorosilicone wire seal. Solder version features factory–installed, epoxy potted
solder cup contacts.
Available with 3 to 55 contacts, these 804 Cobra™ plugs feature size #23 contacts
for AWG 22-28 wire.
G
Series 804
Sample Part Number
Series
Shell Material and Finish
Cable Exit Direction
(See Table III)
Cable Entry Size (See Table II)
2
through
12
Code
A
B
C
150°
75°
95°
© 2014 Glenair, Inc.
How To Order
804-066-06
804-066-06
= Push Pull Plug
M
= Aluminum / Electroless Nickel; RoHS Compliant
MT
= Aluminum / Nickel-PTFE RoHS Compliant
NF
= Aluminum / Cadmium with Olive Drab Chromate
ZNU
= Aluminum / Zinc-Nickel with Black Chromate
Z1
= Stainless Steel / Passivated; RoHS Compliant
Shell Size - Insert Arrangement
5-3, 6-4, 6-6, 6-7, 7-10, 8-13, 9-19, 10-26, 12-37, 14-55
A
= Pin, Solder Cup
P
= Pin, Crimp
Contact Type
B
= Socket, Solder Cup
S
= Socket, Crimp
Shell Key Positions
Omit
= Single Master Key
A
= Normal
B
= Pos. B
C
= Pos. C
D
= Pos. D
(See Table I)
1
through
8
See Exit Direction Table
ZNU 8-13
P
A
1
05
E
= Pos. E
F
= Pos. F
Table I: Key Positions
210°
210°
230°
Code
D
E
F
140°
75°
95°
275°
B° A°
275°
210°
Dimensions in Inches (millimeters) are subject to change without notice.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
G-8
