805-003

Description
ALUMINUM ALLOY; STAINLESS STEEL, FEMALE; MALE, CIRCULAR CONNECTOR, CRIMP, RECEPTACLE
CategoryThe connector    The connector
File Size210KB,1 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet Parametric View All

805-003 Overview

ALUMINUM ALLOY; STAINLESS STEEL, FEMALE; MALE, CIRCULAR CONNECTOR, CRIMP, RECEPTACLE

805-003 Parametric

Parameter NameAttribute value
MakerGlenair
Reach Compliance Codecompli
Other featuresPOLARIZED, MAX CONTACTS(SERIES)=85
Back shell typeSOLID
Body/casing typeRECEPTACLE
Connector typeCIRCULAR CONNECTOR
Contact point genderFEMALE; MALE
Coupling typeTHREADED
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial number805
Mixed contactsNO
Installation typeCABLE; PANEL
OptionsGENERAL PURPOSE
Shell materialALUMINUM ALLOY; STAINLESS STEEL
Termination typeCRIMP

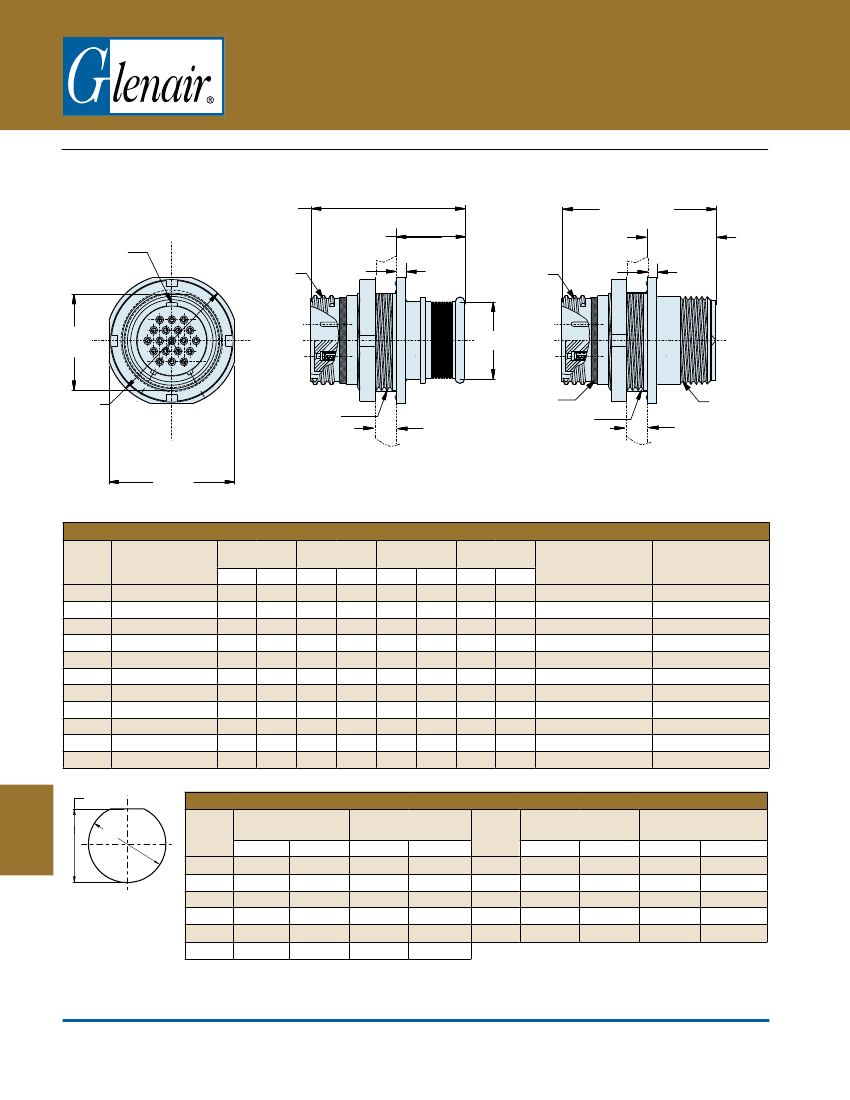

Series 805 Mighty Mouse
Triple-Start ACME Thread Receptacle
805-003 and 805-004 Shell Style -07 Dimensions
H
Series 805
1.188 (30.18) MAX
MASTER
KEYWAY
A THREAD
E
FLAT
øC
D FLAT
TYP
Shell
Size
8
9
10
11
12
13
15
18
19
21
23
A Thread
.5000-.1P-.3L-TS-2A
.5625-.1P-.3L-TS-2A
.6250-.1P-.3L-TS-2A
.6875-.1P-.3L-TS-2A
.7500-.1P-.3L-TS-2A
.8125-.1P-.3L-TS-2A
.9375-.1P-.3L-TS-2A
1.1250-.1P-.3L-TS-2A
1.1875-.1P-.3L-TS-2A
1.3125-.1P-.3L-TS-2A
1.4375-.1P-.3L-TS-2A
In.
.316
.397
.472
.519
.585
.646
.687
.884
.884
1.003
1.134
ØB
mm.
8.03
10.08
11.99
13.18
14.86
16.41
17.45
22.45
22.45
25.48
28.80
N FLAT
øP
Shell
Size
8
9
10
11
12
13
N Flat
In.
.547/.543
.673/.669
.673/.669
.733/.729
.796/.792
.853/.849
© 2014 Glenair, Inc.
Jam nut, rear panel mount receptacle - shell style 07
1.188 (30.18)
MAX
.430
.430 (10.92)
MAX
.060
(1.52)
A THREAD
(10.92)
MAX
.060
(1.52)
øB
F THREAD
RED FULL MATE
INDICATOR BAND
F THREAD
.100 (2.54) MAX
PANEL THICKNESS
G THREAD
.100 (2.54) MAX
PANEL THICKNESS
Band Platform
805-003
Dimensions
ØC
In.
.760
.880
.880
.955
1.060
1.120
1.203
1.389
1.450
1.590
1.705
mm.
19.30
22.35
22.35
24.26
26.92
28.45
30.56
35.28
36.83
40.39
43.31
D Flat
In.
.730
.850
.850
.925
1.035
1.090
1.173
1.359
1.420
1.560
1.675
mm.
18.54
21.59
21.59
23.50
26.29
27.69
29.79
34.52
36.07
39.62
42.55
E Flat
In.
.535
.661
.661
.721
.784
.843
.970
1.147
1.221
1.350
1.470
mm.
13.59
16.79
16.79
18.31
19.91
21.41
24.64
29.13
31.01
34.29
37.34
Accessory Thread
805-004
F Threads
.5625-28 UNEF-2A
.6875-28 UN-2A
.6875-28 UN-2A
.7500-28 UN-2A
.8125-28 UN-2A
.8750-28 UN-2A
1.0000-28 UN-2A
1.1875-28 UN-2A
1.2500-28 UN-2A
1.3750-28 UN-2A
1.5000-28 UN-2A
G Accessory
Thread
.3750-32 UNEF-2A
.4375-28 UNEF-2A
.5000-28 UNEF-2A
.5625-24 UNEF-2A
.6250-24 UNEF-2A
6875-24 UNEF-2A
.7500-20 UNEF-2A
.9375-20 UNEF-2A
.9375-20 UNEF-2A
1.0625-18 UNEF-2A
1.1875-18 UNEF-2A
Jam Nut Panel Cut Out Dimensions
ØP
± 0.2
mm.
13.89/13.79
17.09/16.99
17.09/16.99
18.62/18.51
20.22/20.11
21.67/21.56
In.
.575/.571
.700/.696
.700/.696
.762/.758
.825/.821
.887/.883
mm.
14.61/14.50
17.78/17.67
17.78/17.67
19.35/19.25
20.96/20.85
22.53/22.43
Shell
Size
15
18
19
21
23
N Flat
In.
.982/.978
mm.
In.
24.94/24.84 1.012/1.008
ØP
mm.
25.70/25.60
30.48/30.38
32.06/32.20
35.22/ 35.12
38.40/ 38.30
1.159/1.155 24.44/29.34 1.200/1.196
1.223/1.229 31.06/31.22 1.262/1.258
1.360/1.356 34.54/34.44 1.387/1.383
1.482/1.478
37.64/37.54
1.512/1.508
Dimensions in Inches (millimeters) are subject to change without notice.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
H-16
